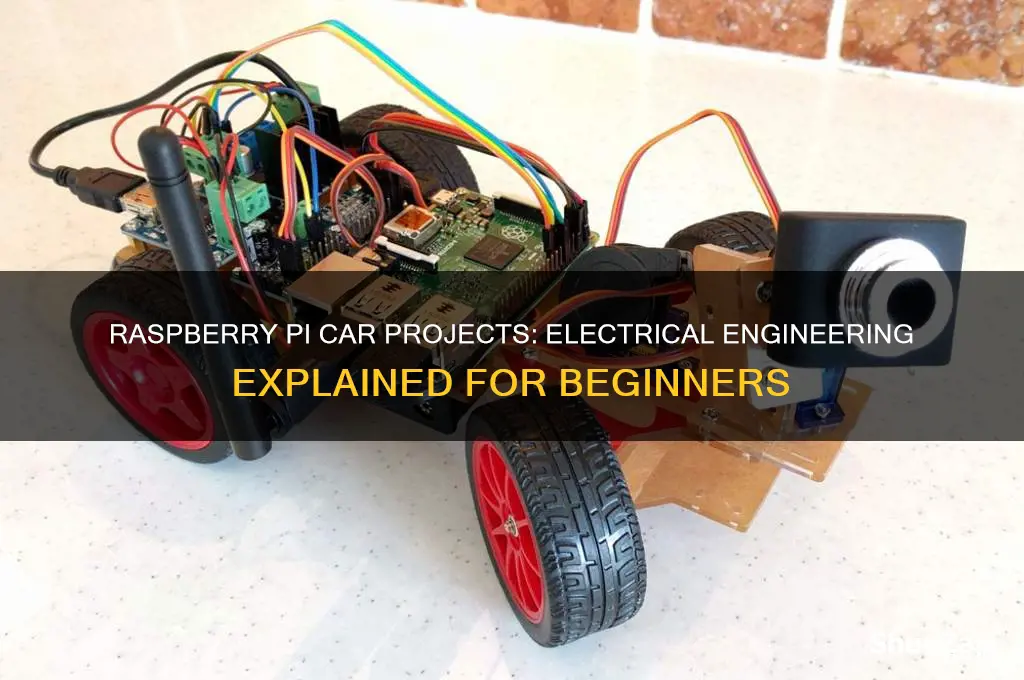

The Raspberry Pi, a compact and affordable single-board computer, has become a popular tool in the realm of electrical engineering, particularly for projects like building a Raspberry Pi car. This application leverages the Raspberry Pi's versatility, allowing enthusiasts and professionals alike to design and control autonomous or remote-controlled vehicles. By integrating sensors, motors, and other electronic components, the Raspberry Pi serves as the brain of the car, processing data and executing commands in real-time. Projects often involve programming in languages like Python, utilizing GPIO pins for hardware interfacing, and implementing algorithms for navigation and obstacle avoidance. Whether for educational purposes, hobbyist exploration, or prototyping advanced automotive systems, the Raspberry Pi car exemplifies the intersection of electrical engineering principles and innovative technology.
Explore related products
What You'll Learn
- Power Management: Efficient battery usage, voltage regulation, and power distribution for Raspberry Pi car systems
- Motor Control: DC motor drivers, PWM control, and speed regulation for precise vehicle movement
- Sensor Integration: Ultrasonic, IR, and camera sensors for navigation, obstacle detection, and environmental awareness
- Wireless Communication: Bluetooth, Wi-Fi, and IoT connectivity for remote control and data transmission
- Circuit Design: PCB layout, component selection, and wiring for reliable Raspberry Pi car electronics
Power Management: Efficient battery usage, voltage regulation, and power distribution for Raspberry Pi car systems
Raspberry Pi-powered car systems demand meticulous power management to ensure longevity, reliability, and performance. At the heart of this lies efficient battery usage, a critical factor for both portable and autonomous vehicles. Lithium-polymer (LiPo) batteries are a popular choice due to their high energy density, but their performance hinges on careful monitoring and management. For instance, discharging a LiPo battery below 3.0V per cell can cause irreversible damage, while charging above 4.2V per cell poses a safety risk. Implementing a battery management system (BMS) with voltage and current monitoring ensures safe operation within these thresholds, prolonging battery life and preventing hazards.
Voltage regulation is another cornerstone of power management in Raspberry Pi car systems. The Raspberry Pi operates optimally at 5V, but power sources like batteries or solar panels may fluctuate. A step-down (buck) converter can regulate higher voltages to a stable 5V, while a step-up (boost) converter ensures compatibility with components requiring higher voltages. For example, a 3.7V LiPo battery paired with a boost converter can safely power a 5V Raspberry Pi. Additionally, low-dropout (LDO) regulators offer simplicity and efficiency for low-power applications, though they may generate more heat than switching regulators. Selecting the right regulator depends on the system’s power requirements and efficiency goals.
Power distribution in Raspberry Pi car systems requires strategic planning to avoid overloading circuits and ensure stable operation. A common approach is to use a power distribution board (PDB) with multiple output channels, each protected by a fuse or polyswitch. This prevents a single component failure from disabling the entire system. For instance, dedicating one channel to the Raspberry Pi, another to motors, and a third to sensors minimizes interference and simplifies troubleshooting. Labeling each channel and using color-coded wires enhances clarity during assembly and maintenance.
Efficient power management also involves optimizing the Raspberry Pi’s power consumption. Disabling unused peripherals like Wi-Fi, Bluetooth, and HDMI via software commands reduces draw. For example, running `sudo raspi-config` allows users to disable the camera or audio interfaces. Underclocking the CPU or using a low-power mode further conserves energy, though this may impact performance. Balancing power savings with functionality is key—a self-driving car may prioritize sensor processing over energy efficiency, while a data logger could afford more aggressive power-saving measures.
Finally, real-time monitoring and logging of power usage provide actionable insights for optimizing Raspberry Pi car systems. Tools like the INA219 sensor can measure voltage, current, and power consumption, feeding data to the Raspberry Pi for analysis. Visualizing this data via a dashboard or logging it to an SD card helps identify inefficiencies, such as power spikes during motor operation or idle drain from unused components. For example, a system drawing 500mA at rest indicates a potential issue, whereas 100mA aligns with expected values for a minimal setup. Regularly reviewing these metrics ensures the system operates at peak efficiency, maximizing runtime and reliability.
One Pedal Driving: A Standard Feature in All Electric Cars?
You may want to see also
Explore related products
Motor Control: DC motor drivers, PWM control, and speed regulation for precise vehicle movement
DC motors are the workhorses of Raspberry Pi-powered cars, but controlling their speed and direction requires more than just connecting wires. Enter the DC motor driver, a crucial component that acts as the intermediary between your Raspberry Pi and the motor. These drivers handle the high currents required by motors, protecting your Pi from damage while providing precise control. Popular options like the L298N and TB6612FNG offer dual-channel functionality, allowing independent control of two motors for differential steering.
When selecting a driver, consider factors like maximum current rating, voltage compatibility, and control interface. The L298N, for instance, can handle up to 2A per channel, making it suitable for smaller cars, while the TB6612FNG boasts a higher efficiency and lower heat dissipation, ideal for more demanding applications.
Pulse-width modulation (PWM) is the secret sauce for achieving smooth and precise motor control. This technique involves rapidly switching the power to the motor on and off, creating a series of pulses. By adjusting the width of these pulses (duty cycle), you control the average power delivered to the motor, effectively regulating its speed. The Raspberry Pi's GPIO pins can generate PWM signals, but dedicated motor driver boards often include built-in PWM controllers for more accurate and efficient operation.
A typical PWM frequency for motor control ranges from 1kHz to 20kHz. Experimenting with different frequencies can help minimize motor noise and vibration. Remember, higher frequencies generally result in smoother control but may require more processing power from your Pi.
Achieving consistent speed across varying loads and terrain is crucial for precise vehicle movement. This is where closed-loop control systems come into play. By incorporating feedback from sensors like encoders or tachometers, you can adjust the PWM duty cycle in real-time to maintain a desired speed. For example, if your car encounters an uphill slope, the encoder will detect a decrease in speed, prompting the controller to increase the PWM duty cycle and compensate for the additional load.
Implementing closed-loop control requires programming skills and an understanding of control theory. The PID (Proportional-Integral-Derivative) controller is a widely used algorithm for this purpose. It calculates the error between the desired and actual speed, then adjusts the PWM signal based on proportional, integral, and derivative terms. Tuning the PID parameters (Kp, Ki, Kd) is essential for optimal performance, balancing responsiveness and stability.
Mastering motor control is key to building a Raspberry Pi car that moves with precision and agility. By combining the right DC motor drivers, PWM techniques, and closed-loop control strategies, you can create a vehicle capable of navigating complex paths, overcoming obstacles, and responding to real-world conditions. Remember, experimentation and iterative refinement are essential in this process, so don't be afraid to tinker, test, and learn from your mistakes.
Electric Drive: Is the Toyota Prius Plug-in a True EV?
You may want to see also
Explore related products
Sensor Integration: Ultrasonic, IR, and camera sensors for navigation, obstacle detection, and environmental awareness
Sensor integration is the backbone of any autonomous vehicle, and the Raspberry Pi car is no exception. By combining ultrasonic, infrared (IR), and camera sensors, you create a robust system for navigation, obstacle detection, and environmental awareness. Each sensor type brings unique strengths: ultrasonic sensors excel at short-range distance measurement, IR sensors detect proximity and surface characteristics, and cameras provide visual context for object recognition and path planning. Together, they form a multi-layered perception system that mimics human spatial awareness, enabling the Raspberry Pi car to navigate complex environments with precision.
To implement this integration, start by mounting ultrasonic sensors at the front and rear bumpers for collision avoidance. Use HC-SR04 sensors, which operate at 40 kHz and provide accurate distance readings up to 4 meters. For IR sensors, place Sharp GP2Y0A21YK0F modules along the sides to detect obstacles within a 10–80 cm range. These sensors are ideal for tight spaces where ultrasonic sensors might struggle. Finally, equip the car with a Raspberry Pi Camera Module V2 for real-time visual input. Position it at a 45-degree angle to capture both ground-level and forward-facing views, ensuring maximum coverage.
The challenge lies in synchronizing sensor data for cohesive decision-making. Write Python scripts using libraries like RPi.GPIO for sensor interfacing and OpenCV for image processing. Implement a sensor fusion algorithm to combine data streams: for instance, use ultrasonic readings for immediate obstacle detection, IR for fine-tuning lateral movements, and camera input for long-term path planning. Calibrate sensors to account for environmental factors like lighting changes or surface reflectivity, which can skew readings. For example, IR sensors may struggle on black surfaces, so cross-reference their data with camera input to avoid false positives.
A practical tip is to create a sensor prioritization hierarchy based on scenario demands. In open environments, rely more on camera data for navigation, while in cluttered spaces, prioritize ultrasonic and IR sensors for obstacle avoidance. Test the system iteratively, starting with individual sensor functionality before integrating them. Use a breadboard for initial wiring to avoid permanent damage, and employ a 5V power supply with adequate amperage to prevent sensor malfunction. For advanced users, consider adding a LiDAR module for 360-degree mapping, though this increases complexity and cost.
The takeaway is that sensor integration transforms a basic Raspberry Pi car into an intelligent, adaptive machine. By leveraging the complementary strengths of ultrasonic, IR, and camera sensors, you achieve a balance between precision, range, and contextual awareness. This setup not only enhances the car’s autonomy but also serves as a scalable foundation for future upgrades, such as machine learning-based object recognition or real-time mapping. With careful planning and execution, your Raspberry Pi car can navigate the real world with the sophistication of far more expensive systems.
Safe Cleaning Tips: Essential Tools for Electrical Equipment Maintenance
You may want to see also
Explore related products
![ANDERY Car Phone Holder for Magsafe [78+LBS Strongest Suction & 2400gf Magnetic] 360° Adjustable Car Phone Mount, Phone Holders for Your Car for iPhone 17 Pro Max 16 15 14 13 12 Air Plus, Carbon Fiber](https://m.media-amazon.com/images/I/712lUnThXpL._AC_UY218_.jpg)
Wireless Communication: Bluetooth, Wi-Fi, and IoT connectivity for remote control and data transmission
Wireless communication is the backbone of modern remote-controlled vehicles, and the Raspberry Pi car is no exception. By leveraging Bluetooth, Wi-Fi, and IoT connectivity, you can achieve seamless remote control and real-time data transmission. Bluetooth, operating in the 2.4 GHz band, is ideal for short-range control (up to 10 meters) with low latency, making it perfect for joystick-based steering and throttle commands. For example, pairing a Bluetooth gamepad to the Raspberry Pi allows for intuitive driving without the complexity of long-range setups. However, its limited range restricts its use to close-proximity applications.
Wi-Fi, on the other hand, extends the control range significantly, often up to 50 meters or more, depending on the environment. By setting up a Wi-Fi access point on the Raspberry Pi, you can stream live video from an onboard camera or transmit sensor data (e.g., speed, battery voltage) to a smartphone or laptop. For instance, using a Wi-Fi-enabled camera module like the Raspberry Pi Camera V2 and a Python script with OpenCV can create a live video feed accessible via a web interface. Caution: Wi-Fi’s higher power consumption and potential interference in crowded networks require careful power management and channel selection.
IoT connectivity takes wireless communication a step further by integrating the Raspberry Pi car into a larger network of devices. Using MQTT (Message Queuing Telemetry Transport) protocols, you can control the car and monitor its status from anywhere with internet access. For example, an MQTT broker like Mosquitto running on the Raspberry Pi can receive commands from a smartphone app or web dashboard and relay them to the car’s motor controller. This setup is particularly useful for autonomous applications, such as scheduling patrols or collecting environmental data. Practical tip: Use a cloud service like AWS IoT Core or Adafruit IO for secure and scalable IoT integration.
When implementing these wireless technologies, consider the trade-offs. Bluetooth is simple and energy-efficient but limited in range. Wi-Fi offers greater flexibility and bandwidth but consumes more power. IoT connectivity provides global reach but requires robust security measures to prevent unauthorized access. For instance, always use WPA2 encryption for Wi-Fi and secure MQTT connections with TLS certificates. By combining these technologies thoughtfully, you can create a Raspberry Pi car that is not only remotely controllable but also a data-rich, interconnected device.
In conclusion, wireless communication transforms the Raspberry Pi car from a simple RC vehicle into a sophisticated, network-enabled machine. Whether you’re building a hobbyist project or a prototype for industrial applications, understanding the strengths and limitations of Bluetooth, Wi-Fi, and IoT connectivity is crucial. Start with Bluetooth for basic control, upgrade to Wi-Fi for enhanced capabilities, and embrace IoT for full integration into smart ecosystems. With the right tools and knowledge, the possibilities are virtually limitless.
Driving Electric: How It Differs from Traditional Gasoline Vehicles
You may want to see also
Explore related products
Circuit Design: PCB layout, component selection, and wiring for reliable Raspberry Pi car electronics
Raspberry Pi-powered cars demand meticulous circuit design to handle vibrations, temperature fluctuations, and power spikes inherent in automotive environments. A well-designed PCB layout is the foundation. Prioritize compactness to minimize wiring length and potential interference, while ensuring adequate spacing between components to prevent short circuits. Utilize ground planes and power planes to reduce noise and maintain signal integrity. Consider a multi-layer PCB for complex designs, allowing dedicated layers for power, ground, and signals.
For instance, placing the Raspberry Pi's GPIO pins near the motor driver IC minimizes signal degradation and improves responsiveness.
Component selection is equally critical. Opt for automotive-grade components rated for a wide temperature range (-40°C to +85°C) and vibration resistance. Choose voltage regulators with sufficient current capacity to handle peak loads from motors and sensors. Capacitors should be rated for high temperatures and ripple current. For example, a 1000µF electrolytic capacitor with a 105°C rating can effectively smooth power supply fluctuations. When selecting motors, consider gear ratios and stall currents to match your car's desired speed and torque requirements.
Leveraging components like the L298N motor driver, known for its robustness and ease of interfacing with the Raspberry Pi, simplifies control and ensures reliable operation.
Wiring requires a strategic approach. Use stranded wire for flexibility and resistance to vibration. Keep wires short and neatly bundled to minimize electromagnetic interference. Employ crimp connectors or solder joints for secure connections, avoiding loose wires that can cause shorts or intermittent faults. Label wires clearly for easy troubleshooting and future modifications. Consider using heat shrink tubing to protect connections and prevent accidental contact.
The key to reliable Raspberry Pi car electronics lies in a holistic approach. A well-designed PCB, carefully selected components, and meticulous wiring work in tandem to create a robust system capable of withstanding the rigors of the road. By prioritizing these aspects, you'll build a Raspberry Pi car that's not just functional, but also durable and dependable.
Top Energy-Draining Electrical Items in Your Home: What to Watch
You may want to see also
Frequently asked questions
A Raspberry Pi car is a small, autonomous or remote-controlled vehicle built using a Raspberry Pi as the central control unit. It integrates electrical engineering principles such as circuit design, motor control, sensor integration, and power management to create a functional robotic or IoT-based car.
Building a Raspberry Pi car requires skills in circuit design, programming (Python, C/C++), motor control (H-bridges, PWM), sensor integration (ultrasonic, IR, cameras), power management, and basic electronics. Knowledge of GPIO pins and communication protocols like I2C or SPI is also essential.
Yes, a Raspberry Pi car can be used for real-world projects such as autonomous navigation, obstacle avoidance, IoT-based vehicle monitoring, and educational robotics. It serves as a practical platform to apply electrical engineering concepts and test prototypes in a scalable and cost-effective manner.
