The QRS complex is a graphical representation of electrical activity in the heart. It is a combination of three graphical deflections (waves) that are visible on an electrocardiogram (ECG). The QRS complex represents ventricular depolarization and indicates the beginning of systole and ventricular contraction. The duration of the QRS complex is typically between 80 and 100 milliseconds in adults, and it is considered abnormal if it exceeds 120 milliseconds. This electrical event triggers the mechanical contraction of the ventricles, which is essential for maintaining effective blood circulation throughout the body.
| Characteristics | Values |
|---|---|
| Definition | The QRS complex is the combination of three graphical deflections (Q, R, and S waves) seen on a typical electrocardiogram (ECG or EKG) |
| Visuals | It is usually the central and most visually obvious part of the tracing |
| Electrical Activity | It corresponds to the depolarization of the right and left ventricles of the heart and contraction of the large ventricular muscles |
| Duration | In adults, the QRS complex normally lasts 80 to 120 milliseconds; in children, it may be shorter |
| Waves | The Q, R, and S waves occur in rapid succession, do not all appear in all leads, and reflect a single event and thus are usually considered together |
| Identification | A Q wave is any downward deflection immediately following the P wave. An R wave follows as an upward deflection, and the S wave is any downward deflection after the R wave |
| Measurement | To measure the QRS interval, start at the end of the PR interval (or beginning of the Q wave) to the end of the S wave |
| Axis | The QRS complex is often used to determine the axis of the electrocardiogram, although it is also possible to determine a separate P wave axis |
| Diagnosis | The duration, amplitude, and morphology of the QRS complex are useful in diagnosing cardiac arrhythmias, conduction abnormalities, ventricular hypertrophy, myocardial infarction, electrolyte derangements, and other disease states |
| Bundle Branch Block | In bundle branch block, there can be an abnormal second upward deflection within the QRS complex. This second upward deflection is referred to as R′ (pronounced "R prime") |
| Transition Zone | The transition zone is where the QRS complex changes from predominantly negative to predominantly positive (R/S ratio >1), usually occurring at V3 or V4 |
| Poor R Wave Progression | Poor R wave progression is commonly attributed to anterior myocardial infarction, left bundle branch block, Wolff–Parkinson–White syndrome, right and left ventricular hypertrophy, or faulty ECG recording technique |
| R Wave Peak Time | R wave peak time (RWPT) represents the time from the onset of the QRS complex to the peak of the R wave, usually measured in aVL and V5 or V6 leads |
| J-Point | The J-point is the point where the QRS complex meets the ST segment. It is important for diagnosing ST segment elevation myocardial infarction |
Explore related products
![8TURN Electric Heart : 찬란하게 빛날 [Standard Ver.] 2nd Single Album + Extra photocards](https://m.media-amazon.com/images/I/31e2HKWOYfL._AC_UY218_.jpg)
What You'll Learn
The QRS complex is the most visually obvious part of an ECG
An electrocardiogram (ECG) represents the electrical activity in a cardiac cycle. It is a vital diagnostic tool for identifying any deviations from normal cardiac activity and heart-related issues. The QRS complex is the most visually prominent part of an ECG. It is the central spike in a typical ECG, consisting of three graphical deflections: the Q wave, the R wave, and the S wave. These waves occur in rapid succession and reflect a single event, so they are usually considered together.
The QRS complex represents the electrical depolarization of the ventricles, specifically the contraction of the heart's main pumping chambers. This electrical signal triggers the mechanical contraction of the ventricles, leading to the ejection of blood into the arteries. It is a crucial part of the cardiac cycle and ensures efficient blood circulation throughout the body. The QRS complex usually lasts 80 to 100 milliseconds in adults, although this duration may be slightly shorter in children.
The Q wave is a downward deflection that immediately follows the P wave. It is always negative and indicates the beginning of the QRS complex. The R wave is an upward deflection and the sharp peak of the complex. The S wave is another downward deflection that follows the R wave. The combination of these three waves forms the distinctive QRS complex.
The duration, amplitude, and morphology of the QRS complex are important in diagnosing various heart conditions. For example, a prolonged QRS complex can indicate bundle branch block or hyperkalemia, while an increased amplitude of the R wave suggests cardiac hypertrophy. The QRS complex is also used to determine the axis of the electrocardiogram and can help identify cardiac arrhythmias, conduction abnormalities, ventricular hypertrophy, myocardial infarction, and other diseases.
In summary, the QRS complex is the most visually obvious part of an ECG because it represents the electrical depolarization and subsequent mechanical contraction of the ventricles. It is essential for effective heart function and plays a crucial role in maintaining efficient blood circulation throughout the body.
Outdoor Electric Fireplaces: Cozy, Convenient, and Customizable
You may want to see also
Explore related products
![8TURN Electric Heart : Shine Brightly Album [Standard Ver.]+Pre Order Benefits+BolsVos Exclusive Idol-Inspired Digital Merches](https://m.media-amazon.com/images/I/51SIOWg9RgL._AC_UY218_.jpg)
It represents ventricular depolarisation
An electrocardiogram (ECG) represents the electrical activity in a cardiac cycle. It is a vital tool for identifying any deviations from normal cardiac activity and diagnosing heart-related problems. The QRS complex is the most visually obvious part of the ECG tracing. It represents ventricular depolarisation, which is the beginning of systole and ventricular contraction. The QRS complex is a combination of three graphical deflections: Q, R, and S. These waves occur in rapid succession and reflect a single event.
The QRS complex is an essential aspect of ECG interpretation and clinical diagnosis. The duration, amplitude, and morphology of the QRS complex provide valuable information for healthcare professionals. For example, an analysis of the QRS complex can aid in the detection of coronary artery disease during an exercise stress test. Additionally, the QRS complex is used to determine the axis of the electrocardiogram.
Ventricular depolarisation refers to the electrical changes that occur during the ventricular contraction phase of the cardiac cycle. It involves the spread of electrical impulses across the ventricles, resulting in the coordination of ventricular muscle contraction. Ventricular depolarisation begins in the wall between the ventricles, known as the septum. Due to the high conduction velocity of the cells in this region, the associated negative wave has a short duration.
During ventricular depolarisation, the dominant direction of the vector gradually turns toward the exploring electrode. This change in vector direction results in a wave with negative polarity on the ECG. Once ventricular depolarisation is completed, the ECG returns to the isoelectric line, indicating the end of ventricular depolarisation and the start of ventricular repolarisation.
The QRS complex is closely associated with ventricular depolarisation. The duration of the QRS complex typically ranges from 80 to 100 milliseconds in adults, and it may be slightly shorter in children. The QRS duration represents the time interval from the onset to the completion of ventricular depolarisation. A prolonged QRS duration can indicate hyperkalemia or intraventricular block.
Hershel's Farm Electricity: Secrets of the Walking Dead
You may want to see also
Explore related products
It precedes ventricular contraction
The QRS complex is a graphical deflection observed on an electrocardiogram (ECG). It is the most visually obvious part of the tracing, appearing as a main spike. The QRS complex represents the electrical impulse as it spreads through the ventricles and indicates ventricular depolarization. This electrical event precedes ventricular contraction, which is the mechanical action that occurs in the heart.
The QRS complex is a combination of three graphical deflections: Q, R, and S. These waves occur in rapid succession, reflecting a single event and thus are considered together. The Q wave is a downward deflection, followed by an upward deflection, the R wave, and then another downward deflection, the S wave. The T wave follows the S wave and indicates ventricular repolarization.
The QRS complex represents the depolarization of the right and left ventricles of the heart and the contraction of the large ventricular muscles. It shows the beginning of systole and ventricular contraction. The electrical signal triggers the mechanical contraction of the ventricles, leading to the ejection of blood into the arteries. This sequence of electrical depolarization followed by mechanical contraction is essential for maintaining effective blood circulation throughout the body.
The duration of the QRS complex is important in clinical diagnosis. Typically, in adults, the QRS complex lasts between 80 and 100 ms, while in children, it may be slightly shorter. A prolonged QRS complex, lasting longer than 0.12 seconds, is considered abnormal and can indicate bundle branch block or hyperkalemia. The amplitude and morphology of the QRS complex are also useful in diagnosing various heart ailments, such as cardiac arrhythmias, ventricular hypertrophy, myocardial infarction, and conduction abnormalities.
The QRS complex plays a crucial role in understanding the electrical activity of the heart and is an important diagnostic tool for identifying deviations from normal cardiac activity and heart-related problems. By counting the number of QRS complexes in a minute, we can also determine a person's heartbeat rate.
Electric Blankets: What Voltage Do They Run On?
You may want to see also
Explore related products
It is used to diagnose cardiac arrhythmias
The QRS complex is a combination of three graphical deflections (Q, R, and S waves) seen on a typical electrocardiogram (ECG). It is the central and most visually obvious part of the tracing. The QRS complex is used to diagnose cardiac arrhythmias by observing its duration, amplitude, and morphology.
The QRS complex represents the depolarization of the right and left ventricles of the heart and the contraction of the large ventricular muscles. In adults, the QRS complex normally lasts between 80 and 100 ms, while in children, it may be slightly shorter. The Q, R, and S waves occur in rapid succession and reflect a single event, so they are usually considered together.
The duration of the QRS complex is important in diagnosing cardiac arrhythmias. When the duration is longer than the normal range, it is considered a wide QRS complex, which can indicate bundle branch block or hyperkalemia. The QRS complex is used to determine the axis of the electrocardiogram, which can be altered by ventricular hypertrophy or bundle branch blocks.
The amplitude of the QRS complex is also significant in diagnosing cardiac arrhythmias. An increased amplitude of the R wave, for example, can indicate cardiac hypertrophy. The presence of pathologic Q waves, which are taller than normal Q waves, can be markers of previous myocardial infarctions with subsequent fibrosis.
The morphology of the QRS complex refers to its shape and includes the consideration of various wave patterns. For instance, the presence of an abnormal second upward deflection within the QRS complex, referred to as R', indicates bundle branch block. The transition zone, where the QRS complex changes from predominantly negative to predominantly positive, is also important in diagnosing arrhythmias. Accurate R peak detection is crucial in signal processing equipment for heart rate measurement and is a key feature used for arrhythmia detection.
In summary, the QRS complex is a critical component of an ECG and plays a significant role in diagnosing cardiac arrhythmias. By analyzing the duration, amplitude, and morphology of the QRS complex, healthcare professionals can identify various heart ailments and conditions, such as bundle branch block, ventricular hypertrophy, myocardial infarction, and cardiac arrhythmias.
Butter on an Electric Griddle: What You Need to Know
You may want to see also
Explore related products

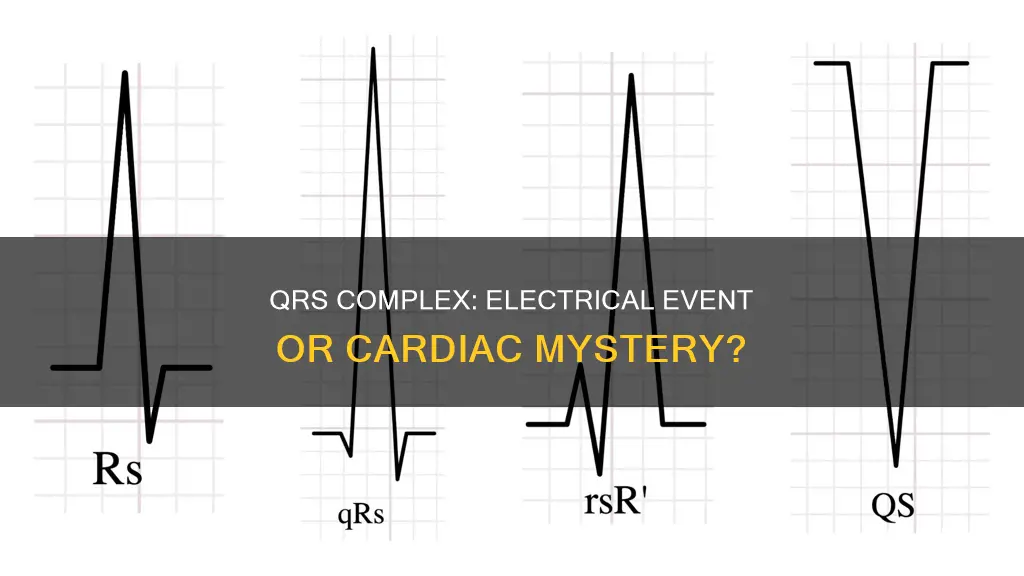

It is made up of Q, R, and S waves
The QRS complex is the combination of three graphical deflections observed on a typical electrocardiogram (ECG or EKG). It is the most visually obvious part of the tracing, representing ventricular depolarisation and the beginning of systole and ventricular contraction. The QRS complex or wave starts with a small deflection downwards, represented by the point Q, followed by a sharp peak, R, and then a deflection downwards, represented by S. These three waves occur in rapid succession, reflecting a single event and are thus considered together.
The Q wave is any downward deflection immediately following the P wave. The P wave, which comes before the QRS complex, represents atrial depolarisation and atrial contraction. Q waves can also relate to breathing and are generally small and thin. A pathologic Q wave is defined as having a deflection amplitude of 25% or more of the subsequent R wave or being > 0.04 seconds in width and > 2mm in amplitude.
The R wave follows as an upward deflection. The R wave peak time (RWPT) represents the time from the onset of the QRS complex to the peak of the R wave. The maximum amplitude in the R wave is usually called the "R peak amplitude" or "R peak". Accurate R peak detection is essential in signal processing equipment for heart rate measurement and is the main feature used for arrhythmia detection.
The S wave is any downward deflection after the R wave. The T wave follows the S wave, and in some cases, a U wave follows the T wave. The T wave represents ventricular repolarisation and the end of systole.
Ceiling Fan Electricity Consumption: Waste or Worth It?
You may want to see also
Frequently asked questions
The QRS complex is the combination of three graphical deflections (Q, R, and S waves) seen on a typical electrocardiogram (ECG). It represents the electrical impulse as it spreads through the ventricles and indicates ventricular depolarization.
The QRS complex is usually the central and most visually obvious part of an ECG tracing. It starts with a small deflection downwards (Q wave), followed by a sharp peak upwards (R wave), and then another deflection downwards (S wave).
In adults, the QRS complex normally lasts between 80 and 100 milliseconds (ms). It may be shorter in children. A duration of more than 120 ms is considered abnormal.
The QRS complex is important in clinical diagnosis as it helps in diagnosing various heart ailments. The duration, amplitude, and morphology of the QRS complex can indicate cardiac arrhythmias, conduction abnormalities, ventricular hypertrophy, myocardial infarction, electrolyte derangements, and other diseases.
