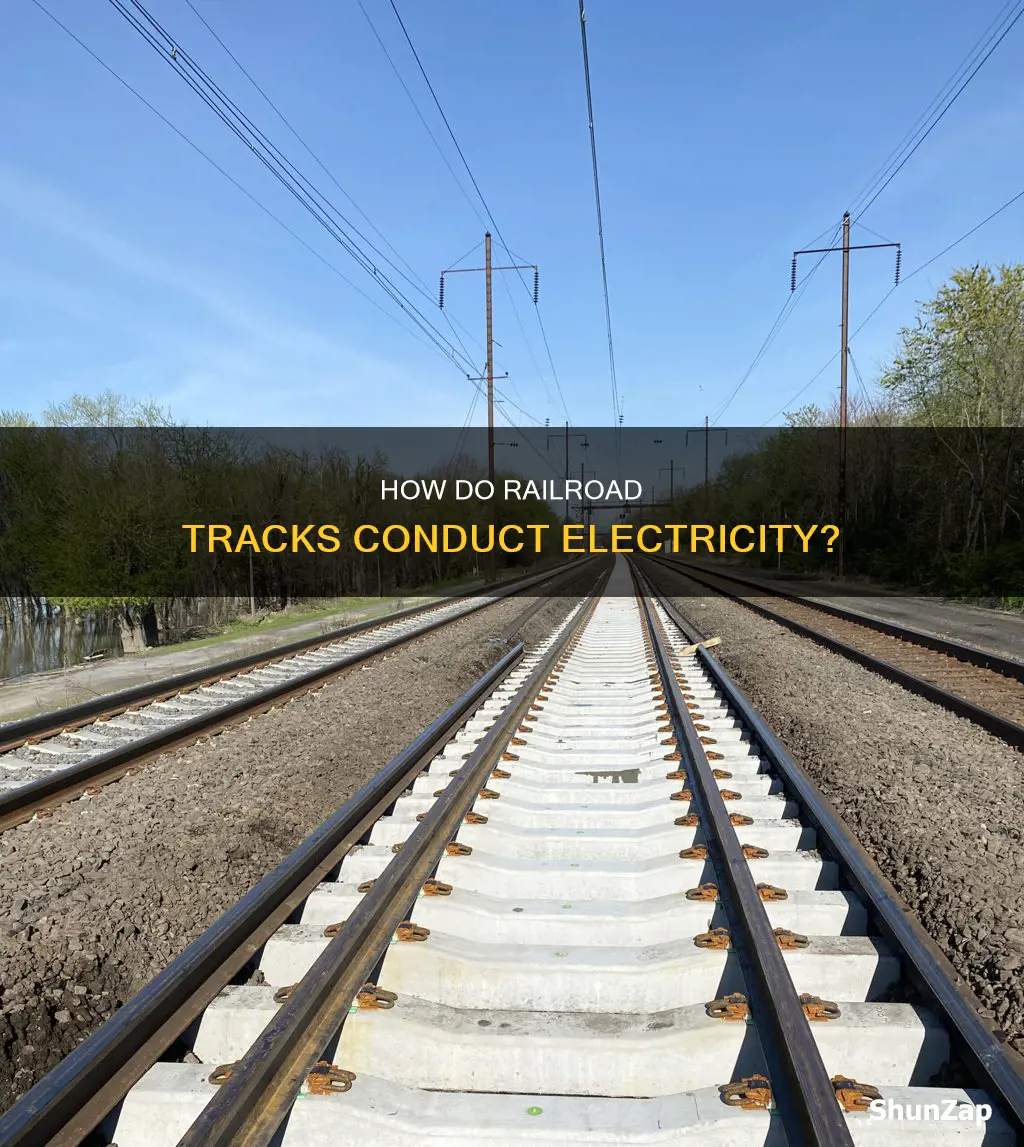

The presence of electricity on a railroad track depends on the type of track and its location. Third-rail systems, for example, provide electric traction power to trains using an additional conductor rail, and have been used in various cities since the early 20th century. Overhead line electrification, on the other hand, was first successfully applied in 1887-1888 and has since led to the electrification of hundreds of street railway systems. As of 2022, electrified tracks account for nearly one-third of total tracks globally, with countries like Switzerland, China, and India having a large number of electrified railways. The advantages of electrified railways include reduced air pollution, lower maintenance costs, and faster acceleration. However, there are also challenges, such as increased maintenance costs for electrical equipment and traditional difficulties in operating double-stacked container trains under electrified lines.
| Characteristics | Values |
|---|---|
| Railway Electrification | As of 2022, electrified tracks account for nearly one-third of total tracks globally. |
| First Electric Tramways | Berlin, London, and New York City |
| First Permanent Railway Electrification | Gross-Lichterfelde Tramway in Berlin, Germany, in 1881 |
| Overhead Line Electrification | First applied successfully by Frank Sprague in Richmond, Virginia, in 1887-1888 |
| First Electrification of a Mainline Railway | Baltimore and Ohio Railroad's Baltimore Belt Line, United States, in 1895-96 |
| Third Rail System | Provides electric traction power to trains using an additional "conductor rail"; associated with low voltage (rarely above 750 V) and less used for main lines than overhead lines |
| Overhead Wires | Can be used to carry high-voltage electricity and provide a new electricity transmission system |
| Power Gaps | Can be overcome in single-collector trains by on-board batteries or motor-flywheel-generator systems |
| Maintenance Costs | Electrification may increase maintenance costs due to electrical equipment, but reduced track wear and lower engine maintenance can offset these costs |
| Sparks Effect | Electrification can lead to significant jumps in patronage and revenue due to perceived modernity, faster speeds, and smoother service |
| Height Restriction | Traditional difficulty with double-stacked container trains under electrified lines, but new tracks with increased catenary height are being laid |
| Power Sources | Electric trains are more efficient than diesel-powered trains, transferring about 95% of energy to the wheels compared to 30-35% for diesel |
| Cost Comparison | Electric locomotive engines are about 20% cheaper than diesel engines, and maintenance costs are 25-35% lower |
| Environmental Impact | Eliminating diesel locomotives reduces air pollution, noise levels, and traffic fatalities |
Explore related products
What You'll Learn
History of railway electrification
Railway electrification is the use of electricity to power trains and locomotives instead of diesel or steam power. Electric railways offer benefits such as improved energy efficiency, lower emissions, and lower operating costs compared to diesel engines. They are also quieter, more powerful, and more responsive and reliable.
The history of railway electrification dates back to the late 19th century when the first electric tramways were introduced in cities like Berlin, London, and New York City. The first permanent railway electrification in the world was the Gross-Lichterfelde Tramway in Berlin, Germany, in 1881. Overhead line electrification was first applied successfully by Frank Sprague in Richmond, Virginia in 1887-1888, leading to the electrification of hundreds of additional street railway systems by the early 1890s.
The first electrification of a mainline railway was the Baltimore and Ohio Railroad's Baltimore Belt Line in the United States in 1895–96. This was also the first installation of electric traction on a mainline steam railroad and was driven by concerns over congestion and pollution from steam locomotives, especially in tunnels. Other early installations of electrification in tunnels include the St. Clair Tunnel on the Grand Trunk (completed in 1908), the Cascade Tunnel on the Great Northern (1909), the Detroit River Tunnel on the Michigan Central (1910), and the Hoosac Tunnel on the Boston & Maine (1911).
In the 1920s and 1930s, many countries worldwide began to electrify their railways. Early adopters in Europe included Switzerland, Sweden, France, and Italy. In the United States, the New York, New Haven and Hartford Railroad was one of the first major railways to be electrified, completing electrification of its New Haven-New York City mainline in 1907. By 1939, the United States was the global leader in railroad electrification, with over 20% of the world's total. However, electrification is now a non-factor on almost all American railroads outside the Northeast Corridor.
In the 1960s, India began importing electric locomotives from a consortium called the 50 Cycles Group, also known as the 50 Hz Group, marking the beginning of AC electrification in the country. The first set of electric engines arrived in 1960-62 from Japan, supplied by a consortium called the Japanese Group, consisting of Hitachi, Toshiba, and Mitsubishi. In the 1980s, 25 kV AC electrification was completed on the K.K.Line on the Eastern Ghats, a mountain line with arduous inclines and curves.
Electrical Receptacles: What's the Right Distance?
You may want to see also
Explore related products
Electric trains vs diesel trains
The history of railway electrification dates back to the late 19th century when the first electric tramways were introduced in cities like Berlin, London, and New York City. In 1881, the world's first permanent railway electrification was the Gross-Lichterfelde Tramway in Berlin, Germany. As of 2022, electrified tracks account for nearly one-third of total tracks globally. Electric trains have several advantages over diesel trains. They are faster, quieter, smoother, and more efficient. Electrified tracks also result in lower maintenance costs due to reduced wear and tear on the tracks from lighter rolling stock. The cost of electric locomotive engines is about 20 percent less than diesel locomotive engines, and maintenance costs are 25-35 percent less. Electric trains have a higher power-to-weight ratio since they do not have onboard fuel tanks, resulting in fewer locomotives and a higher speed limit. Additionally, electric trains do not expose passengers to exhaust from the locomotive, and they have a lower cost of building, running, and maintaining locomotives and multiple units.
However, there are also some disadvantages and challenges associated with electric trains. One of the main disadvantages is the need for overhead wires to supply electricity, which can be a nuisance if the train stops with its collector on a dead gap, resulting in no power to restart. This issue can be mitigated by having multiple units coupled together or using push-pull trains with a locomotive at each end. Additionally, the height restriction imposed by the overhead wires has traditionally made it difficult to operate double-stacked container trains under electrified lines. However, this limitation is being overcome by railways in India, China, and African countries by increasing the catenary height. Another disadvantage of electric trains is their dependence on a stable power supply. In cities with power stations, electric trains are preferred as they do not need to stop to refuel, but if the power goes out, the railway is also affected.
Diesel trains have their own advantages and use cases. Diesel trains are preferred for long-distance transport, especially in rural areas, as they do not require a lot of power and can be fueled by wind turbines. They are also more appealing aesthetically to some people. Additionally, diesel trains were historically used for early games and super long tracks before the widespread availability of electric traction.
In conclusion, both electric and diesel trains have their own advantages and disadvantages. Electric trains offer improved speed, efficiency, and reduced maintenance costs, while diesel trains are preferred for long-distance transport and in areas with unstable power supply. The choice between the two depends on various factors, including the distance of the track, the availability of power, and aesthetic preferences.
How Energy-Efficient Are Ovens?
You may want to see also
Explore related products
Third-rail systems
In a third-rail system, an additional rail, also known as a conductor rail, is added to the standard two parallel rails of a railway. This rail carries a high voltage of either 600 or 750 volts in most instances, though the Bay Area Rapid Transit (BART) system in San Francisco uses 1000V DC. All third-rail systems use DC, or direct current, electricity. Electricity is fed from substations placed along the track, with the distance between them depending on factors such as power requirements and allowable voltage drop.
However, third-rail systems also have some limitations. They are generally unsuitable for high-speed railway applications due to the mechanical impact on the contact shoe and the gaps in the conductor rail. They may also not be as efficient for longer or heavier trains due to the weight and cost of the required onboard transformers.
Electrical Protection Plans: Worth the Cost?
You may want to see also
Explore related products
Overhead powerlines
The use of overhead lines offers several advantages. Firstly, they can carry high-voltage power, reducing energy losses and allowing power supply substations to be spaced further apart. Secondly, they are less susceptible to weather-related disruptions compared to third-rail electrification systems, making them more suitable for areas with challenging weather conditions. Additionally, the cost of powering trains with overhead lines is typically lower, as electric trains are lighter and more energy-efficient than diesel-powered trains.
However, there are also some considerations and challenges associated with overhead powerlines. One important factor is the height of the powerlines and the poles that support them. In certain areas, there may be height restrictions or the need to accommodate high-wide loads carried by the railroad. Induction studies and mitigation designs may also be necessary to ensure the safe and harmonious operation of the powerlines and railroads, especially when they are in close proximity.
Repairing Your Electric Butane Lighter: A Step-by-Step Guide
You may want to see also
Explore related products
Electric railways around the world
The history of railway electrification goes back to the late 19th century when the first electric tramways were introduced in cities like Berlin, London, and New York City. The first permanent railway electrification in the world was the Gross-Lichterfelde Tramway in Berlin, Germany, in 1881. Overhead line electrification was first applied by Frank Sprague in Richmond, Virginia, in 1887-1888, leading to the electrification of hundreds of street railway systems by the early 1890s. The early electrification of railways used direct current (DC) power systems, but alternating current (AC) power systems were later developed, allowing for more efficient power transmission over longer distances.
As of 2022, electrified tracks account for nearly one-third of total tracks globally, with the European Union containing the longest amount of electrified railways at over 114,000 km (71,000 mi). China has the most electrified railways, with around 100,000 km (62,000 mi), followed by India with over 60,000 km (37,000 mi), and Russia with over 54,000 km (34,000 mi). The Swiss rail network is the largest fully electrified network in the world, with several other countries having fully electrified networks as well.
Electric railways have several advantages over traditional diesel or steam-powered trains. They have a higher power-to-weight ratio, resulting in fewer locomotives, faster acceleration, higher speed limits, and less noise pollution. Electric traction systems can also provide regenerative braking, turning the train's kinetic energy back into electricity and returning it to the supply system. This makes electric locomotives much more efficient, even when powered by non-renewable sources like coal or natural gas. When powered by renewable sources, their efficiency more than doubles.
Several countries have announced plans to electrify all or most of their railway networks, including Indian Railways and Israel Railways. While electrification can lead to increased maintenance costs, it often goes hand in hand with infrastructure upgrades, resulting in better service quality. Additionally, electric trains are perceived as more modern, attractive, faster, quieter, and smoother, leading to significant jumps in patronage and revenue.
Electric Scooter Rentals: San Diego's Easy, Breezy Commute
You may want to see also
Frequently asked questions
Yes, as of 2022, electrified tracks account for nearly one-third of total tracks globally. Railway electrification is the development of powering trains and locomotives using electricity instead of diesel or steam power.
Railway electrification can be achieved through overhead line electrification or third-rail systems. Overhead line electrification involves using overhead wires to carry high-voltage electricity, while third-rail systems use an additional "conductor rail" to provide electric traction power to trains.
Electric trains have a higher power-to-weight ratio, resulting in faster acceleration, higher speed limits, and less noise pollution. Electrification can also lead to significant jumps in revenue as passengers may perceive electric trains as more modern, attractive, faster, and smoother.
Many countries have made significant moves towards electrifying their railway systems, including Switzerland, Sweden, the Netherlands, Italy, France, Germany, Russia, China, India, and Japan. The Swiss rail network is the largest fully electrified network in the world as of 2023.
