Proper grounding is essential for an electric fence to function correctly and keep animals contained. The grounding circuit completes an electrical circuit when an animal touches the fence, allowing the current to pass through the animal's body and delivering a shock. To ensure the fence is working properly, it is important to regularly check the voltage and ground system, especially during extremely wet or dry weather. This can be done using a voltmeter designed for electric fences. If the voltage is insufficient, it may be necessary to add more grounding rods to the system, which are made of galvanized steel and positioned at least 10 feet apart.
| Characteristics | Values |
|---|---|
| Grounding | Essential for keeping the fence functioning properly |
| Grounding rod material | Galvanized steel |
| Grounding rod length | At least 4 feet |
| Number of grounding rods | 2 or 3 |
| Spacing between rods | 10 feet |
| Soil type | Good, conductive earth (not sandy or rocky) |
| Distance from buildings with metal siding | At least 25 feet |
| Distance from utilities | As far away as possible, especially phone lines |
| Voltage testing | Use a voltmeter designed for electric fences |
| Voltage testing frequency | During the driest and wettest periods of the year |
Explore related products
$12.34 $12.99
What You'll Learn
- The grounding circuit is essential for an electric fence to function properly
- Grounding rods should be made of galvanised steel and be at least four feet long
- Copper rods should be avoided as they diminish the fence's effectiveness
- Check the ground system and voltage during wet and dry periods
- Use a voltmeter to test the voltage of your fence energizer
The grounding circuit is essential for an electric fence to function properly
An electric fence works by completing an electrical circuit whenever an animal touches it. The electric current originates at the energizer, travels down the fence, passes through the animal, and is transmitted into the soil. The grounding system then receives the electrons in the soil and creates a path back to the negative terminal of the energizer, completing the circuit and delivering a shock to the animal.
To ensure proper grounding, it is crucial to use the right type of grounding rod and to space them correctly. Most electric fence systems require at least two or three grounding rods, made of galvanized steel, and spaced about ten feet apart near the beginning of the fence. Dry or rocky soil may require additional ground rods. These rods should be connected to the energizer using insulated wires and ground rod clamps.
It is also important to regularly check the level of electrical current and test the grounding system with a voltage tester during different seasons to ensure the fence is working effectively throughout the year. Vegetation, plant growth, and soil moisture content can all impact the performance of the electric fence. Therefore, maintaining the grounding system and making necessary adjustments are vital to ensure the optimal operation of the electric fence.
Converting Animal Waste to Electricity: The Process
You may want to see also
Explore related products
Grounding rods should be made of galvanised steel and be at least four feet long
Proper grounding is essential for the effective functioning of an electric fence. The grounding circuit keeps the fence working properly, delivering a corrective shock to any animal that bumps into it. To ensure the fence functions as intended, it is important to check the ground system and the voltage of the fence during periods of extreme weather.
Grounding rods are an integral part of the grounding system. They are made of conductive material and are used to transmit the electric current from the soil back to the energizer, completing the electrical circuit. The choice of grounding rod material is important, with copper-bonded steel, solid copper, and galvanised steel being the most common options.
Galvanised steel grounding rods are made of steel with a protective zinc coating. This coating guards the rods against rust, making them more resistant to corrosion than copper rods. They are also more affordable than copper rods, making them a good option for those on a budget. However, they are less conductive than copper rods, and factors like salt exposure can erode the zinc layer, resulting in a shorter service life.
When installing grounding rods, it is important to ensure they are long enough to be effective. Most sources recommend that grounding rods should be at least eight feet long, with a minimum diameter of 5/8 inch. However, one source suggests that a four-foot ground rod may be sufficient for primary grounding purposes. The rods should be driven vertically into the ground to a depth of at least eight feet, ensuring that they are in contact with moist soil, which has lower resistance than dry soil.
Save on Electricity Bills in California: A Guide
You may want to see also
Explore related products
Copper rods should be avoided as they diminish the fence's effectiveness
Proper grounding is essential for an electric fence to function effectively. The grounding circuit is a critical component that ensures the fence works as intended. When an animal touches the fence, it completes an electrical circuit, delivering a shock. However, copper rods should be avoided as they diminish the overall effectiveness of the electric fence system.
Copper rods are not recommended for electric fences due to their negative impact on performance. While the specific reasons for this drawback are not explicitly stated, several factors suggest why copper rods are detrimental. Firstly, copper is a highly conductive material with excellent electrical properties, which could potentially interfere with the intended electrical flow in the fence system, disrupting its normal operation. Additionally, copper is susceptible to corrosion, which can result in poor connections over time. Corroded copper connections can lead to increased electrical resistance, reducing the overall efficiency of the fence's energy delivery.
Galvanized steel grounding rods are generally recommended for electric fences. These rods are conductive, corrosion-resistant, and designed to provide durable and effective grounding. The recommended length for these rods is at least four feet to achieve optimal results. By using galvanized steel rods, you can ensure the electric fence functions correctly, delivering a sufficient shock to deter animals and keep them contained.
It is worth noting that improper grounding is a prevalent issue with electric fences, contributing to 90% of problems. Therefore, it is crucial to select the appropriate grounding rods and install them correctly. The number of grounding rods required may vary, typically ranging from two to three for most fences, spaced about ten feet apart near the beginning of the fence. In some cases, additional rods may be necessary, especially in dry, sandy, or rocky soil conditions, as these factors can impact the effectiveness of the grounding system.
To ensure the electric fence functions as intended, regular maintenance and testing are essential. Checking the electrical current levels, particularly during dry and wet seasons, helps maintain the fence's effectiveness in containing livestock and deterring predators. Proper grounding and the use of suitable grounding rods, such as galvanized steel, are critical aspects of maintaining an operational electric fence that delivers the intended shock to animals. By avoiding copper rods and following recommended grounding practices, you can maximize the effectiveness of your electric fence system.
Tidy Up: Manage Cords and Plugs Easily
You may want to see also
Explore related products
Check the ground system and voltage during wet and dry periods
Proper grounding of an electric fence is essential to keeping it in good working order. The grounding circuit keeps the fence functioning properly, delivering a corrective shock to any animal that bumps against it. Significant amounts of rain or snow can affect the ability of the fence to work properly. Therefore, it is important to check the ground system and voltage of the electrical fence during both wet and dry periods.
Soil resistivity, measured in ohm-metres (Ω·m), is a crucial factor in designing grounding systems. It varies with the type of soil, temperature, moisture, mineral content, and compactness. Soil rich in minerals and salts has lower resistivity and, consequently, lower ground resistance. Conversely, dry, sandy, or rocky soils exhibit higher resistivity. Moist soil conducts electricity more efficiently than dry soil. Therefore, seasonal changes and weather conditions can impact soil moisture and ground resistance.
Routine testing helps monitor these changes and ensures the grounding system remains effective. The Fall-of-Potential Testing method, also known as the three-point method, is widely accepted for comprehensive assessments of grounding effectiveness. It involves placing three electrodes in the ground: a test electrode, a potential electrode, and a reference electrode. By passing a controlled current through the testing electrode and measuring the resulting voltage drop between the other two, the resistance of the grounding system can be accurately calculated.
To test the voltage of an electric fence, use a voltmeter designed for electric fences. It is recommended to test the grounding system with a voltage tester during one of the driest periods of the year and once during the wet season to ensure the fencing is working all year round. During drier seasons, it may be necessary to upgrade the grounding system by adding more ground rods.
Android Mediators' Electric Agreement Dreams: What Do They Mean?
You may want to see also
Explore related products
Use a voltmeter to test the voltage of your fence energizer
Electric fences are an effective way to contain livestock and protect them from predators. However, they can malfunction, and it can be tricky to identify the source of the problem. In most cases, issues with electric fences can be traced back to improper grounding. Therefore, it is essential to test the voltage of your fence energizer with a voltmeter to ensure it is functioning correctly.
Step 1: Choose the Right Voltmeter

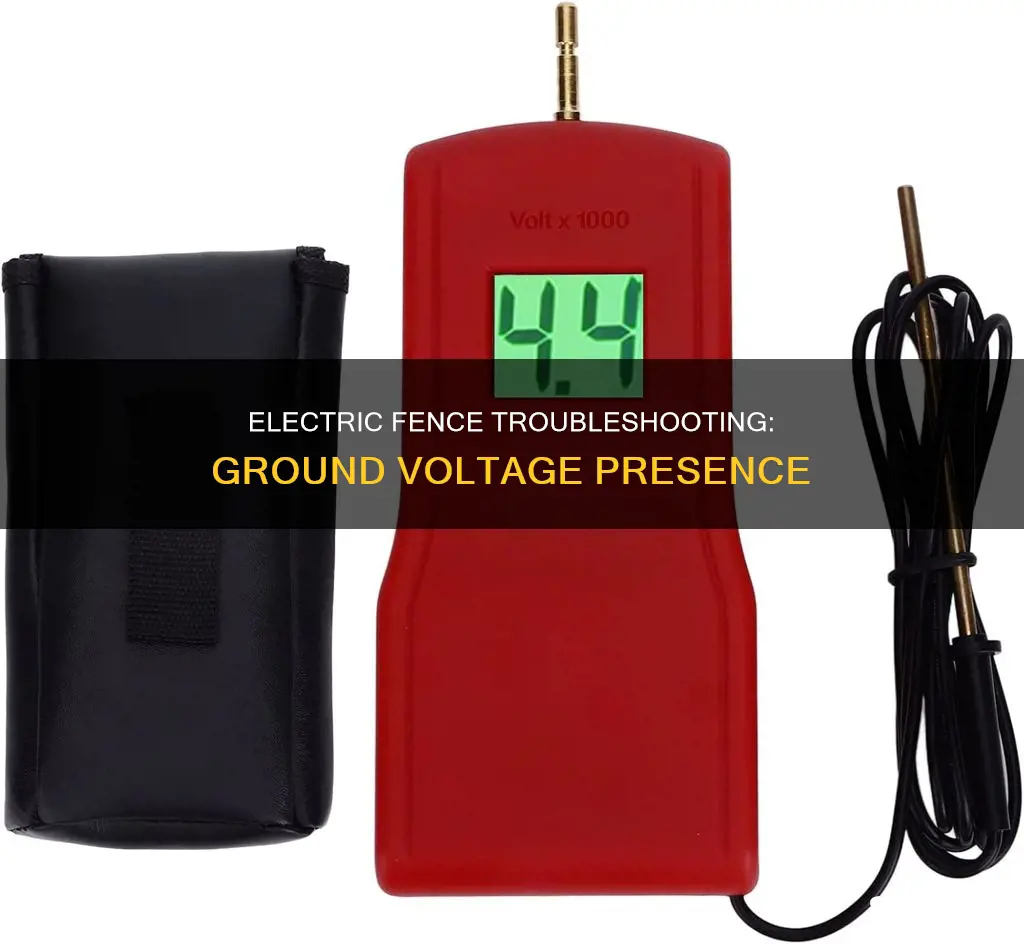

Not all voltmeters are suitable for testing electric fence energizers. Most electric fence energizers output a voltage of around 7500V. A standard multimeter is typically designed for a much lower voltage and may be damaged if used to test an electric fence. Therefore, it is crucial to use a voltmeter specifically designed for high-voltage electric fence testing.
Step 2: Disconnect the Power
Before beginning the voltage test, ensure that the power to the energizer is turned off for safety. This will prevent any accidental shocks during the testing process.
Step 3: Check Connections
Inspect the connections between the energizer and the fence. The electric current from the energizer should travel down the fence and, when an animal makes contact, through the animal to the ground. Ensure that the hook-up wires are securely attached to the charger and properly connected to the fence and the ground rod.
Step 4: Perform the Voltage Test
Using your voltmeter, check the voltage output of the energizer. A typical electric fence energizer should output approximately 7500 volts. If the voltage is significantly lower, there may be a fault with the energizer. Contact the manufacturer or a qualified electrician if you suspect an issue with the energizer.
Step 5: Interpret the Results
If the voltage reading is under 2000 volts, there is likely a fault with the energizer, and it may need repair or replacement. If the voltage is above 2000 volts but below 400 volts, your ground rod may be leaking too much voltage. In this case, you can try adding extra ground rods or making them deeper and then testing again. If the voltage is above 400 volts, your grounding system is sufficient, and the issue may lie elsewhere.
Additional Tips:
- Check your grounding system regularly, especially during extremely wet or dry weather, as these conditions can affect the system's performance.
- Use the proper type of grounding rod, typically made of galvanized steel and at least four feet in length.
- Ensure your grounding rods are correctly spaced, with a distance of about ten feet between them, and placed at the start of the fence.
- Keep vegetation and plant growth around the grounding rods under control, as they can interfere with the circuit.
Induction Cooktops: Efficient Alternative to Electric?
You may want to see also
Frequently asked questions
Grounding is essential for keeping an electric fence functioning properly. The fence works by completing an electrical circuit when an animal touches it. The current then travels through the animal to the ground and back to the energizer, delivering a shock.
If your electric fence is not grounded properly, it may not be able to deliver a shock to an animal, causing a breach in the fence. This can result in livestock escaping or predators entering the enclosure.
To check if your electric fence is grounded correctly, you should test the voltage using a voltmeter specifically designed for electric fences. This should be done during both the wet and dry seasons as extreme weather conditions can affect the grounding.
The grounding rod for an electric fence should be made of galvanized steel and should be at least four feet in length. Pipe or rebar can be used, but copper rods should be avoided as they can diminish the effectiveness of the fence.
Most electric fence systems require at least two or three grounding rods, spaced about ten feet apart near the beginning of the fence. However, in dry or rocky soil, additional rods may be necessary.
