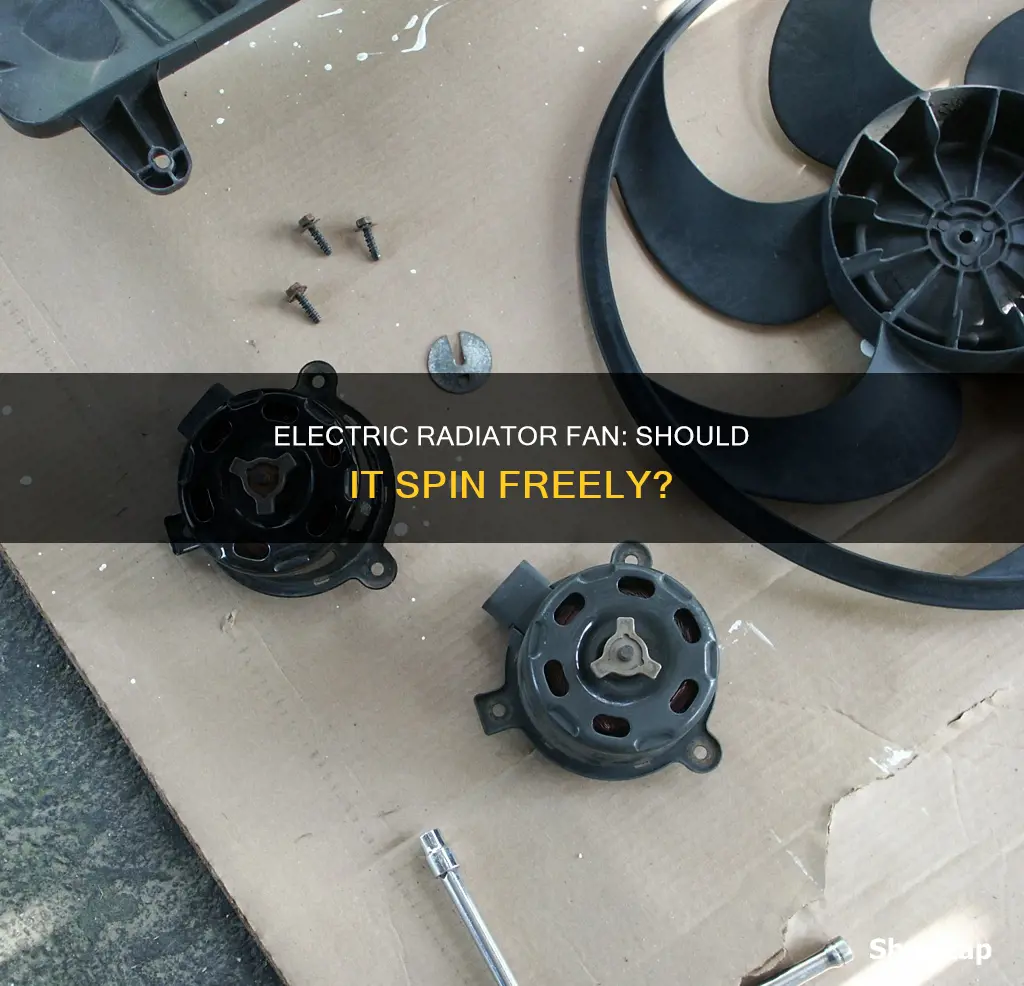

Radiator fans are essential for cooling engines and preventing overheating. A common question among car enthusiasts and mechanics is whether these fans should spin freely. A radiator fan with a clutch activates automatically when the temperature rises, while an electric fan relies on input from the ECU. When the engine is cold, the fan clutch should be able to move with some resistance but not spin freely, indicating proper functioning. However, if the fan clutch spins freely when cold, it could be due to a faulty thermostatic spring, a malfunctioning air temperature sensor, or degraded viscous fluid in the clutch. In such cases, the fan clutch may need to be replaced. Diagnosing the issue accurately is crucial, and seeking professional help for repairs is recommended to avoid further damage or safety risks.
| Characteristics | Values |
|---|---|
| Fan clutch | Should not spin freely when cold; if it does, it may be malfunctioning due to a faulty thermostatic spring, a faulty air temperature sensor, bad oil, degraded viscous fluid, or an oil leak |
| Radiator fan | Should not spin freely when the engine is off; if it does, it may be due to a faulty viscous clutch, a failing water pump, or a blocked radiator |
| Diagnosis | Check for oil leaks, test voltage, and use electrical testing tools to diagnose electronic sensors |
| Repair | Seek professional help if uncomfortable with mechanical repairs; otherwise, remove the fan's shroud and top radiator hose to access the fan and clutch |
Explore related products
$38.98 $45.04
What You'll Learn
Fan clutch and temperature
A fan clutch is a thermostatic engine cooling fan that can freewheel at low temperatures when cooling is not needed, allowing the engine to warm up faster. As temperatures increase, the clutch engages so that the fan is driven by engine power and moves air to cool the engine. The fan clutch checks the temperature of the air coming into contact with the radiator and works to protect the engine.
Fan clutches are often overlooked, but they play a crucial role in maintaining the performance and efficiency of your vehicle. A malfunctioning fan clutch can lead to low fuel efficiency, poor cooling, and an added load on the vehicle's engine. It is important to diagnose and address any issues with your fan clutch promptly to avoid further complications.
There are several ways to identify a faulty fan clutch. One method is to use electrical testing tools to diagnose the electronic sensors that determine the engagement of the fan clutch. You can also observe the behaviour of the fan clutch when the engine is hot or cold. If the fan clutch continues to spin excessively when the hot engine is shut off, it may be malfunctioning. Additionally, if the fan clutch fails to slow down when the engine is cold, it may indicate a problem.
In some cases, an excessively loose fan clutch can lead to decreased air conditioning performance as the fan is unable to draw sufficient air through the condenser. A faulty fan clutch may also produce a squealing or rattling noise, indicating that the clutch is failing to engage properly due to internal wear or loss of viscous fluid.
It is important to note that fan clutches will eventually wear out and need to be replaced. By understanding how fan clutches operate and the signs of deterioration, you can ensure timely maintenance and optimise the performance of your vehicle.
Electric Potential: Electrode Variation Explored
You may want to see also
Explore related products
Radiator fan with a clutch
A fan clutch is an essential component in the operation of cooling fans and plays a significant role in the overall performance of an engine. It is a thermostatic device that operates based on temperature. When the engine is cool or functioning at a normal temperature, the fan clutch disengages or slows down to help regulate the engine temperature.
Fan clutches are of two types: thermal and non-thermal. Thermal fan clutches are considered the most efficient form of engine-driven fans. They operate in response to underhood temperatures. As hot air blows across the radiator, it heats a thermal spring mounted at the front of the clutch. As the spring is heated, it turns and allows valve ports to open within the clutch. The clutch is then engaged, and the fan is driven by engine power to cool the engine.
Non-thermal clutches, on the other hand, operate based on the shaft speed of the water pump. At low and idling speeds, the clutch allows the fan blade to turn freely. At high speeds, the silicone fluid within the clutch loses its ability to transfer energy, and the fan is allowed to freewheel, reducing the load on the engine. While non-thermal clutches provide a steady flow of cooling air, they offer lower fuel savings than thermal-style fan clutches.
Diagnosing a faulty fan clutch is important to ensure the optimal performance of your vehicle. A faulty fan clutch can lead to issues such as low fuel efficiency, reduced cooling, and increased load on the engine. To diagnose a faulty fan clutch, you can perform a simple test by spinning the fan blade by hand when the engine is off and cold. If the fan rotates freely with little resistance, it indicates a failing clutch.
It is important to note that some symptoms of a failing fan clutch may be similar to other cooling system problems, so correct diagnosis is crucial before attempting any repairs. For those unfamiliar with mechanical repairs, it is recommended to seek professional assistance to avoid further complications or safety risks.
Converting Air Brakes to Electric: A Comprehensive Guide
You may want to see also
Explore related products
Diagnosing and repairing issues
If your radiator fan is not spinning freely, there are several potential causes and solutions to consider. Firstly, check if the fan clutch is functioning properly. The fan clutch plays a crucial role in regulating the temperature of the radiator and protecting the engine. If the fan clutch is not working optimally, it can lead to issues such as low fuel efficiency, reduced cooling performance, and increased load on the vehicle's engine.
To diagnose a faulty fan clutch, try spinning the cooling fan clutch with considerable force when the engine is cold. If the fan rotates more than four to five times, it indicates a malfunctioning fan clutch. Additionally, a squealing or rattling noise from the fan clutch area suggests internal wear or a loss of viscous fluid, which requires attention.
In some cases, the issue may lie with the electronic sensors that govern the fan clutch engagement. You can use electrical testing tools to diagnose these sensors, but it is recommended to seek professional help if you are not comfortable with mechanical repairs. Before attempting any repairs, ensure you correctly identify the problem, as symptoms of a failing fan clutch can resemble other cooling system issues, such as a faulty water pump or blocked radiator.
Another potential cause for concern is the radiator fan itself. If the fan is not spinning freely, check the voltage to the fan. Test both the ground and hot wires at the fan plug to ensure it is receiving the correct voltage. If you are getting 12 volts, the issue may lie with the brushes in the fan motors, which may need replacement. On the other hand, if you are not getting 12 volts, inspect the ground wires for cleanliness and tightness, as a weak ground could be the culprit.
Lastly, consider the possibility of a faulty relay. Relays are small electronic components that facilitate electrical connections. If one or more relays are not functioning optimally, it can impede the radiator fan's performance. To access and replace the relays, you may need to remove an internally wired fuse and relay panel, disconnect wire harness connections, and bench test the relays with 12 volts and an ohm meter.
Finding an Electrician: License Number Essentials
You may want to see also
Explore related products
Manual troubleshooting
If your radiator fan is not spinning freely, there could be a few issues at play. Firstly, check the coolant level and ensure there are no leaks in the cooling system. If the coolant level is low, top it up and see if the problem persists.
If the issue remains, the next step is to check the voltage to the fans. Test both the ground and hot wires at the fan plug to determine the voltage being supplied to the fan. If you are getting 12 volts, the brushes in the fan motors may be worn down and not making good contact with the armature. In this case, you may need to replace the brushes. If you are not getting 12 volts, check the ground wires to ensure they are clean and tight. Try running a ground strap from the battery to the engine block to rule out a weak ground as the issue.
If your car has relays, these could also be the culprit. Try swapping the relays around to see if the fans start working independently. If they do, replace all three relays.
Another potential issue could be with the fan clutch. An electronic fan clutch should not spin freely when cold, but rather only with some effort applied to spin it. If it spins more than three times with force, the fan clutch is likely faulty. A freely spinning fan clutch could be due to a faulty thermostatic spring, a malfunction in the air temperature sensor, bad oil in the vehicle, or degradation of the viscous fluid in the fan clutch over time.
If you suspect the fan clutch is the issue, you can use electrical testing tools to diagnose the electronic sensors that determine its engagement. Before attempting any repairs, it is crucial to correctly identify the problem, as symptoms of a failing fan clutch can be similar to other cooling system issues. If you are not comfortable with mechanical repairs, it is recommended to seek professional help to avoid further damage or safety risks.
How Transformers and WiFi Work Together
You may want to see also
Explore related products
Fan clutch and fuel efficiency
A fan clutch is a device that regulates the speed of the engine's cooling fan based on the temperature of the engine. It is a temperature-sensing device that tells the cooling fans when to run and when not to run. Most fan clutches are either thermal or non-thermal. Thermal fan clutches consist of a spring that changes its size in response to the temperature.
Fan clutches are important because they work in conjunction with cooling fans to regulate engine temperatures. If the fan clutch is not in working condition, it can cause several problems, including low fuel efficiency, low cooling, and added load on the vehicle's engine. For example, if the fan clutch is spinning freely, it may indicate that the thermostatic spring has failed or that there is a malfunction in the air temperature sensor that regulates the clutch operation.
To diagnose a failing fan clutch, you can use electrical testing tools to check the electronic sensors that determine the engagement of the fan clutch. It is important to correctly diagnose the issue before attempting any repairs, as incorrect repairs can lead to further damage or safety risks. If you are not comfortable with mechanical repairs, it is recommended to seek professional help.
In terms of fuel efficiency, a 2-speed fan clutch can help improve fuel efficiency in diesel engines by regulating the engine temperature and reducing engine drag. Keeping the engine at a safe operating temperature can also help prevent engine damage and prolong the life of the vehicle, leading to improved performance and reliability over time.
Some people have also discussed the benefits of switching from a clutch fan to an electric fan for improved fuel economy. While a clutch fan uses almost nothing when not engaged, it will use some horsepower and miles per gallon when engaged. An electric fan, on the other hand, only runs when needed and can provide increased acceleration and a slight increase in miles per gallon. However, it is important to note that a larger electric fan may be required, which can be expensive.
Fuse Functionality: Preventing Electrical Fires
You may want to see also
Frequently asked questions
It depends on the type of fan clutch you have. An electronic fan clutch can spin freely, but a good fan clutch should only spin when you apply some effort. If your fan clutch is spinning freely, it could be due to a faulty thermostatic spring, a malfunction in the air temperature sensor, bad oil in the vehicle, degraded viscous fluid in the fan clutch, or an oil leak.
If your fan clutch is spinning freely, try spinning it with all your force without starting the engine. If the fan rotates four to five times or more, your fan clutch is likely bad.
Some signs of a failing fan clutch include low fuel efficiency, low cooling, and added load on the vehicle engine. You may also hear a squealing or rattling noise from the fan clutch area due to internal wear or loss of viscous fluid.
First, check the voltage to the fans and test both the ground and hot wires at the fan plug. If you are getting 12 volts, the brushes in the fan motors may be worn out. If you are not getting 12 volts, check the ground wires and ensure they are clean and tight. You may also need to replace the cooling fan relays.
It is recommended to seek professional help as incorrect repairs can lead to further damage or safety risks. However, if you are a mechanical expert, you may carry out the replacement yourself. You will need to disconnect the fan clutch and reach the bolts holding the fan in place to unscrew it and install a new one.
