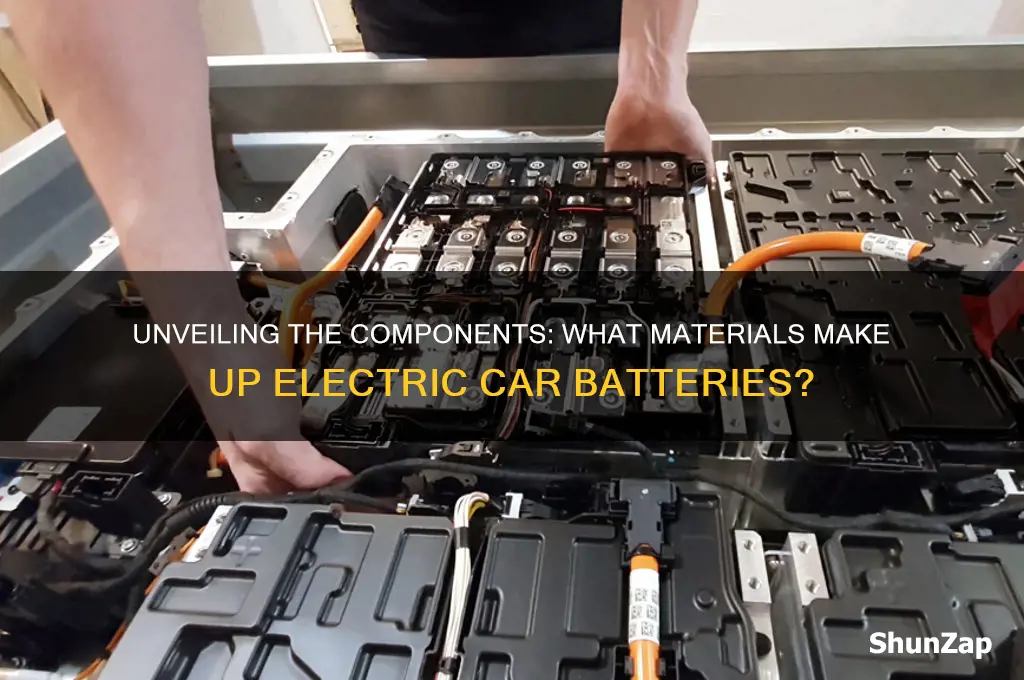

An electric car battery, typically a lithium-ion battery, is composed of several key components that work together to store and release energy. At its core, the battery consists of an anode (usually made of graphite), a cathode (often composed of lithium cobalt oxide, nickel manganese cobalt oxide, or other lithium-based compounds), and a separator that prevents the two electrodes from touching while allowing lithium ions to pass through. These components are immersed in an electrolyte, a conductive liquid or gel that facilitates the movement of ions between the anode and cathode. The battery is encased in a protective housing, often made of metal or durable plastic, to ensure safety and structural integrity. Additionally, a battery management system (BMS) monitors and controls the battery’s performance, temperature, and charging cycles to optimize efficiency and longevity. Together, these elements enable electric vehicles to operate efficiently and sustainably.
| Characteristics | Values |
|---|---|
| Cathode (Positive Electrode) | Typically made of lithium-metal oxides like Lithium Nickel Manganese Cobalt Oxide (NMC), Lithium Iron Phosphate (LFP), or Lithium Cobalt Oxide (LCO). NMC is most common due to high energy density. |
| Anode (Negative Electrode) | Primarily graphite, though newer designs may use silicon-graphite composites or lithium metal for higher capacity. |
| Electrolyte | Lithium salt (e.g., LiPF6) dissolved in organic solvents (e.g., ethylene carbonate, dimethyl carbonate) to enable lithium-ion movement. |
| Separator | Porous polymer membrane (e.g., polyethylene or polypropylene) to prevent short circuits while allowing ion flow. |
| Battery Chemistry | Lithium-ion (Li-ion) is the dominant technology, with variations like Lithium Iron Phosphate (LFP) and emerging solid-state batteries. |
| Energy Density | 100–265 Wh/kg (varies by chemistry; NMC typically higher than LFP). |
| Lifespan | 8–15 years or 1,000–2,000 charge cycles (varies by usage and chemistry). |
| Charging Time | 30 minutes (fast charging) to 12 hours (Level 1/2 charging), depending on charger type and battery capacity. |
| Operating Temperature | Optimal: 15°C–35°C; performance degrades below 0°C or above 45°C. |
| Recyclability | ~95% of materials (lithium, cobalt, nickel, copper) can be recycled, though current recycling rates are low (~5%). |
| Cost | $100–$150/kWh (2023 average; decreasing annually due to technological advancements). |
| Environmental Impact | Lower lifecycle emissions than ICE vehicles, but mining for lithium, cobalt, and nickel raises sustainability concerns. |
| Safety Features | Thermal management systems, Battery Management Systems (BMS), and flame-retardant materials to prevent thermal runaway. |
| Weight | 300–1,000 kg (varies by vehicle size and battery capacity). |
| Capacity | 30–100 kWh (varies by vehicle; higher capacity = longer range). |
| Range | 200–500+ miles per charge (depends on battery size and vehicle efficiency). |
Explore related products
What You'll Learn
- Cathode Materials: Lithium-nickel-manganese-cobalt oxides (NMC) or lithium-iron-phosphate (LFP) for energy storage
- Anode Materials: Graphite or silicon-based materials to store and release lithium ions
- Electrolyte: Lithium salt in a solvent, enabling ion flow between electrodes
- Separator: Porous polymer film preventing short circuits while allowing ion passage
- Battery Casing: Durable materials like aluminum or steel to protect internal components
Cathode Materials: Lithium-nickel-manganese-cobalt oxides (NMC) or lithium-iron-phosphate (LFP) for energy storage
Electric vehicle (EV) batteries rely heavily on cathode materials to determine performance, cost, and sustainability. Two dominant contenders in this space are Lithium-Nickel-Manganese-Cobalt oxides (NMC) and Lithium-Iron-Phosphate (LFP). NMC cathodes, typically composed in a 1:1:1 or 6:2:2 ratio of nickel, manganese, and cobalt, offer high energy density, enabling longer driving ranges. For instance, a Tesla Model 3 with an NMC battery can achieve up to 363 miles on a single charge. However, the inclusion of cobalt raises concerns due to its high cost and ethical mining issues, with over 70% of global cobalt supply originating from the Democratic Republic of Congo under questionable labor conditions.
In contrast, LFP batteries, which use iron and phosphate instead of nickel and cobalt, are gaining traction for their safety, longevity, and lower cost. LFP cathodes are less prone to thermal runaway, making them a safer option for energy storage. Tesla and BYD have adopted LFP batteries for their standard-range models, citing a lifespan of over 2,000 charge cycles compared to NMC’s 1,000–1,500 cycles. While LFP batteries have lower energy density—resulting in shorter ranges—they are ideal for urban commuting or commercial fleets where cost and durability outweigh range requirements.
Choosing between NMC and LFP depends on specific use cases. For long-distance travel, NMC’s higher energy density remains unmatched, but its reliance on cobalt poses long-term supply chain risks. LFP, on the other hand, excels in applications prioritizing safety and affordability, such as electric buses or entry-level EVs. Manufacturers are increasingly blending these materials or exploring alternatives like manganese-rich NMC to balance performance and sustainability.
Practical considerations for consumers include understanding their driving needs. If daily commutes are under 100 miles, an LFP-powered EV could offer significant savings and peace of mind regarding battery longevity. For those requiring extended range, NMC-based batteries remain the go-to option, though advancements in recycling technologies may mitigate cobalt-related concerns in the future. As the EV market evolves, cathode material innovation will continue to shape the industry’s trajectory.
Off-Grid Living: Exploring Global Communities Without Electricity Access
You may want to see also
Explore related products
Anode Materials: Graphite or silicon-based materials to store and release lithium ions
Electric car batteries, specifically lithium-ion batteries, rely heavily on anode materials to store and release energy efficiently. The anode, a critical component, determines the battery's performance, lifespan, and safety. Traditionally, graphite has been the go-to material for anodes due to its stability, low cost, and ability to intercalate lithium ions effectively. However, its theoretical capacity (372 mAh/g) limits further advancements in energy density, prompting researchers to explore silicon-based materials as a potential alternative. Silicon boasts a staggering theoretical capacity of 3,579 mAh/g, nearly ten times that of graphite, making it an attractive candidate for next-generation batteries.
Despite silicon's promise, its practical application in anodes is not without challenges. During charging, silicon undergoes significant volume expansion (up to 300%), leading to structural degradation and rapid capacity fade. This issue has spurred the development of engineered silicon materials, such as silicon nanoparticles, silicon-carbon composites, and silicon-graphene hybrids. For instance, silicon-graphene composites combine silicon's high capacity with graphene's mechanical strength and conductivity, mitigating volume expansion while maintaining stability over hundreds of cycles. Manufacturers are increasingly adopting these hybrid materials to balance performance and durability, though production costs remain higher than graphite.
From a practical standpoint, the choice between graphite and silicon-based anodes depends on the application. Graphite remains the standard for current electric vehicles due to its reliability and cost-effectiveness, ensuring consistent performance over 1,000–2,000 charge cycles. In contrast, silicon-based anodes are ideal for niche applications requiring higher energy density, such as long-range EVs or aerospace systems, despite their shorter cycle life (typically 500–800 cycles). For consumers, this means that while silicon-enhanced batteries may offer greater range, they might require more frequent replacements, impacting long-term ownership costs.
To maximize the lifespan of silicon-based anodes, manufacturers employ strategies like pre-lithiation (adding extra lithium to compensate for initial capacity loss) and solid-state electrolytes (reducing mechanical stress during expansion). For DIY enthusiasts or researchers experimenting with silicon anodes, ensuring a controlled manufacturing environment is crucial. Silicon nanoparticles, for example, should be uniformly distributed in a carbon matrix to prevent agglomeration, which can be achieved using ball milling techniques or chemical vapor deposition. Additionally, incorporating binders like polyvinylidene fluoride (PVDF) at a 10:1 active material-to-binder ratio can enhance adhesion and flexibility.
In conclusion, while graphite remains the cornerstone of anode materials in electric car batteries, silicon-based alternatives are poised to revolutionize the industry. Their adoption hinges on overcoming technical hurdles and reducing costs, but their potential to significantly increase energy density makes them a focal point of innovation. Whether prioritizing longevity or performance, understanding the trade-offs between these materials empowers stakeholders to make informed decisions in the rapidly evolving landscape of electric vehicle technology.
Raw Materials Breakdown: Crafting Electric Car Batteries from Scratch
You may want to see also
Explore related products
Electrolyte: Lithium salt in a solvent, enabling ion flow between electrodes
The electrolyte in an electric car battery is the unsung hero of its operation, a critical component that facilitates the flow of ions between the anode and cathode, enabling the battery to charge and discharge efficiently. At its core, the electrolyte is a carefully formulated mixture of lithium salt dissolved in a solvent, typically a blend of organic carbonates like ethylene carbonate and dimethyl carbonate. This combination ensures high ionic conductivity, stability across a wide temperature range, and compatibility with the battery’s electrodes. Without this electrolyte, the lithium ions would lack a medium to travel through, rendering the battery inoperable.
Consider the role of lithium hexafluorophosphate (LiPF₆), one of the most common lithium salts used in electric vehicle (EV) batteries. This salt dissociates into lithium ions (Li⁺) and hexafluorophosphate anions (PF₆⁻) in the solvent, creating a pathway for lithium ions to move between the electrodes during charge and discharge cycles. The solvent, meanwhile, must strike a delicate balance: it needs to be non-reactive with the electrodes, have a low viscosity to enhance ion mobility, and possess a high dielectric constant to facilitate ion dissociation. For instance, ethylene carbonate is often included for its high dielectric constant, while dimethyl carbonate is added to reduce viscosity and improve low-temperature performance.
From a practical standpoint, the electrolyte’s composition directly impacts the battery’s performance, safety, and lifespan. A poorly formulated electrolyte can lead to issues like thermal runaway, where the battery overheats and potentially catches fire. To mitigate this, manufacturers often add flame-retardant additives or use solid-state electrolytes, though these are still in the experimental stage for widespread EV use. Additionally, the electrolyte’s degradation over time—due to factors like high voltage, temperature, or impurities—can reduce the battery’s capacity and efficiency. Regular maintenance, such as avoiding extreme temperatures and ensuring proper charging habits, can help prolong the electrolyte’s stability.
Comparing electrolytes in EV batteries to those in traditional lead-acid batteries highlights the advancements in modern technology. Lead-acid batteries use a sulfuric acid electrolyte, which is corrosive, heavy, and limited in energy density. In contrast, lithium-ion electrolytes are lighter, more energy-dense, and non-corrosive, making them ideal for the demands of electric vehicles. However, this sophistication comes with challenges, such as the need for precise manufacturing conditions and the ethical concerns surrounding lithium mining. Despite these hurdles, the electrolyte remains a cornerstone of EV battery innovation, driving the transition to sustainable transportation.
For those interested in optimizing their EV’s battery life, understanding the electrolyte’s role is key. Avoid fast charging whenever possible, as it increases the electrolyte’s temperature and accelerates degradation. Similarly, storing your EV in a temperature-controlled environment—ideally between 15°C and 25°C—can prevent the solvent from breaking down prematurely. While these tips won’t halt the natural aging process, they can significantly extend the battery’s lifespan, ensuring your electric vehicle remains efficient and reliable for years to come.
Electric Cars as Home Power Sources: Which Models Can Deliver?
You may want to see also
Explore related products
Separator: Porous polymer film preventing short circuits while allowing ion passage
Electric car batteries rely on a delicate balance between conductivity and safety. At the heart of this balance lies the separator, a porous polymer film that serves as a critical barrier within the battery’s architecture. Its primary function is to prevent the positive and negative electrodes from coming into direct contact, which would otherwise cause a short circuit and potentially catastrophic failure. Yet, this film is not merely a divider; its porous structure allows lithium ions to pass freely, facilitating the flow of energy that powers the vehicle. This dual role—blocking physical contact while enabling ionic movement—makes the separator a cornerstone of battery efficiency and safety.
Consider the separator as the unsung hero of battery design, a component that must perform under extreme conditions. Typically made from polyethylene (PE) or polypropylene (PP), these polymers are chosen for their chemical stability, thermal resistance, and mechanical strength. The porosity of the film, often engineered to be in the range of 30–50% void space, is critical. Too dense, and ion mobility is hindered, reducing battery performance. Too open, and the risk of short circuits increases. Manufacturers often treat the separator surface with ceramic coatings to enhance thermal stability, ensuring it can withstand temperatures up to 150°C without shrinking or melting—a vital feature in preventing thermal runaway.
From a practical standpoint, the separator’s design directly impacts battery lifespan and safety. For instance, in lithium-ion batteries, a common type used in electric vehicles, the separator thickness is typically around 12–25 micrometers. Thinner separators can improve energy density but require precise manufacturing to avoid defects. Conversely, thicker separators offer greater safety margins but may reduce overall battery capacity. Engineers must strike a balance, often tailoring separator properties to specific battery chemistries and vehicle requirements. For DIY enthusiasts or those inspecting used batteries, a visual check for separator integrity—looking for tears or discoloration—can provide early warning signs of potential failure.
A comparative analysis highlights the separator’s evolution. Early battery designs used glass fiber separators, which were durable but hindered ion flow. Modern polymer films, by contrast, offer a lightweight, cost-effective solution with superior performance. Innovations like multilayer separators—combining PE and PP layers—further enhance safety by providing a shutdown mechanism at elevated temperatures. This layered approach ensures that if one layer melts, the other maintains structural integrity, buying critical time to prevent a thermal event. Such advancements underscore the separator’s role not just as a passive barrier, but as an active safety feature.
In conclusion, the separator’s porous polymer film is a marvel of material science, embodying the tension between enabling function and ensuring safety. Its design demands precision, its performance shapes battery life, and its evolution reflects the relentless pursuit of safer, more efficient electric vehicles. Whether you’re an engineer, a consumer, or simply curious about how your electric car runs, understanding the separator’s role offers a window into the intricate world of battery technology.
Recharging Your Electric Car: Easy Solutions Beyond the Garage
You may want to see also
Explore related products
Battery Casing: Durable materials like aluminum or steel to protect internal components
Electric car batteries are complex systems, and their casings play a pivotal role in ensuring safety, durability, and performance. The battery casing, typically made from durable materials like aluminum or steel, serves as the first line of defense against external impacts, temperature fluctuations, and potential chemical leaks. These materials are chosen not only for their strength but also for their ability to balance weight and cost, critical factors in electric vehicle (EV) design.
Aluminum is a popular choice for battery casings due to its lightweight nature and excellent corrosion resistance. Its use helps reduce the overall weight of the vehicle, contributing to improved energy efficiency and extended driving range. For instance, Tesla’s battery packs often incorporate aluminum casings, which align with their focus on maximizing performance while minimizing weight. However, aluminum’s lower strength compared to steel requires thicker walls or additional reinforcement, which can offset some of its weight advantages.
Steel, on the other hand, offers superior strength and impact resistance, making it ideal for protecting the delicate internal components of the battery. Its higher density means it adds more weight to the vehicle, but this trade-off is often justified in applications where safety is paramount. For example, some commercial electric vehicles and heavy-duty EVs prioritize steel casings to withstand harsh operating conditions. Steel’s magnetic properties also allow for easier integration with electromagnetic shielding, an added benefit in high-voltage systems.
When selecting between aluminum and steel, engineers must consider the specific demands of the vehicle, including its intended use, climate, and safety standards. In colder climates, steel’s thermal conductivity can help dissipate heat more effectively, while aluminum’s lighter weight may be more advantageous in urban EVs focused on efficiency. Additionally, advancements in material science, such as alloying aluminum with magnesium or using high-strength steel, are pushing the boundaries of what these casings can achieve.
Practical tips for maintaining battery casings include regular inspections for dents, corrosion, or cracks, especially after accidents or exposure to harsh weather. Cleaning the casing with mild detergents and avoiding abrasive materials can prevent corrosion, particularly in aluminum casings. For steel casings, applying protective coatings or rust inhibitors can extend their lifespan. Ultimately, the choice of casing material is a critical decision that influences not only the battery’s performance but also the overall safety and efficiency of the electric vehicle.
The Hidden Dangers of Electricity: Why It's Not Always Safe
You may want to see also
Frequently asked questions
An electric car battery is primarily made of lithium-ion cells, which consist of a cathode (usually lithium cobalt oxide or nickel-manganese-cobalt), an anode (typically graphite), a separator, and an electrolyte (lithium salt dissolved in a solvent).
The cathode in an electric car battery is often made from a combination of lithium, cobalt, nickel, manganese, or iron, depending on the specific chemistry used (e.g., NMC, LFP, or LCO).
The electrolyte, typically a lithium salt dissolved in an organic solvent, allows lithium ions to move between the cathode and anode during charging and discharging, enabling the battery to store and release energy.
Yes, electric car batteries rely on materials like lithium, cobalt, and nickel, which can be expensive and have limited global reserves. Efforts are ongoing to reduce reliance on these materials or find sustainable alternatives.
No, electric car batteries can use different chemistries, such as lithium-ion (NMC, LFP), solid-state, or future technologies like lithium-sulfur, each with varying material compositions and performance characteristics.
