When considering the installation of a home charging station for an electric car, selecting the appropriate amp breaker is crucial for safety and efficiency. The amp breaker, typically rated at 40 or 50 amps, determines the maximum current the charging system can handle, directly impacting charging speed. A 40-amp breaker is suitable for most Level 2 chargers, offering a balance between cost and performance, while a 50-amp breaker allows for faster charging but may require a more robust electrical setup. Consulting an electrician to assess your home’s electrical capacity and local building codes is essential to ensure compatibility and prevent overloading the circuit. Choosing the right amp breaker ensures a reliable and safe charging experience for your electric vehicle.
Explore related products
What You'll Learn
- Breaker Size Calculation: Determine amperage based on charger power output and voltage
- Safety Standards: Ensure compliance with NEC and local electrical codes
- Dedicated Circuit: Use a separate breaker for reliable EV charging
- Breaker Types: Choose between standard or AFCI/GFCI breakers for safety
- Future Proofing: Opt for higher amperage to support faster chargers later
Breaker Size Calculation: Determine amperage based on charger power output and voltage
Electric vehicle (EV) charging requires a dedicated circuit with a properly sized breaker to ensure safety and efficiency. The breaker size depends on the charger’s power output and the voltage of your electrical system. To calculate the required amperage, use the formula: Amperage (A) = Power (W) / Voltage (V). For example, a 7.7 kW charger operating on a 240V circuit would need a breaker rated for 7,700 W / 240 V = 32.08 A, typically rounded up to a 40-amp breaker to account for inefficiencies and future upgrades.
When selecting a breaker, consider the charger’s maximum output and the voltage of your home’s electrical system. Most Level 2 chargers for EVs operate at 240V and range from 3.7 kW to 19.2 kW. A 3.7 kW charger (16A) would pair with a 20-amp breaker, while a 19.2 kW charger (80A) would require an 80- or 100-amp breaker. Always consult the charger’s specifications and local electrical codes to ensure compliance.
Overloading a circuit can lead to tripped breakers, overheating, or fire hazards. Conversely, using an oversized breaker wastes energy and increases costs. For instance, a 50-amp breaker on a 7.2 kW charger (30A) is unnecessary and potentially dangerous. To avoid this, calculate the amperage precisely and choose a breaker that matches the charger’s requirements without exceeding the circuit’s capacity.
Practical tips include verifying your electrical panel’s capacity before installation and hiring a licensed electrician to ensure proper setup. If your home has a 100-amp service, adding a high-amperage EV charger may require an upgrade to a 200-amp panel. Additionally, consider future EV upgrades—opting for a slightly larger breaker than currently needed can save costs down the line. Always prioritize safety and efficiency when determining the correct breaker size for your electric vehicle charger.
Why Windmills Aren't Dominating Electricity Generation: Uncovering the Barriers
You may want to see also
Explore related products
Safety Standards: Ensure compliance with NEC and local electrical codes
Installing a dedicated circuit for an electric vehicle (EV) charger requires strict adherence to safety standards, primarily the National Electrical Code (NEC) and local electrical codes. These regulations ensure the system can handle the load without posing fire or shock hazards. The NEC, updated every three years, provides the baseline requirements, but local codes often add region-specific mandates. For instance, some areas may require additional grounding methods or specific conduit materials due to soil conditions or climate. Always consult both sets of guidelines before proceeding.
The NEC mandates that EV charging circuits must be protected by an overcurrent device, typically a breaker, rated at 125% of the continuous load. For a Level 2 charger drawing 40 amps, this means a 50-amp breaker. However, local codes might dictate a higher or lower rating based on regional safety priorities. For example, in areas prone to electrical storms, a 60-amp breaker might be required to accommodate potential surges. Conversely, in densely populated urban areas, a 40-amp breaker might suffice if the grid is exceptionally stable.
Compliance also extends to wiring and installation practices. The NEC requires the use of specific wire gauges to minimize voltage drop and heat buildup. For a 50-amp circuit, 6 AWG copper wire is typically mandated. Local codes may further specify the type of conduit or the depth at which the wiring must be buried. For instance, in flood-prone regions, wiring might need to be installed at a minimum depth of 24 inches, compared to the NEC’s standard 12 inches. Ignoring these details can lead to failed inspections, fines, or dangerous conditions.
One often-overlooked aspect is the labeling and documentation required by both the NEC and local codes. Every component, from the breaker to the charger, must be clearly labeled with its rating and purpose. Additionally, a detailed diagram of the installation should be provided to inspectors and kept on file for future reference. This ensures that any future modifications or troubleshooting can be done safely and efficiently. Failure to document properly can result in delays during inspections or complications during maintenance.
Finally, while compliance with codes is non-negotiable, it’s equally important to consider future-proofing your installation. The NEC and local codes are designed with current standards in mind, but EV technology is evolving rapidly. Opting for a slightly higher-rated breaker or thicker wiring than the minimum requirement can accommodate upgrades to faster chargers or additional EVs without requiring a complete system overhaul. This proactive approach not only enhances safety but also saves time and money in the long run.
Greta Thunberg's Eco-Friendly Ride: Does She Drive Electric?
You may want to see also
Explore related products
Dedicated Circuit: Use a separate breaker for reliable EV charging
Electric vehicle (EV) owners often overlook the importance of a dedicated circuit for charging, but this decision can significantly impact safety and performance. A separate breaker ensures that your EV charger operates on its own circuit, free from interference from other household appliances. This isolation prevents overloading, which can trip breakers or, worse, cause electrical fires. For instance, a 50-amp breaker dedicated to a Level 2 charger provides a consistent power supply, allowing your EV to charge efficiently without competing with high-demand devices like air conditioners or ovens.
Installing a dedicated circuit involves specific steps to ensure compliance with electrical codes and optimal functionality. First, consult a licensed electrician to assess your home’s electrical panel capacity. If upgrading is necessary, a 240-volt circuit with a 50- or 60-amp breaker is typically recommended for Level 2 chargers. Next, ensure the wiring is appropriately sized—for example, 6-gauge wire for a 50-amp circuit. Finally, install a NEMA 14-50 outlet or hardwire the charger directly, depending on your setup. These steps guarantee a safe, reliable charging solution tailored to your EV’s needs.
One common misconception is that a shared circuit can suffice for EV charging, especially if the charger’s amperage is low. However, even a 32-amp charger can strain a circuit when combined with other loads. For example, a circuit powering a washer (15 amps) and dryer (30 amps) leaves little room for a 32-amp charger, increasing the risk of tripped breakers or voltage drops. A dedicated circuit eliminates this risk, ensuring your EV charges at full capacity without disrupting other household functions. This reliability is particularly crucial during overnight charging, when consistent power delivery is essential.
From a long-term perspective, investing in a dedicated circuit enhances both safety and convenience. It future-proofs your home for potential EV upgrades or additional electric vehicles. Moreover, it simplifies troubleshooting—if charging issues arise, the dedicated circuit isolates the problem to the charger itself, rather than the broader electrical system. Practical tips include labeling the breaker clearly in your panel and installing the charger in a location that minimizes cable length, reducing energy loss. By prioritizing a dedicated circuit, you ensure a seamless, efficient, and safe EV charging experience.
Electric Vehicles: Global Adoption and Popularity Trends
You may want to see also
Explore related products

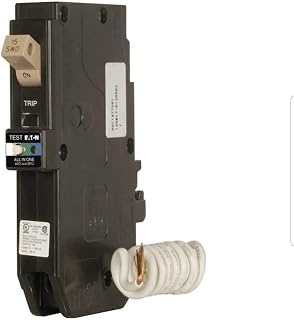

Breaker Types: Choose between standard or AFCI/GFCI breakers for safety
Selecting the right breaker for your electric vehicle (EV) charging setup isn’t just about amperage—it’s also about safety. Standard breakers are common in residential panels, but they only protect against overcurrent and short circuits. For EV charging, where high amperage and prolonged use are typical, additional safeguards may be necessary. This is where AFCI (Arc-Fault Circuit Interrupter) and GFCI (Ground-Fault Circuit Interrupter) breakers come into play. While not always required by code for EV chargers, they offer enhanced protection against arc faults and ground faults, respectively, reducing the risk of electrical fires or shocks.
Consider the environment where your EV charger will be installed. AFCI breakers are particularly useful in older homes or areas prone to wiring damage, as they detect dangerous arcing that standard breakers might miss. GFCI breakers, on the other hand, are ideal for outdoor or damp locations, such as garages or driveways, where moisture increases the risk of ground faults. For instance, a 50-amp EV charger installed in a detached garage would benefit from a GFCI breaker to mitigate the risk of water-related electrical hazards.
The decision between standard, AFCI, or GFCI breakers often hinges on local electrical codes and personal risk tolerance. Some jurisdictions mandate AFCI/GFCI protection for all new circuits, including EV chargers, while others leave it to the homeowner’s discretion. If you’re unsure, consult a licensed electrician to assess your specific needs. For example, a 40-amp charger in a modern, dry indoor space might suffice with a standard breaker, but adding AFCI protection could provide peace of mind.
Cost and compatibility are also factors. AFCI and GFCI breakers are typically more expensive than standard breakers, ranging from $20 to $50 compared to $5–$10 for a standard 50-amp breaker. Additionally, not all EV chargers are compatible with AFCI/GFCI breakers, as some models may trip unnecessarily due to the charger’s normal operation. Always check the manufacturer’s recommendations before making a decision.
Ultimately, while standard breakers may meet the minimum requirements for EV charging, AFCI and GFCI breakers offer a higher level of safety, especially in specific conditions. Weigh the risks, costs, and local regulations to determine the best fit for your setup. Investing in the right breaker type now can save you from potential hazards and costly repairs down the road.
Electric Vehicles: Greener, Cheaper, and the Future of Driving
You may want to see also
Explore related products
Future Proofing: Opt for higher amperage to support faster chargers later
Electric vehicle (EV) charging technology is advancing rapidly, with newer models capable of accepting higher charging rates. A 50-amp breaker, while sufficient for current Level 2 chargers (typically 32–40 amps), may become a bottleneck as faster chargers emerge. Future-proofing your electrical setup by installing a 60- or even 100-amp breaker ensures compatibility with next-generation chargers, which could deliver 48 amps or more. This proactive approach avoids costly upgrades later, as replacing a breaker and rewiring can run upwards of $500–$1,500, depending on local labor rates and electrical codes.
Consider the analogy of internet infrastructure: households that invested in gigabit-ready wiring years ago now enjoy seamless upgrades to faster plans without additional costs. Similarly, opting for a higher-amperage breaker today positions your home to effortlessly adopt faster EV chargers as they become mainstream. For instance, a 100-amp breaker paired with 4-gauge wiring can support chargers up to 80 amps, a capacity that aligns with emerging DC fast-charging technologies being integrated into home systems.
Practical implementation requires foresight. Start by consulting an electrician to assess your panel’s capacity and ensure it can handle the additional load. If your panel is near its limit, upgrading to a 200-amp service might be necessary, costing $1,500–$3,000 but providing decades of flexibility. Use a dedicated circuit for the charger to prevent overloading, and consider smart load management systems that balance EV charging with other household demands.
Critics might argue that higher-amperage setups are overkill for current needs, but this overlooks the pace of EV innovation. Tesla’s V3 Superchargers, for example, already deliver up to 250 kW, and home chargers are following suit. By investing in a 60- or 100-amp breaker now, you’re not just preparing for your next EV—you’re ensuring your infrastructure remains relevant for the next decade. Think of it as buying a smartphone with the latest processor: it’s ready for apps and updates that haven’t even been invented yet.
Finally, future-proofing isn’t just about speed—it’s about convenience and resale value. Homes equipped with higher-capacity EV charging setups are more attractive to buyers, especially as EV adoption accelerates. A 2023 study by the National Association of Realtors found that 37% of homebuyers consider EV charging compatibility a desirable feature. By installing a higher-amperage breaker, you’re not just upgrading your home; you’re making it a forward-thinking asset in a rapidly electrifying world.
Is Renting an Electric Car from Thrifty a Smart Choice?
You may want to see also
Frequently asked questions
The amp breaker size depends on the charging station's power requirements. For Level 2 chargers (240V), a 40-60 amp breaker is common, but always check the manufacturer's specifications.
A 30 amp breaker may work for some Level 2 chargers, but it’s often insufficient for faster charging. Most chargers require a 40-50 amp breaker for optimal performance.
Yes, a dedicated breaker is required to ensure safety and prevent overloading the electrical circuit. Sharing a breaker with other appliances can cause tripping or damage.
Using a breaker with too low an amp rating can cause frequent tripping, reduce charging efficiency, or damage the electrical system. Always match the breaker to the charger’s requirements.
Consult the charger’s manual or manufacturer specifications to find the recommended amp rating. A licensed electrician can also assess your electrical system and advise on the correct breaker size.
