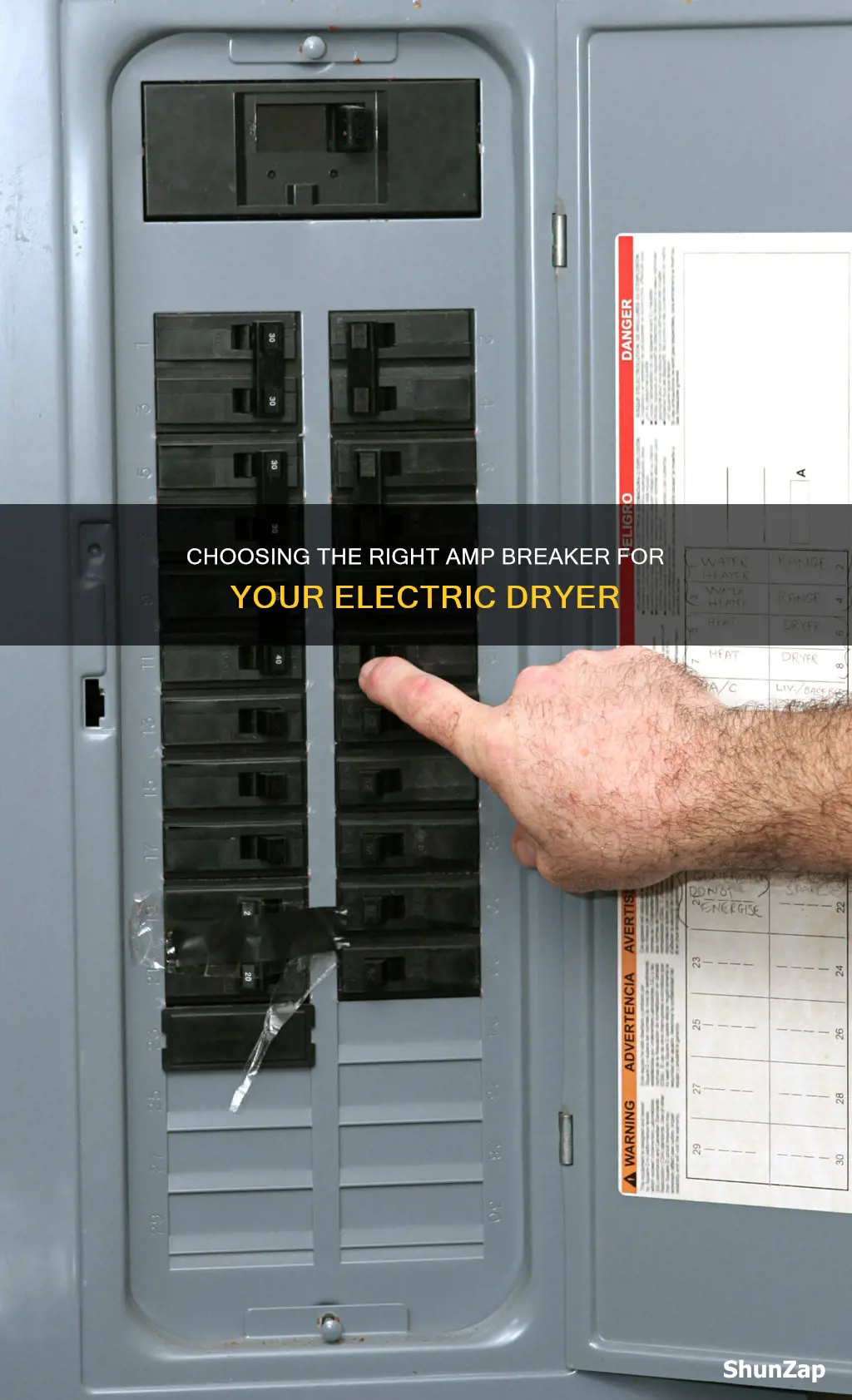

Electric dryers typically require a dedicated circuit with a circuit breaker that matches the dryer's amperage requirements. The right amp breaker is necessary to prevent electrical accidents and incessant tripping within your home. The National Electric Code states that a dedicated circuit for an electric dryer should be 30 amps at a minimum. This is typical for most homes, although 40-amp and 50-amp dryers are also possible. 40-amp loads are common for dryers with higher load and power requirements, while 50-amp dryers are used in commercial and industrial settings. Electric dryers in residential settings usually draw between 24 to 30 amps of current.
| Characteristics | Values |
|---|---|
| Minimum dedicated circuit for an electric dryer | 30 amps |
| Typical amperage for most homes | 30 amps |
| Amperage for dryers with higher load and power requirements | 40 amps |
| Amperage for commercial and industrial settings | 50 amps |
| Voltage for most electric dryers | 220V/240V |
| Voltage for rare gas dryers | 110/120 V |
| Wire size for 30-amp circuit | 10-gauge wire |
| Wire size for 40-amp circuit | 8-gauge wire |
| Recommended wire type for 30-amp circuit | Copper |
| Amperage for compact dryers | 7.5A to 15A |
| Amperage for small apartment dryers | 15/20 amps |
Explore related products
What You'll Learn
- Electric dryers typically require a 30-amp circuit breaker
- A 20-amp breaker will trip if anything over 20 amps passes through
- A 40-amp breaker may cause unsafe levels of electricity and a fire risk
- A 30-amp breaker requires a 10-gauge wire
- A 20-amp gas dryer breaker needs 12-gauge wire, 15-amp needs 14-gauge
Electric dryers typically require a 30-amp circuit breaker
A 30-amp breaker is also necessary to protect the wire between the breaker and the dryer. If a breaker lower than 30 amps is used, the wire can overheat and possibly cause a fire. A 30-amp circuit is also the standard for household dryers, although there are exceptions. Smaller apartment dryers, for example, can use a regular 15 or 20-amp circuit, while commercial dryers may require a larger size.
It is important to check the specific requirements of your dryer, as the manufacturer's design will specify the correct amperage. This information can be found in the installation instructions that come with the appliance or by contacting the manufacturer directly. Oversizing the breaker is dangerous, so it is crucial to use the correct amperage.
In addition to the amperage, it is important to consider the wiring and voltage requirements of your dryer. For example, a 30-amp breaker typically requires a 12/3 cable or thicker wire to ensure safety and proper functioning.
Setting Up Your Electric Choke: A Step-by-Step Guide
You may want to see also
Explore related products
A 20-amp breaker will trip if anything over 20 amps passes through
It's important to note that circuit breakers have a tolerance and may not trip immediately if the amperage goes slightly over 20 amps. The ambient temperature also affects the tolerance of the breaker, with higher temperatures resulting in lower tolerance. However, if the total load exceeds the breaker's rating by a significant amount, the breaker should trip to prevent any potential hazards.
If a 20-amp breaker is tripping frequently, it may be due to an overload on the circuit. This could be caused by running multiple high-power appliances simultaneously or by a malfunction in the breaker itself. In such cases, it is recommended to hire an electrician to add an additional circuit or replace the breaker if necessary.
When it comes to electric dryers, most residential models require a 30-amp circuit breaker. However, it's important to check the specific requirements of your dryer, as some models may require a 40-amp breaker. Overloading a dryer circuit can lead to dangerous levels of current that can damage the appliance or cause an electrical fire. Therefore, it is crucial to consult a professional electrician and refer to the manufacturer's specifications to ensure the correct circuit breaker size is installed.
Understanding the Voltage in Electric Power Lines
You may want to see also
Explore related products
![[240V to 120V] 30 Amp to 20 Amp 110 Adapter with Circuit Breaker Dryer Adapter Cord Distribution NEMA 14-30 Adapter to 4X 5-15R/5-20R T-Blade Multiple Use ETL Listed 1.5 FT Household Outlet](https://m.media-amazon.com/images/I/613K4ZYIKdL._AC_UY218_.jpg)
A 40-amp breaker may cause unsafe levels of electricity and a fire risk
A 40-amp breaker may cause unsafe levels of electricity and put you and your property at risk of an electrical fire.
A circuit breaker monitors the flow of electricity on a particular circuit. If the current flowing through that circuit reaches an unsafe level, the breaker trips and cuts off power to the circuit, protecting it from overheating and causing a fire.
If you install a circuit breaker that is too high, you put the circuit at risk of dangerous levels of current that can damage your dryer or cause an electrical fire. For example, if you install a 40-amp breaker on a circuit that is designed to carry only 30 amps, the wiring can only handle 30 amps of electricity. A 40-amp breaker would allow unsafe levels of electricity to course through the circuit and would not trip until the flow exceeds 40 amps. In the meantime, the wires would have time to overheat and possibly cause a fire.
Therefore, it is crucial to install the correct breaker and wire size for electric dryers. A 240V electric dryer wire size uses a 10-gauge wire and a 30-amp breaker. For 110V compact or gas dryers, a 12-gauge with a 20-amp breaker is sufficient.
Most electric dryers in residential settings typically draw between 24 and 30 amps of current. A 30-amp, double-pole breaker covers two breaker spaces inside the electrical panel. A 40-amp load is common for dryers with higher load and power requirements, and these are usually used in commercial and industrial settings.
Insulating Outdoor Electric Lines: A DIY Guide
You may want to see also
Explore related products
A 30-amp breaker requires a 10-gauge wire
Electric dryers typically require a dedicated circuit with a circuit breaker rated to match the dryer's amperage requirements. Most standard electric dryers in homes are designed to operate on a 240-volt circuit and draw between 24 to 30 amps of current. A 30-amp dryer is typical for most homes, but 40-amp and 50-amp dryers are also possible.
When it comes to selecting the right size wire for your circuits, it's important to understand how the gauge is determined. The standard unit of measurement used to measure a wire's size is called American Wire Gauge (AWG). This system measures wire in terms of its diameter and resistance. The lower the number, the thicker the wire. For example, a 10 AWG is a thicker and larger wire than a 12 AWG wire and can handle more current without the risk of overheating or causing an overload.
For a 30-amp breaker, it is recommended to use a minimum 10-gauge wire so that it can safely carry up to 30 amps of current without tripping. A 10-gauge wire has thicker insulation than other smaller wires, making it safer and better able to handle the load from a 30-amp breaker. This type of wire is commonly used for general-purpose circuits, including those running to outlets and switches.
It is important to note that wire sizing is crucial for circuit breakers as it helps determine how much electrical current can flow through it and how much resistance it can handle. Using a wire with a smaller gauge than needed can be incredibly dangerous. The wire could overheat, melt, or cause a fire. Therefore, it is always best to consult with a professional electrician if you are unsure about the wire size or type to use for your specific application.
Toyota Land Cruiser: Electric or Not?
You may want to see also
Explore related products
A 20-amp gas dryer breaker needs 12-gauge wire, 15-amp needs 14-gauge
Electric dryers typically require a dedicated circuit with a circuit breaker that matches the dryer's amperage requirements. The amperage of a dryer varies depending on its heating element, motor, and overall energy efficiency. Standard electric dryers in residential settings usually draw between 24 and 30 amps of current, with 30 amps being the minimum according to the National Electric Code.
For 240V and 220V electric dryers, a 30-amp circuit breaker is typically used, along with 10/3 American Wire Gauge (AWG) wire, which includes two hot wires, a neutral wire, and a ground wire. It is recommended to use a larger diameter wire to reduce heat from the flow of electricity.
Now, for 110V/120V electric dryers, which are typically associated with gas dryers, a smaller dryer circuit breaker can be used. A 15 or 20-amp breaker is generally sufficient for these less powerful dryers, which typically pull between 7.5 and 15 amps.
When it comes to wire gauge, if you have a 15-amp outlet, you should use a 14-gauge wire, and for a 20-amp outlet, a 12-gauge wire is recommended. This is specifically relevant when discussing gas dryers, as they typically operate with lower amperage.
Therefore, a 20-amp gas dryer breaker should use 12-gauge wire, and a 15-amp breaker should use 14-gauge wire. It's important to select the correct wire gauge and breaker size to ensure safe and efficient operation of your gas dryer.
Electric Heaters: Are They a Silent Asfixiation Risk?
You may want to see also
Frequently asked questions
Electric dryers typically use a 30-amp breaker. However, it's important to check the specific requirements of your dryer, as some may require a 15- or 20-amp breaker.
Using the wrong amp breaker can pose a safety risk. If you use a breaker that is too low, it may continuously trip. On the other hand, if you use a breaker that is too high, it can lead to dangerous levels of current, potentially damaging your dryer or causing an electrical fire.
You can refer to the manufacturer's instructions or specifications for your particular dryer model. This information is typically found in the installation manual or on the manufacturer's website.
Yes, time-delay fuses can be used in place of circuit breakers for dryers, depending on the manufacturer's instructions. Time-delay fuses accommodate short-term spikes in current, which is common with electric motors during startup.
In addition to the amp rating, you should consider the voltage requirements of your dryer. Electric dryers typically operate on 120 or 240 volts. You should also ensure that the wiring between the circuit breaker and the dryer is appropriate for the amp rating to prevent overheating and fire hazards.
