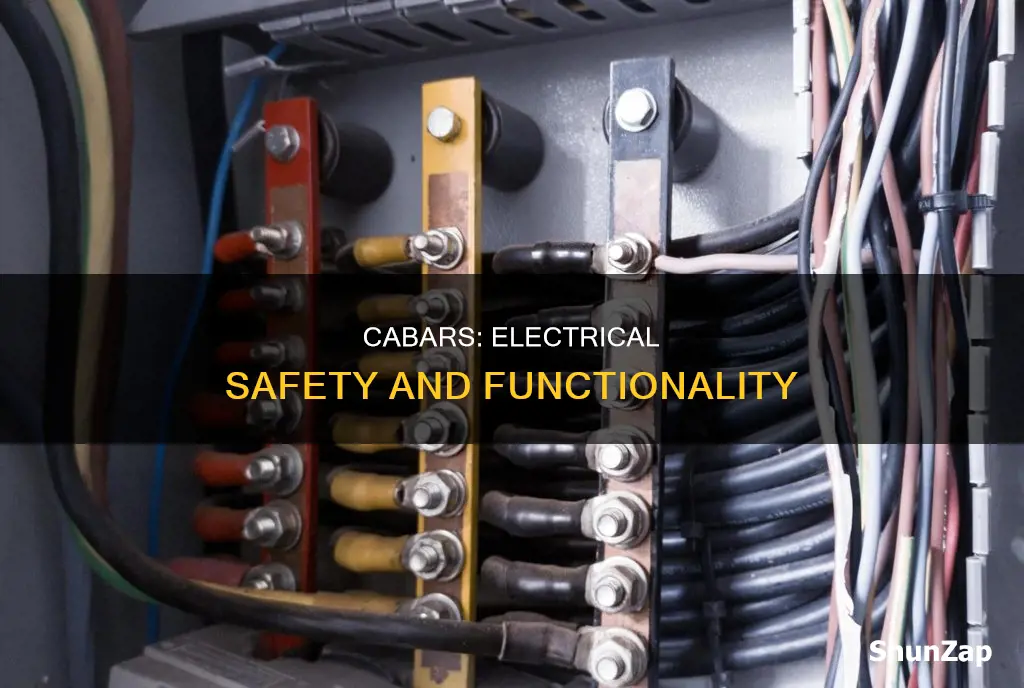

Electric busbars, also known as cabars, are metallic bars, strips, tubes, or rods that conduct current from one place to another. They are commonly used in place of wires or cables for high-current power distribution, high-voltage equipment, and low-voltage battery applications. Busbars are typically made of copper, brass, or aluminium and come in various shapes, including flat strips, solid bars, and rods. They are often used in electrical systems where they offer design advantages over wires or cables, such as in switchgear, bus ducts, power distribution boards, and busways.
| Characteristics | Values |
|---|---|
| Definition | A busbar (also spelled bus bar) is a conductive strip or bar that is used to connect several electrical equipments. |
| Material | Copper, aluminum, or brass |
| Function | Busbars are used to conduct electricity within a switchboard, distribution board, substation, or other electrical apparatus. |
| Advantages | Busbars offer several advantages over traditional wire connections, including: - Lower impedance - Higher current capacity - Reduced labor costs - Flexibility in design |
| Applications | Typical applications of busbars include: - Residential, commercial, and industrial buildings - Power distribution in large facilities like data centers, hospitals, and airports - Battery connections in electric vehicles and backup power systems - Solar panel installations |
| Safety | Busbars are generally considered safe, but require proper installation and maintenance to prevent overheating and potential fire hazards. |
| Standards | The design and installation of busbars are governed by various standards, including IEC, IEEE, and NEMA, which specify dimensions, materials, and safety requirements. |
| Sizes | Busbars come in various sizes, with current ratings ranging from a few amperes to several thousand amperes. |
| Design Considerations | When designing with busbars, factors such as temperature rise, short-circuit protection, insulation, and support structures need to be considered. |
| Accessories | Busbar systems may include accessories like supports, connectors, insulators, and enclosures. |
| Maintenance | Regular inspection and maintenance of busbars are important to ensure tight connections, clean surfaces, and proper functionality. |
Explore related products
What You'll Learn
Busbars are metallic bars, strips, tubes, or rods
Busbars are commonly used in substations, electrical apparatus, switchboards, and power distribution equipment. They serve as a gathering point for electrical power, allowing multiple incoming and outgoing electrical currents to converge. This simplifies complex power distribution systems by consolidating connections into a central hub. Busbars can also be adjusted to accommodate varying power requirements, enhancing the adaptability of the system.
The shape of a busbar can vary, including flat strips, solid bars, and rods. The shape is chosen based on the amount of electricity required, available space, and the design of the electrical system. Flat strips and rods are typically used when space is a concern, while thick bars offer the most surface area and are ideal for high-voltage applications. Busbars can also be designed with special cross-sections, such as "U," "T," or "L" shapes, to increase stiffness, surface area, and provide more connection options.
Busbars offer several advantages over traditional wiring methods. They are cost-effective, reducing material and installation costs by replacing multiple conductors. Busbars also enhance protection by facilitating the integration of protective devices, such as switches, fuses, and circuit breakers. Additionally, busbars simplify maintenance procedures by providing easy access to connections and components.
Busbars are a preferred method for connecting battery packs in electric vehicles due to their rigidity and thin geometry. They are also used in renewable energy systems, such as solar and wind power, for efficient and reliable power transfer. Overall, busbars play a crucial role in electrical systems by providing a safe and efficient means of conducting and distributing electricity.
Oil-based Electricity: Is It Efficient?
You may want to see also
Explore related products
They conduct current safely and efficiently
An electric busbar is a metallic bar, strip, tube, or rod that conducts current from one place to another with minimal energy loss. They are used in place of wires or cables for high-current power distribution, high-voltage equipment, and low-voltage battery applications. Busbars are typically composed of copper, brass, or aluminium and are designed to conduct current safely and efficiently.
Busbars are often used in electrical systems where they offer design advantages over wires or cables. They are commonly used to connect components like transformers, fuses, and industrial machinery, as well as to distribute power within a device. Busbars can also be connected to each other and to electrical apparatus by bolting, clamping, or welding.
One example of a busbar application is in switchgear, which is used in electrical power systems as switches, fuses, and circuit breakers that protect, control, and electrically isolate electrical equipment. Busbars are also used in bus ducts, which are long enclosures that contain busbars or cables and are used as power connectors between locations. Busways, or bus ducts, are long busbars with protective covers that allow new circuits to branch off anywhere along the busway.
The design of busbars must take into account various factors such as space, cost, safety, resistance, capacitance, and inductance. Most busbar configurations are not insulated to improve convective cooling and allow easy access for new connections. However, busbars may be supported on insulators or wrapped in insulation for protection from accidental contact.
The shape of a busbar can also impact its efficiency in conducting current. Shapes with high surface area to cross-sectional area ratios, such as hollow or flat shapes, are more efficient in higher-current applications due to their ability to dissipate heat more effectively. Additionally, a hollow section has higher stiffness than a solid rod of equivalent current-carrying capacity, allowing for a greater span between busbar supports.
Electricity Consumption: Climate Change Culprit or Innocent Bystander?
You may want to see also
Explore related products
$26.21 $27.59
Busbars are used instead of wires or cables
Busbars are used in electrical systems instead of wires or cables for a variety of reasons. They are rigid metallic bars, strips, tubes, or rods that conduct large amounts of current from one place to another with minimal energy loss. Busbars are preferred over wires or cables in high-power applications where a large amount of current needs to be transmitted over a short distance. They are also commonly used in low-voltage applications, such as connecting battery packs in electric vehicles, due to their rigidity and thin geometry.
Busbars are made of conductive materials such as copper or aluminium, which have high conductivity and low resistance. They typically lack individual insulation, relying on protective enclosures for safety. This design makes them easier to recycle and allows for simpler power tapping along their length. The lack of insulation also means that busbars can be advantageous in fire situations as they don't produce toxic gases from burning insulation.
Another advantage of busbars is their compact design, which allows for better space utilisation compared to cables, which require a large bend radius and take up more room. Busbars also have a wide and flat design that is perfect for moving large amounts of electricity. They can be easily mounted with simple clips, and their configurations can be adjusted to accommodate varying power requirements, enhancing system adaptability.
In terms of cost, busbars can be more cost-effective in the long run compared to cables due to their high efficiency and durability, resulting in lower replacement costs over time. Busbars also require minimal maintenance, reducing ongoing expenses. Additionally, busbar systems allow for easier planning of load ratings and types, enabling accurate cost calculations before installation.
However, it is important to note that cables and busbars serve different roles in electrical systems and are not typically interchangeable components. Cables are flexible and can be bent or twisted to fit into tight spaces, making them suitable for applications that require a high degree of flexibility, such as in cars, ships, and airplanes. They are also commonly used for low to medium power transmission and distribution, where versatility and flexibility are important factors.
Dismantling Electric Recliners: A Step-by-Step Guide
You may want to see also
Explore related products
They are used in high-current power distribution
An electric busbar is a metallic bar, strip, tube, or rod that conducts current from one place to another. Busbars are commonly used instead of wires or cables for high-current power distribution. They are often used in high-current applications due to their ability to efficiently dissipate heat. For instance, busbars with hollow or flat shapes are prevalent in high-current applications because they have a high surface area to cross-sectional area ratio, allowing for more effective heat dissipation.
Busbars are typically composed of copper, brass, or aluminium and are produced in a variety of shapes, including flat strips, solid bars, and rods. They are used to distribute power within a device and are often connected to other busbars and electrical apparatus by bolting, clamping, or welding.
In the context of high-current power distribution, busbars offer several advantages over traditional wires or cables. Firstly, they provide a safe and efficient means of conducting high currents with minimal energy losses. This is particularly important in high-current applications where energy efficiency and safety are critical. Secondly, busbars are more rigid and sturdy compared to wires or cables. This added rigidity allows them to support their own weight and withstand forces imposed by mechanical vibration, earthquakes, or accumulated precipitation in outdoor environments.
Furthermore, busbars are versatile in their design and can be customised to meet specific requirements. For example, in high-current applications, the skin effect makes 50–60 Hz AC busbars with a thickness of more than about 8 millimetres inefficient. In such cases, hollow or flat shapes are preferred due to their improved current-carrying capacity and reduced thickness.
Busbars are also utilised in bus ducts or busways, which are long enclosures containing busbars or cables used to transmit power from one location to another. Bus ducts and busways provide flexibility in power distribution by allowing new circuits to branch off anywhere along their length, rather than being restricted to branching from the main supply at a single location. This flexibility is particularly advantageous in high-current power distribution systems, where the ability to dynamically route and manage high currents is essential.
Medicare Coverage for Electric Scooters: What Seniors Need to Know
You may want to see also
Busbars are often uninsulated
Busbars are metallic bars, strips, tubes, or rods that conduct electricity from one place to another. They are commonly used instead of wires or cables for high-current power distribution, high-voltage equipment, and low-voltage battery applications.
Earthing (safety grounding) busbars are typically bare and bolted directly onto any metal chassis of their enclosure. They may be enclosed in a metal housing, in the form of a bus duct or busway, segregated-phase bus, or isolated-phase bus. Busbars can be manufactured in custom shapes to fit particular needs. For example, some modern busbars are designed with complex profiles to maximize surface area or to fit in compact enclosures.
The material of a busbar determines electrical conductivity, mechanical strength, weight, and cost. Copper is the traditional choice for busbars and sets the standard for conductivity. Electrolytic tough pitch copper (often 99.9% pure) is used, offering excellent conductivity of about 58 Mega Siemens per meter (MS/m). Copper naturally forms a protective tarnish (copper oxide) that still allows conductivity and resists corrosion from most environments. Aluminum bus bars are made from high-conductivity aluminum (often 6101 or 6063 alloys for bus conductors).
Electric Fly Swatters: Killing Lantern Flies Instantly?
You may want to see also
Frequently asked questions
A busbar (also written as bus bar) is a metallic bar, strip, tube, or rod that conducts current from one place to another. They are used in place of wires or cables for high-current power distribution, high-voltage equipment, and low-voltage battery applications.
Busbars are typically composed of copper, brass, or aluminium as solid or hollow tubes.
Busbars offer design advantages over wires or cables. They are often used to connect components like transformers, fuses, and industrial machinery, and can also distribute power within a device.
Bus ducts are long enclosures containing busbars or cables used as power connectors from one location to another. Power distribution boards are used in buildings to split the electrical supply into separate circuits.
