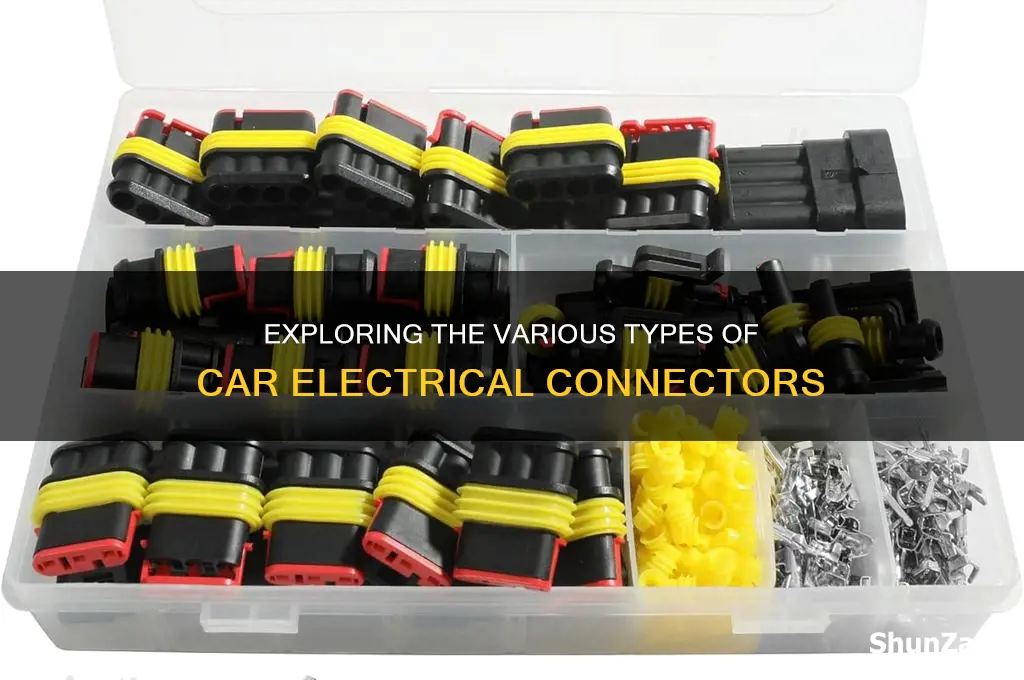

Car electrical connectors are essential components in modern vehicles, facilitating the transmission of power and signals between various systems such as the engine, lighting, sensors, and entertainment units. These connectors come in a variety of types, each designed for specific applications and environments. Common types include blade connectors, which are simple and widely used for low-current applications; bullet connectors, known for their ease of use and reliability in high-current scenarios; and Deutsch connectors, which are rugged and weatherproof, making them ideal for harsh conditions. Additionally, there are OBD-II connectors for diagnostic purposes, weatherpack connectors for outdoor durability, and Molex connectors, often found in interior electronics. Understanding the different types of car electrical connectors is crucial for proper installation, maintenance, and troubleshooting of automotive electrical systems.
| Characteristics | Values |
|---|---|
| Type | J1962 (OBD-II), Weather Pack, Metri Pack, Deutsch, AMP, Molex, Bullet, Blade, Ring Terminal, Spade Terminal, Butt Connector, Scotchlok, Wire Tap Connector, Fuses, Relays, CAN Bus Connectors, USB/Auxiliary, HDMI, Coaxial, Fiber Optic, High-Voltage EV Connectors (e.g., CHAdeMO, CCS, Tesla) |
| Application | Diagnostics (OBD-II), Engine Management, Lighting, Sensors, Audio, Charging (EV), Data Transmission, Power Distribution |
| Pin Count | 2-pin to 64-pin (varies by type) |
| Current Rating | 1A to 100A+ (depends on connector size and material) |
| Voltage Rating | 12V, 24V, 400V+ (for EV high-voltage systems) |
| Material | Plastic (PBT, Nylon), Metal (Copper, Brass, Tin-plated), Rubber (seals) |
| Waterproof Rating | IP65 to IP69K (varies; Weather Pack and Deutsch are highly waterproof) |
| Temperature Range | -40°C to +125°C (varies by material and design) |
| Locking Mechanism | Snap-fit, Screw, Latch, Bayonet, Push-Pull |
| Compatibility | Vehicle-specific, Universal (e.g., OBD-II), Brand-specific (e.g., Tesla) |
| Size | Compact (e.g., Micro-Fit), Standard, Large (e.g., High-Voltage EV) |
| Color Coding | Yes (e.g., OBD-II pins, Wire terminals) |
| Durability | Varies; High-quality connectors (e.g., Deutsch) are rugged and long-lasting |
| Cost | $0.10 to $50+ per connector (depends on type and quality) |
| Standardization | ISO, SAE, JEDEC, OEM-specific |
| Special Features | Shielding (for EMI), Sealed (waterproof), High-Speed Data Transmission |
Explore related products
What You'll Learn
- Wire-to-Wire Connectors: Snap-fit, crimp, or screw types for joining wires securely in automotive circuits
- Wire-to-Board Connectors: Link wires to PCB boards in car modules like ECUs or sensors
- Sealed Connectors: Waterproof and dustproof designs for harsh environments, often used in engines or exteriors
- High-Current Connectors: Built for heavy loads, used in batteries, alternators, or starter motors
- Sensor Connectors: Specialized for temperature, pressure, or speed sensors, ensuring reliable data transmission
Wire-to-Wire Connectors: Snap-fit, crimp, or screw types for joining wires securely in automotive circuits
Wire-to-wire connectors are the unsung heroes of automotive electrical systems, ensuring seamless communication between components by securely joining wires. Among the most common types are snap-fit, crimp, and screw connectors, each with distinct advantages and applications. Snap-fit connectors, such as those from the Molex Micro-Fit series, offer tool-free installation and are ideal for tight spaces where accessibility is limited. Their audible click ensures proper engagement, reducing the risk of loose connections. However, they may not withstand high-vibration environments as effectively as other types.
Crimp connectors, on the other hand, provide a more permanent and robust solution. By using a crimping tool to deform the connector around the wire, they create a gas-tight seal that resists moisture and vibration. The AMP Superseal series is a popular choice for automotive applications due to its waterproof design, making it suitable for under-hood or exterior wiring. Proper crimping technique is critical; insufficient pressure can lead to poor conductivity, while excessive force may damage the wire. Always follow manufacturer guidelines for tool calibration and wire gauge compatibility.
Screw connectors, such as those found in the WAGO series, prioritize versatility and ease of maintenance. Their clamp mechanism allows for repeated disconnection and reconnection without specialized tools, making them ideal for diagnostic or prototyping work. However, they are bulkier and less vibration-resistant than crimp or snap-fit connectors, limiting their use in high-stress areas. For best results, strip wires to the exact length specified and tighten screws to the recommended torque to avoid cold joints or wire damage.
When selecting a wire-to-wire connector, consider the environmental conditions, accessibility, and permanence of the connection. Snap-fit connectors excel in confined spaces and quick installations, while crimp connectors are the go-to for durability in harsh conditions. Screw connectors offer flexibility but require careful handling to ensure longevity. By matching the connector type to the application, you can maintain the integrity of automotive circuits and prevent costly electrical failures. Always test connections with a multimeter after installation to confirm continuity and reliability.
Hertz's Electric Vehicle Sales: A New Direction?
You may want to see also
Explore related products
Wire-to-Board Connectors: Link wires to PCB boards in car modules like ECUs or sensors
Wire-to-board connectors are the unsung heroes of automotive electronics, bridging the gap between external wiring harnesses and the intricate circuitry of printed circuit boards (PCBs) in modules like engine control units (ECUs) and sensors. These connectors ensure reliable signal transmission, power delivery, and data communication in the harsh environment of a vehicle. Designed to withstand vibration, temperature extremes, and moisture, they are critical for maintaining the functionality of modern vehicles. Without them, the complex interplay between sensors, actuators, and control units would falter, compromising performance and safety.
Consider the ECU, the brain of the vehicle, which relies on wire-to-board connectors to interface with sensors, actuators, and other subsystems. These connectors must provide secure mating, low contact resistance, and resistance to environmental stressors. For instance, a typical ECU might use a 2.54mm pitch connector with gold-plated contacts to ensure corrosion resistance and reliable conductivity. Similarly, in sensor applications, such as those for airbag deployment or tire pressure monitoring, compact and robust connectors like the Micro-Fit series from TE Connectivity are often employed. These connectors offer high-density pin arrangements, allowing for space-saving designs without sacrificing reliability.
Selecting the right wire-to-board connector involves balancing mechanical robustness, electrical performance, and cost. Key factors include current rating, voltage tolerance, and environmental sealing. For high-current applications, such as battery management systems, connectors with larger contact areas and higher amperage ratings are essential. In contrast, low-current signal applications, like those in infotainment systems, prioritize compactness and signal integrity. Additionally, connectors with integrated locking mechanisms, such as latches or friction locks, prevent accidental disconnection during vehicle operation.
Installation and maintenance of wire-to-board connectors require attention to detail. Ensure wires are stripped to the correct length (typically 6–8mm) and inserted fully into the connector housing to avoid loose connections. Use crimping tools calibrated for the specific connector type to achieve reliable terminations. During assembly, apply even force to avoid damaging the PCB or connector pins. Regular inspection for signs of wear, corrosion, or overheating is crucial, especially in high-stress areas like the engine bay. Replacing connectors at the first sign of degradation can prevent costly system failures.
In summary, wire-to-board connectors are indispensable in automotive electronics, enabling seamless integration between wiring harnesses and PCBs in critical modules. Their design, selection, and maintenance demand precision and foresight to ensure vehicle reliability and safety. By understanding their role and specifications, engineers and technicians can optimize performance and extend the lifespan of automotive systems. Whether in an ECU, sensor, or other module, these connectors are the linchpins of modern vehicle functionality.
Are Electric Cars Reliable? Exploring Longevity, Performance, and Maintenance
You may want to see also
Explore related products
Sealed Connectors: Waterproof and dustproof designs for harsh environments, often used in engines or exteriors
In the unforgiving environments where cars operate, from dusty trails to rain-soaked highways, electrical connectors face relentless challenges. Sealed connectors emerge as a critical solution, designed to withstand moisture, debris, and extreme temperatures. These connectors, often rated with IP67 or IP68 certifications, ensure that vital electrical systems remain functional even when submerged in water or exposed to fine particulate matter. Their robust construction typically includes silicone or rubber gaskets and locking mechanisms, creating an impenetrable barrier against environmental hazards.
Consider the engine bay, a hotbed of heat, oil, and vibration. Here, sealed connectors are indispensable, safeguarding sensors, fuel injectors, and ignition systems from contaminants that could cause short circuits or corrosion. Similarly, exterior applications like headlights, taillights, and trailer wiring rely on these connectors to maintain reliability in all weather conditions. For instance, Deutsch connectors, a popular brand in automotive and aerospace industries, are renowned for their sealed designs that meet military-grade standards, ensuring longevity in harsh environments.
When selecting sealed connectors, compatibility and installation precision are paramount. Ensure the connector’s pin configuration matches the application’s requirements, and verify its temperature and voltage ratings. During installation, apply dielectric grease to the mating surfaces to enhance water resistance and prevent corrosion. Avoid over-tightening locking mechanisms, as this can damage seals or distort the connector housing. Regular inspections, especially after off-road use or exposure to saltwater, can identify early signs of wear and prevent failures.
While sealed connectors offer unparalleled protection, they are not immune to misuse. Overloading circuits or using incompatible wiring can compromise their integrity. For DIY enthusiasts, investing in quality tools like wire strippers and crimpers ensures a secure connection. Professionals should adhere to manufacturer guidelines, particularly when retrofitting sealed connectors into older vehicles. By prioritizing proper selection and maintenance, sealed connectors become a cornerstone of automotive reliability, ensuring systems perform flawlessly regardless of the environment.
Electric Cars: The Future of Driving or a Passing Trend?
You may want to see also
Explore related products
High-Current Connectors: Built for heavy loads, used in batteries, alternators, or starter motors
High-current connectors are the unsung heroes of a vehicle's electrical system, designed to handle the immense power demands of critical components like batteries, alternators, and starter motors. These connectors are engineered to manage currents often exceeding 100 amps, ensuring reliable performance under extreme conditions. Unlike standard connectors, they feature robust materials such as high-grade copper or brass, which minimize resistance and heat buildup. Their larger contact surfaces and secure locking mechanisms prevent arcing and disconnection, even during engine vibration or temperature fluctuations. Without these specialized connectors, the electrical pathways in high-power systems would be prone to failure, leading to potential breakdowns or safety hazards.
Consider the starter motor, which draws up to 300 amps when cranking the engine. A high-current connector here must maintain a stable connection for the brief but intense duration of start-up. Similarly, the alternator, which generates upwards of 100 amps during operation, relies on these connectors to transmit power efficiently to the battery and electrical systems. In electric or hybrid vehicles, battery packs demand connectors capable of handling continuous high currents, often in the range of 400–800 amps. The design of these connectors often includes features like gold plating for corrosion resistance and insulated housings to prevent short circuits, ensuring longevity and safety in demanding environments.
When selecting or replacing high-current connectors, compatibility and quality are paramount. Always match the connector’s current rating to the application’s requirements, with a safety margin of at least 20%. For example, a starter motor drawing 250 amps should use a connector rated for at least 300 amps. Inspect connectors regularly for signs of wear, such as discoloration, melting, or loose fittings, as these indicate potential failure points. Cleaning contacts with isopropyl alcohol and applying dielectric grease can improve conductivity and prevent corrosion. For DIY installations, ensure proper torque when tightening terminals to avoid overheating or poor connections.
One practical tip is to use torque-limiting tools when assembling high-current connectors to avoid over-tightening, which can damage terminals or strip threads. Additionally, when working with battery connectors, always disconnect the negative terminal first to minimize the risk of short circuits. For high-voltage systems in electric vehicles, specialized insulated tools and gloves are essential to prevent electrical shock. Manufacturers often provide specific guidelines for connector maintenance and replacement, so consult the vehicle’s manual or service guide for detailed instructions.
In summary, high-current connectors are indispensable in automotive electrical systems, particularly where heavy loads are involved. Their design and material choices reflect the demands of high-power applications, ensuring reliability and safety. By understanding their function, selecting the right components, and following best practices for installation and maintenance, you can prevent failures and extend the lifespan of critical systems. Whether you’re a professional mechanic or a DIY enthusiast, treating these connectors with the care they deserve pays dividends in performance and peace of mind.
Top Retailers for Lime and Bird-Style Electric Scooters: A Buyer's Guide
You may want to see also
Explore related products
Sensor Connectors: Specialized for temperature, pressure, or speed sensors, ensuring reliable data transmission
Modern vehicles rely on a network of sensors to monitor critical parameters like temperature, pressure, and speed, ensuring optimal performance and safety. At the heart of this system are sensor connectors, specialized components designed to transmit data reliably under harsh automotive conditions. These connectors must withstand vibrations, temperature extremes, and exposure to fluids while maintaining signal integrity. Unlike general-purpose connectors, sensor connectors are engineered with precision to match the specific requirements of their corresponding sensors, ensuring accurate and consistent data flow to the vehicle’s control systems.
Consider the temperature sensor connector, often found in engine coolant or exhaust systems. These connectors are typically sealed to prevent moisture intrusion and are made from heat-resistant materials like high-temperature plastics or ceramics. For example, a coolant temperature sensor connector might use a two-pin design with a locking mechanism to secure the connection, even in high-vibration environments. The pins are often gold-plated to resist corrosion and ensure low contact resistance, critical for accurate temperature readings. Without such specialized features, the sensor could fail, leading to engine overheating or inefficient fuel combustion.
Pressure sensor connectors face similar challenges but with added complexity due to the dynamic nature of pressure measurements. These connectors, commonly used in tire pressure monitoring systems (TPMS) or fuel injection systems, must handle rapid pressure changes while maintaining a stable electrical connection. A TPMS connector, for instance, is often designed with a compact, weatherproof housing to protect against road debris and water. It may also incorporate a valve mechanism to allow for sensor calibration or replacement without air leakage. The connector’s pins are typically spring-loaded to compensate for thermal expansion and contraction, ensuring consistent contact over time.
Speed sensor connectors, such as those used in wheel speed sensors or transmission systems, prioritize durability and interference resistance. These connectors often feature shielded cables to minimize electromagnetic interference (EMI) from nearby components like motors or ignition systems. A common design includes a three-pin connector with a robust locking system to prevent disconnection during wheel rotation or gear shifts. The materials used, such as glass-filled nylon or metal alloys, provide mechanical strength and resistance to chemicals like brake fluid or oil. Proper installation of these connectors is critical; even a slight misalignment can lead to inaccurate speed readings, affecting ABS or traction control systems.
In practice, selecting the right sensor connector involves understanding the sensor’s operating environment and data transmission needs. For DIY enthusiasts or mechanics, it’s essential to verify compatibility with the vehicle’s make and model, as connectors can vary significantly between manufacturers. Always inspect connectors for signs of wear, corrosion, or damage during routine maintenance, as a failing connector can trigger false sensor readings or system malfunctions. Replacement connectors should meet OEM specifications to ensure reliability and safety. By prioritizing the unique demands of temperature, pressure, and speed sensors, these specialized connectors play a silent yet vital role in modern automotive functionality.
Charging Costs for Electric Cars in Ireland: What You Need to Know
You may want to see also
Frequently asked questions
Car electrical connectors come in various types, including blade connectors, bullet connectors, ring terminals, spade terminals, Deutsch connectors, and weatherpack connectors, each designed for specific applications and environments.
Blade connectors are commonly used for low-current applications like interior lighting, gauges, and accessory wiring due to their compact design and ease of use.
Deutsch connectors are known for their rugged, waterproof, and vibration-resistant design, making them ideal for harsh automotive environments such as engine compartments and off-road vehicles.
Weatherpack connectors are used in applications requiring high reliability and weather resistance, such as exterior lighting, sensors, and under-hood wiring, as they provide excellent protection against moisture and corrosion.
