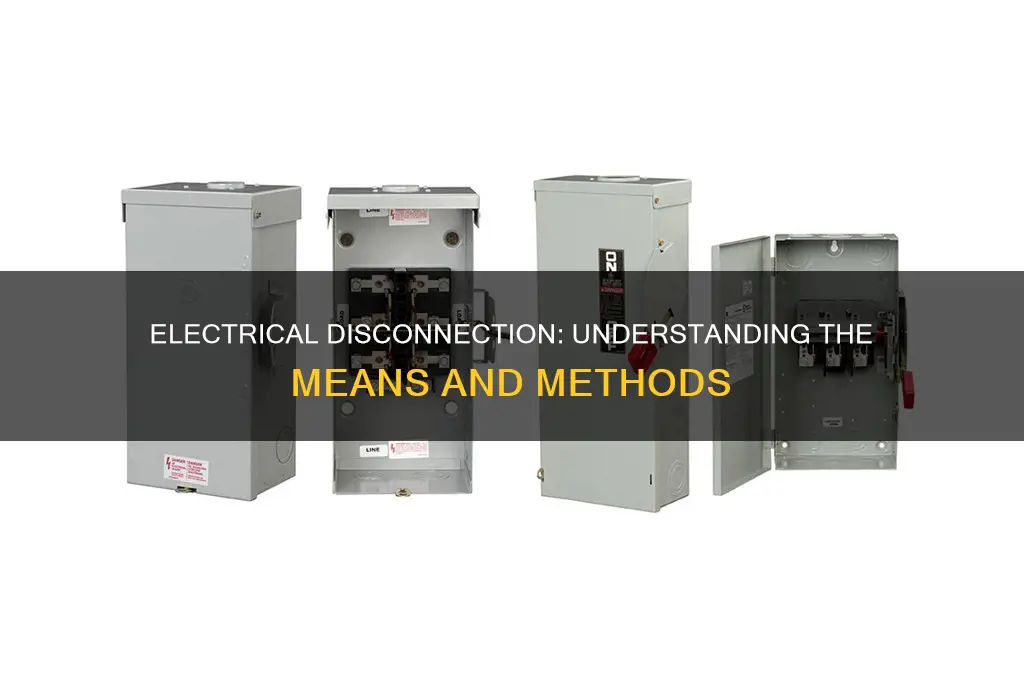

Electrical disconnecting means refers to a device or group of devices that can disconnect the conductors of a circuit from their source of supply. This can include a switch, a circuit breaker, or a cord and plug connection. In the case of emergency disconnecting means, the purpose is to allow first responders to quickly and safely turn off power to a building to establish a safe electrical environment. Electrical codes, such as the National Electrical Code (NEC), specify requirements for disconnecting means, including their location and marking for easy identification. These codes aim to promote safety and ensure that power can be shut off in case of an emergency or problem.
Explore related products
What You'll Learn
- Electrical disconnecting means can be a device or group of devices that disconnect the source of supply
- It can be a switch, circuit breaker, or cord and plug connection
- Disconnecting means must be marked to identify the source of supply
- It is not an emergency disconnect but is meant to remove all power from the building
- Disconnecting means must be lockable and marked for series combination ratings
Electrical disconnecting means can be a device or group of devices that disconnect the source of supply
In the case of one- and two-family dwelling units, an emergency disconnecting means shall be installed. This is to permit first responders to easily remove power from the inside of one and two-family dwellings. It is there to allow the power to be quickly and safely turned off in the event of an emergency.
The National Electrical Code (NEC) states that there must be a device that will disconnect all power, and that this device must be either outside the building or inside nearest to the point at which power enters the building. The NEC does not specify a maximum distance for this, but some states do establish a limit.
The 2020 NEC also requires any disconnecting means, in other than one- or two-family dwellings, to be field-marked to identify the circuit source that supplies it. This is to promote safety by ensuring that a service electrician or building owner can easily shut off the disconnecting means in the event of a problem.
Fridge Efficiency: More Items, More Electricity?
You may want to see also
Explore related products
It can be a switch, circuit breaker, or cord and plug connection
Disconnecting means refers to a device or group of devices that can disconnect the conductors of a circuit from their source of supply. This can include a switch, a circuit breaker, a cord and plug connection, or a combination of these devices.
Switches are commonly used as disconnecting means, and they can be simple wall switches or more complex double-throw switches. A double-throw switch is a type of switch that can disconnect the power supply to a building or structure, ensuring that there is no return path for electricity to flow back into the system. This is particularly important for emergency situations or when working on electrical systems to ensure a safe electrical environment.
Circuit breakers are another type of disconnecting means. They are designed to interrupt the flow of electricity in the event of an overload or short circuit, protecting the electrical system from damage. Circuit breakers can be used in conjunction with switches to provide a comprehensive disconnecting means.
Cord and plug connections can also serve as disconnecting means in certain situations. By simply unplugging a cord from its power source, the electrical connection is quickly and safely disrupted. This method is often used for portable devices or equipment, providing a convenient and accessible way to disconnect power.
The specific requirements for disconnecting means may vary depending on local electrical codes and regulations. For example, the National Electrical Code (NEC) in the United States specifies that for one- and two-family dwelling units, an emergency disconnecting means shall be installed to allow first responders to quickly and safely turn off the power. Additionally, the NEC requires that disconnecting means be located either outside the building or inside nearest to where the power enters the building.
Understanding the Electricity Crisis: Causes and Impacts
You may want to see also
Explore related products
Disconnecting means must be marked to identify the source of supply
Disconnecting means refers to a device or group of devices that can disconnect the conductors of a circuit from their source of supply. This can include a switch, a circuit breaker, or a cord and plug connection.
The National Electric Code (NEC) requires that disconnecting means be marked to identify the source of supply. This marking is necessary to ensure that the purpose of the disconnecting means is clear. In the case of one- or two-family dwellings, the marking is not required if the disconnecting means is located next to the equipment it serves, as the purpose is evident. However, for industrial, commercial, and multifamily dwellings with multiple disconnects, it can be challenging to locate the source of supply for each disconnect. Therefore, the marking must be clear and specific to enhance the safety of electrical personnel who service these disconnects.
The marking must also be durable and suitable for the environment in which the disconnect is installed. For example, a disconnecting means installed outdoors will require a more durable marking that can withstand the elements.
The NEC has had requirements for marking disconnecting means since 1965, but the 2020 edition added a new requirement for any disconnecting means in other than one- or two-family dwellings to be field-marked to identify the circuit source. This change was made to improve safety and efficiency in emergency situations and during normal maintenance operations.
Understanding LBD: Electrical Term Meaning and Applications
You may want to see also
Explore related products
$99.12 $126.62
It is not an emergency disconnect but is meant to remove all power from the building
Disconnecting means refers to a device or group of devices that disconnect the conductors of a circuit from their source of supply. This can include a switch, a circuit breaker, a cord and plug connection, or a combination of these.
In the case of electrical installations, disconnecting means are required to establish a safe electrical environment. This is not an emergency disconnect, but it is meant to remove all power from the building. According to the NEC rules, there must be a device that will disconnect all power, and this device must be located either outside the building or inside, nearest to where the power enters the building. The NEC does not specify a maximum distance for "nearest", but some states have established limits.
For one- and two-family dwelling units, an emergency disconnecting means is required to be installed. This allows first responders to quickly and safely turn off the power. However, for larger multi-family dwelling units, it is unclear if an outside disconnect is required.
To disconnect the power supply to a building, one must call their utility company to disconnect the meter. This may require an inspection of the new panel before the utility company will re-install the meter and restore power.
Decoding Whitman: Electric Body, Electric Song
You may want to see also
Explore related products
Disconnecting means must be lockable and marked for series combination ratings
Disconnecting means refers to a device or group of devices that can disconnect the conductors of a circuit from their source of supply. This can include a switch, a circuit breaker, a cord and plug connection, or a combination of these.
For example, the NEC states that for one- and two-family dwelling units, an emergency disconnecting means shall be installed to permit first responders to quickly and safely remove power. This device must be located outside the building or inside nearest to where power enters the building.
In terms of marking, the disconnecting means should be legibly marked to indicate its purpose, unless its purpose is evident from its location and arrangement. This marking must be durable and able to withstand the environment. Additionally, when in other than one- or two-family dwellings, the source that supplies the disconnecting means must be identified with regard to its location, unless the source is evident from its location and proximity.
The series combination ratings marking is particularly important for equipment enclosures for circuit breakers or fuses. This marking indicates that the equipment has been applied with a series combination rating and must meet specific requirements, such as being readily visible and including a caution statement and amperage information.
Understanding MCM: Electrical Acronym Explained
You may want to see also
Frequently asked questions
Electrical disconnecting means are devices or groups of devices that disconnect the conductors of a circuit from their source of supply.
Examples of electrical disconnecting means include a switch, a circuit breaker, a cord and plug connection, or a group of the aforementioned devices.
Electrical disconnecting means are used to establish a safe electrical environment by allowing all power to the building to be removed.
Electrical disconnecting means must be either outside the building or inside nearest to the point at which power enters the building. They should also be legibly marked to indicate their purpose and the circuit source that supplies them.
