Electric circuits are essential for the functioning of our modern world, from simple devices to complex systems. A circuit is a closed loop that allows electric current to flow. Electric current is the flow of electric charges through a conductor, and it is measured in amperes (A). The simplest circuit is a series circuit, in which the components are connected in a single loop, and the current flows through each component in turn. In contrast, a parallel circuit has multiple pathways, allowing the electricity to be split and sent to different places at once. In this type of circuit, the current can flow through any of the loops, and the total resistance is less than that of the individual components.
| Characteristics | Values |
|---|---|
| Definition | Electric circuits are pathways used to transmit electric currents and move electricity. |
| Types | Series and parallel circuits |
| Series Circuit | Components are arranged end-to-end, allowing the same current to flow through each component. |
| Parallel Circuit | Multiple pathways, allowing electricity to be split and sent to different places at once. |
| Current | The flow of electric charge through a conductor. Measured in amperes (amps). |
| Voltage | The force that makes electrons flow. It is the difference in potential energy between two points in a circuit. |
| Power | Measured in watts. Calculated by multiplying voltage by the current. |
| Resistance | The measure of how well something conducts electricity. |
| Conductors | Materials that allow electricity to flow easily, typically metals. |
| Insulators | Materials that do not allow electricity to flow easily, typically plastics or rubber. |
| Ohm's Law | The current flowing through a conductor is directly proportional to the voltage and inversely proportional to resistance. |
| Alternating Current (AC) | The flow of electric charge periodically reverses direction. |
| Direct Current (DC) | The flow of electric charge in only one direction. |
Explore related products
What You'll Learn
Electric current

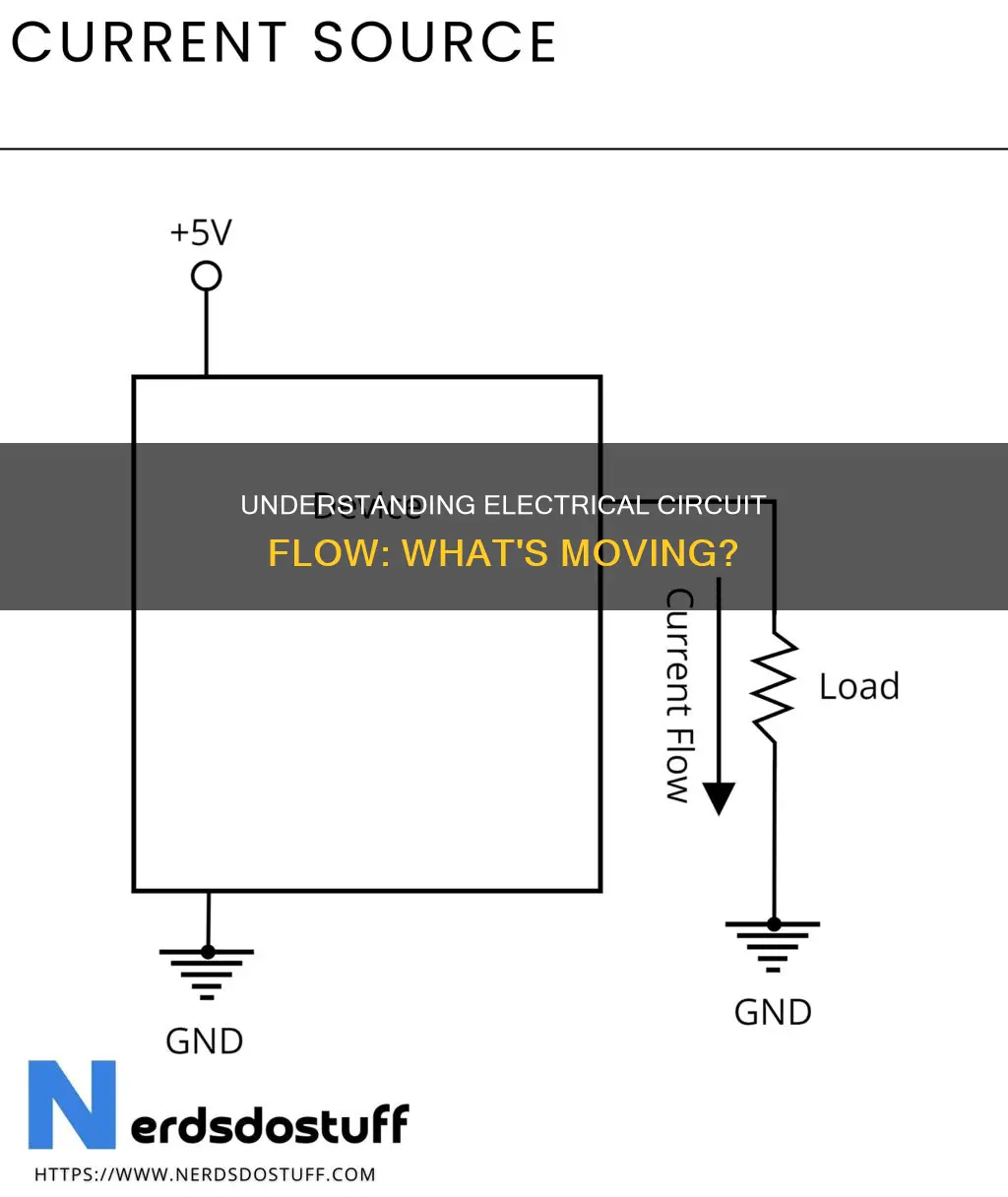

An electric current is the flow of electric charge through a conductor. It is measured in amperes (amps). When you switch on a light, for example, electric current flows from the battery or power source through the wires and the bulb, causing it to light up.
Electricity is the flow of electric charge, which, in most household contexts, means the movement of electrons through a conductor. These electrons move from areas of negative charge to areas of positive charge, creating an electric current. In conductive materials, such as metals, some electrons are free to move. These electrons aren’t bound to any particular atom and can drift from one atom to another.
In a simple circuit, the battery is the source of electrical energy, and the light bulb is the load. The wires connect the battery to the light bulb. When the switch is closed, the circuit is complete and the electrons can flow from the battery, through the light bulb, and back to the battery.
There are two main types of electrical circuits: series and parallel. In a series circuit, the components are connected in a single loop, and the current flows through each component in turn. The total resistance of a series circuit is the sum of the resistances of the individual components. In a parallel circuit, the components are connected in multiple loops, and the current can flow through any of the loops. The total resistance of a parallel circuit is less than the resistance of any of the individual components.
In alternating current (AC) systems, the movement of electric charge periodically reverses direction. Direct current (DC) refers to a system in which the movement of electric charge is in only one direction.
Connecting Your Home: Steps to Electricity Access
You may want to see also
Explore related products
Conductors and insulators
Electric circuits are closed loops that allow electric current to flow through them. They are used in a wide variety of applications, from simple devices like lightbulbs to complex systems.
Electricity is the flow of electric charge, which, in most household contexts, means the movement of electrons through a conductor. Conductors are materials that allow electricity to flow easily. They are typically made of metals, such as copper, aluminium, silver, gold, iron, steel, and carbon. Copper is the most commonly used material for conductors due to its excellent conductive properties and relatively low cost. Conductors have a very low resistance to electric current because their electrons are free to move and are not bound to any particular atom.
Insulators, on the other hand, are materials that do not allow electricity to flow easily. They are typically made of plastics, rubber, glass, wood, or air. Insulators have tightly bound electrons that are not free to move between atoms. These materials are used to protect us from the dangerous effects of electricity flowing through conductors. For example, the rubber coating on electrical wires shields us from the conductor inside. Insulators have a very high resistance to electric current.
In a simple electrical circuit, a conductor, such as a copper wire, carries electricity from the energy source (e.g., a battery) to an electrical component (e.g., a lightbulb). When the circuit is complete, the battery's negative terminal repels electrons, sending them through the wire to the lightbulb, causing it to light up.
Amtrak Trains: Wifi and Power Availability Onboard
You may want to see also
Explore related products
Series circuits
An electric circuit is a closed loop that allows electric current to flow. There are two main types of electrical circuits: series circuits and parallel circuits.
A series circuit is a simple type of circuit where the components are connected in a single loop or pathway, forming a single path for current flow. The current flows through each component in turn, and each component has the same electric current flowing through it. This means that the total resistance in a series circuit is the sum of the individual resistors, and the total voltage drop is the sum of the individual voltage drops across those resistors.
In a series circuit, if one component fails, the entire circuit breaks and ceases to function. For example, in a string of Christmas tree lights, if one bulb burns out, the entire string becomes inoperable until the faulty bulb is replaced.
The arrangement of components in a series circuit also affects the voltage. The voltage across the network is equal to the sum of the voltages across each component. For instance, a 12-volt car battery consists of six 2-volt cells connected in series.
Harvesting Electricity: Fruits and Vegetables' Power Source
You may want to see also
Explore related products
Parallel circuits
An electric circuit is a closed loop that allows electric current to flow. Electric circuits are used in a wide variety of applications, from simple devices like light bulbs to complex systems.
There are two main types of electrical circuits: series and parallel circuits. In a series circuit, the components are connected in a single pathway, so the current has only one path to follow. In contrast, a parallel circuit is one in which the components are connected in multiple pathways, allowing the current to flow through any of the loops.
In a parallel circuit, each component has the same voltage across it, equal to the voltage across the network. The total current in a parallel circuit is the sum of the currents through the individual components. This is in accordance with Kirchhoff's current law.
For example, consider a circuit with four light bulbs and a 12-volt battery. If each bulb is wired to the battery in a separate loop, they are said to be in parallel. The currents through the light bulbs combine to form the current in the battery, while the voltage drop is the same across each bulb, and they all glow.
Another example is a string of Christmas tree lights. If one bulb burns out or is removed, the entire string becomes inoperable until the faulty bulb is replaced. This is because, in a series circuit, the current must flow through every component in the circuit, and opening or breaking the circuit at any point causes it to stop operating. In contrast, in a parallel circuit, each light bulb has its own circuit, so all but one light could be burned out, and the last one will still function.
Space Heaters: NYC's Legal Electric Warmth
You may want to see also
Explore related products
Voltage, current, and resistance
An electric circuit is a closed loop that allows electricity to flow through it. The electricity flowing through a circuit is called electric current. The flow of electric charges through a conductor is called electric current. It is measured in amperes (A).
Current is the rate at which the electric charge flows through the circuit. It refers to the amount of charge that flows in any part of the conductor per time interval. The electric current is determined by the amount of voltage and resistance in an electric circuit. The higher the voltage, the higher the current, and the higher the resistance, the lower the current.
Resistance is the measure of the opposition to the flow of electric current in a circuit. It is a material's tendency to resist the flow of electric charge. In a series circuit, the total resistance is the sum of the resistances of the individual components. In a parallel circuit, the total resistance is less than the resistance of any of the individual components.
Electricity's Underground Journey: Earth's Electrical Current
You may want to see also
Frequently asked questions
Electrical circuits are pathways through which electricity can flow to power something, like a light fixture.
Electrons are what flow through an electrical circuit. Voltage pushes the electrons to move from atom to atom.
Atoms make up the "stuff", like the wires and components of an electrical circuit, and unlike electrons, they cannot move around.
Switches act as gates that control the flow of electricity in a circuit. When a switch is open, it creates a gap in the circuit and the current does not flow. When it is closed, it completes the circuit and allows the current to flow through.
A three-way switch is used to control a light fixture from two locations, whereas a four-way switch is used when you want to control the fixture from three or more locations.
