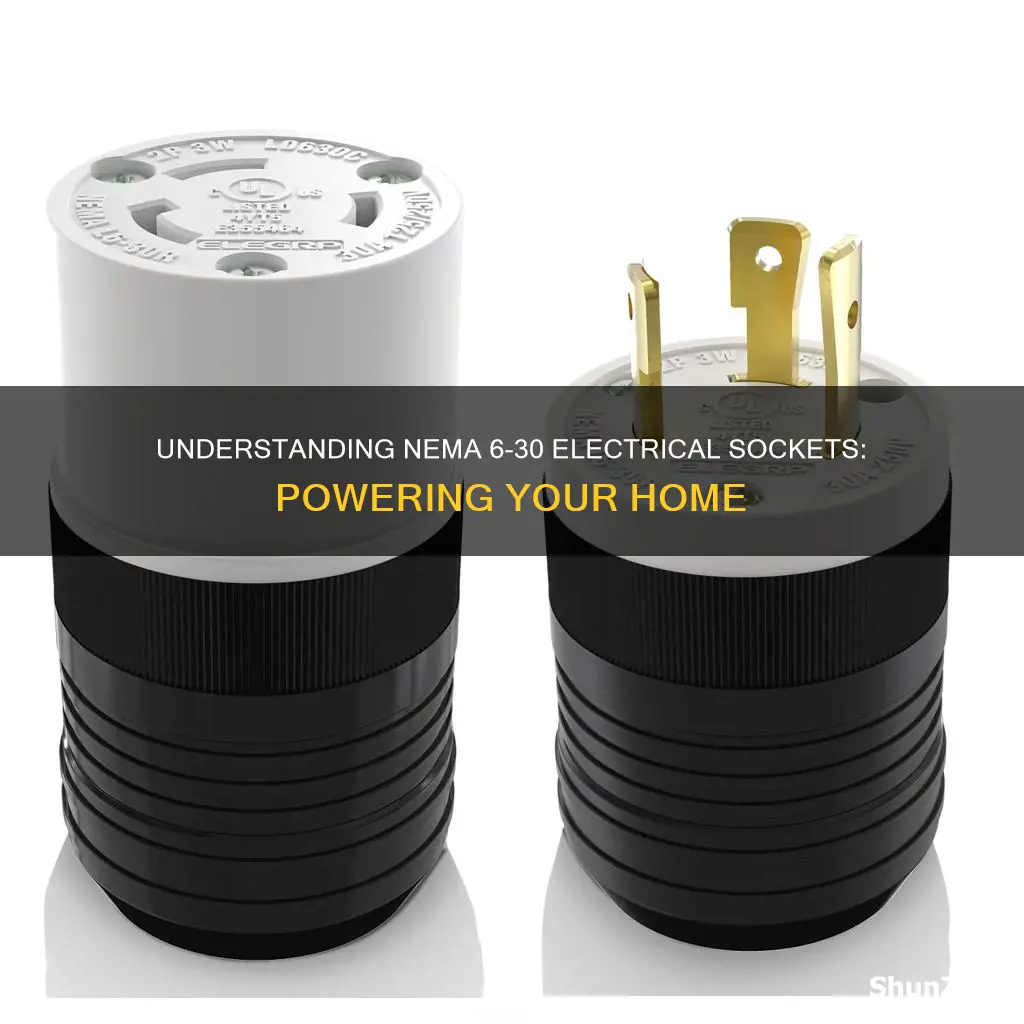

NEMA 6-30 electrical sockets are three-wire grounding devices used for 208 and 240 V circuits. They are rated for a maximum of 250 V and 30 amps. The NEMA 6-30R receptacle is the most commonly used socket for charging electric vehicles and is also used to power air conditioners, electric stoves, and dryers. It is configured with two horizontal slots and a dome-shaped ground pin hole, with three terminal junctions on the back for hot wires and a dedicated ground wire.
| Characteristics | Values |
|---|---|
| Type | NEMA 6-30R |
| Voltage | 240V |
| Current | 30A |
| Cable | 10/2 |
| Conductors | Two 10 AWG conductors and a ground wire |
| Coated wires | Black and red or black and white |
| Inlet holes | Three |
| Screws | Two brass, one green |
| Installation | Must be installed in an approved electric box securely fastened to a wall stud |
| Box design | Waterproof and weatherproof with a cover |
Explore related products
What You'll Learn
NEMA 6-30R wiring
The NEMA 6-30R receptacle is a three-wire receptacle, comprising two hot wires and one equipment grounding conductor. This type of receptacle does not include a neutral connection and provides only 240 volts, with no 120-volt provision. As a result, it is not suitable for appliances requiring both 240-volt and 120-volt power sources.
To wire the NEMA 6-30R receptacle, you will need to use 10 AWG copper conductors for all three wires. The receptacle must be wired to a 30-amp double-pole circuit breaker in the electrical panel. The receptacle itself has a distinctive configuration, with two horizontal slots and a dome-shaped ground pin hole, which can be installed in either orientation.
When installing the receptacle, ensure you use an approved electric box that is securely fastened to a wall stud. Feed the cable through the back of the box and tighten the cable clamp to prevent movement. It is crucial to turn off the circuit before commencing any wiring work. The NEMA 6-30R receptacle has three inlet holes, each with its own screw. Two of the wires in the cable are coated with insulation, and one is bare. The coated wires, which can be black and red or black and white, connect to the breakers in a dual 30-amp breaker set installed in the electric panel. The bare wire is the ground wire and connects to the ground bus in the panel.
It is important to note that if you do not have experience with installing circuit breakers, it is advisable to seek the assistance of a qualified electrician. Additionally, the electrical box used for the installation must be waterproof and weatherproof, with a suitable cover.
Choosing the Right Electricity Provider for Your Apartment
You may want to see also
Explore related products
NEMA 6-30R use cases
NEMA 6-30R receptacles are commonly used for electric vehicle charging. They are designed for use on a 240-volt circuit and have a maximum current rating of 30 amps. NEMA 6-30R receptacles are also used to power household appliances such as air conditioners, electric stoves, and dryers, but they cannot be used for 240-volt appliances that require 120-volt power for accessories like lights or clocks.
NEMA 6-30R receptacles are installed in approved electric boxes securely fastened to wall studs. They require a 10/2 cable for wiring, which has two 10 AWG conductors and a ground wire. The ground wire is bare, while the other two wires are coated in insulation and connect to the breakers in a dual 30-amp breaker set. When installing a NEMA 6-30R receptacle, it is important to ensure that the circuit is turned off before beginning any wiring work.
The receptacle has three inlet holes with screws, two of which are brass-coloured and one is green. The insulation is removed from the coated wires, and they are fed through the holes with the brass screws, while the bare wire is fed through the hole with the green screw. The screws are then tightened with a screwdriver to secure the wires.
NEMA 6-30R receptacles are commonly used in North America and other countries that follow the standards set by the US National Electrical Manufacturers Association (NEMA). These standards specify the use of NEMA power cords to connect AC mains electricity to power sockets. NEMA connectors are found on the side of power cords that plug into AC wall outlets.
NEMA 6-30R receptacles are also available in locking and waterproof configurations for industrial applications. These receptacles have curved blades that allow the plug to be twisted and locked into the outlet, providing additional safety and security in environments where power needs to be continuously supplied.
Understanding Switch Legs: Electrical Wiring Basics
You may want to see also
Explore related products
NEMA 6-30P plugs
NEMA is an acronym for the National Electrical Manufacturers Association, which creates standards for electrical products and systems to ensure compatibility and safety. The NEMA connector system includes plugs and sockets/receptacles. The NEMA 6-30P plug is a type of NEMA straight blade plug, which means it has unique pin positions based on amperage and voltage.
The numeral "6" in the name indicates that it is a three-wire grounding device, and the "30" indicates that it is rated for 30 amperes. The letter "P" at the end of the name indicates that it is a plug, as opposed to a receptacle, which would be indicated by the letter "R".
Ice Cream Before Electricity: Hand-Cranked Deliciousness
You may want to see also
Explore related products
NEMA 6-30R electrical box requirements
The NEMA 6-30R electrical box is a receptacle used to power electric vehicles, air conditioners, electric stoves, and dryers. It is designed for use on a 240-volt circuit and is rated for a maximum current of 30 amps. This receptacle is commonly used for charging electric vehicles and requires a NEMA 6-30P plug.
When installing a NEMA 6-30R electrical box, there are several requirements to ensure safety and proper functionality. Firstly, the receptacle must be installed in an approved electric box that is securely fastened to a wall stud. The box should have a weatherproof design and a cover to protect it from the elements, especially if it is an outdoor installation.
The wiring process for a NEMA 6-30R box involves using 10/2 cable, which consists of two 10 AWG conductors and a ground wire. The cable is fed through the back of the box, and the cable clamp is tightened to secure it in place. It is important to ensure that the circuit is turned off before beginning any wiring work. The receptacle has three inlet holes with corresponding screws: two brass screws and one green screw. The coated wires, which can be black and red or black and white, are fed through the holes with the brass screws, while the bare ground wire is connected to the hole with the green screw.
It is crucial to follow the terminal markings for proper wiring identification and fast connections. Additionally, the electrical box should have a protective cover to prevent accidents and enhance safety. The NEMA 6-30R socket provides reliable performance and is constructed with a top-quality plastic cover to reduce abrasion. It also effectively prevents water and dust from entering and causing damage.
Electric Scooter Repair: DIY Guide to Fixing Common Issues
You may want to see also
Explore related products
NEMA 6-30R cable requirements
The NEMA 6-30R is a type of receptacle that is commonly used for large appliances such as dryers, ranges, and air conditioners. It is designed for 240-volt, 30-amp electrical systems and requires two hot wires and a ground wire for proper operation. It is not compatible with standard 120-volt electrical systems. The receptacle has a unique configuration of prongs, with two vertical prongs, one with a 90-degree bend, and a grounding prong at the bottom.
When wiring a NEMA 6-30R receptacle, it is important to use the correct gauge of wire to handle the high amperage. The National Electrical Code (NEC) recommends using at least 10 AWG copper wire for NEMA 6-30R circuits. This can be achieved by using a pre-assembled cable, such as a Type NM or Type MC cable, which contains multiple insulated wires within a protective jacket. Cable wiring is generally easier to install than conduit wiring but may not provide the same level of protection.
If the NEMA 6-30R receptacle is being installed outside, the cable that feeds it must be buried and enclosed in conduit for any exposed portions. The electrical box must also be waterproof and weatherproof with a cover.
Electro House DJ: The Ultimate Guide to Get Started
You may want to see also
Frequently asked questions
NEMA 6-30R is a receptacle designed for use on a 240-volt circuit and is rated for a maximum current of 30 amps.
The NEMA 6-30R is commonly used to charge electric vehicles. It is also used to power air conditioners, electric stoves, and dryers.
The NEMA 6-30R has two horizontal slots and a dome-shaped ground-pin hole. It has three terminal junctions on the back, two for hot wires and one for a dedicated ground wire.
To wire a NEMA 6-30R, you need 10/2 cable, which has two 10 AWG conductors and a ground wire. The electrical box must be securely fastened to a wall stud and be waterproof with a weatherproof design and cover.
