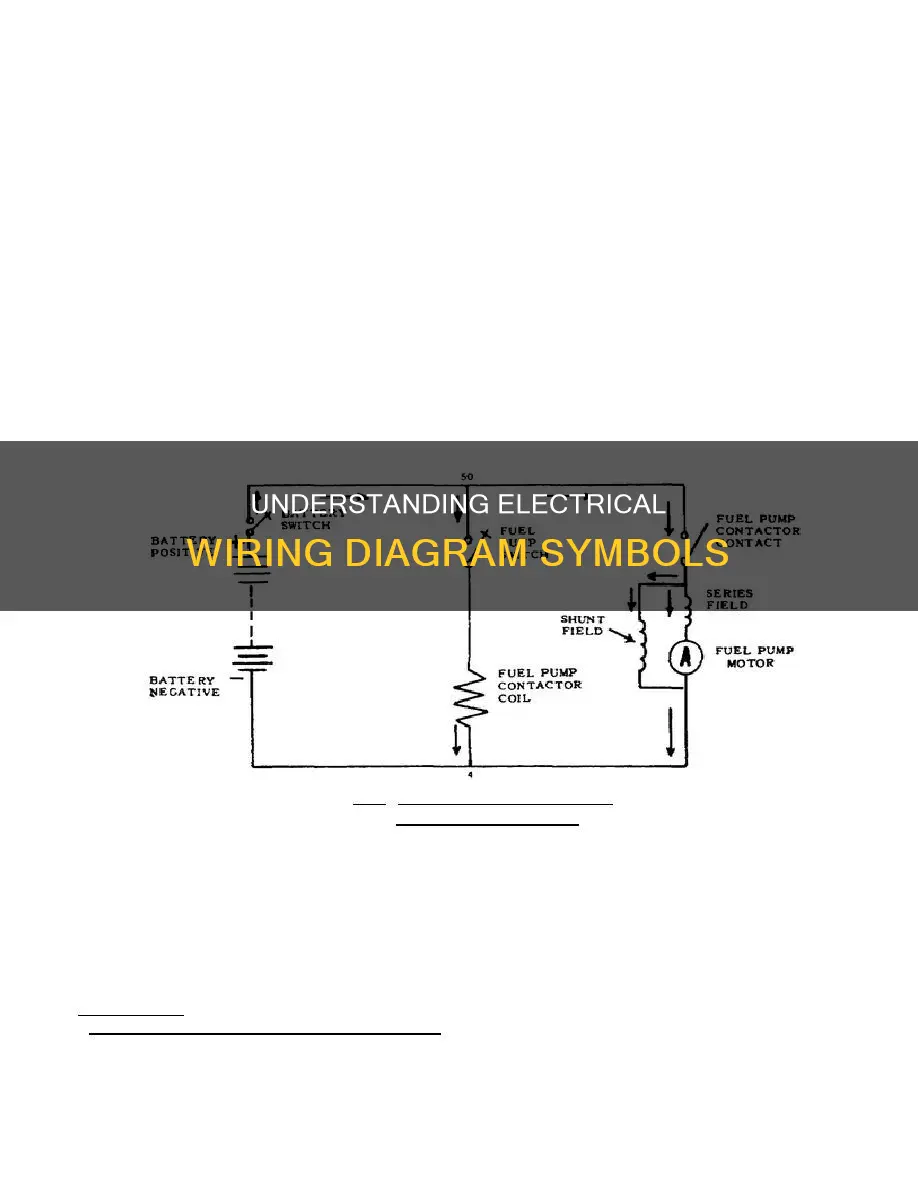

Wiring diagrams are simplified visual representations of how electrical components are connected and how they interact within a circuit. They use symbols to represent switches, lights, outlets, and other electrical equipment. These symbols are crucial for interpreting wiring diagrams effectively and avoiding common errors such as missing connections or incorrect wire sizing. Single-line diagrams, schematic diagrams, and circuit diagrams are commonly used to represent complex circuits and power flows, with each type of diagram serving a unique purpose and presenting information differently. Understanding these electrical wiring diagram symbols is essential for professionals in electrical work, construction, and industrial environments.
| Characteristics | Values |
|---|---|
| Purpose | To represent switches, lights, outlets, and other electrical equipment |
| Function | Show how electrical wires connect between different components |
| Use | Help identify each connection point, wire path, and component |
| Types | Single-line diagrams, schematic diagrams, circuit diagrams |
| Symbols | Represent resistors, capacitors, power sources, transformers, circuit breakers, distribution panels, etc. |
Explore related products
What You'll Learn
Symbols for power sources, switches, resistors, and other components
Electrical wiring diagrams use symbols to visually represent circuits or systems, showing how components are connected by wires. These diagrams use standardised symbols to indicate different components and connections, helping technicians understand how electricity moves through a building or piece of equipment.
For power sources, the most common symbols are switches, outlets, and lights. Switch symbols are used in electrical construction and reading and understanding blueprints and electrical wiring drawings. Outlets are also commonly included in diagrams, as are lights, which are part of the load circuit.
Resistors are another common element of electrical networks and electronic circuits. They are represented by their own set of electrical symbols and are used to reduce current flow and lower voltage levels within circuits. Fixed resistors have resistances that change only slightly with temperature, time, or operating voltage. Variable resistors can be used to adjust circuit elements, such as volume control or a lamp dimmer.
Other components that are commonly included in electrical wiring diagrams are fuses, connection points, ground wires, lighting fixtures, and circuit breakers. Arrows are also used within schematic symbols to indicate the direction of conventional current flow around a circuit or through a component.
High-End PC Electricity Consumption: How Much Does it Cost?
You may want to see also
Explore related products
Symbols representing lights, outlets, and other electrical equipment
Electrical wiring diagrams use simplified symbols to represent switches, lights, outlets, and other electrical equipment. These diagrams provide a visual representation of electrical systems and wiring for technicians, electricians, and electrical engineers to understand and work on. While there are standard symbols, each engineering office may use its own set of electrical symbols, so it is important to refer to the legend or key provided with the diagrams.
The basic symbol for a light is a circle, with variations and abbreviations conveying additional information. For example, a circle with half of it shaded black can indicate an LED wall washer light, while the letter 'W' next to the circle indicates it is intended for a wet area. A recessed light can be represented by a diagonal slash across the circle or with the letter 'R'. Not all lights are circles, however; a line with half-circles on each end may be used for under-cabinet lighting, and a line with small circles on either side is used for strip lighting.
Outlets or receptacles are usually represented by a circle off the wall, connected to it by two parallel lines, with abbreviations providing additional information. A square around a duplex or a quad indicates a floor receptacle. Outlets for larger appliances are often indicated by a triangle, with abbreviations denoting the appliance: 'CD' for a clothes dryer, 'CW' for a clothes washer, 'DW' for a dishwasher, and 'R' for a refrigerator.
Other electrical equipment, such as televisions, are typically indicated by the letters 'TV' in a box. Curving dashed lines on a floor plan indicate the route of wiring throughout, connecting switches and fixtures. These wire runs are not precisely located and are determined by an electrician.
Freezer Electricity Usage: What's the Real Cost?
You may want to see also
Explore related products
How to create a wiring diagram
Wiring diagrams use simplified symbols to represent electrical equipment such as switches, lights, and outlets. There are several software tools available to help create wiring diagrams, such as Visio, Lucidchart, SmartDraw, LibreOffice, and EPLAN.
- Choose a suitable software tool: Some popular options include Visio, Lucidchart, SmartDraw, LibreOffice, and EPLAN. Consider factors such as ease of use, availability of templates, and the range of symbols included.
- Familiarize yourself with the software: Most software tools offer tutorials or help sections to guide you through the process of creating diagrams. Learn how to navigate the user interface, manage documents, and utilize the available features.
- Start with a template: Begin with a pre-made template specifically designed for wiring diagrams. This will provide you with a basic framework to work from, making the process easier.
- Determine the goal of your diagram: Are you creating a wiring diagram for a specific project or trying to combine multiple circuits into one? Understanding the purpose of your diagram will guide your design process.
- Utilize the symbol library: Wiring diagram software typically includes a comprehensive library of electrical symbols. Drag and drop the symbols you need onto the canvas, and refer to the wiring symbol legend to ensure you're using the correct symbols.
- Customize your diagram: Add additional shapes, lines, or text to further detail your diagram. You can also import custom shapes or images if needed.
- Review and collaborate: Once your diagram is complete, ask someone else to review it for clarity and accuracy. An outsider's perspective can provide valuable insights and help identify any areas that need improvement.
- Export and share your diagram: Finally, export your wiring diagram in a suitable file format, such as JPG, PNG, or PDF, and share it with your team or anyone who needs to reference the wiring information.
By following these steps and utilizing the right tools, you can effectively create a wiring diagram that communicates electrical wiring information clearly and accurately.
Electricity in Havasupai: Powering a Remote Reservation
You may want to see also
Explore related products
Single-line diagrams and schematic diagrams
Single-line diagrams (SLDs) are a type of schematic diagram that uses a single line to represent multiple conductors in a power distribution system. They are simplified representations that enhance readability and provide a comprehensive picture of the electrical distribution of a unit. SLDs are often used in electrical power grids, as they simplify what would otherwise be a cluttered schematic diagram with multiple lines representing each conductor. These diagrams show the course of an electric circuit or system of circuits, including the component devices or parts used. They are essential for electrical power system operators who need to make quick decisions regarding the power grid.
When interpreting an SLD, it is important to start at the top, where the highest voltage is, and work down to the lowest voltage. This helps to keep the voltages and their paths clear. The diagram typically starts with the incoming source of a system's power, with electrical symbols fed from the top to the bottom. SLDs use universally accepted electrical symbols to represent different electrical components and their relationships within a circuit or system. These symbols are defined by standards such as IEEE Std 315, ANSI Y32.9, and CSA Z99.
SLDs are valuable for maintenance and operations, serving as the primary reference for lockout/tagout procedures and engineering power system studies. They help verify that electrical circuit interlocks will not result in the re-energization of the circuit being worked on, ensuring an electrically safe working condition. Getting the connections right between equipment is crucial, and this can be achieved by referring to equipment tags and nameplates, as well as consulting with electricians or site staff familiar with the equipment.
Schematic diagrams, on the other hand, show the functionality of mid-level electrical circuits without focusing on the details of individual connections. They use symbols to represent devices like electrical power buses, breakers, fuses, relays, breakers, relay contacts, switches, and indicator lights. These diagrams illustrate the network of contacts and the relays and motors that those contacts actuate. Schematic diagrams are symbolic presentations that make it easier to understand an electrical system's functional logic. They are often used to work out the final design aspects of electrical systems.
Electricity Pricing: Government Regulation and Control
You may want to see also
Explore related products
$10.99
How to avoid common wiring diagram errors
Wiring diagrams use simplified symbols to represent electrical equipment such as switches, lights, and outlets. Creating a wiring diagram involves planning the layout, selecting tools, and accurately drawing and labelling each component to ensure clarity and functionality.
- Take your time: Rushing through a wiring diagram can lead to overlooked errors or inconsistencies. It's important to set aside time for a thorough review before finalization. Cross-check every connection, symbol, and label, and if working in a team, ask a colleague to review the diagram as well. A fresh pair of eyes can catch mistakes that you might have missed.
- Pay attention to details: Connections and junctions are small details but are crucial in a wiring diagram. A connection is where two lines intersect with a dot, indicating that the wires are connected. A junction is represented by multiple lines converging at one point and is a critical connection hub in many circuits. Mistaking a simple crossing of wires for a connection can lead to wiring issues, so be mindful of these distinctions.
- Use design tags: For complex diagrams with multiple drawing sheets, using design tags can help identify components. For example, -7Q2 can represent the second circuit breaker on page 7. Consistency in using design tags is important to avoid unclear technical documentation and potential mistakes.
- Verify with tools: Utilize software verification tools that can compare your wiring diagram with original specifications and highlight any discrepancies or errors. While these tools save time and effort, it's crucial to manually double-check your work afterward.
- Apply common sense: Troubleshooting wiring diagrams involves using your intuition and common sense to spot obvious mistakes or oversights. Look for missing or misplaced components, incorrect or unclear labels, inconsistent or incompatible symbols, or outdated standards. Your experience and knowledge can help anticipate and avoid potential problems, such as environmental factors, safety hazards, or regulatory issues.
Electrical Cycles: Understanding Frequency and Time
You may want to see also
Frequently asked questions
Electrical wiring diagrams use simplified symbols to represent switches, lights, outlets, and other electrical equipment. These symbols are used to create a visual representation of how electrical components are connected and how they interact within a circuit.
Electrical wiring diagram symbols are important because they help identify each connection point, wire path, and component. This ensures that installations and troubleshooting are done safely and efficiently. Understanding these symbols can also help prevent costly mistakes and safety hazards.
Common electrical wiring diagram symbols include those for resistors, capacitors, power sources, switches, and outlets. These symbols can be found in wiring diagram legends or symbol libraries, which provide detailed documentation of their meanings.
