Trystan Casey
Direct current (DC) refers to power systems that use only one electrical polarity of voltage or current, with a constant, zero-frequency, or slowly varying local mean value. DC circuits are represented by a system of differential equations, and the solution to these equations usually contains a time-varying or transient part, as well as a constant or steady-state part. The steady-state part is the DC solution, where all voltages and currents remain constant. In a DC circuit, the power source, such as a battery, has positive and negative terminals, and the load also has positive and negative terminals. To complete the circuit, positive charges need to flow from the power source to the load. Voltage (represented by 'E' or 'V') is defined as energy per unit charge, while current is the rate of electric charges moving through a conductor. Electrical power is calculated by multiplying voltage and current (P = V * I).
| Characteristics | Values |
|---|---|
| Definition | Direct current (DC) is a one-directional flow of electric charge. |
| Direction | The electric current flows in a constant direction, distinguishing it from alternating current (AC). |
| Circuit representation | A system of differential equations with a time-varying or transient part and a constant or steady-state part. |
| Voltage | Energy per unit charge. |
| Voltage symbols | "E" and "V" are sometimes used interchangeably, but "E" can represent voltage from a power source while "V" represents voltage across a load (voltage "drop"). |
| Kirchhoff's Voltage Law (KVL) | The algebraic sum of all voltages in a loop must equal zero. |
| Current | The rate of electric charges moving through a conductor. |
| Kirchhoff's Current Law (KCL) | The algebraic sum of all currents entering and exiting a node must equal zero. |
| Power | The product of voltage and current (P = V * I), where P is power in watts, V is voltage in volts, and I is current in amps. |
| Polarity | DC uses only one electrical polarity of voltage or current. |
| Examples | Electrochemical cells, automotive batteries, solar power systems, and battery outputs of DC power supplies. |
Explore related products
What You'll Learn
Kirchhoff's Voltage Law (KVL)
The law states that for a closed loop series path, the algebraic sum of all the voltages around any closed loop in a circuit is equal to zero. This is because a circuit loop is a closed conducting path, so no energy is lost. In other words, the algebraic sum of all the potential differences around the loop must be equal to zero as ΣV = 0. Here, the term algebraic sum means taking into account the polarities and signs of the sources and voltage drops around the loop.
Kirchhoff's Voltage Law can be applied to a specific circuit element, but it is important to pay attention to the algebraic signs (+ and -) of the voltage drops across elements and the emf's of sources, or the calculations may be wrong. The direction of the current flowing through the circuit also affects the sign of the voltage drop across the resistive element. As a general rule, potential is lost in the same direction as the current across an element, and gained when moving in the direction of an emf source.
The direction of current flow around a closed circuit can be assumed to be either clockwise or anticlockwise. If the chosen direction is different from the actual direction of current flow, the result will still be valid, but the algebraic answer will have a negative sign.
Kirchhoff's Voltage Law is incredibly useful, but it has some limitations. The law assumes that no additional energy loss occurs throughout the closed-loop circuit, and that there are no variable magnetic fields within the closed loop.
The Evolution of Telephones in Ireland Before Electricity
You may want to see also
Explore related products
Kirchhoff's Current Law (KCL)
KCL states that the total current entering a node or junction in a circuit must equal the total current leaving that node or junction. In simpler terms, what goes in must come out. This law is based on the principle of conservation of electric charge, which means that electric charge can neither be created nor destroyed. A node is any point in a circuit where two or more wires or circuit elements meet. A junction is a point in a circuit where current splits.
To apply Kirchhoff's Current Law effectively, it is necessary to designate an algebraic sign and charge sign to each current at the node(s) in question, corresponding to a predetermined reference direction. We can assign a positive sign to a charge entering a node and a negative sign indicating the charge exiting the node, or vice versa. This is important as it helps accurately describe the circuit and calculate the current flowing around any point in the system.
KCL is used for circuit analysis to find unknown currents and voltages, and it applies to any type of circuit, including DC circuits. By applying KCL and Ohm's Law, engineers and physicists can calculate the currents and voltages at any point throughout a circuit and verify that they are consistent with the circuit's design specifications.
Repairing Torn Electrical Cords: A Step-by-Step Guide
You may want to see also
Explore related products

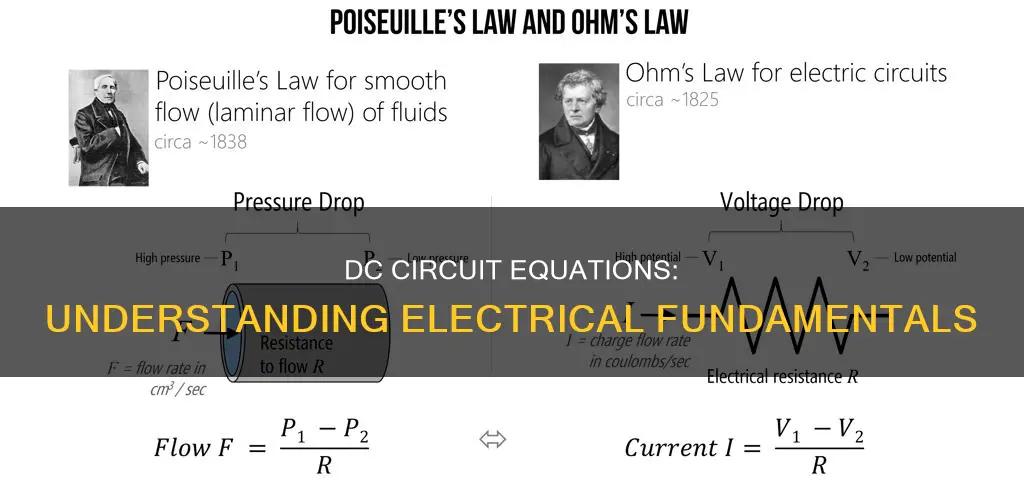

Ohm's Law
The voltage (V) is measured in volts (V) and represents the electrical potential difference between two points in a circuit. It is often referred to as electrical pressure, driving the flow of electric charge around the circuit. Voltage can be supplied by various sources, such as batteries or power supplies, and it plays a crucial role in determining the direction of current flow.
The current (I), measured in amperes or amps (A), represents the rate at which electric charge flows through a conductor. It is analogous to the flow rate of water in a pipe. The higher the current, the greater the amount of charge moving through the circuit per unit of time. Current can be influenced by factors such as voltage and resistance, as described by Ohm's Law.
Resistance (R), measured in ohms (Ω), represents the opposition or hindrance a material offers to the flow of electric current. Different materials have different inherent resistivities that determine their resistance. Higher resistance results in a lower current for a given voltage, according to Ohm's Law. Resistance can be influenced by factors such as temperature, physical dimensions, and the nature of the material.
Opening Electric Gates Manually: A Step-by-Step Guide
You may want to see also
Explore related products
![[UL Listed] OMNIHIL 15FT AC/DC Power Cord Compatible with Formula F-12](https://m.media-amazon.com/images/I/71DhQQS+DbL._AC_UY218_.jpg)
![[UL Listed] OMNIHIL 8 Feet Long AC/DC Power Cord Compatible with Formula F-12](https://m.media-amazon.com/images/I/71fGn7QKKTL._AC_UY218_.jpg)
Voltage calculation
Voltage is energy per unit charge. In the case of direct current (DC), the electric current flows in a constant direction, distinguishing it from alternating current (AC). The term DC is used to refer to power systems that use only one electrical polarity of voltage or current. The voltage across a DC voltage source is constant, as is the current through a direct current source.
The voltage calculation depends on the context. For instance, in some cases, an author or circuit designer may choose to exclusively use the symbol "V" for voltage, never using "E". On the other hand, the two symbols are sometimes used interchangeably, or "E" is used to represent voltage from a power source, while "V" is used to represent voltage across a load (voltage "drop").
Ohm's law states that voltage (V) is equal to the current (I) multiplied by the resistance (R). This relationship can be expressed as: V = IR.
Electrical power is the product of voltage and current. Power (P) in watts can be calculated by multiplying voltage (V) in volts by current (I) in amps: P = V * I. This equation can be rearranged using algebra.
Kirchhoff's Voltage Law (KVL) states that "the algebraic sum of all voltages in a loop must equal zero".
Switching Energy Providers in Chelmsford: A Simple Guide
You may want to see also
Explore related products
DC solutions
DC circuits, or direct current circuits, are one of the two main types of electrical circuits, the other being AC circuits or alternating current circuits. DC circuits can be further divided into three categories: series DC circuits, series and parallel DC circuits, and parallel DC circuits.
In a series DC circuit, the resistive elements are connected end-to-end, creating a linear path for the current to flow. The effective voltage over a series DC circuit is always directly proportional to its effective resistance value. The applied voltage over a series circuit is the same as the total voltage drop over each element.
In a parallel DC circuit, one end of each element is attached to a common point, and the other end is attached to a different common point. All the components will have an equal voltage drop over them, and it will be the same as the voltage between the two common joints.
Ohm's Law is a critical tool for understanding and designing DC circuits. It states that electric current (I) is directly proportional to voltage (V) and inversely proportional to resistance (R). This relationship can be represented by the formula I = V/R. Using Ohm's Law, we can calculate the desired voltage drop or resistance when designing electrical circuits and selecting components to create electrical power efficiently.
Other important equations for DC circuits include Kirchhoff's Voltage Law (KVL) and Kirchhoff's Current Law (KCL). KVL states that the algebraic sum of all voltages in a loop must equal zero. KCL states that the algebraic sum of all currents entering and exiting a node must equal zero.
Covering Electrical Tub Drains: A DIY Guide
You may want to see also
Frequently asked questions
DC electricity refers to power systems that use only one electrical polarity of voltage or current. It involves a one-directional flow of electric charge.
The equation for electrical power in a DC circuit is P = V * I, where P is power in watts, V is voltage in volts, and I is current in amps.
Kirchhoff's Voltage Law states that "the algebraic sum of all voltages in a loop must equal zero." This law applies to DC circuits.
The symbols "E" and "V" can be used interchangeably to represent voltage. However, some authors or circuit designers may use "E" specifically to represent voltage from a power source and "V" to represent voltage across a load (voltage drop).
