Electric car motors are primarily composed of a combination of advanced materials that ensure efficiency, durability, and performance. The core components include copper for the windings in the stator, which conducts electricity to generate the magnetic field, and neodymium, iron, and boron (NdFeB) for the permanent magnets in the rotor, providing strong magnetic properties. Additionally, laminated silicon steel is used for the stator and rotor cores to minimize energy losses due to eddy currents. High-strength aluminum is often employed for the motor housing to reduce weight while maintaining structural integrity. Bearings made of steel or ceramic ensure smooth rotation, while rare earth elements like dysprosium and praseodymium enhance magnet performance. These materials collectively contribute to the compact, powerful, and energy-efficient design of electric vehicle motors.
| Characteristics | Values |
|---|---|
| Core Materials | Laminated silicon steel sheets (electrical steel) |
| Magnets | Rare-earth magnets (Neodymium, Praseodymium, Dysprosium) or Ferrite magnets |
| Windings | Copper or Aluminum wire |
| Housing/Casing | Aluminum or Cast Iron |
| Cooling System | Copper or Aluminum (for heat dissipation) |
| Bearings | Steel or Ceramic |
| Insulation | Polyester, Nomex, or other high-temperature resistant materials |
| Connectors | Copper or Brass |
| Rotor Components | Silicon steel or Aluminum (for squirrel cage rotors) |
| Stator Components | Laminated silicon steel with copper windings |
| Key Rare Earth Elements | Neodymium (Nd), Praseodymium (Pr), Dysprosium (Dy) |
| Additional Materials | Plastics (for insulation and casing), Rubber (for seals) |
| Weight Reduction Focus | Lightweight materials like Aluminum and advanced composites |
| Recyclability | Copper, Aluminum, and rare earth magnets are recyclable |
| Cost Drivers | Rare earth magnets and high-grade copper |
Explore related products
What You'll Learn
- Magnets: Rare-earth magnets like neodymium provide strong magnetic fields essential for motor efficiency
- Copper Windings: Copper coils generate electromagnetic force to drive the motor
- Rotor Assembly: Central rotating part, often with magnets or windings, converts energy to motion
- Stator Components: Stationary part with windings, creates magnetic fields to spin the rotor
- Cooling Systems: Liquid or air cooling prevents overheating during high-efficiency operation
Magnets: Rare-earth magnets like neodymium provide strong magnetic fields essential for motor efficiency
Rare-earth magnets, particularly neodymium, are the unsung heroes of electric car motors, delivering the powerful magnetic fields necessary for high efficiency and performance. These magnets, composed of neodymium, iron, and boron (NdFeB), pack a magnetic strength up to 10 times greater than traditional ferrite magnets. This intensity allows electric motors to achieve higher torque and power density in a smaller, lighter package—critical for maximizing range and acceleration in electric vehicles (EVs). For instance, a typical EV motor might use 10–20 kilograms of neodymium magnets, contributing to a compact design without sacrificing performance.
However, the reliance on rare-earth magnets isn’t without challenges. Neodymium is sourced primarily from China, raising concerns about supply chain stability and environmental impact. Mining and processing rare-earth elements generate toxic waste and require significant energy, making their use a double-edged sword. Despite these drawbacks, alternatives like ferrite magnets fall short in performance, forcing manufacturers to balance sustainability with functionality. Innovations in recycling and alternative magnet technologies, such as samarium-cobalt magnets, are emerging but remain in early stages.
For engineers and designers, selecting the right magnet involves a trade-off between cost, performance, and sustainability. Neodymium magnets, while expensive, offer unparalleled efficiency, reducing energy loss and improving overall motor performance. A well-designed motor with neodymium magnets can achieve efficiencies of 95% or higher, compared to 85–90% for ferrite-based motors. Practical tips include optimizing magnet placement and using advanced cooling techniques to prevent demagnetization at high temperatures, a common issue with neodymium magnets.
From a consumer perspective, understanding the role of neodymium magnets highlights the complexity of EV technology. While these magnets contribute to smoother, faster, and more efficient drives, their environmental footprint underscores the need for responsible manufacturing and recycling practices. As the EV market grows, demand for neodymium is projected to triple by 2030, emphasizing the urgency of developing sustainable sourcing and end-of-life solutions. For now, neodymium remains indispensable, a testament to its role in shaping the future of electric mobility.
Charging Your Electric Car at Wawa: Cost Breakdown and Tips
You may want to see also
Explore related products
Copper Windings: Copper coils generate electromagnetic force to drive the motor
Copper windings are the unsung heroes of electric car motors, quietly converting electrical energy into the mechanical force that propels vehicles forward. These windings consist of tightly coiled copper wires, meticulously wound around the motor’s stator or rotor. When an electric current passes through these coils, it generates a magnetic field, interacting with permanent magnets or other windings to produce rotational motion. This process, rooted in Faraday’s law of electromagnetic induction, is the backbone of electric motor operation. Copper’s high electrical conductivity—second only to silver—ensures minimal energy loss during this conversion, making it the material of choice for efficiency-driven designs.
The manufacturing of copper windings is a precise art, balancing geometry, insulation, and thermal management. Engineers must calculate the optimal number of turns and thickness of the wire to maximize torque while minimizing resistance. Insulation materials like enamel or polymer coatings prevent short circuits, ensuring longevity even under high temperatures. Thermal conductivity is another critical factor; copper’s ability to dissipate heat protects the motor from overheating during prolonged use. For instance, Tesla’s Model S motor relies on copper windings designed to handle peak power outputs of over 600 horsepower, showcasing the material’s robustness in high-performance applications.
From a cost perspective, copper windings represent a significant portion of an electric motor’s expense, driven by copper’s market price volatility and the labor-intensive winding process. Automakers are exploring ways to reduce copper usage without compromising performance, such as optimizing winding patterns or incorporating aluminum in less demanding applications. However, copper remains irreplaceable in high-efficiency motors due to its superior conductivity. For DIY enthusiasts or engineers, sourcing high-purity copper wire (99.9% purity or higher) and investing in automated winding machines can streamline the production of custom motor prototypes.
A comparative analysis highlights copper’s advantages over alternatives like aluminum. While aluminum is lighter and cheaper, its lower conductivity requires larger wire diameters to achieve equivalent performance, increasing motor size and weight. Copper’s higher melting point (1,085°C vs. aluminum’s 660°C) also enhances reliability in high-temperature environments. For electric vehicles, where space and weight are premium, copper’s efficiency outweighs its drawbacks. Practical tip: When designing a motor, use copper windings for applications requiring high power density, such as sports cars or heavy-duty trucks, and reserve aluminum for lighter, cost-sensitive projects.
In conclusion, copper windings are not just components but enablers of electric mobility, bridging the gap between electrical energy and mechanical motion. Their role in generating electromagnetic force underscores their importance in motor design, where efficiency, durability, and performance are non-negotiable. As electric vehicles continue to evolve, advancements in copper winding technology will remain pivotal, ensuring motors remain compact, powerful, and reliable. Whether you’re an engineer, hobbyist, or industry observer, understanding the nuances of copper windings offers valuable insights into the heart of electric propulsion.
Top Programming Languages for Electrical Engineers: A Practical Guide
You may want to see also
Explore related products
Rotor Assembly: Central rotating part, often with magnets or windings, converts energy to motion
The rotor assembly is the heart of an electric car motor, responsible for converting electrical energy into mechanical motion. This central rotating component is typically constructed with either permanent magnets or electromagnetic windings, each offering distinct advantages and trade-offs. Permanent magnet rotors, often made from rare-earth materials like neodymium or samarium-cobalt, provide high efficiency and power density due to their strong magnetic fields. However, their reliance on finite resources and vulnerability to demagnetization at high temperatures are notable drawbacks. Electromagnetic rotors, on the other hand, use copper or aluminum windings to generate magnetic fields when current flows through them. While they avoid the supply chain concerns of rare-earth magnets, they tend to be heavier and less efficient due to energy losses from resistance and heat.
When designing a rotor assembly, engineers must balance performance, cost, and sustainability. For instance, a Tesla Model 3 uses a permanent magnet motor, leveraging neodymium magnets for their superior power-to-weight ratio. In contrast, some manufacturers opt for induction motors, like those found in the Chevrolet Bolt, which eliminate the need for rare-earth materials but require more sophisticated control systems. The choice of material also impacts thermal management: permanent magnet rotors demand cooling systems to prevent overheating, while electromagnetic rotors benefit from improved heat dissipation due to their conductive windings. Practical tip: When selecting an electric vehicle, consider the motor type and its rotor design, as this directly affects efficiency, range, and long-term maintenance.
A critical aspect of rotor assembly is its integration with the stator, the stationary part of the motor. The air gap between the rotor and stator must be precisely controlled—typically between 0.5 to 2 millimeters—to minimize energy losses and maximize torque. This requires high-precision manufacturing techniques, such as CNC machining and laser welding, to ensure alignment and durability. For DIY enthusiasts or engineers working on custom electric vehicle projects, investing in quality tools and materials is essential. For example, using high-grade silicon steel laminations in the stator core reduces eddy current losses, while selecting low-resistance copper for windings improves efficiency.
From a sustainability perspective, the rotor assembly presents both challenges and opportunities. Rare-earth magnets, while performant, raise ethical and environmental concerns due to mining practices and limited global reserves. Recycling these materials is complex but increasingly necessary to reduce dependency on new extraction. Electromagnetic rotors, though less resource-intensive, still require significant energy for copper or aluminum production. Innovative solutions, such as developing magnets from more abundant materials or improving recycling technologies, are critical for the long-term viability of electric vehicle motors. Takeaway: As the automotive industry shifts toward electrification, prioritizing sustainable rotor materials and designs will be key to minimizing environmental impact.
Finally, advancements in rotor technology continue to push the boundaries of electric motor performance. Emerging trends include the use of hybrid rotor designs, which combine permanent magnets and windings to optimize efficiency across different operating conditions. Additionally, researchers are exploring novel materials like ferrite magnets or superconducting rotors, which promise higher efficiency and reduced reliance on rare-earth elements. For consumers, staying informed about these developments can help in making future-proof purchasing decisions. Practical tip: When comparing electric vehicles, inquire about the rotor technology used and its alignment with your driving needs and environmental values. This knowledge ensures you invest in a vehicle that not only performs well but also contributes to a sustainable future.
Volvo's Electric Future: Transitioning to an All-Electric Lineup Soon?
You may want to see also
Explore related products
Stator Components: Stationary part with windings, creates magnetic fields to spin the rotor

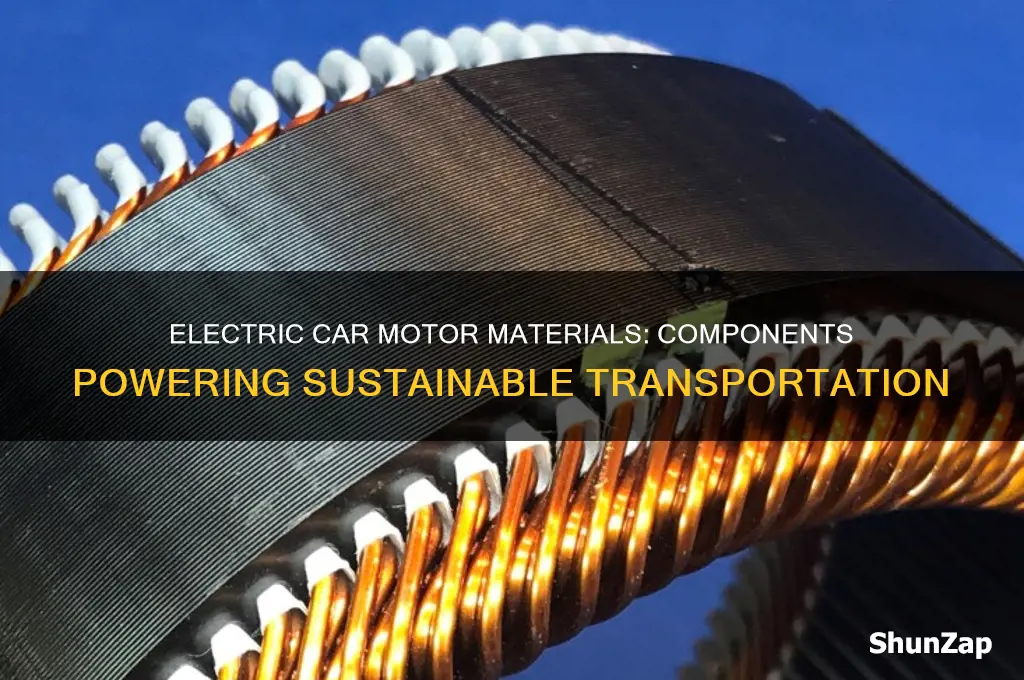

The stator is the unsung hero of an electric car motor, a stationary yet dynamic component that orchestrates the motor’s motion. Comprised of a cylindrical core with precisely arranged windings, it acts as the magnetic field generator that drives the rotor’s rotation. Typically constructed from laminated silicon steel sheets, the stator core minimizes energy loss due to eddy currents, ensuring efficiency. Copper or aluminum wire is then wound around the core’s teeth in a specific pattern, forming electromagnets when energized. This design is critical: the magnetic fields produced by these windings interact with the rotor’s permanent magnets or induced currents, creating the torque that propels the vehicle. Without the stator’s precision and material integrity, the motor’s performance would falter, underscoring its role as the motor’s backbone.
To understand the stator’s function, imagine it as the motor’s conductor, directing an electromagnetic symphony. When current flows through the windings, it creates a rotating magnetic field that synchronizes with the rotor’s movement. The angle and timing of this field are meticulously controlled by the motor’s inverter, ensuring optimal efficiency across varying speeds and loads. For instance, in Tesla’s Model 3, the stator’s copper windings are insulated with high-temperature coatings to withstand the thermal stresses of high-performance driving. This attention to detail highlights the stator’s dual role: it must be robust enough to handle continuous operation yet flexible enough to adapt to the driver’s demands. Engineers often balance material choices—like copper for conductivity versus aluminum for weight savings—to meet these requirements.
Material selection for the stator is a delicate trade-off between performance, cost, and sustainability. Silicon steel, with its grain-oriented structure, is favored for its low hysteresis and eddy current losses, but its manufacturing process is energy-intensive. Copper windings offer superior conductivity but are heavier and more expensive than aluminum, which is increasingly used in budget-conscious designs. Innovations like hairpin windings, where pre-formed copper bars replace traditional round wires, are gaining traction for their reduced resistance and easier assembly. However, these advancements require specialized manufacturing techniques, such as vacuum pressure impregnation (VPI) to encapsulate the windings in epoxy, ensuring durability under vibration and heat. Each choice impacts the motor’s efficiency, weight, and cost, making the stator a focal point for electric vehicle (EV) innovation.
Practical considerations for maintaining stator performance include monitoring winding temperature and insulation integrity. Overheating can degrade the insulation, leading to short circuits or reduced efficiency. Thermal management systems, such as liquid cooling integrated into the stator housing, are essential for high-power applications. Regular diagnostic checks, like partial discharge testing, can detect insulation weaknesses before they cause failure. For DIY enthusiasts or technicians, understanding the stator’s role allows for better troubleshooting: a motor with uneven power delivery may have a damaged winding, while excessive noise could indicate loose laminations. By prioritizing stator health, EV owners can maximize their vehicle’s lifespan and reliability, ensuring the motor remains a silent, efficient powerhouse.
In the broader context of EV evolution, the stator exemplifies the intersection of material science and engineering ingenuity. As demand for lighter, more efficient motors grows, researchers are exploring alternatives like amorphous metal cores and superconducting windings. These materials promise lower losses and higher power densities but face challenges in scalability and cost. Meanwhile, recycling copper and aluminum from end-of-life stators is becoming a critical aspect of sustainable EV production. The stator’s evolution reflects the industry’s broader shift toward greener technologies, where every component must contribute to both performance and environmental stewardship. In this light, the stator is not just a motor part—it’s a testament to the balance between innovation and responsibility.
Electric Cars and Toll Roads: Are They Really Free to Drive?
You may want to see also
Explore related products
Cooling Systems: Liquid or air cooling prevents overheating during high-efficiency operation
Electric motors in vehicles, especially high-performance electric cars, generate significant heat during operation, which can degrade performance and damage components if not managed effectively. Cooling systems are therefore critical to maintaining efficiency and longevity. The two primary methods—liquid and air cooling—each have distinct advantages and applications, depending on the motor's design and operational demands.
Liquid cooling is often preferred in high-efficiency electric motors due to its superior heat dissipation capabilities. This system circulates a coolant (typically a mixture of water and ethylene glycol) through channels integrated into the motor housing or around the windings. The coolant absorbs heat and is then pumped to a radiator, where it is cooled before being recirculated. This method is particularly effective for compact, high-power motors, as it allows for precise temperature control and minimal thermal gradients. For instance, Tesla's Model S uses a liquid-cooled motor to handle the high thermal loads associated with its rapid acceleration and sustained high speeds. When implementing liquid cooling, ensure the coolant mixture is balanced to prevent freezing in cold climates and boiling at high temperatures, typically maintaining a 50:50 ratio of water to ethylene glycol.
In contrast, air cooling relies on the flow of air over the motor's surface to dissipate heat. This method is simpler and lighter, making it suitable for smaller or less demanding applications. Air-cooled motors often feature fins or other heat-dissipating structures to increase surface area and improve cooling efficiency. However, air cooling is less effective at managing the extreme heat generated by high-performance motors, as it relies on ambient air temperature and airflow, which can vary significantly. For example, Nissan's Leaf uses an air-cooled motor, prioritizing simplicity and cost-effectiveness over peak performance. If opting for air cooling, ensure adequate ventilation around the motor and consider adding fans to enhance airflow, particularly in stop-and-go driving conditions where natural airflow is limited.
Choosing between liquid and air cooling depends on the motor's specific requirements and the vehicle's overall design goals. Liquid cooling is ideal for high-performance applications where thermal management is critical, while air cooling offers a lightweight, cost-effective solution for less demanding scenarios. Hybrid systems, combining both methods, are also emerging, leveraging the strengths of each to optimize cooling efficiency. For instance, some electric motors use liquid cooling for the windings and air cooling for the housing, balancing performance and complexity.
In practice, proper maintenance of cooling systems is essential to ensure their effectiveness. For liquid-cooled systems, regularly check coolant levels and inspect for leaks, replacing the coolant every 2–5 years depending on the manufacturer's recommendations. For air-cooled systems, keep the motor and cooling fins free of debris to prevent airflow obstruction. Regardless of the method, monitor motor temperatures during operation, especially under heavy loads, to identify potential issues early. By understanding and maintaining these cooling systems, electric vehicle owners can maximize motor efficiency and extend its lifespan, ensuring reliable performance in all driving conditions.
Electric Vehicles: Renewable Energy's Future?
You may want to see also
Frequently asked questions
The primary materials include copper (for windings), neodymium magnets (for permanent magnet motors), steel (for the rotor and stator core), and aluminum (for housing and heat dissipation components).
Copper is used for the motor windings due to its high electrical conductivity, which minimizes energy loss and ensures efficient power transmission.
Neodymium magnets are used in permanent magnet motors to create a strong magnetic field, improving motor efficiency and torque while reducing size and weight.
Aluminum is used for the motor housing and heat sinks to provide lightweight structural support and efficient thermal management, helping to dissipate heat generated during operation.
