Electrical circuits are the fundamental building blocks of modern technology, powering our devices and enabling the flow of electricity. They are made up of interconnected pathways that allow electrical current to flow and perform various functions. There are several types of electrical circuits, each with its own unique characteristics and applications. The most common types include open, closed, and short circuits, as well as series, parallel, and series-parallel circuits. Additionally, circuits can be classified as analog, digital, or mixed-signal, and further distinctions can be made between AC (alternating current) and DC (direct current) circuits. Understanding the different types of electrical circuits is crucial for ensuring the functionality, safety, and efficiency of electrical systems.
| Characteristics | Values |
|---|---|
| Type of circuit | Series, Parallel, Series-Parallel, AC, DC, Single-Phase, Polyphase |
| Circuit classification | Open, Closed, Short |
| Series Circuit | Components connected end-to-end, if one component fails, the circuit stops working |
| Parallel Circuit | Multiple paths for current flow, each component connected across common points, widely used in household electrical wiring |
| AC Circuit | Current periodically reverses direction, standard for power distribution systems, used in power distribution to homes and industries |
| DC Circuit | Current flows in one direction, stable voltage, commonly found in smartphones, laptops, and portable devices |
| Single-Phase Circuit | A type of AC circuit that utilizes a single sinusoidal waveform |
| Polyphase Circuit | An AC circuit that consists of multiple phases, used in industrial and commercial applications where higher power is required |
Explore related products
What You'll Learn
- Series circuits: components connected end-to-end, forming a single current path
- Parallel circuits: multiple current paths, with components linked across common points
- Open circuits: incomplete current path, non-functional until the gap is closed
- Closed circuits: complete current path, with all connections intact and switches closed
- Short circuits: low-resistance connection bypasses the intended path, causing excessive current flow

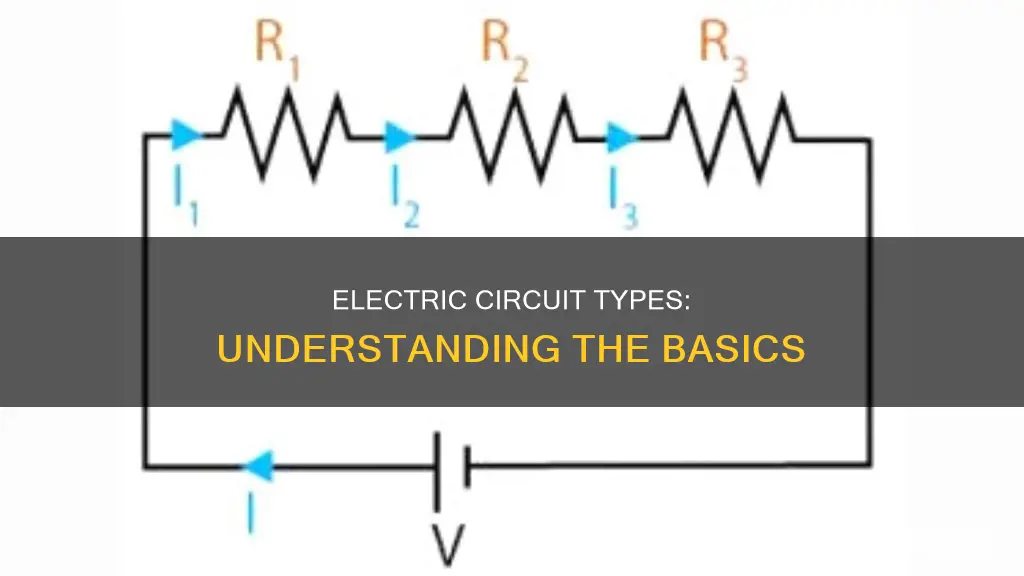

Series circuits: components connected end-to-end, forming a single current path
Series circuits are a fundamental type of electrical circuit where components are connected sequentially, end-to-end, forming a single path for the current to flow. This means that the same current flows through all components in the circuit one after the other. The supply voltage is the total of the individual voltage drops across each component.
In a series circuit, if one component fails or is disconnected, the entire circuit ceases to function. This is because the circuit relies on a single path for the current, and a break in this path interrupts the flow of electricity. Series circuits are commonly used in applications where components need to operate in a specific sequence, such as certain types of Christmas lights.
The distinction between series and parallel circuits is crucial in electrical systems. Parallel circuits, for example, are widely used in household electrical wiring, where each outlet and light operate independently. In contrast, series circuits might be preferred in applications where the voltage drop across each component is critical.
A series-parallel circuit combines elements of both series and parallel circuits, offering greater flexibility and optimising performance.
Understanding the different types of circuits is essential for designing robust and efficient electrical systems. The choice of circuit type depends on specific requirements, such as power needs, environmental conditions, and space constraints.
Texas' Electric Chair: Is It Still in Use?
You may want to see also
Explore related products
$144.99 $179.99
Parallel circuits: multiple current paths, with components linked across common points
Electric circuits are categorised based on how their components are connected and how current flows through them. The two fundamental classifications are series and parallel circuits.
Parallel circuits have multiple paths for the current to flow, with each component connected across common points. In a purely parallel circuit, there are never more than two sets of electrically common points, no matter how many components are connected. Each load in a parallel circuit gets an equal amount of voltage.
The voltage is the same for all components in a parallel circuit. This is because there are only two sets of electrically common points, and the voltage measured between sets of common points must always be the same at any given time. The total parallel circuit current is the sum of the individual branch currents.
Parallel circuits are widely used in household electrical wiring, where each outlet and light operate independently of the other. They are preferred in home wiring due to their ability to maintain voltage uniformity across all branches.
A series-parallel circuit combines elements of both series and parallel circuits. Some components are connected in series, while others are connected in parallel within the same circuit.
Easy Ways to Save Energy and Cut Costs
You may want to see also
Explore related products
Open circuits: incomplete current path, non-functional until the gap is closed
Open circuits are a fundamental concept in electrical engineering, alongside closed and short circuits. An open circuit is characterised by an incomplete path for the current flow, which means electricity cannot flow through the circuit. This interruption can be caused by a switch being in the 'off' position or a break in the conductor. Essentially, open circuits are non-functional and current cannot flow until the gap is closed, completing the path.
In an open circuit, the path for current flow is broken, and electricity cannot pass through. This is often due to a disconnection of parts or the intervention of an electrical component, such as a transistor. It is important to distinguish between open and closed circuits when working on electronic projects. A closed circuit, the opposite of an open circuit, has a complete path, allowing current to flow uninterrupted from the power source, through the components, and back to the source. This type of circuit is operational, with all connections intact and switches closed.
The distinction between open and closed circuits is crucial for the functionality of electrical systems. In a closed circuit, the electrical contacts are connected, providing a continuous path for the current. When a switch is turned on, it closes the circuit, enabling the flow of electricity and powering the circuit, such as turning on a lightbulb.
Open circuits are distinct from short circuits, which occur when there is a low-resistance connection between two points in a circuit, bypassing the intended path of current flow. This can lead to excessive current, overheating, component damage, or even fires. Short circuits are often caused by faulty wiring or accidental connections. Understanding the differences between open, closed, and short circuits is essential for designing robust and efficient electrical systems.
In summary, open circuits are non-functional electrical circuits with an incomplete path for current flow. They are characterised by interruptions such as disconnected parts or switches in the 'off' position. To make an open circuit functional, the gap must be closed, completing the path for current flow. This distinction between open and closed circuits is fundamental in electrical engineering and impacts the functionality and safety of electrical systems.
Nail's Role: Electrical Grounding Explained
You may want to see also
Explore related products
Closed circuits: complete current path, with all connections intact and switches closed
A closed circuit is a type of electrical circuit where the path for current flow is complete, allowing electricity to move through the circuit uninterrupted. This is in contrast to an open circuit, where the path for current flow is incomplete, and electricity cannot flow. In a closed circuit, all connections are intact, and switches are closed, enabling the circuit to be operational.
Closed circuits are essential for the functioning of many electrical systems and devices. When a switch is turned on, it closes the circuit, allowing electricity to flow and power the circuit. This is why, for example, a lightbulb turns on when you flip the switch. The electricity flows from the power source, through the circuit, and back to the source in a continuous loop.
The concept of closed circuits is crucial in electrical engineering and the design of electrical systems. Understanding the distinction between open and closed circuits is fundamental to designing robust and efficient systems. Electrical circuits are categorised based on how their components are connected and how current flows through them. Closed circuits provide a complete path for the current, ensuring the system functions as intended.
In a closed circuit, the electrical contacts are connected, creating a continuous path for the current. This uninterrupted flow of electricity is what powers devices and systems that rely on electrical circuits. Whether in household wiring or complex electronic devices, closed circuits enable the reliable operation of various technologies.
Additionally, closed circuits can be further classified into different types, such as series and parallel circuits. In a series circuit, components are connected end-to-end, creating a single path for the current. If one component fails or is disconnected, the entire circuit stops working. On the other hand, parallel circuits have multiple paths for the current, and each component is connected across common points. Parallel circuits are commonly used in household electrical wiring, as they allow each outlet and light to operate independently.
Build Your Own Electric Motorcycle: A Comprehensive Guide
You may want to see also
Explore related products
Short circuits: low-resistance connection bypasses the intended path, causing excessive current flow
Short circuits occur when a low-resistance connection forms between two points in an electrical circuit, creating an unintended path for the current to flow. This bypass results in excessive current flowing through the circuit, which can lead to several issues.
Electricity naturally follows the path of least resistance, and in a short circuit, this means that the maximum current will flow through the unintended path. This high level of current can cause overheating, as the circuit is unable to dissipate the excess power effectively. This, in turn, can lead to component damage or even fires, as the circuit and its components are not designed to handle such high levels of current.
Short circuits are typically caused by an overload of electricity, faulty wiring, improper electrical connections, manufacturing defects, or contact with water. They are a serious concern as they can lead to significant damage and safety hazards. As such, protective measures, such as fuses and circuit breakers, are crucial to detect and interrupt excessive current flow in the event of a short circuit.
In series circuits, where components are connected end-to-end in a single path, a short circuit can cause the entire circuit to stop working. This is because a break in any one component will interrupt the current flow. On the other hand, parallel circuits, which have multiple paths for current flow, may be more resilient to short circuits as the other paths can maintain functionality. However, the excessive current in a short circuit can still cause issues in any type of circuit.
Understanding short circuits is essential for electrical safety and system design. By recognizing the potential causes and impacts of short circuits, engineers can implement protective measures and design more robust and efficient electrical systems.
Rockruff's Electric Move Sensitivity: What's the Deal?
You may want to see also
Frequently asked questions
A series circuit is an electric circuit where two or more loads (bulb, resistors, fan, LED, etc.) are connected sequentially end-to-end in a single path. The same current flows through all components sequentially. If one component fails or is disconnected, the entire circuit stops working.
A parallel circuit is an electric circuit where two or more loads are linked across one another, forming a junction point. Each load in a parallel circuit gets an equal amount of voltage and adding or removing loads does not affect the working of other elements.
A short circuit occurs when there is a low-resistance connection between two points in an electrical circuit, creating an unintended path for the current. This can lead to excessive current flow, causing overheating, component damage, or even fires.
AC stands for Alternating Current. In an AC circuit, the current periodically reverses direction. AC circuits are the standard for power distribution as they efficiently transmit electricity over long distances.
DC stands for Direct Current. DC circuits have a stable voltage, making them ideal for applications requiring precise and consistent power delivery, such as smartphones, laptops, and automotive electronics.
