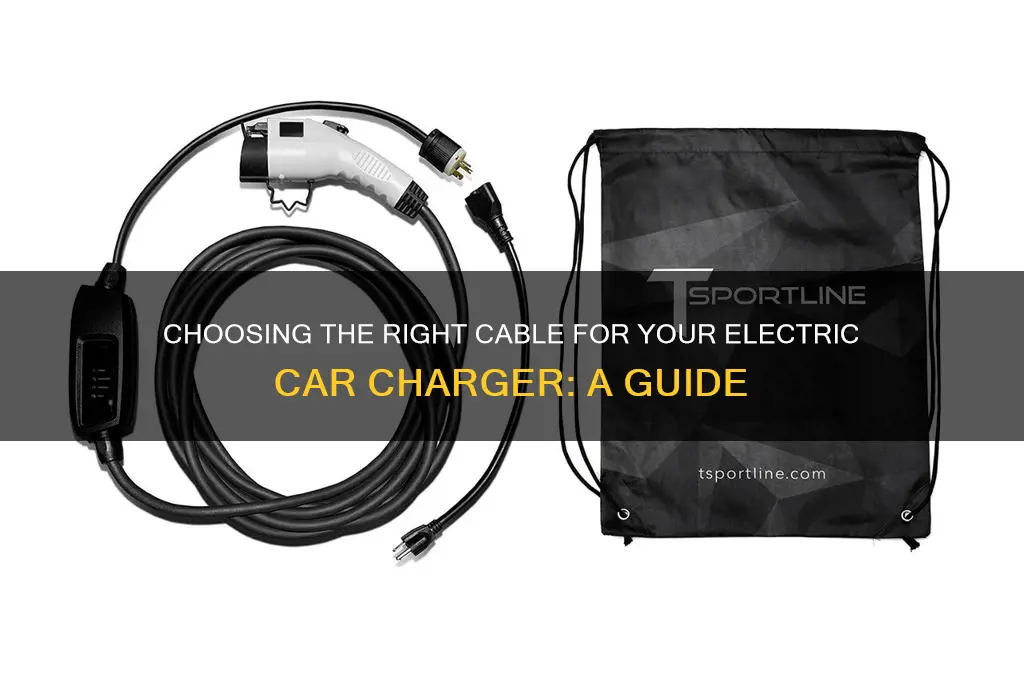

Choosing the right cable for an electric car charger is crucial for ensuring safe, efficient, and reliable charging. The type of cable you need depends on the charging station and your vehicle’s compatibility, typically categorized by connector standards such as Type 1, Type 2, CCS, or CHAdeMO. For home charging, a Type 2 cable is commonly used in Europe, while North America often relies on Type 1. Public fast-charging stations frequently use CCS (Combined Charging System) or CHAdeMO connectors. Additionally, the cable’s amperage rating, length, and durability are important factors to consider, as higher amperage cables allow for faster charging, and weather-resistant materials ensure longevity. Always consult your vehicle’s manual and the charging station specifications to select the appropriate cable for optimal performance and safety.
Explore related products
What You'll Learn
Level 1 vs. Level 2 Charging Cables
Electric vehicle (EV) owners often face a critical decision when setting up their home charging infrastructure: choosing between Level 1 and Level 2 charging cables. This choice hinges on balancing speed, cost, and convenience. Level 1 charging uses a standard 120-volt household outlet and typically provides 2 to 5 miles of range per hour of charging. It’s ideal for drivers with short daily commutes or those who can charge overnight without urgency. However, for those needing faster replenishment, Level 2 charging, which operates on a 240-volt circuit, delivers 12 to 80 miles of range per hour, depending on the EV model and charger specifications.
From an installation perspective, Level 1 charging requires no additional electrical work, as it plugs directly into existing outlets. This simplicity makes it a cost-effective, plug-and-play solution for most EV owners. In contrast, Level 2 charging necessitates a dedicated 240-volt circuit, often installed by a licensed electrician, which can add $500 to $2,000 to the upfront cost. Despite this, Level 2’s faster charging times make it a long-term investment for those with higher mileage needs or limited charging windows.
A practical example illustrates the difference: charging a Tesla Model 3 with a 50 kWh battery using Level 1 would take approximately 40 hours for a full charge, while Level 2 reduces this to around 8 hours with a 7.7 kW charger. For households with multiple EVs or drivers who frequently travel long distances, Level 2 becomes not just a convenience but a necessity.
When deciding between the two, consider your daily driving habits, home electrical capacity, and budget. Level 1 is sufficient for occasional use or as a backup, but Level 2 offers scalability and future-proofing as EV adoption grows. Additionally, some utilities offer rebates for Level 2 charger installations, offsetting initial costs.
In summary, Level 1 charging is accessible and budget-friendly but slow, while Level 2 charging is faster and more versatile, albeit with higher upfront costs. Assess your needs carefully—whether prioritizing immediate savings or long-term efficiency—to choose the cable that best aligns with your electric driving lifestyle.
