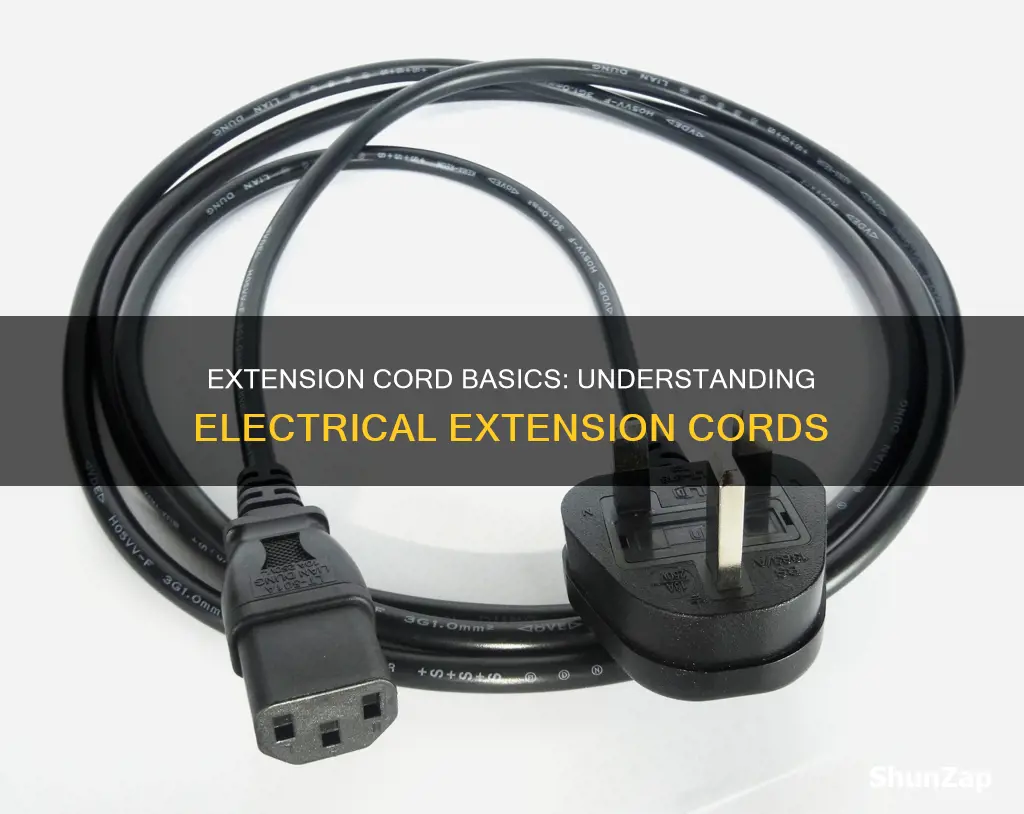

An electrical extension cord is a flexible power cable with a plug on one end and a group of sockets on the other. They are used to extend the reach of an electrical device, and are typically used at home for appliances such as lamps, radios, and televisions. Extension cords differ by size, gauge, construction, and type of use, and are sold in prefabricated lengths of 1 to 150 feet. They can also be categorized by their amperage ratings, with high-amperage appliance extension cords designed to carry 20 amps or more. The safety features of extension cords are also important to consider, as improperly used extension cords can cause electrical shocks and fires.
| Characteristics | Values |
|---|---|
| Length | 1 to 150 feet |
| Amperage | Depends on the device, typically 20 amps or more for high-amperage appliances |
| Gauge | AWG rating, the lower the number, the higher the capacity |
| Number of prongs | Two or three, three-prong plugs are grounded |
| Indoor/outdoor | Outdoor cords are longer, thicker, and have a higher amperage rating |
| Safety features | Polarized plug, grounded terminals, "power-on" indicator, fusible link, residual-current device (GFCI) |
| Additional features | Multiple sockets, lighted plug, connector box |
| Standards | UL 817, UL 62, J-C-1270 |
Explore related products
What You'll Learn
Safety
Extension cords are a handy way to deliver power where it's needed, but they can also be dangerous if used improperly. Here are some safety tips to keep in mind when using extension cords:
First, it's important to understand that extension cords are intended for temporary use only. If you find yourself relying heavily on extension cords, it's a sign that you need more outlets installed. Using extension cords continuously over time can lead to deterioration, creating a potential electric shock or fire hazard.
When choosing an extension cord, opt for those with polarized or three-prong plugs, as they offer better protection against electrical shocks. Make sure to inspect the cord for any damage before use, and discard it if you see any frayed cords or broken prongs. Always buy cords approved by independent testing laboratories, such as Underwriters Laboratories (UL), Intertek (ETL), or the Canadian Standards Association (CSA).
Match the wattage rating of your appliance or tool with the extension cord to ensure it can handle the electrical current. Avoid powering multiple appliances with a single cord, as it can overload the circuit. Never cut off the grounding pin to force a fit into a two-prong outlet, as this can lead to electrical shock.
Be mindful of how you run the extension cord. Don't place rugs or furniture over them, as this can generate heat and increase the risk of fire. Keep them away from water or snow, and avoid bending or coiling the cord while it's in use, as this can also cause overheating.
Lastly, consider the environment in which you'll be using the extension cord. Indoor and outdoor cords are designed differently. Outdoor cords, for example, have a protective, weather-durable layer of insulation and are generally thicker and longer, capable of carrying more electrical current. Always check the packaging or the cord itself for designations, such as the letter "W" for outdoor use.
The Heart's Electrical System: Powering Every Beat
You may want to see also
Explore related products
Length
The length of an electrical extension cord is a critical factor in choosing the right one for your needs. Extension cords come in various lengths, typically ranging from 2 feet to 100 feet. The length you need will depend on the distance between your power source and the device you want to power.
It's important to use the shortest extension cord possible because every extra foot of cord increases electrical resistance, reducing the power delivered to the connected device. Longer cords also have a higher potential for overheating due to increased electrical current resistance. Therefore, it is recommended to use longer cords with heavier wire gauges to mitigate power loss.
In commercial applications, the length of an extension cord can significantly impact power transmission. Longer cords result in increased resistance and potential power loss, which can lead to voltage drops and equipment malfunction. Heavy-duty extension cords are recommended in such cases to handle high power demands over longer distances without compromising voltage stability.
When using extension cords, always follow safety guidelines. Ensure the cord is rated for the products you intend to plug in and is marked for indoor or outdoor use. Regularly inspect your extension cords for damage, such as exposed wires or cracks, and replace or repair them as needed. Proper use and maintenance of extension cords are crucial to prevent electrical shocks and fire hazards.
Electricity Price Cap: What's the Limit?
You may want to see also
Explore related products
![[UL Listed] Cable Matters 2-Pack 16 AWG 2 Prong Extension Cord 6 ft, 13A 3-Outlet Extension Cords with Tamper Guard, 13 Amp, 1625 Watts, White](https://m.media-amazon.com/images/I/61YF93Z36-L._AC_UL320_.jpg)
Gauge
Extension cords are flexible electrical cables that are used to extend the reach of power from a fixed outlet to electrical devices or appliances located at a distance. They are available in different types and gauges, tailored to specific uses and power requirements.
The gauge of an extension cord refers to the thickness of the wire, which is expressed in AWG (American Wire Gauge) numbers. A lower AWG number indicates a thicker wire, which can carry more current over long distances without a significant voltage drop. For instance, a 12-gauge extension cord is considered a heavy-duty cord and can carry higher currents without a significant voltage drop, even over longer distances. On the other hand, a higher gauge indicates a thinner wire, which may not be suitable for devices that draw a lot of power, as it can lead to overheating and potentially cause a fire.
The right gauge for an extension cord depends on the power requirements of the devices it will be used with. Most appliances specify their power requirements in watts or amps. If specified in watts, the wattage can be converted to amps by dividing the wattage by the voltage (generally 120 volts in the US). Once the amps are known, they can be matched to the correct wire gauge. For example, small appliances drawing up to 13 amps, such as lamps or clocks, can use a 16-gauge cord, while larger appliances that draw up to 15 amps, like a refrigerator or portable heater, require a 14-gauge cord.
It is important to choose the right gauge and size of the extension cord for safety reasons. Using an undersized extension cord can lead to overheating and electrical hazards. Additionally, longer extension cords have higher electrical current resistance, increasing the potential for overheating. Therefore, it is recommended to use extension cords that are rated for loads equal to or greater than the requirements of the devices they will power.
RF Radiation: Electrical Devices and Their RF Emissions
You may want to see also
Explore related products
![[UL Listed] Cable Matters 2-Pack 16 AWG Heavy Duty 13A Power Extension Cord - 10ft, 3 Prong Power Cord Extension, NEMA 5-15P to NEMA 5-15R, Black](https://m.media-amazon.com/images/I/717N8kZW0qL._AC_UL320_.jpg)
Type of plug
Extension cords are cables that add to the length of signal transmission cables or combined signal/electrical cables. They are also known as "extenders" or "extender cables". Extension cords typically come with two- or three-prong plugs.
Three-prong plugs are grounded, which helps to eliminate electrical shocks and prevent fires in the event of a malfunction in the electrical circuit. The third prong in the extension cord provides a path to the ground wire in a household electrical circuit. This ground wire also reduces the risk of electrical shock and fires. Three-prong cords should only be used with properly grounded three-slot outlets.
Two-prong plugs, on the other hand, are non-grounding devices. The standard 2-blade plug can be found on basic lamps or non-grounded laptop power cords.
There are also speciality cords with additional receptacles for high-amperage devices and uses such as RVs and construction tools.
Other factors to consider when choosing an extension cord include length, amperage rating, and gauge.
Silverado 1500's Dual Electric Fans: High-Tech Cooling Revolution
You may want to see also
Explore related products
Amperage rating
The amperage rating of an electrical extension cord is an important consideration when selecting one for a particular purpose. The amp rating of an extension cord is influenced primarily by the gauge or thickness of its conductors. The gauge of the extension cord determines its amp rating, and selecting the proper gauge is essential to ensure the safe and effective distribution of power.
The gauge of an extension cord refers to the size of the conducting copper wire within the cord. The wire gauge, also known as AWG or American Wire Gauge, determines the amount of electrical current or power the wire can safely carry. A lower wire gauge number indicates a thicker wire with a greater capacity to deliver current or power. For example, a common 18-gauge extension cord has a low amp rating suitable for low-power gadgets, while a 12-gauge cord can handle higher amperage.
When choosing an extension cord, it is crucial to consider the amperage and wattage requirements of the tool or appliance connected to it. Basic household extension cords typically use 16-gauge wire and are suitable for simple devices such as lamps, radios, and televisions. However, devices with motors or those that produce heat have higher electrical loads, requiring heavier-duty extension cords. Longer extension cords also increase electrical current resistance and the potential for overheating, so it is important to select a cord that is the appropriate length for the application.
To avoid electrical risks and appliance damage, it is essential to choose an extension cord with an amp rating that meets or exceeds the equipment's requirements. Undersized extension cords can lead to overheating, voltage drop, and severe harm to tools or appliances. Therefore, it is recommended to use extension cords equal to or greater than the amp rating of the connected device. Additionally, it is important to regularly inspect extension cords for damage, such as exposed wires or cracks, and replace or repair them as necessary to ensure safe usage.
Grinding Coffee Beans Without Electricity: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Electrical extension cords have a socket where you plug in the wire from a device or appliance, and a plug that goes into a wall outlet. They are sold in prefabricated lengths of 1 to 150 feet. They can have multiple female connectors or female connectors spaced along the length of the cord. They can also have safety features such as a polarized plug, grounded terminals, a "power-on" indicator, or a fusible link.
You should choose an electrical extension cord based on the amount of wattage and amperage drawn by the tool or appliance connected to it. You should also consider the length and gauge of the cord. The thicker the cord, the more electrical current it can safely carry.
Outdoor extension cords are covered in a protective, weather-durable layer of insulation and tend to be thicker and longer than indoor cords. They also have a higher amperage rating and are able to carry more electrical current.
