Trystan Casey

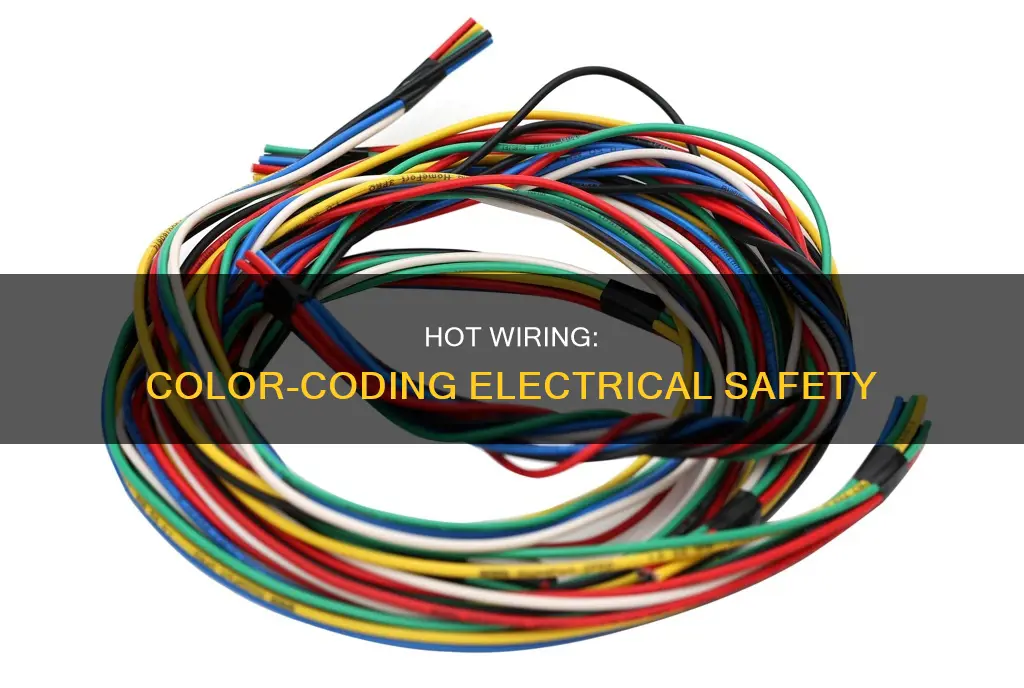

Understanding the colour codes of electrical wires is crucial to ensuring safety and efficiency in electrical installations. Electrical wires can be hot, neutral, or ground wires, each denoted by a specific colour. Hot wires, also known as line wires, carry live currents from the power source to electrical appliances, fixtures, and devices. While the colours of hot wires may vary across countries and regions, black, red, and blue wires are commonly used to indicate hot wires in the United States. It is important to always exercise caution when working with electrical wiring and seek professional guidance when necessary.
| Characteristics | Values |
|---|---|
| Hot wire colours in the US | Black, Red, Blue, Orange, Yellow, White (with black or red tape), Brown |
| Hot wire colours in Canada and Europe | Follow the Canadian Electric Code (CEC) and the International Electrotechnical Commission (IEC) |
| Ground wire colours | Green, Yellow with green stripes, Bare copper |
| Neutral wire colours | White, Gray |
| High-voltage wire colours | Orange, Yellow |
| Low-voltage wire colours | Red, Blue |
Explore related products
What You'll Learn
Black wires are hot wires
Black wires are typically hot wires, carrying power from the service panel to a device. They are used to transfer power to switches and outlets in various circuits and can also serve as links between electrical loads and switches. Black wires are one of the most common wire colours in home wiring.
In the United States, the National Electrical Code outlines specific colours for different types of wires and circuits. For example, black wires are typically used for hot wires, white wires for neutral, and green or bare wires for ground. It is crucial to follow these colour codes when working with electrical installations, as any deviation from these standards can result in a dangerous situation.
Hot wires are responsible for carrying the electrical current from the power source to electrical appliances, lighting fixtures, and other devices. They are also known as line wires and are the most hazardous wires to handle. It is important to always pay close attention to the colour-coding of hot wires and to seek the guidance of a certified electrician when making any alterations or repairs to electrical systems in your home.
Black wires are often used for hot wires, but other colours can also be used, such as red, blue, and yellow. Red wires are typically used as secondary wires in 220V lines, while blue and yellow wires are sometimes used as hot wires in electrical conduit. White wires can also be hot wires if covered by red or black wires. However, using any colour other than black or red for a wire carrying current is strongly discouraged as it may pose a serious safety hazard.
Sam's Club Electric Scooters: Availability and Options
You may want to see also
Explore related products
Red wires are hot wires
It is important to understand wiring colour codes to ensure the proper installation and use of electrical systems. The colours of hot wires vary depending on the country and region, but in the United States, the standard colours for hot wires are black, red, or blue. Black wires are typically used for hot wires, carrying electricity from the power source to electrical appliances, lighting fixtures, and other devices.
Red wires are also hot or live wires. They are commonly found in 240-volt outlets or when a wall switch controls the outlet. When the switch is turned on, the red wire supplies power to the outlet instead of the black wire. Red wires are used just like black wires, so it is important to assume they are hot and always test them before cutting or disconnecting. Red wires can also act as switch legs, such as in a three-way light switch, where two different hot wires are used in the circuit between the switches.
In addition to black and red, blue wires can also be used as hot wires, typically for ceiling fans and three- or four-way switch applications. It is worth noting that in some older homes or complicated wiring systems, it is recommended to seek the help of a certified electrician.
DIY Portable Electric Oven: A Step-by-Step Guide
You may want to see also
Explore related products
Blue wires can be hot wires
In the United States, the standard colours for hot wires are black, red, or blue. Blue wires can be hot wires and are commonly used for travellers in three-way and four-way switch applications. They are used to control fixtures from multiple switches, such as staircase lights that can be turned on or off from both the top and bottom of the stairs. Blue wires are also used in ceiling fans.
Blue wires are less common in residential properties than red and black hot wires. They are also used in three-phase lines, along with red and black wires. While black wires are always hot and can be positive or negative, blue wires have a more specialised usage in residential properties.
In the UK, the International Electrical Code (IEC) is used to colour-code wires. In this system, the blue wire is neutral, unlike in the US where it can be a hot wire.
Hot wires carry electrical current from the power source to electrical appliances, lighting fixtures, and other devices. They are also known as line wires and are the most hazardous to handle. It is important to always pay close attention to the colour-coding of wires and to seek the guidance of a certified electrician when making any alterations or repairs to electrical systems.
Calculating Your Carbon Footprint: Electricity Edition
You may want to see also
Explore related products
Orange wires can be hot wires
In the United States, the standard colours for hot wires are typically black, red, or blue. However, orange wires can also be hot wires in certain circumstances.
Orange wires are commonly used in US homes as secondary power supply lines in 3-conductor cables, particularly in 240-volt circuits where two hot wires are required. They are often used in fire alarm circuits and as a substitute for red wires. Orange wires function similarly to red wires, which are used as switch legs or travellers in 3-way and 4-way switch setups.
It is important to note that the colour of hot wires can vary depending on the country and region. Therefore, it is always recommended to assume that all wires are hot when working with electrical installations and to exercise caution.
To ensure safety and avoid potential hazards, it is crucial to follow the National Electrical Code (NEC) guidelines for specific wire colours in different circuits. For instance, black wires are typically used for hot wires, white wires for neutral, and green or bare wires for ground connections.
When working with electrical systems, it is essential to use appropriate testing equipment, such as a voltage tester or a multimeter, to verify the presence of live wires and prevent accidents.
Electric Scooters: Ohio's Street Legality Question
You may want to see also
Explore related products
White wires can be hot wires
In the United States, the standard colours for hot wires are typically black, red, or blue. Hot wires carry electrical current from the power source to electrical appliances, lighting fixtures, and other devices. However, white wires, which are typically neutral wires, can also be used as hot wires.
White wires are usually grounded conductors, or neutrals, which carry power back to the service panel. However, in some cases, they can be used as hot wires, which carry a live current from the electric panel to the destination. This is permitted only when the white wire is clearly marked with black or red tape or marker, indicating that it is a hot wire.
It is important to note that using any other colour wire for carrying current, other than the standard colours, is strongly discouraged as it may pose a serious safety hazard. Proper labelling of electrical systems is crucial to protect technicians and electricians. Inspectors often notify clients if white wires used as hot wires are not properly labelled.
In one instance, a multimeter was used to test a white wire, and it was found that the wire had 120V running through it. This indicated that the original electrician may have accidentally used the wrong colour wire. The user marked the wire with white electrical tape and planned to have an electrician confirm the setup.
Therefore, while white wires are typically neutral, they can be used as hot wires as long as they are properly labelled to avoid any safety hazards and ensure the safety of technicians and electricians working on the electrical system.
Electrical Code Differences: Commercial vs. California Residential
You may want to see also
Frequently asked questions
In the US, the standard colors for hot wires are black, red, or blue. Black wires carry power to switches and outlets, while red wires are used as secondary wires in 220V lines. Orange wires are also used like red wires, especially in 240-volt circuits. White wires are hot if covered by red or black wires.
Electrical wires can be hot, neutral, or ground wires, each with its own set of standard colors. Hot wires carry electrical current from the power source to appliances and devices. Neutral wires, such as white and gray, return the electricity to the electrical panel. Ground wires, typically green or bare, provide a safe path for electricity in case of a fault.
It is crucial to always follow the National Electrical Code (NEC) and industry-accepted color codes when working with electrical wiring. Treat all wires as live and be cautious, especially with black, red, and orange wires, which are hot and carry live currents. Never use a green wire for anything other than grounding to avoid electrocution risks. When in doubt, consult a certified electrician.
