Electrical tape is a versatile tool used to insulate wires carrying electricity and to mark wires for identification. It is important to select the right colour of electrical tape for the job, as each colour represents a certain voltage level and usage designation for phasing tasks. For example, in the UK, red electrical tape commonly signifies 'low voltage, phase A', while in the US it usually means 'low voltage, phase B'. In addition to the colour of the tape, it is also important to consider the thickness and width of the tape, as well as proper application techniques, to ensure a safe working environment. While searching for the right colour of electrical tape for underground electric wiring, one may come across red-coloured underground electric line tapes that are used for protection, location, and identification.
| Characteristics | Values |
|---|---|
| Purpose | Insulate and protect electrical connections, wires, and cables |
| Other functions | Prevent electrical shocks or short circuits |
| Typical colours | Black, White, Green, Blue, Yellow, Red |
| Colour-coding | Differentiate wires, indicate voltage level and phase of the wire |
| Phasing tapes | Used on wires that only come with black insulation |
| Ground wire colour | Green |
| Neutral wire colour | White or Grey |
| Neutral wire colour (high-voltage system) | Grey |

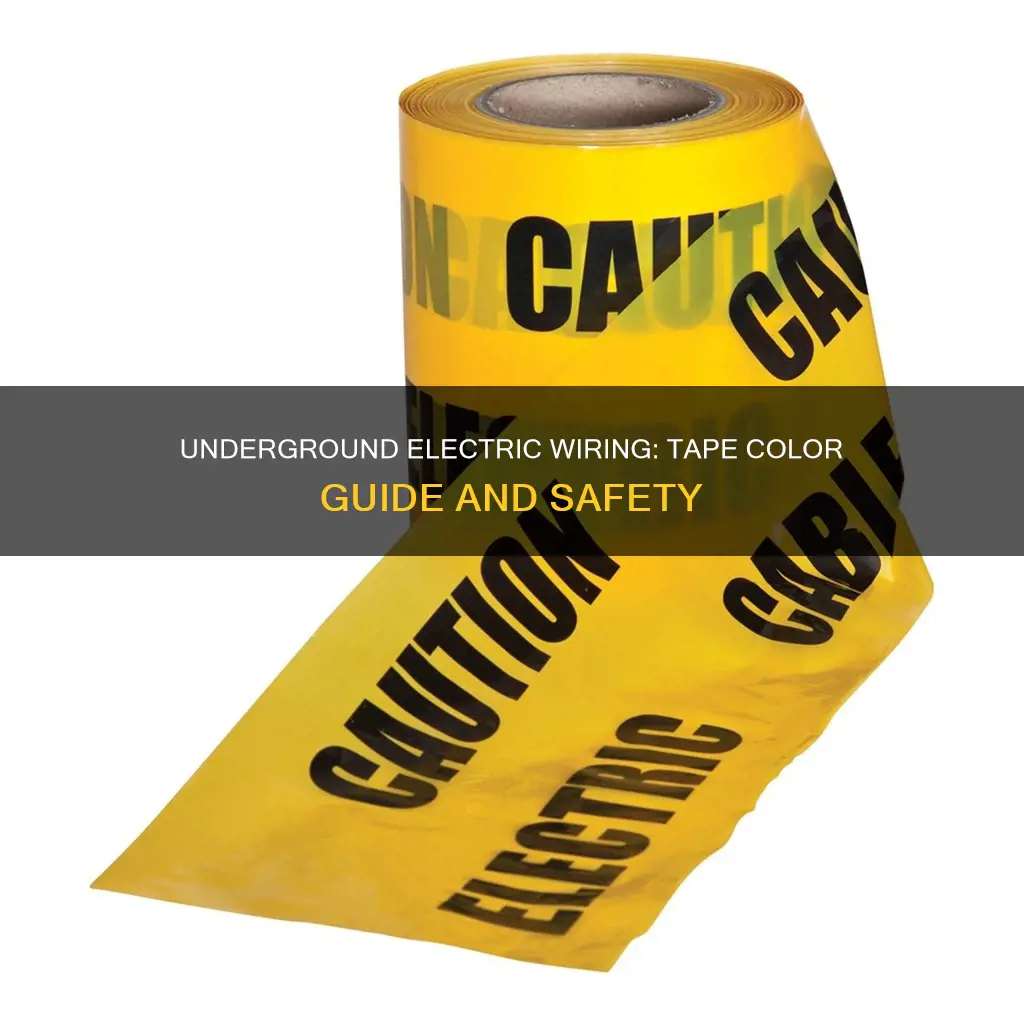

| Underground electrical line caution tape | Yellow with a printed legend |
Explore related products
What You'll Learn
Electrical tape colours and their meanings
Electrical tape is used to insulate and protect electrical connections, wires, and cables. It also helps prevent electrical shocks or short circuits. Electrical tape comes in a variety of colours, each with a specific purpose and meaning.
Black electrical tape is commonly used to insulate electrical wires. Phasing tapes, such as blue, yellow, and red electrical tapes, are used to indicate the voltage level and phase of the wire. These tapes are applied to wires that only have black insulation, with a ring of tape placed on each end near the termination to clarify the wire's purpose.
Green electrical tape indicates the system's ground, providing a safe path for ground-fault currents. White tape typically signifies the neutral or grounded conductor, acting as the centre point between different phases. Grey tape is used in high-voltage systems to indicate the neutral wire, replacing white tape.
It is important to note that the colours of wires and their meanings may vary depending on the region and specific electrical system. Therefore, it is crucial to refer to wiring diagrams, local standards, and proper application techniques to ensure safety when working with electricity.
Additionally, electrical tape can be used for marking and bundling cables, enhancing safety and manageability in electrical systems.
Troubleshooting Electrical Breakers: Finding Faulty Ones
You may want to see also
Explore related products
Phasing tapes
Wires are often colour-coded, which helps professionals working on them to determine their function and keeps the system manageable. A tangle of black wires, for example, would be incomprehensible without colour-coding.
The different colours of electrical tape have specific meanings. Green wires, for example, indicate the system's ground, while white wires are typically used to indicate the neutral (or grounded) conductor. Grey-marked wires indicate the neutral wire in a high-voltage system. Black, red, and blue are used as different phase wires. In 3-phase systems, all three colours are used, while in 1-phase systems, only black and red are used. Brown, orange, and yellow serve the same purpose as black, red, and blue but indicate a higher-voltage system.
It is important to note that the colour-coding system may vary in different countries and contexts. For example, in some systems outside the US, ballast or lighting control circuits may use different colour codes. Therefore, it is essential to check available wiring diagrams and research local standards before working with electricity.
Understanding Your Electricity Usage: Calculating Units per Hour
You may want to see also
Explore related products
Insulation and protection of electrical connections, wires, and cables
Electrical tape is a simple yet effective way to insulate wires carrying electricity. It is also used to mark wires, helping professionals differentiate them and understand their function and voltage. Electrical tape is also used to prevent electrical shocks or short circuits. By wrapping the tape around exposed wires, it creates a barrier that protects them from moisture, dust, and other contaminants.
There are various colours of electrical tape, each with a specific purpose. Black electrical tape, for example, is generally used to insulate electrical wires. Phasing tapes, which include colours like blue, yellow, and red, indicate the voltage level and phase of the wire. They are used on wires that only come with black insulation to make the purpose of the wire known. Green wires, on the other hand, always indicate the system's ground, providing a safe path for ground-fault currents. White wires typically denote the neutral or grounded conductor, acting as the centre point between different phases. Grey wires indicate the neutral wire in a high-voltage system.
It is important to note that the colour-coding standards for wires may vary in different countries and systems. For example, in the US, a white or grey outer finish or continuous white stripes along the entire length of the wire indicate the neutral conductor. Therefore, it is crucial to check wiring diagrams and research local standards before working with electricity.
In addition to electrical tape, there are other types of protective coverings for electrical wires, including armour, jacket, and insulation. Armour, typically made from galvanized steel or aluminium interlocked armour (AIA), provides mechanical protection in commercial applications. Jackets, on the other hand, are outer coverings that protect against environmental factors. They are usually made from non-metallic materials like nylon and PVC, which help reduce friction when pulling wires through conduits.
When it comes to insulation materials, the three main options are plastic, rubber, and fluoropolymer. Polyvinyl Chloride (PVC) is a commonly used insulation material due to its versatility, flame resistance, and ability to withstand a wide temperature range. It is also resistant to moisture, abrasion, and various chemicals. However, PVC has drawbacks, such as high attenuation and capacitance loss, which may impact performance in electrical systems. Another insulation material is XLPE, which is a thermoset product known for its flexibility, resistance to chemicals and abrasions, and lower toxicity in fires. It is important to research and choose the appropriate insulation material based on specific requirements and local codes to ensure safety and compliance.
Electric Miners and Yellow Belts: Optimal Efficiency Strategies
You may want to see also
Explore related products
Detectable warning tape
Electrical tape is used to insulate wires carrying electricity and to mark wires. The purpose of electrical tape is to insulate and protect electrical connections, wires, and cables. It also prevents electrical shocks or short circuits. Electrical tape comes in many colours, and the colours can be used to differentiate wires. For example, green wires indicate the system's ground, and white wires indicate the neutral or grounded conductor. Grey-marked wires indicate the neutral wire in a high-voltage system.
In some systems, the colours of wires may have different meanings, so it is important to check wiring diagrams and research local standards before working with electricity. One source mentions that black electrical tape is generally used to insulate electrical wires, while other colours like blue, yellow, and red indicate the voltage level and phase of the wire. Another source mentions that black, white, or green tape can be used as needed, with the entire exposed length of the wire taped and pulled back into the conduit so that the end of the tape is not exposed.
Becoming a Certified Electrical Inspector: Steps to Success
You may want to see also
Explore related products
Local standards and safety
The NEC, developed by the National Fire Protection Association (NFPA), provides guidelines for allowable wiring methods, materials, burial depths, and other safety considerations. For instance, it specifies that outdoor low-voltage transformers and fixtures must be placed at least five feet away from pools or water sources. Additionally, direct-bury high-voltage cables should be buried at least 24 inches deep unless enclosed in a conduit.
Local codes may have specific requirements for burial depth and conduit usage. For example, PVC conduit might need to be buried at least 18 inches deep, while galvanized metal electrical conduits may require a minimum depth of six inches. Local inspectors can provide definitive guidance on these requirements.
Color-coding of electrical wires is another critical aspect of local standards and safety. While the NEC provides guidance for some conductor colors, local variations may exist. For example, grounded conductors can be white or gray or have three white or gray stripes on any background color except green, according to the NEC. However, local regulations might mandate specific color-coding standards, emphasizing the importance of consulting local sources.
The purpose of color-coding is to provide a visual cue about a wire's purpose and potential danger. For instance, black wires typically carry electricity from the power source to devices and are considered "hot" or "live" wires. White wires can also be used as "hot" wires in certain applications, requiring proper marking with tape to distinguish them from neutral wires. Color-coding ensures safety, facilitates troubleshooting, reduces human error, and aids in training for apprentices and technicians. Therefore, adhering to local standards for color-coding is essential for maintaining compliance and safety in underground electrical wiring installations.
Electricity Rates in Alberta: Rising Costs and Concerns
You may want to see also
Frequently asked questions
Electrical tape is used to insulate and protect electrical connections, wires, and cables. It also helps to prevent electrical shocks or short circuits.
Electrical tape comes in many colours, each with a specific purpose. For example, black electrical tape is generally used to insulate electrical wires, while red tape is used to indicate voltage levels and phases. Green wires indicate the system's ground, and white wires indicate the neutral conductor.
Red electrical tape is often used to indicate underground electric wiring. It is used to identify hazardous areas and resist degradation from acid and alkali in the soil.
