Electric car batteries, the heart of electric vehicles (EVs), are typically large, rectangular or modular units designed to fit within the vehicle’s chassis, often located in the floor to optimize weight distribution and stability. These batteries are composed of numerous individual lithium-ion cells grouped into modules, which are then assembled into a single, high-capacity pack. Encased in durable, weather-resistant materials, they feature cooling systems to maintain optimal operating temperatures and are engineered for safety, efficiency, and longevity. While the exact size and shape can vary by manufacturer and vehicle model, most EV batteries share a sleek, compact design that maximizes energy storage while minimizing space usage, ensuring both performance and practicality.
| Characteristics | Values |
|---|---|
| Shape | Rectangular or modular packs, often flat and slim to fit under the vehicle floor. |
| Size | Varies by vehicle; typically ranges from 50 kWh to 100+ kWh in capacity. |
| Weight | 500 to 1,500 lbs (227 to 680 kg), depending on capacity and chemistry. |
| Chemistry | Lithium-ion (Li-ion) variants: NMC (Nickel-Manganese-Cobalt), LFP (Lithium Iron Phosphate), etc. |
| Voltage | 300 to 800 volts, depending on the vehicle and battery configuration. |
| Energy Density | 100–265 Wh/kg (higher in advanced designs like solid-state batteries). |
| Lifespan | 8–15 years or 100,000–200,000 miles, depending on usage and maintenance. |
| Charging Time | 30 minutes (fast charging) to 12+ hours (Level 1/2 charging). |
| Cooling System | Liquid or air cooling to maintain optimal temperature during operation. |
| Pack Design | Modular, with individual cells grouped into modules for easy replacement. |
| Safety Features | Thermal management, overcharge/discharge protection, and fire-resistant materials. |
| Recyclability | Up to 95% recyclable, with materials like lithium, cobalt, and nickel reusable. |
| Cost | $8,000–$20,000 per battery pack, depending on size and technology. |
| Placement | Typically under the vehicle floor, trunk, or between axles for stability. |
| Manufacturers | Panasonic, LG Energy Solution, CATL, BYD, Tesla, etc. |
Explore related products
What You'll Learn
- Battery Pack Design: Rectangular or modular shapes, often flat, housed in protective casings for safety and efficiency
- Cell Types: Cylindrical, prismatic, or pouch cells, each with unique size and structure
- Cooling Systems: Integrated liquid or air cooling mechanisms to maintain optimal battery temperature
- Wiring and Connections: High-voltage cables and connectors linking cells to the vehicle’s electrical system
- Safety Features: Reinforced casings, thermal shields, and venting systems to prevent overheating or damage

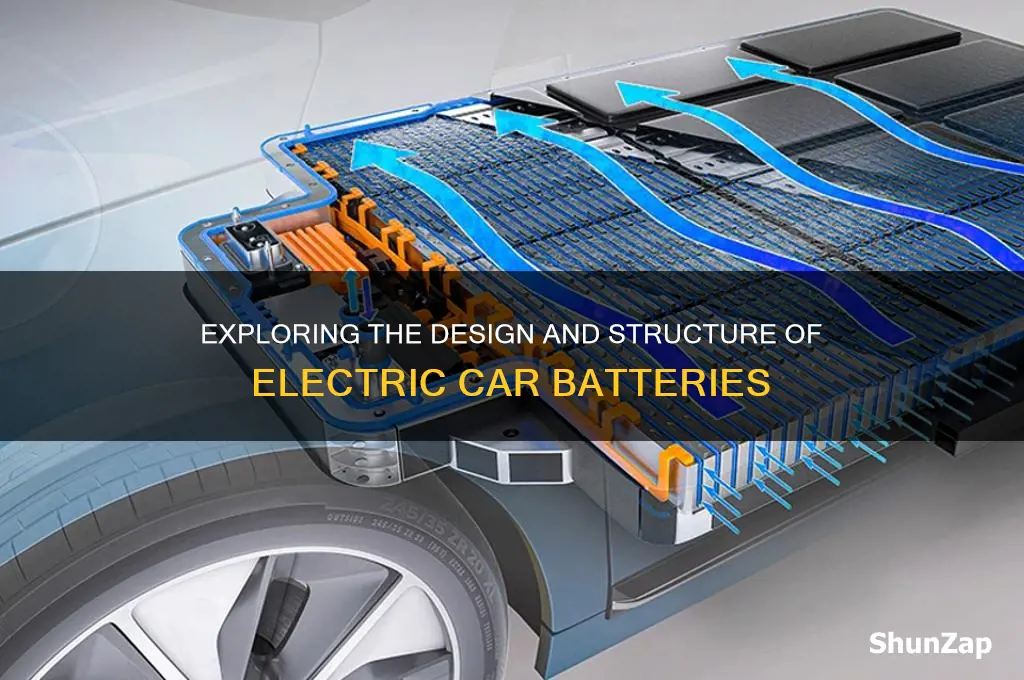

Battery Pack Design: Rectangular or modular shapes, often flat, housed in protective casings for safety and efficiency
Electric car batteries are the heart of electric vehicles, and their design plays a pivotal role in performance, safety, and efficiency. Battery packs are predominantly rectangular or modular in shape, often flat, to maximize space utilization within the vehicle’s underbody. This design allows for a lower center of gravity, enhancing stability and handling. For instance, Tesla’s Model S uses a flat, rectangular battery pack that spans the length of the vehicle, providing both structural integrity and optimal energy storage. These shapes are not arbitrary; they are engineered to fit seamlessly into the vehicle’s architecture while ensuring even weight distribution.
The protective casings surrounding these battery packs are critical for safety and efficiency. Made from materials like aluminum or reinforced polymers, these casings shield the battery cells from physical damage, thermal runaway, and environmental factors such as moisture and debris. For example, the Nissan Leaf’s battery pack is encased in a robust, liquid-cooled housing that prevents overheating during high-demand scenarios. This protective layer also includes thermal management systems, such as liquid cooling or phase-change materials, to maintain optimal operating temperatures, which is essential for prolonging battery life and preventing degradation.
Modular battery designs are gaining traction due to their flexibility and scalability. Unlike monolithic rectangular packs, modular designs consist of smaller, interchangeable units that can be added or removed as needed. This approach allows manufacturers to tailor battery capacity to specific vehicle models or customer requirements. BMW’s i3, for instance, features a modular battery system that can be upgraded without replacing the entire pack. This not only reduces costs but also minimizes waste, aligning with sustainability goals. However, modular designs require meticulous engineering to ensure consistent performance across all modules.
When designing battery packs, engineers must balance safety, efficiency, and space constraints. Rectangular shapes are favored for their simplicity and ease of integration, but they may limit design flexibility. Modular designs offer greater adaptability but introduce complexity in thermal management and electrical connectivity. For practical implementation, manufacturers often conduct rigorous testing, including crash simulations and thermal cycling, to ensure the battery pack meets safety standards. Consumers should look for vehicles with battery packs that prioritize both form and function, as this directly impacts driving range, longevity, and overall reliability.
In conclusion, the design of electric car battery packs—whether rectangular or modular—is a delicate balance of engineering precision and practical considerations. Protective casings are non-negotiable, ensuring safety and efficiency in all conditions. As technology advances, expect to see more innovative designs that push the boundaries of what’s possible, making electric vehicles more accessible, sustainable, and performant. Whether you’re a manufacturer or a consumer, understanding these design principles can help you make informed decisions about the future of electric mobility.
