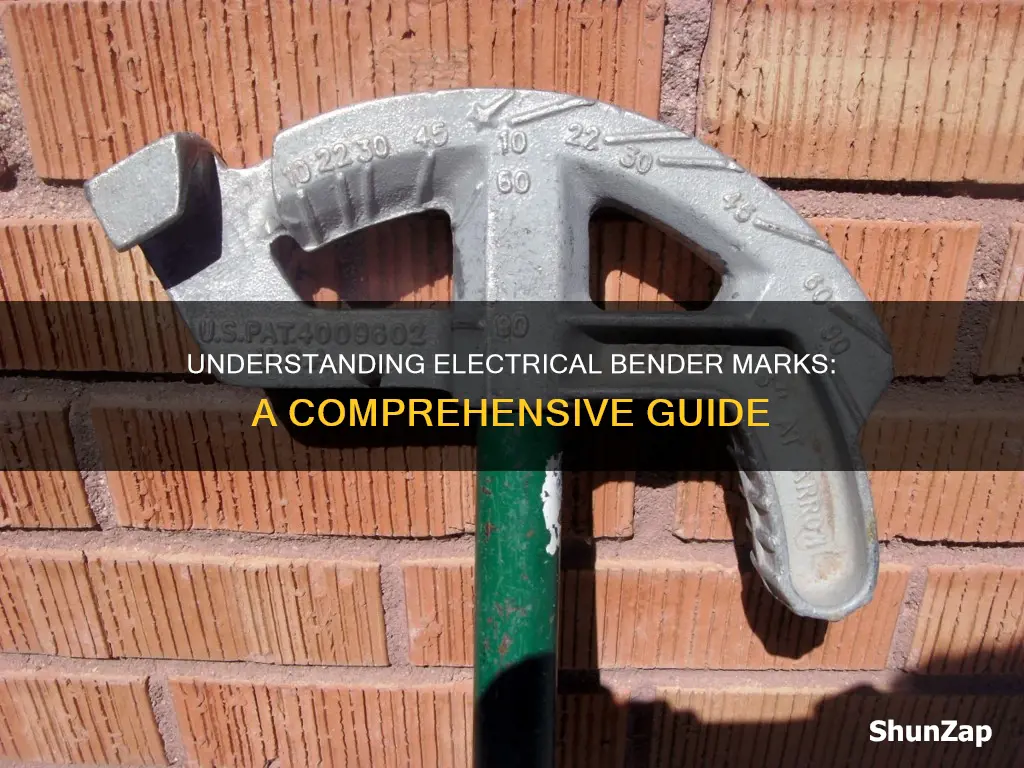

The marks on an electrical conduit bender are used to indicate the centre of the bend, the front of the bend, and the back of the bend. These marks are important for bending offsets and all triangular bends. The marks on the bender are a guide to know where close is, but it is best to use a level when bending to ensure accuracy. The mark on the former is also used to compensate for shrinkage when pulling a bend.
Explore related products
What You'll Learn
Marks indicate the centre of the bend
When bending electrical conduits, marks on the bender help indicate the centre of the bend. This is important as it determines the true mathematical portions of the bend. The centre of the bend is where the straight edges line up against the inner section of the bend, creating an intersection.
Marks on the bender help to indicate where the centre of the bend will be, making it easier to create good-looking bends. It is important to know where the centre of the bend lies on the bender you are using and to place each mark there. For example, if you need to make a 500mm bend from the end of the conduit to the back of the bend, you would measure and mark 500mm on the conduit. You then align the mark on the conduit with the mark on the bender and pull the bend.
There are different ways to mark a conduit bender. Some people use a hacksaw to mark a notch on the former wheel for the back of the bend. Others prefer not to mark their pipe bender, instead measuring the length they need and marking their conduit. This mark is then placed at a point equivalent to 90 degrees to the conduit in the pipe bender.
It is also important to use a level when bending conduits. While the marks on the bender are a great way to know where the centre of the bend is, using a level will ensure a level bend every time.
The Handheld Powerhouse: Understanding Portable Electric Drills
You may want to see also
Explore related products
Marks help with measuring and calculating distances
Marks on electrical benders are a great way to know where the midpoint of a crank set is, so the length of the conduit doesn't become too short when the set is pulled. The marks are also useful for measuring and calculating distances. The first step is to measure the total distance for the conduit. This can be done using a tape measure. The next step is to use a conduit bending chart or the multiplier notations on the bender to determine the amount of take-up. The value depends on the conduit's width and the degree of the bend. For example, the bender may indicate a 5-inch take-up for a 90-degree bend. This means that for one 90-degree angle, you need to add 5 inches to the total length, and for two 90-degree angles, you need to add 10 inches.
The marks on the bender are a guide to where the centre of the bend is, and this is important for bending offsets. The centre of the bend is determined by getting straight edges to line up against the inner section of the bend and then tracing it out on both ends to create an intersection. The centre of the bend is where the two lines intersect. This is a crucial step as it represents the true mathematical portions and all mechanical bends should line up with this point.
The marks on the bender are also useful for measuring the conduit. After measuring the conduit, it is important to verify the distance by measuring it again before cutting to avoid cutting the piece too short or too long. The marks can be used to indicate where to cut. The marks are also useful for knowing where the back of the bend is. The mark is always 2.5 times the diameter of the conduit. For example, for a 20mm conduit, the mark will be at 50mm.
It is important to note that the marks on the bender are not always accurate, and it is recommended to use a level when bending the conduit to ensure accuracy.
Electricity, Vision, Optics, Logic: The Core of Modern Technology
You may want to see also
Explore related products
Marks are used to compensate for shrinkage
Marks on electrical benders are used to indicate the centre of the bend, which is important for bending offsets. The centre of the bend is determined by getting straight edges to line up against the inner section of the bend, tracing it out on both ends to create an intersection. The marks on the bender help users know where close is, but it is not the most accurate method.
The mark on the former is used to compensate for shrinkage when pulling a bend. This mark is always 2.5 times the diameter of the conduit. For instance, a 20mm conduit would require a mark at 50mm, and a 25mm conduit would require a mark at 62mm. This mark is used to line up the midpoint of a crank set so that the length of the conduit does not become too short when the set is pulled.
To bend a conduit, one must first measure the distance to the object. Then, the offset distance can be found by measuring how far the conduit needs to change its direction to clear the obstacle. A conduit bending chart can be used to find the shrinkage per inch of offset based on the two offset angles. The total shrinkage can then be added to the distance to the object, and this new distance can be measured and marked on the conduit.
To create an offset bend, two bends must be made in opposite directions. Benders will often have the degrees marked on them, including 22.5 degrees, 30 degrees, 45 degrees, and 60 degrees. To make a pair of 45-degree angles, the first bend should be made to the 45-degree mark on the bender, and the conduit should be turned upside down to create the second bend in the air to the same degree as the first bend.
Understanding Line Side: Electrical Safety Basics Explained
You may want to see also
Explore related products
Marks are not always accurate
Marks on electrical conduit benders are meant to indicate the angle of a bend, but they are not always accurate. Several factors can affect the accuracy of the marks on a conduit bender.
Firstly, the quality of the bender itself can play a role. Some benders may have manufacturing defects or variations that affect the accuracy of the marks. It is important to choose a reputable brand or supplier to ensure the quality and accuracy of the tool.
Secondly, user error can also contribute to inaccuracies. Improperly marking the conduit or using the bender incorrectly can result in inaccurate bends. It is crucial to follow the manufacturer's instructions and industry best practices when using a conduit bender. This includes properly aligning the conduit with the bender's arrow and the bending mark, as well as applying even and consistent pressure during the bending process.
Additionally, over time, a conduit bender may become worn or damaged, affecting the accuracy of the marks. Regular maintenance and inspection of the tool can help mitigate this issue. It is also important to store the bender properly to prevent damage or misalignment.
Another factor that can affect the accuracy of the marks is the type of conduit being used. Different types of conduits, such as EMT (Electrical Metallic Tubing), may have specific characteristics or requirements that can influence the bending process. It is important to choose a bender that is compatible with the type of conduit being used and to follow any special instructions or considerations provided by the manufacturer.
Lastly, environmental factors, such as temperature or humidity, can also impact the accuracy of the marks. For example, extreme temperatures can cause the metal of the bender or conduit to expand or contract, affecting the final bend. In such cases, it may be necessary to make adjustments to the bender or the bending process to account for these environmental factors.
PLC Meaning: Electrical Systems and Their Programmable Logic Controls
You may want to see also
Explore related products
The best way to bend is to use a level
Bending conduit can be a frustrating process without the proper tools and techniques. The marks on a conduit bender are a great way to know where close is, but the best way to get a level bend is to use a level when bending.
To get a level bend, you need to ensure accurate cuts and level conduit. To do this, you need a tape measure, a quality level, and a framing square. Your tape measure should be sturdy enough to stand out unsupported for at least 10 feet, especially if you need to work in the air with a conduit. The level you choose should have strong magnets to hold it against the conduit, even when placing the tubing overhead. Additionally, 30-degree angles marked on the level and easy-to-read markings are beneficial features for levels used for conduit bending work. A framing square will assist in checking the angle of the conduit after bending.
When using a level to bend conduit, you should bend your offsets on the floor. This will allow you to verify the angle of the bend. For example, if you need to bend your conduit at a 30-degree angle, you can bend it on the floor and use your level to verify that it is indeed 30 degrees.
When making an offset bend, you will need to measure the height and distance needed to clear the obstacle. Then, determine the angle you will need to fit your installation and use the Offset Formula Table to calculate where to mark your conduit. Calculate where to place your first mark on the conduit using the following formula: (Offset Distance) X (Shrink/Inch) = Total Shrink. Then, add the total shrink and the distance to the obstacle to get your first mark measurement.
When bending the conduit, apply steady, firm pressure to the foot hold to ensure the bend stays true. Apply steady, gradual pressure when making the bends to avoid kinking the conduit. If the curve in your pipe is not at the correct angle, place it back in the bender and adjust the bend.
Understanding Single-Phase Electricity: Powering Your Home
You may want to see also
Frequently asked questions
The marks on an electrical bender are a guide to know where the bend will be. The marks are not always accurate and it is best to use a level to ensure a level bend.
The centre of the bend is where the straight edges line up against the inner section of the bend. This creates an intersection. The centre of the bend is important for bending offsets and all triangular bends.
Measure the total distance for the conduit using a tape measure. Then, use a conduit bending chart or the multiplier notations on the bender to determine the amount of take-up. Cut the conduit with a pipe cutter or hacksaw.
It is recommended to get the conduit level on top of the former and use a set square off the edge of the former to find the back of the bend.
The mark is used to compensate for shrinkage when pulling a bend. The mark is always 2.5 times the diameter of the conduit.
