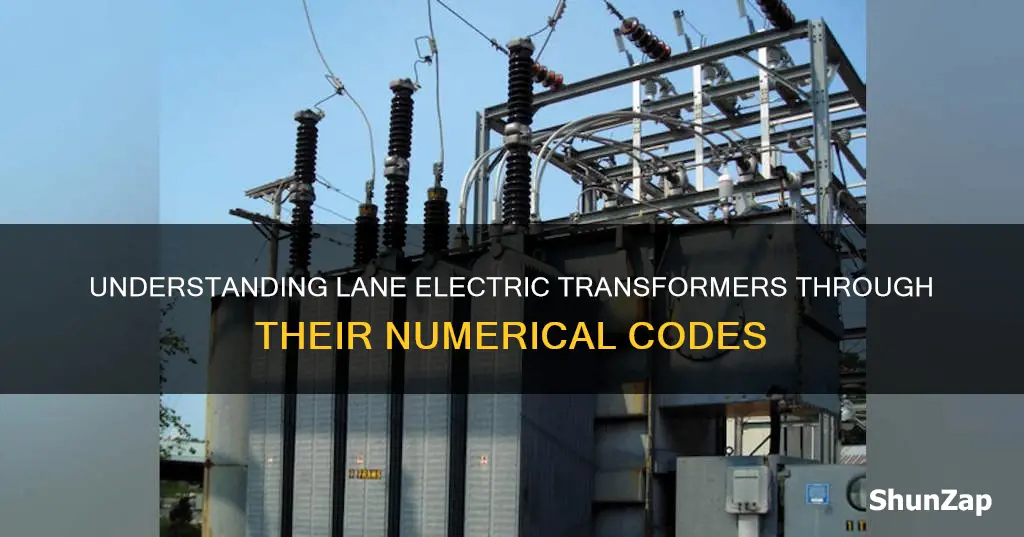

Transformers are devices that play a crucial role in the generation, transmission, and distribution of electrical power. They are used to convert a given input voltage to a different output voltage. A transformer nameplate is a metal or plastic placard that provides essential information about the transformer's capabilities and operational parameters. The numbers on a lane electric transformer refer to various specifications, such as voltage ratings, MVA ratings, percent impedances, connection diagrams, physical layout, vector diagrams, tap connections, CT connections, and BIL ratings. These numbers help ensure proper installation, maintenance, and operation of the transformer.
Explore related products
![Yinleader 500W Voltage Transformer Power Converter(110V to 220V, 220V to 110V) Step Up/Down Converter 110/120 Volt - 220/240 Volt w/US Power Cord [300W Continuous Power]](https://m.media-amazon.com/images/I/71BQTWHW6LL._AC_UY218_.jpg)
What You'll Learn
The numbers refer to the transformer's windings and their turns ratio
The numbers on a lane electric transformer refer to its windings and their turns ratio. A transformer's primary function is to step up or step down the voltage in the distribution lines to the level used by the customer. This is achieved by changing the number of coil turns in the primary winding compared to the secondary winding.
The ratio of the primary and secondary windings of a transformer produces either a step-up or step-down voltage transformer. If the number of turns in the secondary winding is higher than the primary, it is a step-up transformer, and if it is lower, it is a step-down transformer. The ratio between the number of primary turns to the number of secondary turns is called the "turns ratio" or "transformer ratio".
The turns ratio can be calculated by looking at the transformer's nameplate, which provides essential information about the transformer's capabilities and parameters. The nameplate is usually located in a visible and accessible location, such as inside the cabinet door for padmount transformers or attached to the outside of the transformer for substations and dry types. The nameplate will contain information such as the transformer's impedance value, voltage ratings, MVA ratings, connection diagram, and physical layout.
The impedance value on the nameplate is calculated for the full load of the transformer and is important when replacing existing transformers. The voltage ratings on the nameplate indicate the maximum positive and negative operating pressures of the oil preservation system. The MVA rating is a unit used to measure the power capacity of large electrical systems, and it is calculated by multiplying the voltage by the current.
By understanding the numbers and ratios associated with a lane electric transformer's windings, technicians can ensure proper installation, maintenance, and operation of the transformer.
Understanding Electrical ZE: A Comprehensive Guide
You may want to see also
Explore related products
They indicate the transformer's voltage ratings
A lane electric transformer's nameplate will typically include its voltage ratings. Voltage is the primary parameter for a transformer, which converts a given input voltage to a different output voltage. The transformer's nameplate is a metal or plastic placard that provides essential information to electrical professionals, technicians, and users who interact with the transformer.
The nameplate will also include the transformer's MVA ratings, percent impedances, connection diagram, physical layout, vector diagram, tap connections, and BIL ratings. The voltage taps for the primary and secondary are shown on the connection diagram and on the winding rating tables. The transformer cooling class, number of phases, and the operating frequency are also usually specified.
The transformer's nameplate will also include the manufacturer's name, logo, and contact information. The serial number is a unique identifier for the transformer, and the model number is a generic identifier that denotes a certain type of design. The model number can be used to order replacement parts or to find technical information about the transformer.
The nameplate will also include information about the transformer's fusing and protection devices, such as bayonet fuses, isolation links, and special current-limiting fuses. The wiring diagram will indicate whether the transformer is a loop feed or radial feed transformer, and the bushing configuration will be labeled accordingly.
In summary, the numbers on a lane electric transformer's nameplate indicate its voltage ratings and other important information such as the manufacturer, model number, and fusing and protection devices. This information is crucial for ensuring the proper installation, maintenance, and operation of the transformer.
Electric Tingles in Feet: What's the Cause?
You may want to see also
Explore related products
They show the transformer's MVA ratings
The numbers on a lane electric transformer indicate its MVA ratings, which are essential specifications outlined on the transformer's nameplate. This nameplate is typically made of metal or plastic and provides critical information to electrical professionals, technicians, and users who interact with the transformer. It helps ensure the proper installation, maintenance, and operation of the transformer by conveying key details about its capabilities and operational parameters.
The MVA (MegaVolt-Ampere) rating of a transformer indicates its capacity to handle apparent power. Apparent power is the total electrical power load applied to the transformer, considering both the active power (watts) and the reactive power (VARs). The MVA rating is a measure of the maximum apparent power the transformer can handle without exceeding its capacity.
The MVA rating is determined by the transformer's design and construction, including factors such as the core material, the number of windings, the coil turns ratio, and the efficiency of the transformer. By providing the MVA rating on the nameplate, users can ensure that the transformer is appropriately sized and capable of handling the electrical load it is intended for.
Additionally, the MVA rating is crucial for calculating the transformer's performance and efficiency. It helps determine the amount of power loss and heat dissipation that occurs during the transformation of electrical energy. By understanding the MVA rating, technicians can assess the transformer's ability to handle different load conditions and make informed decisions about its application and maintenance.
Understanding the MVA ratings on a lane electric transformer is vital for ensuring the safe and efficient operation of the equipment. It allows electrical professionals to match the transformer's capacity to the specific requirements of the electrical system, preventing overloading and potential failures. The MVA ratings, along with other specifications on the nameplate, empower users with the knowledge necessary to make informed decisions regarding the selection, installation, and maintenance of lane electric transformers.
Understanding Split Bus Electrical Panels: What's the Deal?
You may want to see also
Explore related products
They indicate the transformer's percent impedance
Impedance is a pivotal parameter in transformer design, combining resistance and reactance to impede alternating current within the system. Expressed as a percentage, it is crucial for determining the safe current-carrying capacity of a transformer without risking overheating. The impedance value must be precisely balanced; it should be neither excessively high nor too low to ensure efficient operation and prevent damage.
For instance, if a transformer has a positive sequence impedance of 8% stamped on it, this means that 8% of the rated winding voltage is required to produce the rated transformer current. If the high-voltage winding is rated at 220 kV, then 17.6 kV (obtained by multiplying 0.08 and 220 kV) is required to produce the rated full-load current when the low-voltage winding is shorted.
The number of turns on a transformer's windings influences its impedance, with more turns increasing impedance. Similarly, the core material, size, and winding resistance impact impedance, with larger cores and different winding arrangements resulting in higher impedance.
High-voltage power transformers with larger capacities typically have an impedance of around 10%, while distribution transformers usually have an impedance of about 4%.
Understanding and correctly managing impedance is crucial for optimizing transformer performance. It plays a role in short-circuit protection, voltage regulation, and system efficiency.
Blackouts and Water: What's the Connection?
You may want to see also
Explore related products
They show the transformer's serial number
The numbers on a lane electric transformer likely show the transformer's serial number. Transformers are often custom-made, so each manufacturer uses a code system to keep track of which order number the transformers are for. For example, the code "0915" could indicate the 9th ISO week of 2015 or Week 9 of the year 2015.
The manufacturer's catalog number also includes a code that indicates the primary and secondary windings. For example, the catalog number "S20N11SO5A" indicates a 240/480 primary and 120/240 secondary single-phase transformer. The catalog number "3H20T2H45S" indicates a 480 delta primary and 120/208 secondary 45 KVA transformer.
The letters included in the serial number also have specific meanings. According to NEMA and ASA standards, the higher voltage winding is identified by "HV" or "H," and the lower-voltage winding is identified by "LV" or "X." If a transformer has more than two windings, they are identified by "H," "X," "Y," and "Z" in order of decreasing voltage.
Understanding PF: Electrical Power Factor Explained
You may want to see also
Frequently asked questions
A transformer's nameplate is a metal or plastic placard that provides essential information to electrical professionals, technicians, and users. It includes the manufacturer's name, logo, and contact information, as well as a unique serial number and model number. The nameplate also displays voltage ratings, MVA ratings, percent impedances, connection diagrams, physical layouts, vector diagrams, tap connections, and BIL ratings.
The primary parameter for a transformer is the short-circuit (internal) impedance. It influences the size of fault currents that flow between the neutral of a star-connected winding and the ground during phase-to-earth faults.
The numbers on a transformer's windings likely represent the turns ratio between the primary and secondary windings. The turns ratio is the ratio of the number of turns of the primary coil to the number of turns of the secondary coil.
An E-Shield, or electrostatic shield, is a copper winding placed between the primary and secondary windings of a transformer. It helps reduce electromagnetic interference (EMI) between the two windings.
Distribution transformers are classified based on factors such as mounting location (pole, pad, or underground vault), type of insulation (liquid-immersed or dry-type), and basic impulse insulation level (BIL).
