If you're travelling to the UK, you'll need to know what the electrical plugs look like to make sure you can use your appliances safely. The UK uses Type G plugs, which have three rectangular pins in a triangular pattern. These plugs are also used in Ireland, Cyprus, Malta, Malaysia, Singapore, and Hong Kong. Type G plugs are fused and usually have a 3A fuse for smaller appliances like computers, or a 13A fuse for larger appliances like heaters. British sockets also have shutters on the live and neutral contacts to prevent the insertion of foreign objects. The UK operates on a 230V supply voltage and 50Hz frequency, so it's important to use a voltage converter or transformer if your appliance is rated at a different voltage.
Explore related products
What You'll Learn
UK plugs are type G
The standard voltage in the UK is 230V, and the frequency is 50Hz. It is important to note that the voltage and frequency in other countries may differ from those in the UK. As such, using an electrical appliance designed for a different voltage may be extremely dangerous. Therefore, when travelling to the UK, it is essential to use a travel adaptor that fits the local sockets.
Type G plugs are fused and typically have either a 3A fuse for smaller appliances, such as computers, or a 13A fuse for larger appliances, like heaters. The British Standard 1363, also known as BS 1363, requires the use of a three-wire grounded and fused plug for all connections to the power mains. This standard was first published in 1947, with the plugs and sockets starting to appear in 1946.
While BS 1363 plugs are required for all mains appliances in the UK, there are exceptions for plugs fitted to shavers and toothbrushes. These may use a UK shaver plug (BS 4573) or a Europlug (BS EN 50075). Additionally, some plugs that do not meet BS 1363 may find their way into the UK through online purchases or electrical component distributors.
Calibrating Your Kenmore Electric Range: Step-by-Step Guide
You may want to see also
Explore related products

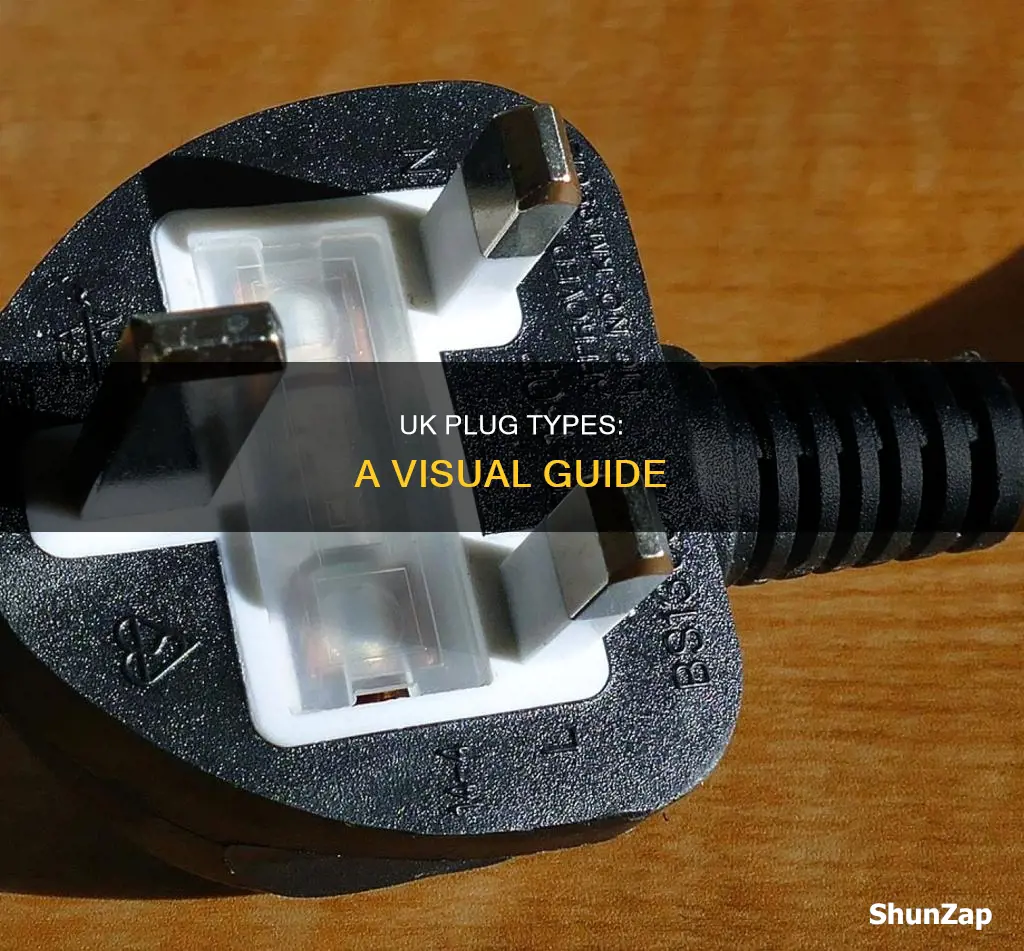

They have three rectangular pins in a triangular pattern
In the UK, electrical plugs follow the Type G standard, also known as British Standard 1363 (BS 1363). This type of plug has three rectangular pins that are arranged in a triangular pattern. The two horizontal pins are rectangular and carry the line and neutral current, while the uppermost pin is larger and vertical, serving as the earth connection.
The earth pin is essential for safety, as it operates the basic shutter mechanism in sockets, preventing the introduction of foreign objects. This feature is so effective that UK plugs are considered among the safest in the world. However, their bottom-heavy design can make them rather bulky and cumbersome.
The Type G standard requires a three-wire grounded and fused plug for all connections to the power mains. Two-wire appliances, which are not earthed, use a plastic grounding pin to open the shutters of the outlet. It's important to note that some travel adapters for the UK may not be suitable for appliances that require an earth connection.
The UK operates on a 230V supply voltage and 50Hz frequency. When travelling to the UK, it is crucial to use a voltage converter or transformer for appliances rated at a different voltage to avoid any safety hazards.
Speeding Up Your Electric Log Splitter: Tips and Tricks
You may want to see also
Explore related products
They include a fuse
The UK's official standard for electrical plugs is Type G, which features three rectangular pins in a triangular pattern. This type of plug includes a fuse, which is typically a 3A fuse for smaller appliances, such as computers, or a 13A fuse for larger appliances, such as heaters. The presence of the fuse is a critical safety feature, protecting the appliance and the electrical circuit from potential damage caused by excessive current.
Fuses are essential in electrical systems as they provide protection against overcurrent situations. When the current flowing through a circuit exceeds the safe limit, the fuse interrupts the flow, preventing potential hazards such as electrical fires or damage to the appliance or wiring. In the UK, the standard voltage is 230V, and the frequency is 50Hz. While the voltage remains consistent, the frequency can vary, and appliances may be affected by these fluctuations.
The Type G plug's fuse is designed to correspond with the typical current requirements of the appliances it serves. Smaller appliances, like computers, tend to have lower current needs, hence the use of a 3A fuse. This ensures that in the event of an overcurrent situation, the fuse will blow at a current level that is safe for both the appliance and the electrical wiring.
For larger appliances, such as heaters, which demand more current, a 13A fuse is utilised. This higher-amperage fuse allows for the typical current draw of these appliances while still providing protection against excessive current that could lead to unsafe conditions. The use of different fuse ratings within the Type G plug design demonstrates a thoughtful approach to safety, catering to the varied needs of appliances while maintaining a reliable safeguard against electrical faults.
In addition to the fuse, the Type G plug also incorporates other safety features. These include shutters on the live and neutral contacts, preventing the insertion of foreign objects and reducing the risk of electrical shock. The plug's design also includes a grounding mechanism, providing an extra layer of protection by offering a path for stray currents, further enhancing the safety of the electrical system.
Electric Scooters: Eco-Friendly, Sustainable, and Green Commuting
You may want to see also
Explore related products
They have shutters on the live and neutral contacts
UK plugs are considered among the safest in the world, but also among the bulkiest and most cumbersome. The shutters on the live and neutral contacts of UK plugs are a key safety feature. These shutters prevent the insertion of foreign objects into the live and neutral contacts, enhancing safety.
The shutters on the live and neutral contacts are operated by the earth pin, which is the larger, vertical pin above the two horizontal, rectangular pins for line and neutral. The earth pin serves a dual purpose, also ensuring correct polarity by its position relative to the other two pins.
The shutters are a basic mechanism that is operated by the earth pin. When the earth pin is inserted into the socket, it opens the shutters, allowing the line and neutral pins to make contact with the socket. This mechanism ensures that the line and neutral pins are protected when not in use, reducing the risk of electric shock.
In addition to the shutters, UK plugs have other safety features. For example, two-wire appliances that are not earthed have a plastic grounding pin that serves to open the shutters of the outlet. This design ensures that only appliances with the correct grounding can be connected to the socket, further enhancing safety.
The safety features of UK plugs are a result of rigorous regulations and standards. The Plugs and Sockets, etc. (Safety) Regulations 1994 were introduced to address consumer safety concerns arising from counterfeit and unsafe electrical plugs and sockets on the market. As a result, UK plugs have stringent safety standards, including the shutters on the live and neutral contacts, contributing to their reputation as one of the safest plug types globally.
Winter Power Outages: Keeping the Lights On in NY
You may want to see also
Explore related products
BS 1363 plugs are required for all mains appliances for domestic use in the UK
In the UK, BS 1363 plugs are required for all mains appliances for domestic use. This standard was introduced in 1947 as part of the post-war reconstruction efforts. It specifies the most common type of single-phase AC power plugs and sockets used in the UK. BS 1363 plugs have two horizontal, rectangular pins for the line and neutral connections, and a larger, vertical pin for the earth connection. The earth pin also operates the basic shutter mechanism found in many sockets, preventing the insertion of foreign objects.
The BS 1363 standard ensures interoperability between devices from different manufacturers, allowing consumers to use appliances from a variety of brands in their homes. It is also recognised internationally as a benchmark for electrical safety, making it easier for UK-made electrical products to be sold and used overseas. The standard includes requirements for sockets, adaptors, and connection units, ensuring that millions of plugs and sockets manufactured by different organisations fit together and function safely.
The Plugs and Sockets, etc. (Safety) Regulations 1994 were introduced to address consumer safety concerns arising from the presence of counterfeit and unsafe electrical plugs and sockets in the UK market. These regulations require that all plug types must be tested and certified by an approved body. They mandate the use of BS 1363 plugs for all mains appliances for domestic use, except for shavers and toothbrushes, which typically use BS 4573 or Europlugs (BS EN 50075).
To ensure consumer protection, all electrical goods sold for domestic use in the UK must be provided with fitted plugs that comply with BS 1363-1. This provides confidence that the products purchased are safe and of high quality. The standard has undergone revisions to keep up with changing manufacturing methods and materials, and it is advised that manufacturers and users stay updated with the latest specifications.
While BS 1363 is the standard for UK plugs, non-compliant plugs may still find their way into the country through online purchases or unsuspecting travellers. Some of these plugs may be legal in their country of manufacture but do not meet BS 1363 standards. Conversion plugs are available to enable the use of non-BS 1363 plugs with BS 1363 sockets, but these must have an accessible fuse and comply with safety regulations.
Blackout Update: When Will Power Return?
You may want to see also
Frequently asked questions
UK electrical plugs have three rectangular pins in a triangular pattern. Two of these pins are horizontal and carry the current, and the third pin is vertical and serves as an earth connection.
The official standard for UK plugs is Type G.
The voltage in the UK is 230 volts and the frequency is 50 Hz.
If you are travelling to the UK from another country, you will likely need to bring a travel adapter to plug your electrical appliances into UK sockets.
