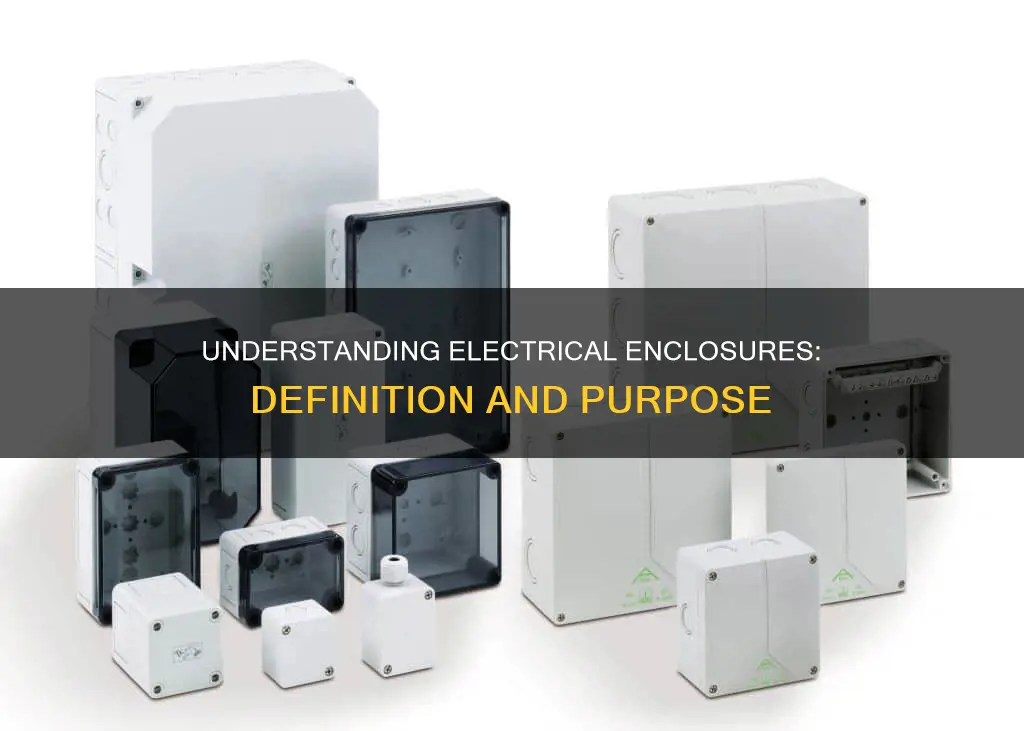

Electrical enclosures are boxes or cabinets that house electrical components and equipment. They are typically made from rigid plastics or metals such as steel, stainless steel, or aluminum, and are designed to protect electrical components from environmental factors, physical damage, and tampering. The size, shape, and material of an electrical enclosure are important considerations, as they can impact the performance, installation requirements, and cost of the enclosure. Enclosures can also be designed with security features such as locks and alarms to prevent unauthorized access. Choosing the right electrical enclosure involves understanding the specific requirements of the application, including the environment and relevant safety standards.
| Characteristics | Values |
|---|---|
| Definition | A cabinet or box to enclose electrical components like circuit breakers, switches, and control panels |
| Purpose | To provide protection from the environment, mount electrical components, improve aesthetics, and provide security |
| Construction Material | Sheet metal (carbon steel, stainless steel, or aluminum), plastic, fiberglass, polycarbonate, or glass-reinforced |
| Size | Varies depending on specific requirements; can be small or large with add-ons like air vents or cable glands |
| Safety Standards | NEMA, IP, and UL standards; IEC 60529 classifies IP Codes internationally |
| Types | Explosion-proof, NEMA (NEMA 1, 4, and 12 are common), IP (e.g., IP65 for dust and water protection), and telecommunication enclosures |
| Design Considerations | Environment, material options, safety standards, size, shape, and cost |
Explore related products
What You'll Learn
- Electrical enclosures are integral to power distribution and control systems
- They protect electrical components from environmental factors like dust, moisture and chemicals
- They are made from materials such as rigid plastics, steel, stainless steel or aluminium
- Enclosure size depends on specific requirements and can be small or large with add-ons like air vents
- They are certified by NEMA, IP and UL standards to ensure safety and protection in various environments
Electrical enclosures are integral to power distribution and control systems
Electrical enclosures are an essential component of power distribution and control systems. They are typically boxes or cabinets that house electrical components, providing protection and a means of mounting. These enclosures are designed to safeguard electrical equipment from environmental factors, such as dust, moisture, and chemicals, as well as physical damage. This helps to prolong the lifespan of the equipment and ensures the overall safety of the electrical system.
The importance of electrical enclosures lies in their ability to protect sensitive electrical devices from external factors. By enclosing circuit breakers, switches, and control panels, these enclosures prevent accidental contact, tampering, and environmental damage. This is especially critical in public areas or situations where the appearance and aesthetics of the installation are important.
The size and material of electrical enclosures vary depending on specific requirements. They can range from small to large enclosures and may include add-ons such as air vents or cable glands. The choice of material, such as sheet metal, stainless steel, aluminum, plastic, or fiberglass, is dictated by the environment in which the enclosure will be used. For example, stainless steel enclosures are often used in medical, pharmaceutical, and food industry applications due to their bacterial and fungal resistance.
Additionally, electrical enclosures play a crucial role in meeting safety standards. Certifications like NEMA, IP, and UL confirm that enclosures have been tested and meet the necessary safety and protection requirements for various environments. For instance, explosion-proof enclosures are designed to prevent electrical equipment from igniting flammable gases or chemicals, ensuring worker safety.
In summary, electrical enclosures are integral to power distribution and control systems as they provide protection, mounting options, and compliance with safety standards. By selecting the appropriate size, material, and type of enclosure, users can ensure the longevity, functionality, and safety of their electrical equipment in a variety of environments.
