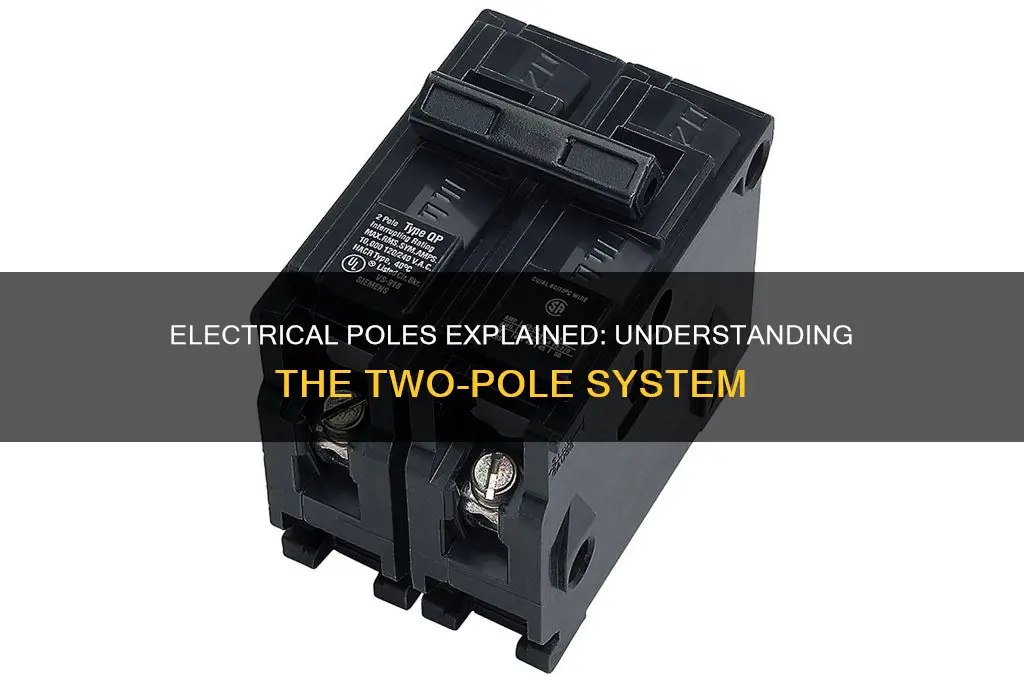

In the context of electrical circuits, a pole refers to a distinct leg of a switch, breaker, or disconnect that connects or disconnects one terminal to or from one or more other terminals. A 2-pole breaker, for instance, is used for single-phase AC circuits with an L1, L2, and N wire, providing 120 volts and 15-20 amps. It is commonly found in residential settings, where it is used to power appliances such as ovens, HVAC systems, electric dryers, and electric vehicle charging equipment.
Characteristics and Values of a 2-Pole Electrical System
| Characteristics | Values |
|---|---|
| Number of wires or connections | 2 |
| Voltage | 120V or 240V |
| Amperage | 15-20 amps |
| Wire type | 1 hot wire and 1 neutral wire |
| Usage | Residential homes, household appliances |
| Examples | Oven, HVAC, electric dryer, electric vehicle charging equipment |
| Number of terminals | 2 |
| Switch type | Double pole diverter switch, double pole change-over switch |
Explore related products
What You'll Learn
Two-pole breakers are used for single-phase AC circuits
In electrical terms, a pole refers to a distinct leg of a switch, breaker, or disconnect that connects or disconnects one terminal to or from one or more other terminals. A single-pole breaker has one connection, while a two-pole breaker has two wires or connections.
Two-pole breakers are commonly used for household appliances such as cookers, washing machines, ovens, and refrigerators, which have a heavy electrical load. They are also used for central AC circuits. In the event of a short circuit on either of the hot wires, both will trip, providing greater protection.
Two-pole breakers are also known as double-pole breakers and are typically used in American homes, which have two hot wires and one neutral wire coming from the power company. They are used to protect circuits with high power demands, such as ovens, HVAC systems, electric dryers, and electric vehicle charging equipment.
Electricity Induction: Understanding the Core Meaning
You may want to see also
Explore related products
A two-pole switch is used for household appliances
A two-pole switch, also known as a double-pole switch, is a type of electrical switch that is commonly used for household appliances. It is designed to handle higher electrical loads than a single-pole switch, making it suitable for appliances with higher power requirements, such as cookers, washing machines, ovens, and refrigerators.
A two-pole switch gets its name from the fact that it has two distinct legs or poles, each with its own set of terminals. These terminals connect or disconnect an appliance from the electrical supply, ensuring that the appliance is completely isolated from the mains power. This feature provides enhanced protection for the appliance and the user, especially during maintenance or repair work.
In a two-pole switch, both poles are interrupted simultaneously, breaking the electrical connection to both the phase and the neutral wires. This is in contrast to a single-pole switch, which only interrupts one pole of the electrical connection. Single-pole switches are typically used for lighting applications, such as LED lamps, neon lamps, and spotlights, where the power requirements are lower.
The two-pole switch is an important component in household electrical systems, particularly for appliances with higher power demands. It allows for safe and efficient control of these appliances, ensuring that they can be isolated from the power supply when necessary. This level of control helps to prevent accidents and makes maintenance and repairs safer and more accessible for qualified individuals.
Two-pole switches are commonly used in residential electrical systems, especially in regions with a single-phase power supply, such as the United States. These switches are designed to work with the standard residential wiring configuration, which typically includes two "hot" wires and one neutral wire. By accommodating this wiring setup, two-pole switches help ensure the safe and effective distribution of electrical power within the home.
Understanding Electrical Lockout: Definition and Importance
You may want to see also
Explore related products
A two-pole breaker has two wires or connections
In the context of electrical circuits, a pole refers to a connection or a path. A two-pole breaker, therefore, has two wires or connections. This is also referred to as a double pole, and it differs from a single pole, which has only one connection.
A two-pole breaker is used to protect two legs of power in a circuit. It can be used to serve two separate 120-volt circuits or a single 240-volt circuit. In the case of a 240-volt circuit, the two hot wires are connected by a single neutral wire. This means that if there is a short circuit on either of the hot wires, both will trip.
Two-pole breakers are commonly used for household appliances such as ovens, HVAC systems, electric dryers, and electric vehicle charging equipment. They are also used for heavy electrical load appliances such as cookers, washing machines, and refrigerators. The use of a two-pole breaker in these appliances allows for the complete disconnection of the user from the mains, providing greater protection and making maintenance safer and more risk-free.
In comparison to single-pole breakers, two-pole breakers differ in the voltage and amperage they provide, as well as in their wiring configuration. Single-pole breakers provide 120 volts and 15-20 amps, while two-pole breakers provide 240 volts and 20-60 amps. Single-pole breakers have one hot wire and one neutral wire, while two-pole breakers have two hot wires and one neutral wire.
Electrical Connection Basics: Understanding Base Connections
You may want to see also
Explore related products
A two-pole breaker provides 240 volts
A two-pole breaker has two wires or connections. In a two-pole breaker, the two hot wires are connected by a single neutral wire. This means that if there is a short circuit on either of the hot wires, both will trip. A two-pole breaker can be used to serve two separate 120-volt circuits or a single 240-volt circuit.
Two-pole breakers are used for single-phase AC circuits with an L1, L2, and N wire. They are typically used for household appliances such as ovens, washing machines, and refrigerators, which have a heavy electrical load. A two-pole switch is used to divert two current lines to another pair of lines. This provides greater protection and makes maintenance safer and more risk-free.
A two-pole breaker can also be referred to as a double-pole breaker. These breakers differ from single-pole breakers in the voltage and amperage they provide, as well as how they are wired. Single-pole breakers provide 120 volts and 15-20 amps and have one hot wire and one neutral wire. They are typically used for lighting, such as LED lamps and spotlights.
Understanding KV: Electrical Term Definition and Applications
You may want to see also
Explore related products
$144.99 $179.99
A two-pole breaker trips both poles in the event of a short circuit
In electrical circuits, the term "pole" refers to the number of connections or wires in a circuit. A two-pole breaker, also known as a double-pole breaker, has two connections or wires. It provides 240 volts and 20 to 60 amps, and it is used for large appliances that require a greater energy flow, such as electric dryers, ranges, baseboard heaters, cooling units, and hot tubs.
A two-pole breaker is essentially two single-pole breakers that are mechanically linked together. Single-pole breakers, the most common type found in homes, have one connection or wire and provide 120 volts and 15 to 20 amps. They are used for standard lighting, outlets, and appliances that do not require much electricity, such as fans, blow dryers, power tools, and vacuums.
Now, let's focus on the scenario: "A two-pole breaker trips both poles in the event of a short circuit." In a two-pole breaker, if there is a short circuit or overload on either of the two hot wires, both circuit breakers will trip. This is because the two halves of the breaker are tied together by a single breaker bar or toggle. When one half trips due to a fault, the other half trips simultaneously, effectively shutting off the connection to both bus poles and shutting down the entire circuit at once.
This tripping mechanism is an essential safety feature in two-pole breakers. By tripping both poles, the breaker prevents serious damage to the electrical system and the connected appliances. It helps protect against fire hazards and other potential complications that could arise from an uncontrolled short circuit or overload condition.
Understanding Your Electricity Bill: What is a Unit?
You may want to see also
Frequently asked questions
In electrical, a 2-pole refers to a distinct leg of a switch, breaker, or disconnect that connects or disconnects one terminal from one or more other terminals. A 2-pole switch is used for household appliances like cookers, washing machines, ovens, and refrigerators.
A single-pole breaker provides 120 volts, 15-20 amps, and has one hot wire and one neutral wire. A double-pole breaker provides 240 volts, 20-60 amps, and has two hot wires that share one neutral wire.
A double-pole switch is used to divert two current lines to another pair of lines. It is used in household appliances as well as in domestic and industrial electrical installations.
A 2-pole breaker is used for single-phase AC circuits with an L1, L2, and N wire. A 3-pole breaker is used for three-phase circuits with an L1, L2, L3, and N wire.
