Molly Ayala
There are several ways to identify a 6mm electrical cable. One way is to look at its external width, which for a 6mm T&E cable is 13.5mm x 7mm. You can also try to fit a 10mm clip over the cable; if it's loose, then the cable is 6mm. Additionally, if the cable is white in some places and grey in others, it indicates there's a joint, and any connections may have a lower capacity than the cable itself.
Explore related products
What You'll Learn
6mm T&E cable dimensions
The 6mm T&E cable, also known as the H6242Y 6mm² PVC T+E Twin and Earth Cable, is a type of electrical cable commonly used in various applications. It is important to note that the colours of the cores in T&E cables have changed over time. The current colours are: brown for live (previously red), blue for neutral (previously black), and green/yellow for earth.
The dimensions of the 6mm T&E cable are as follows:
- The overall diameter of the cable is approximately 6mm².
- It consists of two cores, each with a diameter of 6mm, and one circuit protective conductor (CPC) with a diameter of 2.5mm.
- The cable is flat and PVC insulated and sheathed.
The 6mm T&E cable is typically sold by the metre and can be purchased from various suppliers. It is important to ensure that the cable is purchased from a trusted supplier and that it has the necessary third-party accreditations, such as BASEC approval, to ensure its quality and safety.
When purchasing 6mm T&E cable, it is essential to verify its authenticity and quality. Cheap cables may not meet the required standards and could pose safety hazards. Checking for approvals such as BASEC or similar certifications can help ensure the cable's quality and suitability for the intended application.
Electric Fences: Cattle Control and Setup Guide
You may want to see also
Explore related products
Identifying 6mm cable
It is important to correctly identify a 6mm cable to ensure safety and compliance with regulations. Here are some ways to identify a 6mm cable:
Visual Inspection
One visual method to identify a 6mm cable is by observing its colour. It is common for 6mm cables to have distinct colour combinations, such as red and black or brown and blue. Additionally, if the cable shows variations in colour, such as being white in some places and grey in others, it indicates the presence of a joint. Identifying the location of the joint is essential, as connections may have lower capacity than the cable itself.
Measurement and Calculation
To identify the size of a cable as 6mm, one can refer to its external dimensions. The standard 6mm T&E cable typically has dimensions of 13.5mm x 7mm. This measurement can be further verified by calculating the square root. For a 6mm cable, the square root value is approximately 2.2mm.
Comparison with Standard Components
Another practical method to identify a 6mm cable is by comparing it with standard components. If a 10mm clip fits over the cable and is loose, it is likely that the cable is 6mm. Additionally, the cable's size can be inferred by examining the earth strand. For a 6mm cable, the diameter of the individual strands is typically between 1.00 to 1.1 mm.
Professional Verification
While the above methods provide guidance, it is always recommended to seek professional advice or engage a qualified electrician to assess the cable. They can provide accurate identification, ensure compliance with regulations, and address any safety concerns.
The Ultimate Buzzcut: Preparing Your Scalp for the Big Chop
You may want to see also
Explore related products
Cable colour

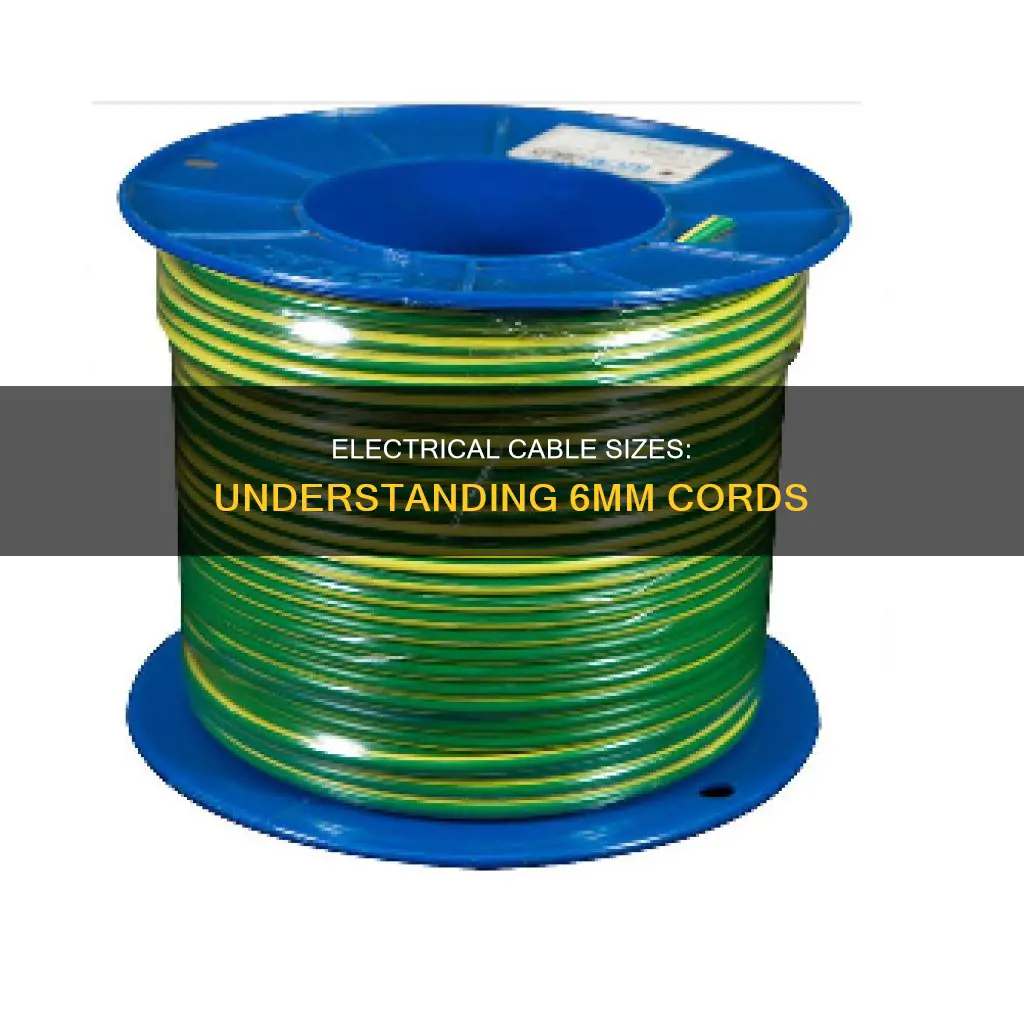

In one instance, a 6mm cable is coloured green and yellow. This type of cable is a single-core cable, PVC-insulated, and suitable for power, lighting circuits, and general building wiring. It is intended for use in closed installation ducts and embedded or semi-flush exposed conduits.
In another example, a 6mm cable is described as having coloured cores, including blue, brown, and earth/green and yellow. This type of cable is known as a 3-core single-phase SWA cable and is typically used for garden lighting, street lighting, industrial ring mains, and powering radial circuits.
In some cases, the colour of a 6mm cable may indicate a joint in the cable. For example, if the cable is white in some places and grey in others, it implies there is a joint, which may have a lower capacity than the cable itself.
It is important to note that cable colours can vary depending on the region and specific application. Therefore, it is always advisable to consult a professional electrician or refer to local electrical codes and standards for accurate information regarding cable colours and their respective sizes.
Electrical Lineman: A Tough but Rewarding Career Choice
You may want to see also
Explore related products
Cable sizing
When it comes to cable sizing, there are a few key factors to consider. Firstly, it is important to determine the voltage and current requirements of the application. Different applications will have different power requirements, and the cable size must be able to safely accommodate the expected load. For example, a 6mm cable is commonly used for applications requiring up to 40 amps, but it is important to refer to the manufacturer's specifications and local regulations for the specific current rating.
Another important consideration is the length of the cable run. Longer cable lengths can result in voltage drop, which can affect the performance of electrical devices. To mitigate this, it may be necessary to use a larger size cable to reduce the voltage drop over the length of the run. Additionally, the type of insulation and conductor material can impact the overall size of the cable. Common conductor materials include copper and aluminium, each with its own unique properties and suitability for different applications.
The environment in which the cable will be installed should also be taken into account. Different cables are designed for use in specific environments, such as dry indoor locations, damp locations, or outdoor exposure. The cable's jacket or sheath will have a rating that indicates its suitability for different environments, and it is important to select a cable that is rated for the intended use. For example, a cable with an XLPE sheath is designed to provide durability and reduce the risk of wear and tear, making it suitable for long-term use.
Finally, it is crucial to follow local regulations and safety standards when selecting and installing cables. Electrical systems can be dangerous if not installed correctly, so it is important to ensure that the cable sizing, insulation, and installation methods comply with the relevant standards and are approved by recognised authorities. This includes considerations such as grounding, overcurrent protection, and proper labelling to ensure the safety of people and property.
Electric Storm: Blue Power in Tzolkin
You may want to see also
Explore related products
Cable suppliers
When purchasing 6mm electrical cable, it is important to ensure that you are buying from a trusted supplier and that the product meets the required safety standards and regulations. Reputable cable suppliers, such as Screwfix, offer 6mm cable in a variety of types, lengths, and core numbers to cater to different applications, including domestic and commercial wiring.
It is always recommended to be cautious when purchasing cable from unknown sources, especially online platforms like eBay, as the quality and authenticity of the products cannot be guaranteed. In one instance, a buyer purchased what was labelled as a '4mm' cable from eBay, only to discover that it was an aluminium cable with a copper coating, which melted when 40 amps were passed through it.
To ensure you are acquiring a safe and suitable 6mm electrical cable, consider the following factors and precautions:
- Verify the cable's approval by a reputable organization, such as BASEC (British Approvals Service for Cables), to ensure it meets safety standards.
- Check the cable's physical characteristics, such as colour coding. For example, a 6mm cable with red and black colouring may indicate a good deal.
- Measure the cable's resistance and length to ensure you are getting the specified amount and quality.
- Consider purchasing from well-known electrical suppliers or distributors, such as Screwfix, who specialize in electrical products and are more likely to carry trusted brands.
Additionally, when it comes to cable suppliers, it is worth noting that some companies, like Voltex, offer a diverse range of low and medium voltage electrical cables, wire types, and accessories. They also provide a special ordering service for items they don't currently stock.
In summary, when sourcing 6mm electrical cable, prioritize safety and quality by opting for trusted suppliers and brands, verifying approvals and safety standards, and being cautious of extremely cheap offers that seem too good to be true.
Repairing Your Vacuum: Fixing the Electrical Cord
You may want to see also
Frequently asked questions
You can try to see if a 10mm clip fits over the cable. If it's loose, then the cable is 6mm.
The diameter of a 6mm cable is 2.2mm.
The external width of a 6mm T&E cable is 13.5mm x 7mm.
A 6mm cable is usually brown/blue in colour.
If the cable is white in some places and grey in others, it may be a 6mm cable with a joint.
