Arc-fault circuit interrupter (AFCI) or arc-fault detection device (AFDD) is a circuit breaker that breaks the circuit when it detects electric arcs, which are a signature of loose connections in home wiring. AFCI protection is designed to detect a wide range of arcing electrical faults to prevent the electrical system from becoming an ignition source of a fire. AFCI breakers provide a higher level of protection than a standard circuit breaker by detecting and removing hazardous arcing conditions before they become fire hazards.
| Characteristics | Values |
|---|---|
| Purpose | To prevent electrical fires by detecting a wide range of arcing electrical faults |
| Function | De-energizes the circuit when an arc fault is detected |
| Detection | Uses advanced electronic technology to monitor the circuit for the presence of "normal" and "dangerous" arcing conditions |
| Installation | Required in all circuits that feed outlets in bedrooms and other living spaces in dwelling units |
| Types | Branch type, Combination type, AFCI breakers, AFCI receptacles |
| Protection | Provides series and parallel arc protection for the branch circuit |
| Comparison with GFCI | AFCI protects against arcing faults, while GFCI protects against electric shock |
| Standards | UL 1699, National Electrical Code (NEC), Canadian Electrical Code |
Explore related products
AFCI vs GFCI
AFCI (Arc Fault Circuit Interrupter) and GFCI (Ground Fault Circuit Interrupter) are two types of electrical circuit interrupters that offer enhanced protection from arcing and ground faults, respectively. Both are essential equipment for any home or office's electrical system and safety.
AFCI devices use advanced technology to continuously monitor the electricity flow in a circuit. They detect unique patterns of electrical discharge, or arc faults, which are marked by sudden bursts of electricity caused by arcing. These arc faults can occur due to damaged or degraded wires, loose connections, or faulty appliances, and they generate intense heat that can ignite surrounding materials, leading to fires. When an AFCI device identifies these arc patterns, it swiftly interrupts the power supply to prevent blazes. AFCI protection is required in many areas of a home, such as living rooms, bedrooms, kitchens, and hallways, where electrical devices are commonly used.
On the other hand, GFCI devices focus on preventing electrical shocks and electrocution, especially in areas where water is present, such as kitchens, bathrooms, and garages. They continuously observe the current flow within a circuit, detecting any imbalance in the current, typically as small as 4-6 milliamps. When the GFCI senses a discrepancy between the current flowing to an appliance and the current returning, it trips the circuit to cut off power almost immediately, protecting against ground faults. GFCI devices are required to be installed in readily accessible locations, and the National Electrical Code (NEC) mandates their presence within six feet of sinks, bathrooms, and showers in one, two-family homes, and multifamily buildings.
While AFCI protection is about preventing electric fires, GFCI protection is designed to keep people safe from fatal electrical shocks. They serve different purposes, and neither type of outlet is better than the other as they address distinct hazards. In some cases, such as in kitchens and laundry rooms, both AFCI and GFCI protections are required to meet code requirements, and combination devices offering dual protection are available.
It is important to note that while standard circuit breakers offer basic electrical fire protection, AFCI and GFCI devices provide enhanced safety by promptly detecting faults and shutting off power to mitigate risks.
Fishy Smell: Electrical Fire Warning Sign?
You may want to see also
Explore related products
How AFCIs work
Arc-fault circuit interrupters (AFCIs) are designed to detect a wide range of arcing electrical faults to prevent electrical fires. Conventional circuit breakers only respond to overloads and short circuits, so they do not protect against arcing conditions that produce erratic and reduced currents. Arcing occurs when loose wire connections or faulty/corroded wires cause sparking or arcing, which may create heat and the potential for electrical fires.
AFCIs work by continuously monitoring the circuit for the presence of "'normal' and 'dangerous' arcing conditions". Some equipment in the home, such as a motor-driven vacuum cleaner or furnace motor, naturally creates arcs, and this is considered a normal arcing condition. When a light switch is turned off, the opening of the contacts can also create an arc. However, a potentially dangerous arc can occur in a lamp cord with a broken conductor.
Once the AFCI detects a dangerous arc, it opens its internal contacts, thus de-energizing the circuit and reducing the potential for a fire to occur. The electronics inside an AFCI breaker detect electrical current alternating at frequencies usually around 100 kHz, which are known to be associated with wire arcing. AFCIs are required to be listed products, evaluated by a nationally recognized testing laboratory to the national standard for AFCIs (UL 1699).
AFCI receptacles are an alternative solution to AFCI breakers. These receptacles are designed to address the dangers associated with both types of potentially hazardous arcing: parallel and series. AFCI receptacles offer the benefit of localized test and reset with such buttons located on the face of the device. AFCI breakers provide a higher level of protection than standard circuit breakers by detecting and removing the hazardous arcing condition before it becomes a fire hazard.
Neodymium Electron Configuration: Understanding the Unique Properties
You may want to see also
Explore related products
$46.94 $72.25
AFCI requirements
AFCI (Arc-fault circuit interrupter) requirements have been evolving since the 1999 National Electrical Code (NEC) in the United States and the 2002 Canadian Electrical Code in Canada. These requirements are designed to prevent electrical fires caused by arcing faults in home electrical wiring.
In the US, arc faults are a leading cause of residential electrical fires, with over 40,000 fires each year attributed to home electrical wiring. As such, AFCI protection is now required in a range of residential settings. The 2020 NEC, for example, states that AFCI protection shall be provided for all 120-volt, single-phase, 15- and 20-ampere branch circuits supplying outlets or devices installed in dwelling unit kitchens, family rooms, dining rooms, living rooms, bedrooms, hallways, and similar areas. This requirement can be met through the use of a "combination type" breaker, which provides both arc-fault and overcurrent protection, or by using an AFCI receptacle for modifications, extensions, or new construction.
AFCI receptacles are an alternative to AFCI breakers and offer series and parallel arc protection for the branch circuit. They can be used on any wiring system, regardless of the panel, and provide localized test and reset functionality. However, it is important to note that AFCI protection is not required on existing installations; it is only required when a circuit is extended or updated during remodelling.
While the NEC sets out these requirements, not all U.S. jurisdictions or communities comply with them, so it is important to check local code requirements. Similarly, while the Canadian Electrical Code has had similar technical requirements since 2015, it is worth checking for any updates or changes to these requirements over time.
The Buzzing Truth: Hearing Electricity, Explained
You may want to see also
Explore related products
AFCI types
AFCI stands for Arc Fault Circuit Interrupter. It is a circuit breaker that breaks the circuit when it detects the electric arcs that are a signature of loose connections in home wiring. AFCIs are designed to detect a wide range of arcing electrical faults to help reduce the risk of electrical fires.
There are two main types of AFCIs: branch type and combination type. A branch type AFCI trips on 75 amperes of arcing current from the line wire to either the neutral or ground wire. A combination type adds series arcing detection to branch type performance. Combination type AFCIs trip on 5 amperes of series arcing. AFCI receptacles are an alternative solution to AFCI breakers. These receptacles are designed to address the dangers associated with both types of potentially hazardous arcing: parallel and series.

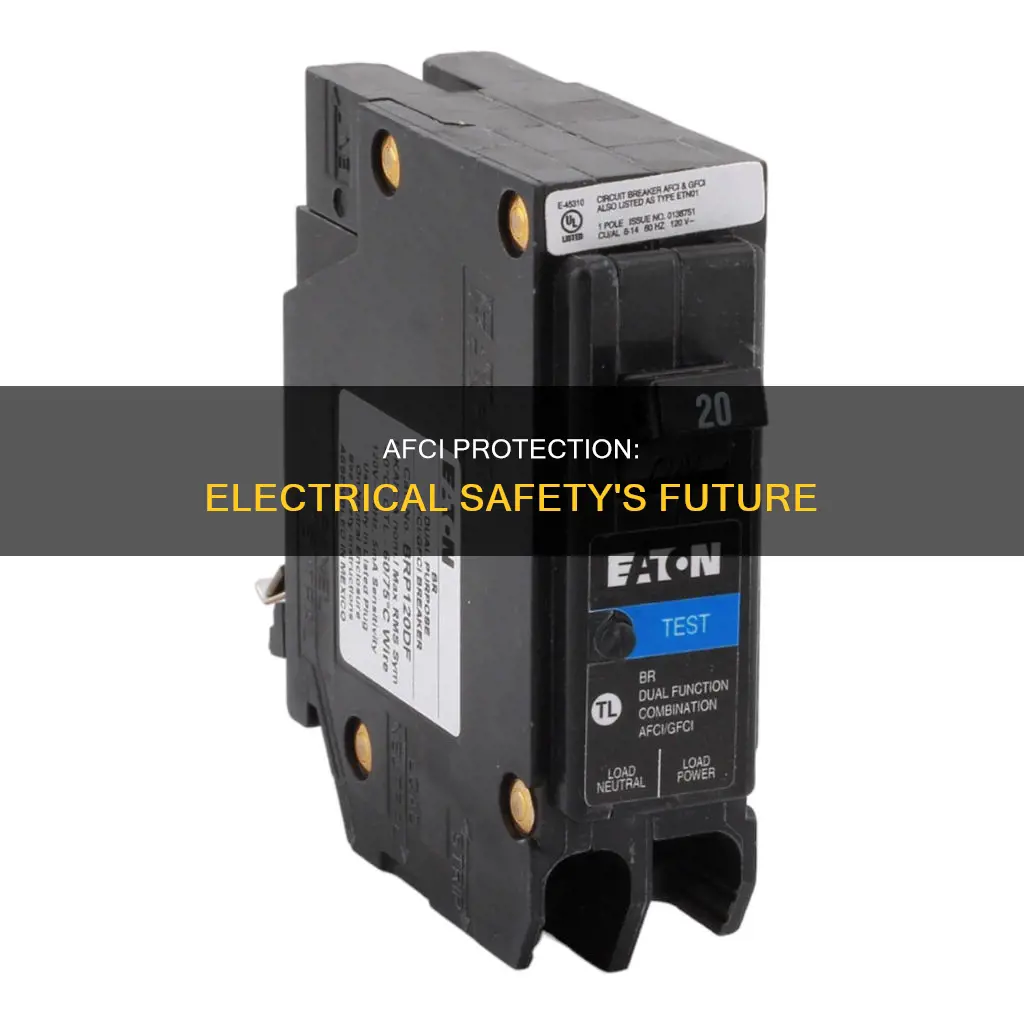

In certain scenarios, AFCIs may encounter 'nuisance tripping', which is when they react to non-threatening situations. For the top-tier defence against arc faults, CAFCI (Combination Arc Fault Circuit Interrupter) is the best option. CAFCIs deal with series arc faults that occur along the same wire, which can be crucial when wires are damaged or connections are loose. Dual-Function CAFCI/GFCI breakers provide joint protection against both ground faults and all types of arc faults.
AFCIs can be used in conjunction with GFCI (Ground Fault Circuit Interrupter) protection to provide both arcing fault protection and ground fault protection. GFCIs are designed to protect people from the deadly effects of electric shock, whereas AFCIs are designed to protect the branch circuit wiring from dangerous arcing faults that could initiate an electrical fire.
Understanding the Intricacies of Standard Non-Electric Appliances
You may want to see also
Explore related products
AFCI installation
Arc-fault circuit interrupters (AFCIs) are essential safety devices that protect your home from electrical fires caused by arc faults. They are designed to detect a wide range of arcing electrical faults to help reduce the electrical system from being an ignition source of a fire.
- Turn off the main power supply to the electrical panel.
- Remove the panel cover to access the breakers and wiring.
- Identify the circuit that needs AFCI protection.
- Remove the old breaker by carefully pivoting it out of its slot.
- Install the new AFCI breaker by connecting the hot wire to the breaker's terminal.
- Test the AFCI breaker to ensure proper operation.
- Label the breakers clearly to help identify which breaker controls which circuit.
- Avoid overcrowding the panel with multiple wires.
- Double-check the connections to ensure the wires are properly and securely attached to the breaker terminals.
It is important to note that AFCI breakers should be compatible with your electrical panel's manufacturer. Using incompatible breakers can lead to improper installation and potential safety hazards.
The Electrical Term 'Open Hot': What Does It Mean?
You may want to see also
Frequently asked questions
AFCI stands for Arc-Fault Circuit Interrupter. It is a circuit breaker that breaks the circuit when it detects the electric arcs that are a signature of loose connections in home wiring.
AFCIs use advanced electronic technology to monitor the circuit for the presence of “normal” and “dangerous” arcing conditions. Once an arc fault is detected, the AFCI opens its internal contacts, thus de-energizing the circuit and reducing the potential for a fire to occur.
While both offer protection from electrical hazards, they are two different technologies. A GFCI (Ground Fault Circuit Interrupter) protects people from the effects of electric shock, whereas an AFCI protects the branch circuit wiring from dangerous arcing faults that could initiate an electrical fire.
An arc fault occurs when loose connections or faulty wiring cause sparking or arcing, which can lead to electrical fires.
AFCI protection is required in all circuits supplying outlets or devices in dwelling unit kitchens, family rooms, dining rooms, living rooms, bedrooms, hallways, and similar areas.
