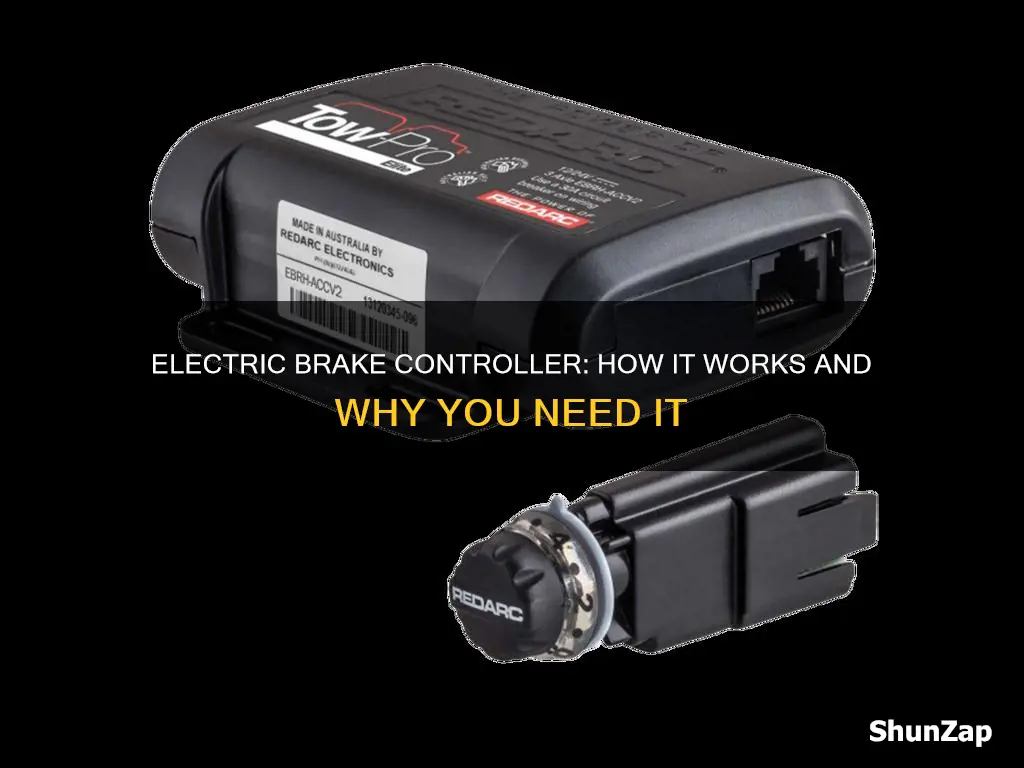

Electric brake controllers are an essential component of any towing vehicle. They are electronic devices that control the braking system of a trailer or towed vehicle, ensuring the safety of the driver and the load. Without a brake controller, electric trailer brakes will not activate, potentially causing dangerous situations. This is why trailer brakes and brake controllers are a legal requirement worldwide. Brake controllers come in various styles and capacities and can be classified into non-proportional, time-based, proportional, or inertia-based types. They can be purchased aftermarket and installed by professionals, although DIY installation is also possible.
| Characteristics | Values |
|---|---|
| Purpose | Controls the braking system of a trailer or towed vehicle |
| Control | Interface in the cockpit/cab of the tow vehicle |
| Function | Activates and controls the electric brakes of a trailer |
| Types | Non-proportional, time-based/time-delayed, proportional, inertia-based |
| Installation | Wired aftermarket, factory-installed, wireless remote, smartphone app |
| Compatibility | 12-volt or 24-volt electrical systems |
| Display | Digital display screens, LCD screens |
| Safety | Reduces wear on the vehicle's braking system, improves towing safety |
| Use case | Towing heavy loads, serious towing in various terrains |
Explore related products
What You'll Learn
- Electric brake controllers are an essential safety feature when towing heavy loads
- They are electronic devices that control the braking system of a trailer
- There are two main types: time-delayed and proportional or inertia-based
- Proportional controllers use a motion-sensing device to detect how fast the tow vehicle is stopping
- Time-delayed controllers allow the driver to select a gain setting that determines the amount of braking force applied
Electric brake controllers are an essential safety feature when towing heavy loads
The use of electric brake controllers improves towing safety by allowing the driver to activate and monitor trailer brake activity from the cab of the vehicle. This is especially important when towing heavy loads, as the weight of the payload can significantly affect the braking performance of both the towing vehicle and the trailer. By using a brake controller, the trailer's braking system can work in tandem with that of the towing vehicle, ensuring a more controlled and efficient deceleration.
There are two main types of electric brake controllers: time-delay and proportional or inertia-based. Time-delay controllers operate on simple electrical principles, activating the trailer brakes when the driver presses the brake pedal and applying an increasing amount of power over time. On the other hand, proportional controllers use motion-sensing technology, such as accelerometers, to detect the deceleration of the towing vehicle and apply the appropriate amount of braking power to the trailer. This results in a smoother and more efficient braking experience, reducing brake wear on both the towing vehicle and the trailer.
When towing heavy loads, a proportional electric brake controller is generally preferred over a time-delayed one. This is because proportional controllers provide a more responsive and safer towing experience by ensuring that the trailer's brakes respond directly to the deceleration of the towing vehicle. This synchronization becomes increasingly important as the weight of the load increases, as it can prevent situations where the trailer pushes the towing vehicle, compromising the safety of the driver and other road users.
In conclusion, electric brake controllers are a vital safety feature when towing heavy loads. By providing control over the trailer's braking system, these devices ensure a smoother and more efficient deceleration, improving the overall safety of the towing process. Among the different types of controllers, proportional controllers are particularly well-suited for heavy loads due to their ability to provide a direct and responsive braking experience.
Oral-B Clic Electric Toothbrush: Is It Electric?
You may want to see also
Explore related products
They are electronic devices that control the braking system of a trailer
Electric brake controllers are electronic devices that control the braking system of a trailer. They are necessary to ensure the safety of the driver, the vehicle, and other people on the road. Before the 1950s, slowing down a trailer or towed vehicle was the sole responsibility of the towing vehicle. However, with the invention of the trailer brake controller, the responsibility for braking is now shared between the towing vehicle and the trailer. This has led to a dramatic improvement in towing safety.
A brake controller can be split into two parts: an interface positioned within the driver's reach and a central part responsible for activating the trailer's brakes. The interface allows the driver to view braking information and control the output and manual activation of the brakes. The central part of the controller uses electrical circuits and trailer gain settings to regulate the amount of braking power. The controller ensures that the speed of the trailer matches that of the towing vehicle, providing a smoother and more efficient braking experience.
There are two main types of electronic brake controllers: proportional and time-delayed. Proportional controllers apply force to the trailer's brakes proportional to the amount of force being applied to the towing vehicle's brakes. In other words, the harder the driver brakes, the more force the controller applies to the trailer's brakes. These controllers use accelerometers to detect deceleration and apply the appropriate amount of brake force. Proportional controllers provide a smoother braking experience and reduce wear on the vehicle's braking system.
On the other hand, time-delayed controllers allow the driver to select a gain setting that determines the amount of braking force to apply. Once set, this force will be applied regardless of whether the driver is coming to a slow stop or braking abruptly. These controllers are less smooth than proportional controllers because they initiate a timed reaction for applying the trailer brakes.
It is important to note that electric trailer brakes do not work without a brake controller. Depending on the trailer's load size, braking sensitivity, and personal settings, the driver can adjust the controller to maximize its effectiveness. Overall, electric brake controllers play a crucial role in ensuring the safe and efficient operation of trailers and towed vehicles.
Electric Scooter Battery: Repair and Maintenance Guide
You may want to see also
Explore related products
There are two main types: time-delayed and proportional or inertia-based
There are two main types of electronic brake controllers for trailer towing: time-delayed and proportional or inertia-based. Time-delayed brake controllers allow the driver to select a gain setting, which determines the amount of braking force to apply. Once set, this force will be applied whether the driver is coming to a slow stop or braking abruptly. This force is applied by ramping up the braking power over a certain period of time, with the power and ramp-up time being adjustable to accommodate different trailer load sizes.
On the other hand, proportional trailer brake controllers apply force to the trailer's brakes proportional to the amount of force being applied to the tow vehicle's brakes. The harder the driver brakes, the more force the controller applies to the trailer's brakes. These controllers use a motion-sensing device, such as an accelerometer, to detect how fast the tow vehicle is stopping. This allows the controller to apply the same amount of braking power to the trailer's brakes, resulting in a smooth and prompt braking experience. For example, when going downhill with a trailer full of heavy cargo, a proportional controller will increase the brake power to accommodate more weight and inertia.
Inertia-based brake controllers sense that the vehicle is slowing down and adjust the trailer braking power accordingly. They measure the changing momentum or inertia of the moving car and send the precise amount of voltage to the trailer brakes to ensure that the speed of the trailer matches that of the tow vehicle. This generally makes for a smoother braking experience and ensures that the trailer brakes last longer.
Effective Ways to Remove Wax from Electric Burners
You may want to see also
Explore related products
Proportional controllers use a motion-sensing device to detect how fast the tow vehicle is stopping
Proportional controllers are a type of electronic brake controller that uses a motion-sensing device to detect how quickly a tow vehicle is stopping. This motion-sensing device, often an accelerometer, measures the deceleration of the tow vehicle, and the controller then applies the appropriate amount of braking force to the trailer's brakes. The harder the driver brakes, the more force the controller applies to the trailer's brakes. This ensures that the trailer and the tow vehicle stop at the same time, providing a smooth and efficient braking experience.
The use of an accelerometer allows proportional controllers to work independently of the car's brakes. They continuously monitor the vehicle's dynamics and send precise voltage amounts to the trailer brakes, ensuring that the speed of the trailer matches that of the tow vehicle. This makes for a more seamless and responsive braking system, reducing wear on both the vehicle and the trailer's braking systems.
Proportional controllers are also known as pendulum brake controllers due to their motion-sensing capabilities. These devices use the position of a pendulum to detect motion and typically require calibration before use. They are considered safer than their time-delayed counterparts, offering improved brake response and a more seamless towing experience.
Proportional controllers are generally recommended for serious towing in various terrains. They are available in the aftermarket, ranging in price from $150 and above. While they may complicate the installation process slightly, they provide a more advanced braking system, making them a preferred choice for many users.
Overall, proportional controllers with motion-sensing devices offer a sophisticated solution for managing the braking of towed trailers. By detecting the deceleration of the tow vehicle, these controllers ensure that the trailer brakes respond appropriately, resulting in a smoother and safer towing experience.
Ford Mustang Dark Horse: Electric or Not?
You may want to see also
Explore related products
Time-delayed controllers allow the driver to select a gain setting that determines the amount of braking force applied
Electric brake controllers are electronic devices that control the braking system of a towable RV. They are essential for towing safety. There are two main types of electronic brake controllers for trailer towing: proportional and time-delayed. This answer will focus on the time-delayed type.
Time-delayed controllers allow the driver to select a gain setting, which determines the amount of braking force applied. The gain setting of a time-delay brake controller can be adjusted by the driver to accommodate each specific trailer. This type of controller operates on simple electrical principles. When the driver presses the brake pedal, the time-based controller activates the trailer brakes, applying an increasing amount of power, fixed over time. This is called gain. The gain setting can be adjusted during the initial setup or when the trailer load changes. The load refers to the trailer brake aggressiveness, or how quickly the brake controller applies the trailer brakes.
The time-delay approach is not as precise as the proportional method. Proportional controllers use a motion-sensing device to detect how fast the tow vehicle is stopping and apply the same amount of braking power to the trailer's brakes. They provide a smoother braking experience and more efficient braking, ensuring the trailer brakes last longer.
Time-based controllers are generally cheaper than proportional controllers due to their simpler design and fewer internal moving parts. They are a good option for those on a budget.
Programming an Electric Gate Remote: Step-by-Step Guide
You may want to see also
Frequently asked questions
An electric brake controller is an electronic device that controls the braking system of a trailer or towed vehicle.
Electric brake controllers work by activating electromagnetic brake drums to create attrition and slow the trailer down. They can be split into two interfaces: one in the cab within the driver's reach, and the other responsible for activating the trailer's brakes.
Electric trailer brakes do not activate independently and require a brake controller to function. A brake controller ensures that the trailer's braking system works in tandem with the towing vehicle's braking system.
There are two main types of electric brake controllers: time-delay and proportional or inertia-based. Time-delay controllers apply an increasing amount of power over time when the brake pedal is pressed. Proportional controllers, on the other hand, apply braking force proportional to the force applied to the towing vehicle's brakes.
You can either buy a vehicle with a factory-installed controller or install an aftermarket unit. Aftermarket units can be under-dash units that require wiring or more flexible devices that can be controlled remotely.
