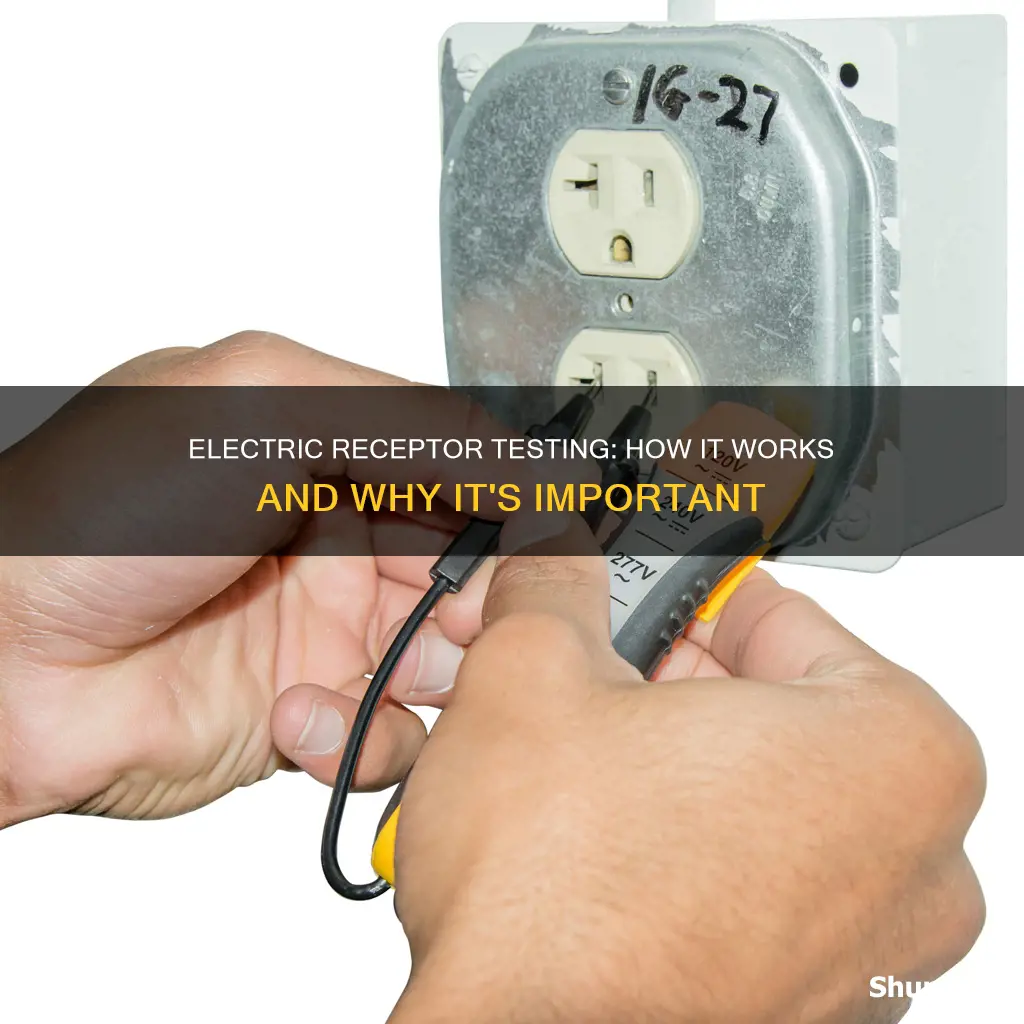

Electricians use a variety of electrical testers to check voltage, amperage, continuity, shorted or open circuits, and improper wiring. Electric receptor testers, also known as three-light receptacle testers, are simple devices that are plugged into electrical outlets. They indicate how the outlet is wired by illuminating various combinations of three lights. Each light corresponds to a different combination of two of the three slots on the outlet. If there is a difference in voltage, the corresponding light will illuminate. For example, the left-hand light will turn on if there is a voltage difference between the neutral slot and the ground slot. More advanced plug-in circuit analyzers can also display voltage and circuit conditions on an LCD screen.
| Characteristics | Values |
|---|---|
| Purpose | To test voltage, amperage, continuity, shorted or open circuits, and improper wiring |
| Types | Non-contact voltage testers, circuit testers, continuity testers, plug-in circuit analyzers, three-light receptacle testers, multimeters, auto-ranging meters, clamp meters, receptacle analyzers |
| Function | Detects the presence of electrical voltage in cables, wires, circuit breakers, light fixtures, outlets and switches |
| Indication | Lights up or beeps when voltage is detected |
| Usage | Used by electricians, DIY homeowners, remodeling contractors |
