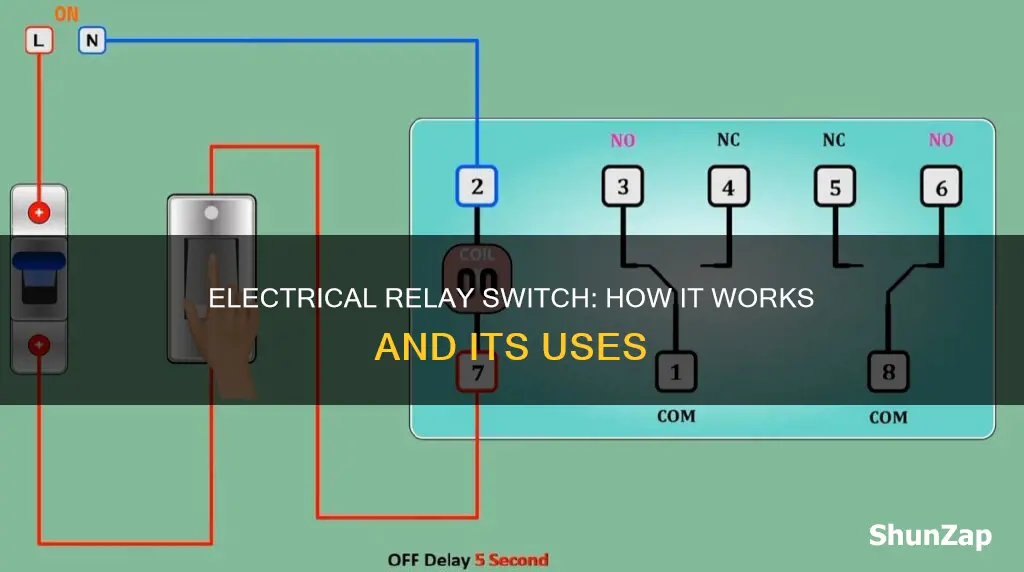

Electrical Relay Switch: How It Works And Its Uses

what does an electrical relay switch do

An electrical relay switch is a type of switch within an electronic system that uses a small electric current to trigger a much larger one. Relays are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. They are commonly found in a variety of applications, from commercial and industrial uses to home and consumer products. They can be used to control many circuits in a car, such as headlights, electric motors, and heaters. The primary purpose of a relay is to protect the electrical system from too high a voltage or current, allowing the safe operation of any equipment it connects to.

Characteristics Values
Definition A relay switch is a type of switch within an electronic system.
Function It uses a small electric current to trigger a much bigger one.
Types 4-pin, 5-pin, electromechanical relay, solid-state relay, latching relay, reed relay, polarized relay, high-frequency relay, time delay relay, enclosed relay, socket relay, etc.
Use Cases Lighting control systems, protection systems for electronics, computer interfaces, sensitive appliances, command contactors, control motors, telecommunication, automotive industry, etc.
Benefits Reduces cost and weight, provides efficient power transfer, controls multiple circuits, protects the electrical system from high voltage or current, etc.

shunzap

How relays work

Relays are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. They are used to control different amounts of currents and numbers of circuits. Relays can work as switches (turning things on and off) or as amplifiers (converting small currents into larger ones).

A relay consists of a coil, which receives an electric signal and converts it to a mechanical action, and contacts that open and close the electric circuit. When a current flows through the coil, it turns into an electromagnet. The magnet pushes a switch, forcing the spring contacts together and completing the circuit. This is a type of magnetic switch.

There are two main types of relays: solid-state relays (SSR) and electromechanical relays (EMR). Electromechanical relays are the most basic type, using a standard electromagnetic coil to manipulate the moveable contact. Solid-state relays use semiconductors and have no moving parts, allowing them to switch faster and avoid wear and tear.

Relays have four types of terminals: coil, common, normally open (NO), and normally closed (NC). The coil terminal is connected to a low-power source that controls the switching mechanism. The common terminal functions as the relay's output and connects to the controlled circuit. NO terminals are open by default until the relay activates, while NC terminals are closed until activation, at which point they open.

Relays are commonly used in lighting control systems, protection systems for electronics, computer interfaces, appliances, motors, and telecommunications. They are beneficial in cars as they reduce cost and weight, and can be positioned anywhere to efficiently transfer power to electrical accessories.

shunzap

Types of relays

A relay is an electrically operated switch that can open and close circuits by receiving electrical signals from outside sources. They are used to isolate circuits, switch between circuits, and control a high-power circuit with a low-power signal.

There are several types of relays, which can be categorized by their design and functionality:

Electromechanical Relays

These relays use an electromagnet to open or close the contacts. They are commonly used in cars to control circuits for headlights, electric motors, and heaters. Electromechanical relays can be further classified into two types:

  • Movable contacts: These relays have mechanical moving parts to switch signals, currents, and voltages on or off.
  • Static relays: These relays use electronic circuitry to emulate the characteristics achieved by moving parts in an electromagnetic relay.

Solid-State Relays (SSRs)

SSRs consist of semiconductor components rather than mechanical elements. When a control signal is applied, an internal light-emitting diode (LED) illuminates and emits infrared light. This light is then detected by a photosensitive semiconductor component, which activates the circuit switch. SSRs have a longer lifespan than electromechanical relays due to the absence of physical contacts that can wear out.

Reed Relays

Reed relays use magnetic reeds for switching and are smaller, faster, and can handle less power compared to electromagnetic relays.

Latching and Non-Latching Relays

Latching relays maintain their contact position after removing the actuation energy, while non-latching relays require constant actuation energy to remain in their energized state.

4-Pin and 5-Pin Relays

4-pin relays are used to control a single circuit, while 5-pin relays can switch power between two circuits. 4-pin relays can be either normally open or normally closed. Normally open relays switch power on for a circuit when the coil is activated, while normally closed relays switch power off. 5-pin relays have both normally open and normally closed connection pins, allowing them to switch power between the two states.

shunzap

Relays in cars

Relays are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. They are used in cars to control and direct electricity, enhancing the smooth flow of electrical current and safeguarding electromagnetic components from premature damage.

In a car, relays serve to interrupt or allow the flow of power from the battery or alternator to other systems, allowing the user or ECU (Electronic Control Unit) to turn them on or off. This is particularly useful for headlights, preventing the battery from dying if the lights are left on. A relay lets the headlights remain on for a few minutes, but they will turn off before the battery runs flat.

Car relays are small, portable components that can be positioned anywhere in the vehicle to provide efficient power transfer to electrical accessories. They can be used to control many circuits in a car, such as headlights, electric motors, and heaters. Relays extend the lifespan of switches by preventing them from overheating and ensure that combination switches in the car don't heat up quickly, preventing issues like melting light switches.

There are several types of car relays, including 3-pin, 4-pin, and 5-pin variants. The number of pins determines the number of terminal components and the number of circuits the relay can control. For example, a 4-pin relay can control a single circuit, while a 5-pin relay can switch power between two circuits. The type of relay installed should be tailored to the car's specifications to avoid unnecessary strain.

shunzap

Relay pins

A relay is an electrically operated switch that uses an electromagnet (coil) to operate its internal mechanical switching mechanism (contacts). When a relay contact is open, it switches the power ON for a circuit when the coil is activated. The relay mechanism consists of a coil and a spring-loaded contact that is free to move across a pivoted axis. The central pole is hinged or pivoted, allowing the central pole to join with one of the side terminals of the device, known as the N/O contact (Normally Closed), when the relay coil is energised with voltage. When the relay coil is switched OFF, the pole disconnects from the N/O (Normally Open) terminal and joins with a second terminal, the N/C contact.

The relay pins can be either 4-pin or 5-pin. The 4-pin relay uses 2 pins (85 & 86) to control the coil and 2 pins (30 & 87) to switch power on a single circuit. The 5-pin relay provides 2 pins (85 & 86) to control the coil and 3 pins (30, 87 & 87A) to switch power between two circuits. The 4-pin relay is used to control a single circuit, while the 5-pin relay switches power between two circuits.

The relay pins can be identified by connecting a meter to any two pins randomly until there is a resistance reading on the meter display, indicating the coil pinouts. The relay pinouts that need to be identified are the coil pinouts and the remaining three terminals.

The ISO mini relays have two circuits and five pins, with two contacts connected to a common terminal. The terminal numbering is based on DIN 72552, a German automotive industry standard. The ISO micro relays are smaller and have a different pin layout, with terminal numbers 1, 2, 3, 4, and 5 instead of 30, 85, 86, 87A, and 87.

Flasher relays, which are more complex, can have up to 9 pins of various sizes due to the additional connections required for in-built electronics.

shunzap

Relay circuits

A relay is an electrically operated switch that opens and closes circuits by receiving electrical signals from outside sources. A relay switch circuit can be used to control motors, heaters, lamps, or AC circuits, which can draw a lot of electrical voltage, current, and power.

A typical relay switch circuit has a coil driven by an NPN transistor switch, TR1, depending on the input voltage level. When the base voltage of the transistor is zero or negative, the transistor is cut off and acts as an open switch. In this condition, no collector current flows, and the relay coil is de-energized. If a large enough positive current is driven into the base to saturate the NPN transistor, the current flowing from the base to the emitter controls the larger relay coil current flowing through the transistor from the collector to the emitter.

The sensitivity and current gain of a relay switch circuit can be increased by using a Darlington pair of transistors instead of a single switching transistor. The Darlington transistor version of the circuit is known as the Common Collector or Emitter Follower configuration, which is useful for impedance matching applications.

A simple electromagnetic relay consists of a coil of wire wrapped around a soft iron core (a solenoid), an iron yoke, a movable iron armature, and one or more sets of contacts. The armature is hinged to the yoke and mechanically linked to the moving contacts. The armature is held in place by a spring, so when the relay is de-energized, there is an air gap in the magnetic circuit. When the current to the coil is switched off, the armature is returned to its relaxed position by a force, usually provided by a spring.

Relays are perfect for controlling many circuits in a car, like headlights, electric motors, and heaters. They are also used to protect electrical circuits from overload or faults.

Frequently asked questions

An electrical relay switch is a type of switch within an electronic system. It is operated by a small electric current that can turn on or off a much larger electric current.

Relays use a small electric current to trigger a much bigger one. They receive an electrical signal and send it to other equipment by turning the switch on and off.

There are two main types of electrical relay switches: electromechanical relays and solid-state relays. Electromechanical relays are the most basic type and use a standard electromagnetic coil to manipulate the moveable contact. Solid-state relays, on the other hand, use semiconductors and have no moving parts, allowing them to switch faster and last longer.

Relays can be used to protect the electrical system from too high of a voltage or current, allowing for the safe operation of any connected equipment. They also enable the control of multiple circuits with a small current, reducing cost and weight.

Electrical relay switches are commonly used in a variety of applications, including commercial, industrial, home, and consumer products. Examples include lighting control systems, protection systems for electronics, computer interfaces, and control motors.
