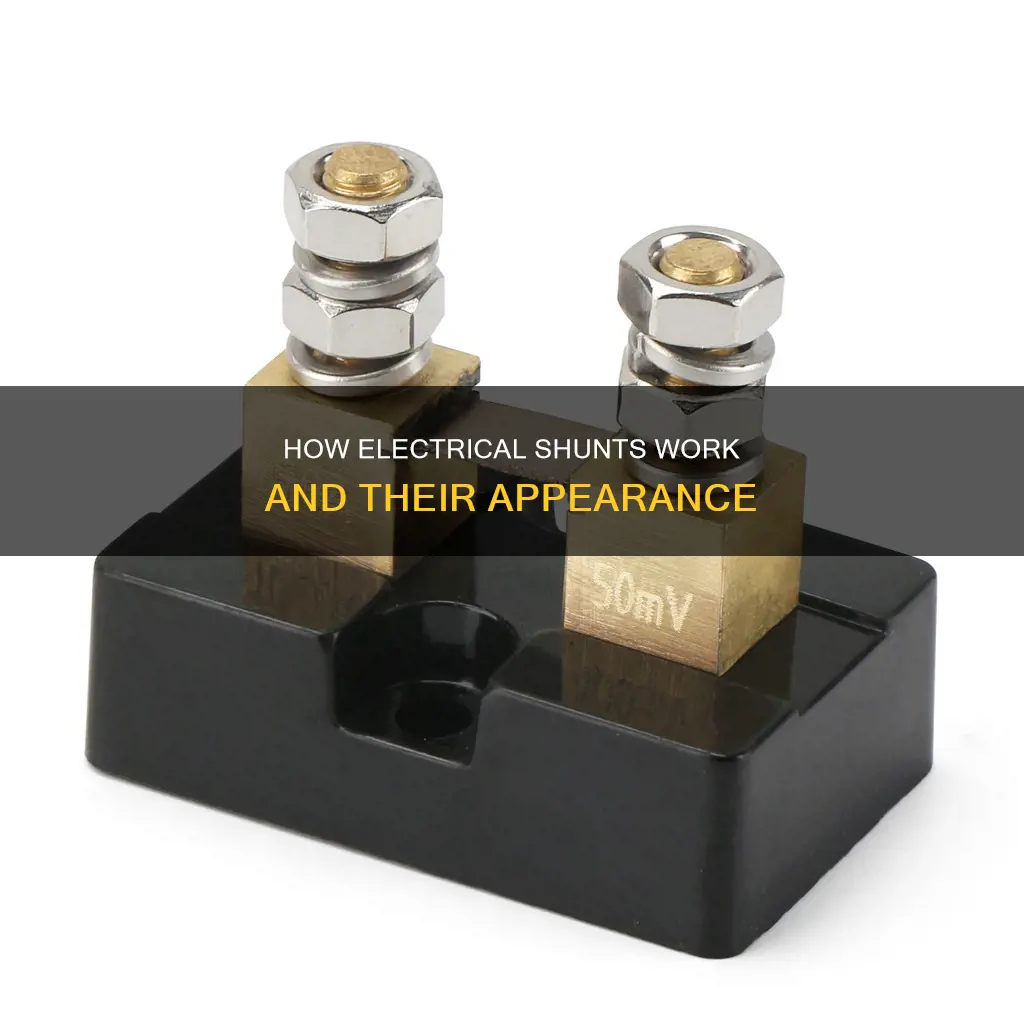

An electrical shunt is a device that measures the electrical current in a wire or circuit. It does so by diverting a small amount of electricity through a low-resistance path, making it easier to measure the total amount of electricity flowing through the main wire. Shunts are commonly used in electrical power systems, electronic devices, and industrial processes, and are an essential component of a battery monitor. They are also used to protect against overvoltage and to bypass faulty components in circuits. Shunts are typically constructed with a low resistance value to ensure they have minimal impact on the overall circuit's behaviour.
| Characteristics | Values |
|---|---|
| Definition | A device that creates a low-resistance path to force most of the electric current through the circuit to flow through this path |
| Use | Commonly used in power distribution systems, electrical measurement systems, automotive and marine applications, and electronic devices |
| Function | Enables the current to pass through or be diverted past a set point in the circuit through the creation of a low-resistance path |
| Types | Shunt resistors, shunt capacitors, shunt (zener) diodes |
| Voltage | Proportional to the current flowing through it |
| Rated by | Maximum current and voltage drop at that current |
| Resistance | Very low, typically in the milliohm range |
| Connection | Connected in parallel with measurement devices like ammeters to maintain equal voltage across them |
| Construction | The type of wire and its length are crucial to achieving the desired resistance and functionality |
| Calculation | The resistance needed for a shunt resistor can be calculated using Ohm's law, based on the maximum current and voltage drop |
Explore related products
What You'll Learn
Shunts are used to measure current
Shunts are an integral part of many electrical systems, especially those with battery monitors. They are used to accurately measure the electrical current in real-time, enabling monitoring systems to function effectively.
The term "shunt" refers to a device that passes electrical current around another device. Shunts are commonly used to measure alternating and direct currents, often in the form of an ammeter. Ammeters measure the voltage drop across a low impedance resistor. Shunts are rated by maximum current and voltage drop at that current. For example, a 500 A, 75 mV shunt has a resistance of 150 microohms, a maximum allowable current of 500 amps, and a voltage drop of 75 millivolts at that current.
The basic principle behind the operation of a shunt is Ohm's law, which states that the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance. Shunts are often constructed with a low resistance value, typically in the milliohm range, to ensure they have minimal impact on the circuit's behaviour. When current flows through the main circuit, a small portion of it diverts through the shunt resistor due to its low resistance. This diverted current can then be measured, providing an indication of the total current in the circuit.
Shunts are essential in battery monitors as they allow for accurate measurement of the electrical current running through a wire at any given moment. They measure the actual energy current, providing a more reliable indication than simply measuring volts, which can vary due to factors such as heat. By placing the shunt near the batteries, it can record all the currents flowing in and out before branching off into other circuits, ensuring accurate measurement of the battery's capacity.
Electric Scooters: Safe Age to Ride?
You may want to see also
Explore related products
Shunts are used in power distribution systems
Shunts are an essential component in power distribution systems, playing a vital role in monitoring and managing electrical loads. They are used to prevent overcurrent situations by continuously monitoring the current flow, enabling the early detection of potential issues and reducing the risk of equipment damage or electrical fires.
Shunts are like a small side stream for electricity, diverting a small portion of the total current in the circuit. This makes it easier to measure the total amount of electricity flowing through the main wire. By measuring the voltage drop across the shunt, we can determine the current value using Ohm's law. Shunts are rated by their maximum current and voltage drop, ensuring they operate within safe limits.
In power distribution systems, shunts can be placed near the negative terminal of the power source or in series with the load. This placement allows for accurate measurements of the current flowing through the circuit. Shunts are designed with low resistance to ensure minimal impact on the circuit's behaviour.
Shunts are also used in lightning arresters, where a gas-filled tube or a simple spark gap can be employed as a shunt to protect equipment from lightning strikes. Additionally, capacitors are used as shunts to redirect high-frequency noise to the ground, protecting sensitive electronic devices.
Overall, shunts are crucial in power distribution systems for monitoring, controlling, and protecting the electrical infrastructure. They provide valuable data on current flow, enabling efficient energy management and enhancing system reliability.
Electrical Wiring: Materials Used in Industrial Settings
You may want to see also
Explore related products
Shunts are used in lightning arresters
A gas-filled tube, such as a tube filled with neon or other noble gases, can be used as a shunt in a lightning arrester. These gases have a high breakdown voltage, so normally, current will not flow across them. However, when a lightning strike occurs, the massive amount of electricity causes the shunt to arc, conducting the electricity to the ground and protecting the equipment.
Shunts are also used in lightning arresters to redirect high-frequency noise to the ground before it can reach and damage sensitive electronic components. This helps to protect modern solid-state electronic devices that may be powered by the protected circuit.
Additionally, shunts are used in lightning arresters for measurement purposes. They provide a calibrated and stable resistance, allowing for accurate readings of the current. This is important for various applications, as accurate current measurement is crucial. By using a shunt, engineers can gain valuable insights into the performance of their electrical systems and ensure their equipment is functioning correctly.
Overall, the use of shunts in lightning arresters helps to protect valuable equipment from lightning strikes and ensures uninterrupted operations by providing a path for the electricity to flow to the ground, as well as facilitating accurate current measurements for system monitoring.
Fixing Electrical Conduit: An Easy Guide to Repairing 1/2 Inch Pipes
You may want to see also
Explore related products
Shunts are used in battery monitors
Shunts are an integral part of electrical systems, especially those with battery monitors. They are essential for accurately measuring the electrical current running through a wire at any given moment. Shunts are usually built into the negative side of a battery terminal, allowing the battery monitor to display the current coming from the batteries accurately.
Shunts primarily monitor the energy that flows out of a battery, but they can also be used to measure the energy flowing into the system. They are installed on the negative terminal of the battery as they measure the real-time voltage of the system and the current draw to and from the battery. This allows the monitor to calculate the charge, remaining energy, and electricity consumption, providing users with crucial information to effectively manage their energy usage and maintain optimal battery performance.
The basic principle behind the operation of a shunt is Ohm's law, which states that the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance. Shunts are often constructed with a low resistance value, typically in the milliohm range, to ensure they have minimal impact on the overall circuit's behaviour. When current flows through the main circuit, a small portion of it diverts through the shunt resistor due to its low resistance.
Smart shunts, such as the Victron SmartShunt, are an excellent alternative for a BMV battery monitor, especially when less wiring and clutter are desired. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone or tablet, allowing you to conveniently access all monitored battery parameters, such as state of charge, time to go, and historical information.
Overall, shunts play a crucial role in battery monitoring, providing real-time data on energy flow, voltage, and current draw, enabling users to effectively manage their energy usage and maintain optimal battery performance.
How Potassium Chloride Enables Electric Current Flow
You may want to see also
Explore related products
Shunts are used to protect against overvoltage
An electrical shunt is a device that acts as a low-resistance pathway for electrical current in a circuit. It is often connected in parallel with another component, diverting a small portion of the total current to facilitate measurement or protection. Shunts are commonly used in power distribution systems, electrical measurement systems, and automotive and marine applications.
Shunts are indeed used to protect against overvoltage. When a circuit experiences overvoltage, a shunt can be employed to safeguard sensitive components. This is achieved through the use of a crowbar circuit. The crowbar circuit detects the overvoltage condition and intentionally causes a short circuit between the power supply and its return path. This action leads to two crucial outcomes: an immediate drop in voltage and the triggering of a high current.
The voltage drop protects the circuit by reducing the excessive voltage that could otherwise damage sensitive components. This drop ensures that the voltage levels remain within the operational limits of the devices in the circuit. Without this protective measure, the high voltage could exceed the tolerance of the components, leading to potential failure or malfunction.
Additionally, the crowbar circuit's action of causing a short circuit results in a high current that is intended to trip a fuse or activate a circuit breaker. This response is designed to interrupt the circuit and isolate the overvoltage condition, further protecting the sensitive components. By triggering a fuse or circuit breaker, the crowbar circuit helps prevent potential damage to the devices in the circuit.
The use of shunts in overvoltage protection is a critical aspect of circuit design, especially in applications where voltage levels need to be carefully regulated. By employing shunts, engineers can safeguard sensitive equipment, prevent voltage-related failures, and ensure the reliable operation of electronic devices and systems. Shunts, therefore, play a crucial role in maintaining the integrity and functionality of electrical circuits, particularly in the presence of overvoltage conditions.
General Electric's Global Footprint: Nations and Conglomerates
You may want to see also
Frequently asked questions
An electrical shunt is a device that creates a low-resistance path for an electrical current. It is usually made of a material with a low-temperature coefficient of resistance, giving it a very low resistance over a wide temperature range. Shunts are often constructed with a low resistance value, typically in the milliohm range.
A shunt allows us to accurately measure the electrical current running through a wire at any given moment. It diverts a small portion of the total current in the circuit while measuring that diverted current.
The voltage across the shunt is proportional to the current flowing through it. So, the measured voltage can be scaled to directly display the current value. Shunts are rated by maximum current and voltage drop at that current.
Measuring electrical current is important because it gives us complete control over our electrical systems. It helps us efficiently plan and manage our energy usage.
A shunt is usually placed as close to the ground as possible when there is a shared ground between the circuit and the measurement device. This protects the ammeter from common mode voltage, which could cause damage and misleading results.
