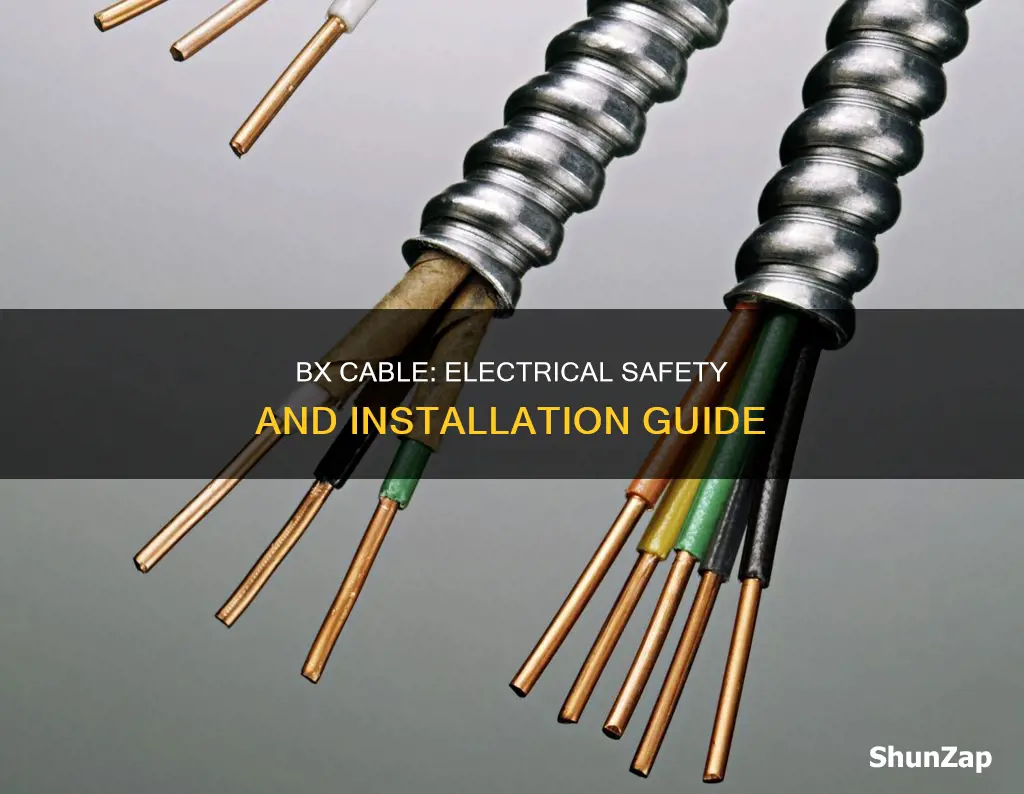

BX cable, also known as Type BX cable, is a type of metal-clad, armoured electrical cable. It was widely used in the past and is still a viable option for modern electrical projects. The abbreviation BX has been used for decades to refer to all metal-jacketed cables. BX cable is known for its durability and added protection compared to other cables, such as non-metallic (NM) cables. However, it is important to note that older Type BX cables are not recognised in the National Electrical Code (NEC) today due to their lack of an internal bonding strip for ensuring an adequate path for fault current.
Explore related products
What You'll Learn
- BX is an abbreviation for a type of metal-clad electrical cable
- BX cable is durable and safe but cannot be used for outdoor applications
- BX wiring is old and may need to be replaced, depending on its condition
- BX cable is more protective than non-metallic cables but less convenient than plastic-sheathed NM cables
- BX cable is required when a metal box must be grounded to the cable's sheathing
BX is an abbreviation for a type of metal-clad electrical cable
BX cable, also known as Type BX wiring, is a metal-clad cable with a metal jacket or sheathing. This metal exterior sets it apart from other cable types and provides added protection, making it a popular choice for homeowners and electricians in the past. The metal armour of BX cable is much stronger than the vinyl coating of NM (non-metallic) cable, although it can still be pierced by a determined nail or screw.
BX cable was developed in the early 1900s, with records indicating its first use around 1910 and widespread production and adoption taking off in the 1920s. It was promoted as a modern, safe, and fireproof alternative to older cloth-sheathed wiring. Today, it is still recognised as a reliable choice for long-term electrical applications due to its durable construction.
The abbreviation "BX" has been associated with metal-clad cables for decades. While the exact origin of the term is uncertain, some speculate that it might be related to the product's initial production in the Bronx borough of New York. Over time, the term "BX" became synonymous with any cable featuring a metal jacket or armour, and it continues to be used in this context today.
While BX cable is still a viable option for electrical projects, offering unique benefits, it has been partially superseded by other cable types, such as NM cable, which is lightweight, easy to handle, and affordable. In some cases, electrical codes and standards may also favour the use of newer cable types, such as Type AC cable, which has improved features and compliance with modern requirements.
