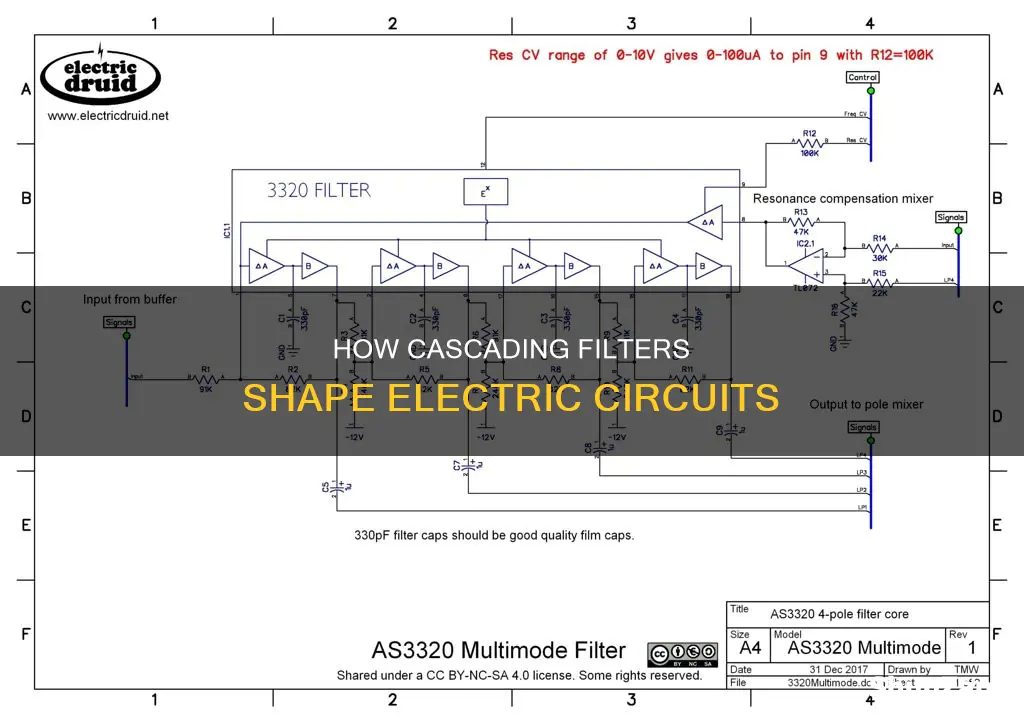

In electronic circuits, cascading filters are used to enhance stopband rejection and steepness in the transition band. This technique involves connecting filters in series to create a band pass response by combining high pass and low pass filters. While this method achieves the desired effects, conventional filters reflect signals back to the source, creating standing waves between filter stages. This can introduce issues such as ripple and phase instability, distorting the desired signal and degrading performance. To overcome these challenges, reflectionless filters are employed, offering greater design flexibility and improved system performance. An example is the Mini-Circuits X-series reflectionless filters, which internally terminate stopband signals, enabling multiple filter sections to be cascaded without undesirable effects.
| Characteristics | Values |
|---|---|
| Purpose | To enhance stopband rejection and steepness in the transition band |
| Filter Combination | High pass and low pass filters are combined to create a band pass response |
| Issues | Conventional filters are fully reflective in the stopband, which can introduce problems in the passband such as ripple and phase instability, leading to signal distortion and degraded performance |
| Reflectionless Filters | Eliminate issues seen in conventional filters, allowing greater design flexibility and improved system performance |
| Active Filters | Can be cascaded easily without worrying about loading effects due to signal power gain |
| Passive Filters | More challenging to cascade due to loading effects, resulting in a droopy response |
| Butterworth Filter | Uses positive feedback at the cutoff frequency to achieve a flat response until a sharp cutoff corner |
Explore related products
What You'll Learn
How to create a band-pass filter
Band-pass filters are essential components in electronic circuits that allow a specific range of frequencies to pass through while attenuating others. They are used to isolate or filter out certain frequencies that lie within a particular band or range of frequencies.
Passive Band-Pass Filters can be made by connecting a low-pass filter with a high-pass filter. The cut-off frequency of the high-pass circuit becomes the low cut-off frequency for the band-pass filter, and the cut-off frequency for the low-pass circuit becomes the high cut-off frequency. This means that only signals with frequencies within a certain range will pass through both filters.
To create a band-pass filter, you need to determine the cutoff frequencies and the passband centre frequency. This can be done using the formula for the total impedance of the series RLC circuit:
\Z=\Big(R_{1}+R_{W}\Big)+j\Big(X_{L}-X_{C}\Big)
Where RW is the resistance of the inductor winding. The input voltage is divided across the impedance of the resonant circuit (Z1) and the resistor (R1) to produce the output voltage.
For high frequencies, choose a value around 100 pico Farads or lower, and for low frequencies, choose a value around 100 nano Farads. If the resistor values are not suitable, pick different capacitor values.
Active band-pass filters can also be created, and these generally use an operational amplifier within their design to introduce gain and provide isolation between stages.
Understanding the Electricity Grid: A Comprehensive Guide
You may want to see also
Explore related products
Active vs. passive filters
Filters are essential in electronic systems, selectively passing desired frequencies in a signal while attenuating unwanted ones. They are used in radio communications, power supplies, and audio electronics. There are two main types of filters: active and passive.
Passive filters are constructed using resistors, capacitors, and inductors. They rely on the inherent properties of these components to attenuate or pass specific frequencies. Passive filters are most effective in the frequency range of 100 Hz to 300 MHz. They are simple, robust, and require no power supply, making them versatile and cost-effective. However, they have limitations in terms of size, resonance, and tuning and the need for inductors, which can be bulky and expensive.
Active filters, on the other hand, combine passive components with active elements like operational amplifiers (op-amps) and transistors. By adding active components, active filters offer more complex designs, higher selectivity, better signal isolation, and the ability to achieve more precise transfer functions. They can also introduce gain, compensating for signal attenuation caused by passive components. Active filters are particularly useful for very low frequencies, but they face challenges at very high frequencies due to amplifier bandwidth limitations.
The choice between active and passive filters depends on the specific application requirements. Passive filters are suitable for radio-frequency circuits, power quality improvements, and cost-effective noise reduction. Active filters, with their enhanced functionality, find applications in audio signal processing, biomedical instrumentation, and communication systems.
Both active and passive filters play a critical role in shaping signals and extracting desired frequencies, contributing to the overall performance and functionality of electronic systems.
Additionally, there are four fundamental types of filters based on frequency response: low-pass, high-pass, band-pass, and band-reject (or notch) filters. These filters can be further combined to create specific responses, such as a notch and high-pass filter combination used in rumble filters.
Ceiling Fan Speed: Slower Spin, Lower Bills?
You may want to see also
Explore related products
Advantages of cascading reflectionless filters
The technique of cascading reflectionless filters in series is used to enhance stopband rejection and steepness in the transition band. This method can also be used to combine high pass and low pass filters to create a bandpass response.
Reflectionless filters, such as the Mini-Circuits X-series, employ a novel topology in which stopband signals are internally terminated rather than reflected back to the source. This offers several advantages over conventional filters:
Eliminating Undesirable Effects
Cascading reflectionless filters can eliminate undesirable effects that arise when using conventional filters. Conventional filters are fully reflective in the stopband, creating standing waves between filter stages. This can cause issues such as ripple and phase instability, which distort the desired signal and degrade system performance. Reflectionless filters, on the other hand, prevent these reflections and their associated problems, resulting in a cleaner and more reliable signal.
Greater Design Flexibility
The ability to cascade reflectionless filters in multiple sections without the limitations of conventional filters allows for greater design flexibility. Reflectionless RF filters support a high level of cascadeability, enabling designers to enhance the signal response by adding complementary filters without suffering from the rippling and instability of traditional filters.
Improved System Performance
By eliminating reflections and their negative consequences, reflectionless filters improve system performance. They protect systems and enhance communications by reducing distorting effects, ensuring signal propagation without degradation.
The Right Way to Oil Your Electric Desk Fan
You may want to see also
Explore related products
$11.72 $12.34
Butterworth filters
The Butterworth filter is a type of signal processing analogue filter design, first described in 1930 by British engineer and physicist Stephen Butterworth. Butterworth filters are designed to have a frequency response that is as flat as possible in the passband, with no ripples in the pass band or the stop band. This results in a maximally flat filter response, also known as a "brick wall" filter.
The Butterworth filter was designed to address the limitations of filter design at the time, which required a considerable amount of designer experience. Butterworth's filter was not in common use for over 30 years after its publication. He showed that it was possible to adjust the component values of the filter to compensate for the winding resistance of the inductors. Butterworth's design produced standard tables of normalised second-order low-pass polynomials, given the values of the coefficient that correspond to a cut-off corner frequency of 1 radian/sec.
The Butterworth filter can be modified to give low-pass, high-pass, band-pass and band-stop functionality. A high-pass Butterworth filter is obtained by replacing each inductor with a capacitor and each capacitor with an inductor. A band-pass Butterworth filter is obtained by placing a capacitor in series with each inductor and an inductor in parallel with each capacitor to form resonant circuits. A band-stop Butterworth filter is obtained by placing a capacitor in parallel with each inductor and an inductor in series with each capacitor to form resonant circuits.
The Butterworth filter has a slower roll-off compared to other filters, such as the Chebyshev Type I/Type II filter or an elliptic filter. This means that a higher order is required to implement a particular stopband specification. However, Butterworth filters have a more linear phase response in the passband than other filters.
Carbon Monoxide and Electric Dryers: What's the Real Danger?
You may want to see also
Explore related products
RC low-pass filters
The RC in RC low-pass filters stands for "resistor-capacitor", indicating that these filters consist of a resistor (R) and a capacitor (C) connected in series. The capacitor exhibits reactance, and its ability to block or pass signals is dependent on the frequency of the input signal. At low frequencies, the capacitor has enough time to charge to a voltage that is practically the same as the input voltage, and the signal is allowed to pass through. However, at higher frequencies, the reactance drops, and the capacitor acts as a short circuit, forcing the signal through the load instead.
The time constant of an RC low-pass filter is given by the equation {\displaystyle \tau \;=\;RC}, where {\displaystyle \tau} is represented by the Greek letter tau. The cutoff frequency, or break frequency, of the filter is determined by this time constant. Above this cutoff frequency, the filter begins to attenuate the signal amplitude, with the power reducing by a factor of 4 or 6 dB every time the frequency doubles. This reduction in amplitude can be observed on a Bode plot, which shows a diagonal line above the cutoff frequency.
Electricity Phobia: Understanding the Fear of Electricity
You may want to see also
Frequently asked questions
Cascading filters in series is used to enhance stopband rejection and steepness in the transition band. It is also used to combine high pass and low pass filters to create a band pass response.
A band-pass filter allows a specific range of frequencies to pass through while attenuating or weakening frequencies outside of that range.
A person at a concert trying to hear the lead singer's voice clearly while blocking out the loud background noise and bass-heavy beats.
Active filters can be cascaded easily without worrying about loading effects because op-amps amplify the signal power. Passive filters, on the other hand, have to consider loading effects due to finite input and output impedances at each stage.
A Butterworth filter uses positive feedback at the cutoff frequency, resulting in a flat response until a sharp cutoff. A cascaded passive filter has a droopy response that begins cutting frequencies far from the calculated cutoff frequency.
