CT is a commonly used acronym in the electrical field, and it stands for current transformer. Current transformers are used to measure the intensity of electric current, which is useful for controlling electrical consumption in equipment and buildings. They are also used for power metering and protective relays within the electrical power industry. CTs are placed around a current phase and do not require any intervention on the network or power supply. They are an essential part of electrical metering systems and are used both indoors and outdoors, in homes and industries. CT cabinets, which house the current transformers, are constructed with materials such as galvanized iron, carbon steel, aluminium, and stainless steel.
Explore related products
$17.99 $19.99
What You'll Learn
CT can stand for current transformer
CT often stands for "current transformer" in electrical engineering. A current transformer (CT) is a type of transformer that reduces or multiplies alternating current (AC), producing a current in its secondary circuit that is proportional to the current in its primary circuit. CTs are used to scale large voltages or currents down to smaller, standardized values that are easier to handle for measuring instruments and protective relays.
CTs are used to isolate measurement or protection circuits from the high voltage of the primary system. They present a negligible load to the primary circuit and are used in power systems as current-sensing units. CTs are found in generating stations, electrical substations, and in industrial and commercial electric power distribution.
Current transformers typically consist of a silicon steel ring core wound with many turns of copper wire. The conductor carrying the primary current is passed through the ring, and the CT's primary consists of a single 'turn'. The primary 'winding' may be a permanent part of the current transformer, such as a heavy copper bar to carry current through the core. Window-type current transformers are also common, which can have circuit cables run through the middle of an opening in the core to provide a single-turn primary winding.
The secondary of a current transformer should not be disconnected from its burden while current is in the primary, as this may generate high voltages and compromise operator safety. CTs are often mounted in CT cabinets, which are essential for electrical metering systems and are used to prevent electrocution by setting up a physical barrier.
Leasing Electric Vehicles: Affordable Options for You
You may want to see also
Explore related products
CT cabinets are enclosures for current transformers
In electronics, CT stands for "center tap" and "current transformer". This response will focus on the latter definition.
CT cabinets are designed to house current transformers and protect users and operators from possible electric shocks. They are made of materials such as galvanized iron, carbon steel, aluminium, and stainless steel. The most common standards for current transformer cabinets are the UL Type 1 and the NEMA Type 3R. NEMA, or the National Electrical Manufacturers Association, has developed a rating system that determines the types of environments in which an electrical enclosure can be used. For example, the NEMA 12 enclosure is rated for damp environments, while the NEMA 1 is rated only for dry environments.
CT cabinet doors are often constructed in cold-rolled sheets and must open at least 120 degrees laterally. The hinges must be made of strong, galvanised, chromed, nickel-plated, stainless steel, bronze, or aluminium to rigidly secure the door. During installation, care must be taken to ensure the door does not lose its protective powder coating.
CT cabinets are an important safety feature in electrical systems, preventing electrocution and providing protection from large currents.
Fixing Yamaha Electric Golf Carts: DIY Guide
You may want to see also
Explore related products
CTs can be used to measure current levels
CT stands for Current Transformer, and CTs can indeed be used to measure current levels.
CTs are used to sense AC current in single-phase or three-phase mains circuits. They are an essential part of electrical metering systems and are used both indoors and outdoors, in homes and industries. CTs convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio. This transformation ratio is typically 50:5 to 4000:5, and the secondary current can be used to detect overcurrent, undercurrent, peak current, or average current conditions.
The primary current is the current flowing in the main conductor, and the secondary current is the current flowing in the secondary winding of the transformer. By increasing the number of secondary windings, the secondary current can be made much smaller than the primary current. This is useful for measuring large currents, as it provides protection against electric shocks.
CTs are available in various sizes and styles, with the most common materials being galvanized iron, carbon steel, aluminium, and stainless steel. The size of the CT, or VA rating, determines the maximum secondary impedance that can be driven at the stated accuracy. Metering CTs are specified for a 0.9 power factor at 60 Hz, while relaying CTs are specified at 0.5 PF.
CTs are placed around a current phase and do not require any intervention on the network or power supply. They can be split-core models, which easily retrofit around existing wiring, or solid-core models, which are lower in cost. Some monitoring systems are supplied with current transformers that have a voltage output, which eliminates the need for heavy leads or a high VA rating.
Electrical Grounding: Safety or Hazard?
You may want to see also
Explore related products
CTs are used in power metering and protective relays
CT stands for Current Transformer, a device that converts primary current into a secondary current of a smaller or larger value through a certain transformation ratio. CTs are used in power metering and protective relays.
In power metering, CTs are used to drive wattmeters, ammeters, and other instruments used for regulatory control and/or revenue billing where high accuracy is required. CTs used for metering should operate within their standard rated current values to ensure that any potential exceedance of these values will have a negligible effect on regulation or billing.
CTs are also crucial in protective relays, which monitor a circuit's voltage, current, or frequency. When an abnormal condition is detected, the relay opens or closes a switch to isolate the system. Protective relays are designed to interpret and act upon transient events in power systems, requiring CTs to reliably perform under overload conditions typically caused by power system faults.
The accuracy of CTs in protective relays is crucial to ensure proper functioning during system faults. CTs with specific ratings, such as a 2.5L400 rating, guarantee output accuracy within a certain percentage range.
Additionally, CTs used for protective relaying may have multiple taps on their secondary windings, providing several ratios in the same device. This feature allows for reduced inventory of spare units and facilitates load growth in an installation.
In summary, CTs play a vital role in power metering and protective relays, ensuring accurate measurements, overload protection, and system isolation in electrical systems.
Electricity and Electronics: What's the Difference?
You may want to see also
Explore related products

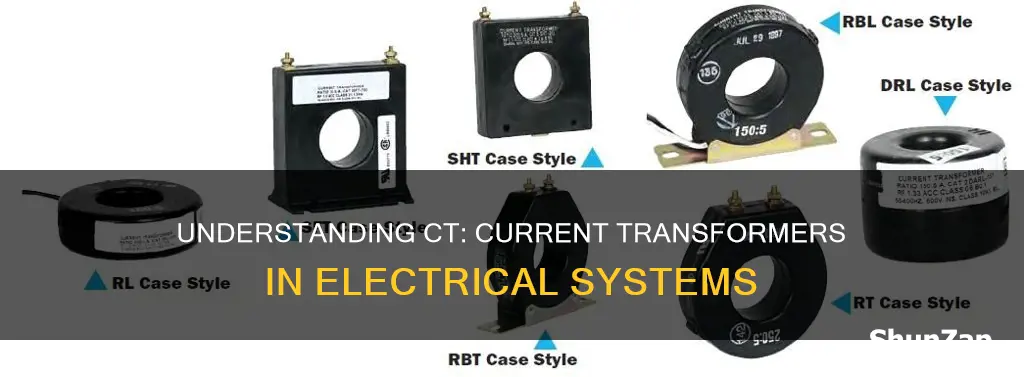

CTs are available in four main types
In the context of electrical engineering, CT most commonly stands for "current transformer". Current transformers convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio. CTs are an essential part of electrical metering systems and are used to protect users and operators from electric shocks.
Conventional Clock-Tree Synthesis (CTS)
This is one of the two main methods of clock distribution for large, high-performance designs. The other method is the clock mesh. Conventional CTS has a highly structured buffer topology, and the routes on the two H layers are in different colours for visibility.
Multisource CTS
Multisource CTS is a newer method that is a hybrid of conventional CTS and clock mesh. It has more immunity to insertion delay because the prevalence of the shared path minimises the portion of the insertion delay that is exposed to the OCV derating. It also allows for greater clock gating depth, enabling more complex clock gating schemes and contributing to power savings.
Clock Mesh
Clock mesh has long been the preferred clock distribution method for performance-oriented processor designs due to its high performance and minimal measured clock skew increase. It consumes more power than conventional CTS and multisource CTS.
CT Cabinets
CT cabinets are enclosures in which current transformers are mounted. They are typically made of metallic materials such as galvanized iron, carbon steel, aluminium, or stainless steel, although synthetic materials are also used. CT cabinets are classified according to their designs, which include freestanding/pedestal mount and wall-mounted types.
Solar Power: Connecting Solar Shades to Electricity
You may want to see also
Frequently asked questions
CT stands for Current Transformer.
A Current Transformer (CT) is a device that measures the intensity of electric current. It operates on the principle of electromagnetic induction, discovered by Michael Faraday in the early 1800s.
A CT creates a magnetic field by placing a coil around a primary current phase. This induces a lower secondary current in the coil, which is proportional to the primary current.
A CT Cabinet is an enclosure in which current transformers are mounted. They are used to protect users from electric shocks and prevent electrocution.
CTs are used for metering and protective relays within the electrical power industry. They can be used to measure the current level, in amperes, and are often used to reduce the load on overload protection devices.
