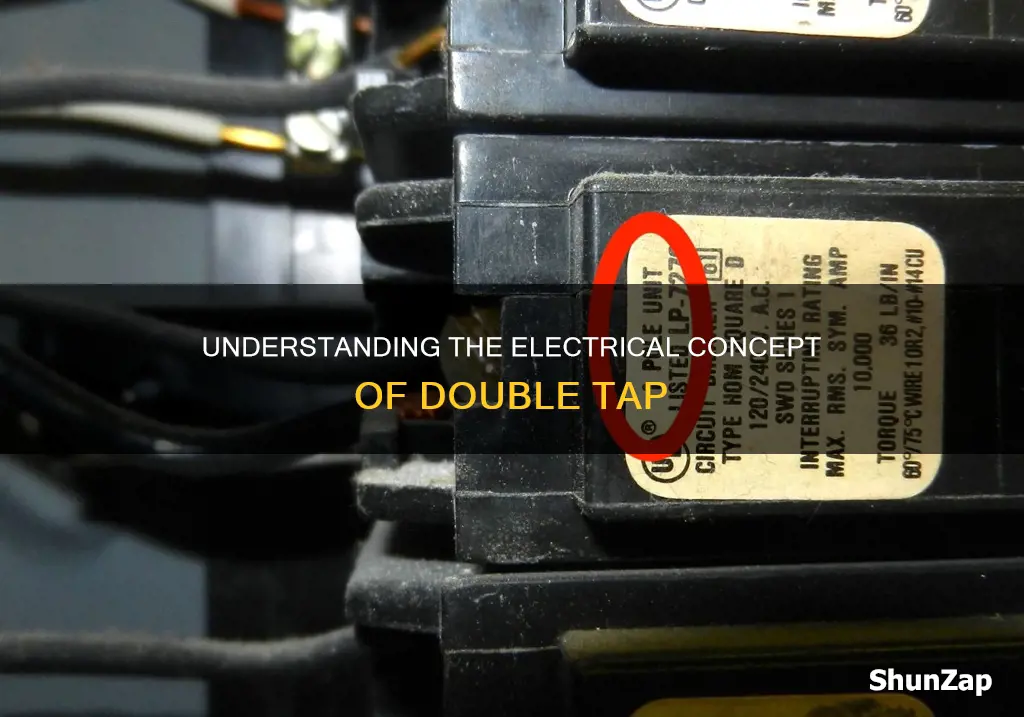

A double tap in electrical refers to a double-tapped circuit breaker, which is an electrical defect where two wires are connected to a single circuit breaker designed for one. This is a common defect and can be a fire hazard due to the risk of loose connections, which can lead to overheating, arcing, and electrical fires. Double taps are typically found during home inspections and are considered unsafe, requiring repair by a licensed electrician.
| Characteristics | Values |
|---|---|
| What is a double tap | A double tapped circuit breaker, commonly referred to as a "double tap", is an electrical defect inside an electrical panel. |
| How does it occur | It occurs when two or more wires are connected to a single circuit breaker that is only designed to accept one wire. |
| Why is it unsafe | It increases the risk of a loose connection, which can lead to overheating, arcing, and electrical fires. |
| How to fix it | A licensed electrician can fix it by installing a new breaker or a new panel. Alternatively, a third wire can be used to connect the two wires to the circuit breaker. |
| Insurance coverage | Some insurance companies may not cover a home with double taps. |
Explore related products
What You'll Learn
Double tapped breakers are unsafe
Double-tapped breakers, also known as "double taps", are an electrical defect that occurs when two or more wires are connected to a single circuit breaker that is only designed to accommodate one wire. This issue is commonly discovered during home inspections, particularly when examining the electrical panel, and is considered a fire hazard.
Double-tapped breakers are unsafe for several reasons. Firstly, they increase the risk of loose connections due to multiple conductors being placed under the set screw of a single breaker. Loose connections can lead to overheating, arcing, and electrical fires. Secondly, double-tapped breakers can result in overloaded breakers, which may continuously trip or overheat. While it is not very likely that this will burn down a house, it is still a serious safety concern that should not be ignored.
The issue of double-tapped breakers is not just a theoretical concern. Home inspectors and electricians have encountered this problem numerous times, and it is considered a common electrical defect. In some cases, double-tapped breakers have been known to cause sparking and arcing, highlighting the potential for more severe consequences.
Furthermore, double-tapped breakers can complicate the process of working on electrical circuits. Specifically, "double-tapped neutrals" can prevent circuits from being isolated when work is being performed on them. This not only creates an inconvenience but also adds an extra layer of risk to an already hazardous task.
While some breaker manufacturers do allow for double taps to be installed, it is generally recommended to avoid this practice. The potential risks associated with double-tapped breakers, including fire hazards and insurance complications, far outweigh any potential benefits. In most cases, addressing this issue is relatively inexpensive and straightforward, often involving the addition of another circuit breaker or panel to accommodate the wires properly.
Understanding Electrical Panel Boards: Their Function and Purpose
You may want to see also
Explore related products
Double tapped breakers can cause fires
Double-tapped breakers, also known as double lugged or twin breakers, are a dangerous electrical defect that can lead to electrical fires. This occurs when two electrical wires are connected to a single breaker terminal in an electrical panel. While not all double-tapped breakers will cause issues, they are considered a code violation in most jurisdictions and pose a significant safety risk.
The primary concern with double-tapped breakers is the increased risk of loose connections. Over time, the repeated thermal cycling and vibration can cause the connections to become loose or deteriorate. This creates resistance, leading to heat buildup and potential arcing or sparking. If left unattended, this can ignite nearby flammable materials and start a fire.
Additionally, double-tapping can result in overloaded breakers. Breakers are designed to carry a specific amount of electrical current based on their amperage rating. When two wires are connected to a single breaker, the combined electrical load may exceed the breaker's capacity. This can cause the breaker to trip frequently or fail to trip when necessary, leading to potential overheating and fire hazards.
To ensure safety and compliance with electrical codes, it is crucial to engage a licensed electrician to evaluate and rectify double-tapped breakers. While it may be a straightforward repair in some cases, it is essential to address this defect to mitigate the risk of electrical fires and potential insurance coverage issues.
Understanding Zero Electric Potential and Its Significance
You may want to see also
Explore related products
Double tapped breakers are easy to fix
A double-tapped breaker, also known as a "double tap", is a common electrical defect where multiple wires are connected to a single circuit breaker. This issue is usually only discovered when the panel cover is removed during a home inspection. Double taps are fire hazards because the multiple wires connected to a single breaker may not be properly tightened, leading to overheating, arcing, and electrical fires.
While double-tapped breakers are unsafe, they are typically easy and inexpensive to fix. The most common repair method is to add another circuit breaker to the panel and connect any additional wires to it. This solution is not always possible, as there may not be room for another breaker. In such cases, there are still options for remedying the issue, but a licensed electrician should assess the situation and perform the work.
Square D and Cutler Hammer manufacture breakers that are rated to accept two wires (double taps). When two wires are allowed, a tiny graphic of two wires will be visible at the front or side of the breaker. While double taps are the most common, "triple taps" (three wires into a single breaker) and double taps at the main service lugs (sometimes called a top tap) are also seen.
If you are buying a home and a home inspection reveals double-tapped breakers, this is easily fixable but should be addressed before purchase. An electrician can fix this issue by de-terminating the two wires, adding a short pigtail, wirenuting the three together, and then attaching the pigtail to the breaker. This will incur a minimal fee.
Electricity's Triangle Symbol: Its Meaning and Significance
You may want to see also
Explore related products
Double tapped breakers are a common issue
Double-tapped breakers, also known as "double taps", are a common electrical defect found in homes. This occurs when two or more wires are connected to a single circuit breaker that is only designed to accommodate one wire. This issue is usually discovered during home inspections when the electric panel is opened, and it is considered a fire hazard that should be addressed by a qualified electrician or contractor.
Double-tapped breakers are a common issue because, in the past, it was a standard practice among electricians. This was due to the fact that early editions of the National Electrical Code (NEC) did not specifically prohibit double-tapping neutrals. However, in 2002, the NEC updated its code to explicitly ban this practice. Despite this, some breaker manufacturers continue to produce breakers that can accept two wires, known as "tandem breakers". These tandem breakers are designed with two connection points for two wires and are easily identifiable by a tiny graphic of two wires on the front or side of the breaker.
The primary concern with double-tapped breakers is the increased risk of loose connections, which can lead to overheating, arcing, and electrical fires. This is because multiple wires under a single set screw can cause the wires to become loose over time, leading to potential sparking or arcing. Additionally, an overloaded breaker may continuously trip or overheat. While it is not very likely that a house will burn down due to this issue, it is still a fire hazard and should be corrected.
Correcting a double-tapped breaker is typically a straightforward and relatively inexpensive process. One common repair method involves pig-tailing the wires with a third wire and then connecting the opposite end of the third wire to the circuit breaker. In some cases, adding another breaker or panel to accommodate the wires properly may be necessary. However, it is important to consult a licensed electrician to evaluate and fix double-tapped breakers to ensure the safety of the electrical system in the home.
Understanding ACT: Electrical Safety Simplified
You may want to see also
Explore related products
Double tapped breakers are not always a problem
A double-tapped breaker, commonly referred to as a "double tap", is an electrical defect where two wires are connected to a single circuit breaker designed for one wire. This can lead to loose connections, potentially causing sparking, arcing, and electrical fires. While this is a common defect, it is relatively easy and inexpensive to fix. However, not all double-tapped breakers are a problem. Some breaker manufacturers, such as Square D and Cutler Hammer, produce breakers that are rated to accept two wires. These breakers have a tiny graphic of two wires visible at the front or side.
When a double-tapped breaker is a defect, it is because the circuit breaker is not designed for two conductors. The issue is not about the load imposed on the circuit but the physical connection. If the circuit breaker is not designed to hold two conductors, they could come loose over time, leading to potential safety hazards.
To fix a double-tapped breaker, the most common method is to use the pigtail method. This involves disconnecting the offending conductors from the circuit breaker, connecting them to a single conductor with a wire nut, and then connecting the single conductor to the circuit breaker. Another option is to replace the circuit breaker with a type designed for two conductors, as long as the panel is also designed for it. This option is more involved than the pigtail method.
While double-tapped breakers are technically wrong and could lead to safety hazards, they are not always a major problem. It is important to consult a licensed electrician to evaluate and fix any double-tapped breakers to ensure the safety of your home.
Understanding Electrical ZE: A Comprehensive Guide
You may want to see also
Frequently asked questions
A double tap in electrical refers to a double tapped circuit breaker, which is an electrical defect where two wires are connected to a single circuit breaker that is only designed to accept one wire.
It is called a double tap because two wires are "tapped" into a single breaker.
No, a double tap is an unsafe condition as it increases the risk of loose connections, which can lead to overheating, arcing, and electrical fires.
It is recommended to hire a licensed electrician to fix a double tap. The most common repair is to simply add another circuit breaker to the panel and connect one of the wires to it.
The repair cost will depend on the specific situation. Having an electrician install a new breaker could cost around $200, while a new panel could cost $2000 or more.
