Electrical impedance is a measure of the total opposition that a circuit or a part of a circuit presents to electric current. It is a vector quantity that consists of two independent scalar phenomena: resistance and reactance. The symbol for impedance is Z and it is measured in ohms. Impedance is indispensable for performing AC analysis of electrical networks, as it allows relating sinusoidal voltages and currents by a simple linear law.
Explore related products
What You'll Learn
Impedance is the opposition to alternating current
Impedance is a measure of the total opposition to the flow of alternating electrical current in an AC circuit. It is denoted by the letter 'Z' and is expressed in ohms. Impedance is the result of the combined effect of the circuit's current-limiting components, such as resistance (R) and reactance (X). Resistance is the real component of impedance, representing the opposition to the movement of electrons among a substance's atoms, thus creating resistance to the flow of current within the circuit. The more easily the atoms give up and/or accept electrons, the lower the resistance.
Reactance, on the other hand, is the imaginary component of impedance. It is an additional opposition to the movement of electric charge that arises from changing magnetic and electric fields in circuits carrying alternating current. In a capacitor, for example, a purely reactive component, the sinusoidal voltage across it is in quadrature with the sinusoidal current. This means that the capacitor alternately absorbs energy from the circuit and then returns energy to it. At low frequencies, a capacitor behaves like an open circuit, and no current flows through it.
The basic formula for impedance is Z = V/I, where V = voltage (volts) and I = current (amperes). Impedance can be calculated using vector diagrams, which show how resistance and reactance are combined to form impedance. The phase angle between the impedance vector and the resistance vector can be determined using Pythagoras's theorem.
Impedance is an important parameter in electrical engineering as it affects the output quality of a circuit and the devices that comprise that circuit. For example, in audio devices like speakers, if the speakers have a higher impedance than the output impedance of the amplifier, the overall resistance is greater, and the amplifier will not produce the maximum volume output.
Understanding MWh: Electricity Measurement and Billing Explained
You may want to see also
Explore related products
Impedance includes resistance and reactance
Impedance is a measure of the total opposition that a circuit or a part of a circuit presents to electric current. It is denoted as Z and measured in ohms. Impedance includes both resistance and reactance.
Resistance is a component of impedance and represents the real part of impedance. It is observed in both alternating current (AC) and direct current (DC) and is a measure of the extent to which a substance opposes the movement of electrons among its atoms, resulting in opposition to the flow of current within an electrical circuit. The more easily the atoms give up and/or accept electrons, the lower the resistance. Materials with low resistance are known as electrical conductors. Resistance is expressed as a positive real number and measured in ohms.
Reactance, on the other hand, is the imaginary part of complex impedance. It is only observed in AC circuits and is an additional opposition to the movement of electric charge that arises from the changing magnetic and electric fields in circuits carrying alternating current. The impedance caused by these two effects (induction of voltages in conductors by magnetic fields and electrostatic storage of charge induced by voltages between conductors) is collectively referred to as reactance. Depending on the nature of the reactance component of the impedance, the alternating current either lags or leads the voltage.
The basic formula for impedance is Z = V/I, where V = voltage (volts) and I = current (amperes). This formula is the same as the formula for resistance (R = V/I). However, adding reactance to the impedance formula produces a more advanced formula that takes into account frequency information due to the contributions of capacitance and inductance, which are frequency-dependent.
Electric Start Capable: What Does This Mean?
You may want to see also
Explore related products
Impedance is measured in ohms
Impedance is a measure of the opposition to electrical flow in a circuit or a part of a circuit. It is denoted by the symbol Z and is measured in ohms. The basic formula for impedance is Z = V/I, where V = voltage (volts) and I = current (amperes). The unit of measurement for both is ohms.
In electrical engineering, impedance is the opposition to alternating current presented by the combined effect of resistance and reactance in a circuit. Resistance is the real component of impedance, representing the real part, while reactance is the imaginary component, representing the imaginary part. Resistance is observed in both alternating current (AC) and direct current (DC) circuits, whereas impedance is only observed for AC signals.
The measurement of impedance is important in radio technology and other fields. It may be carried out at a single frequency, or the variation of device impedance over a range of frequencies may be of interest. The impedance may be measured or displayed directly in ohms, or other values related to impedance may be displayed. For example, in a radio antenna, the standing wave ratio or reflection coefficient may be more useful than the impedance alone.

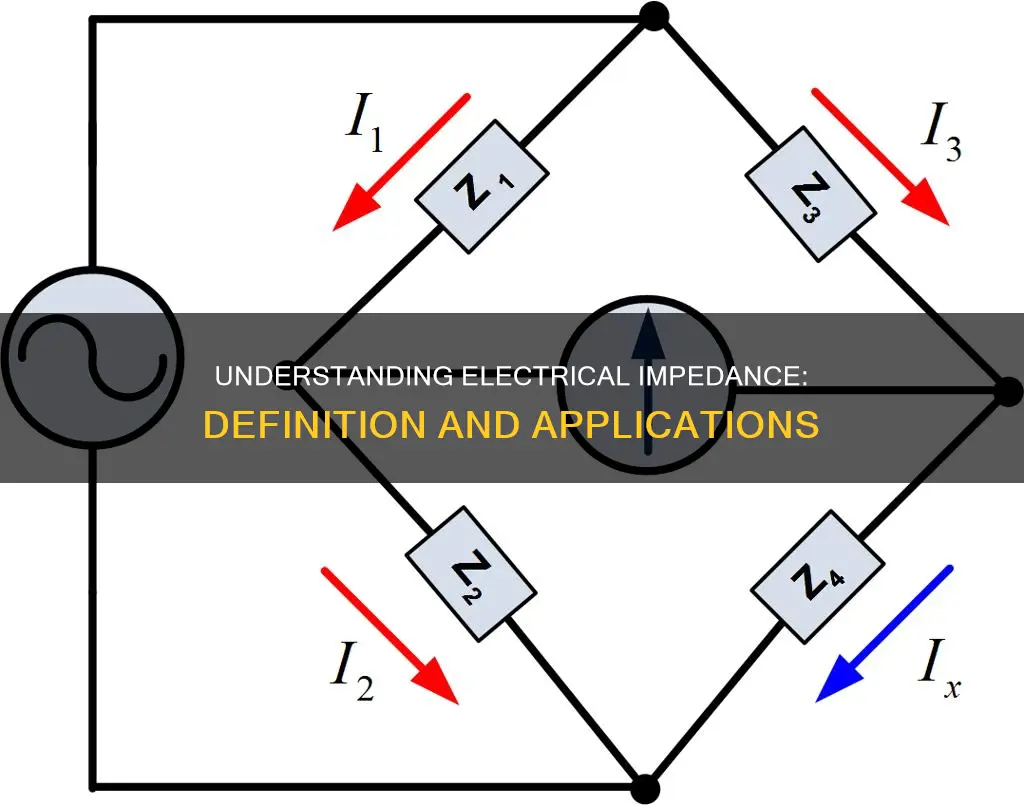

The measurement of impedance requires the measurement of the magnitude of voltage and current, and the phase difference between them. Impedance is often measured by "bridge" methods, similar to the direct-current Wheatstone bridge. A calibrated reference impedance is adjusted to balance off the effect of the impedance of the device under test.
