Electrical splicing is a process of joining or combining two wires of equal size so they can carry a current. It is a common practice in electrical work, especially when wires need to be lengthened or connected at right angles. Splicing is typically done inside an approved junction box or fixture electrical box to ensure safety and provide a neat finish. While it is a straightforward technique, it is important to have a good understanding of electrical systems and basic experience with electrical repairs before attempting to splice wires.
Explore related products
What You'll Learn
- Electrical splices must be contained within an approved junction box or fixture electrical box
- Splicing wires with electrical tape is not recommended
- Splices are normal in a breaker box
- Splicing is the process of combining two lengths of wire so they can carry a current
- To make a good electrical contact at the splice, wires must first be stripped of their insulant

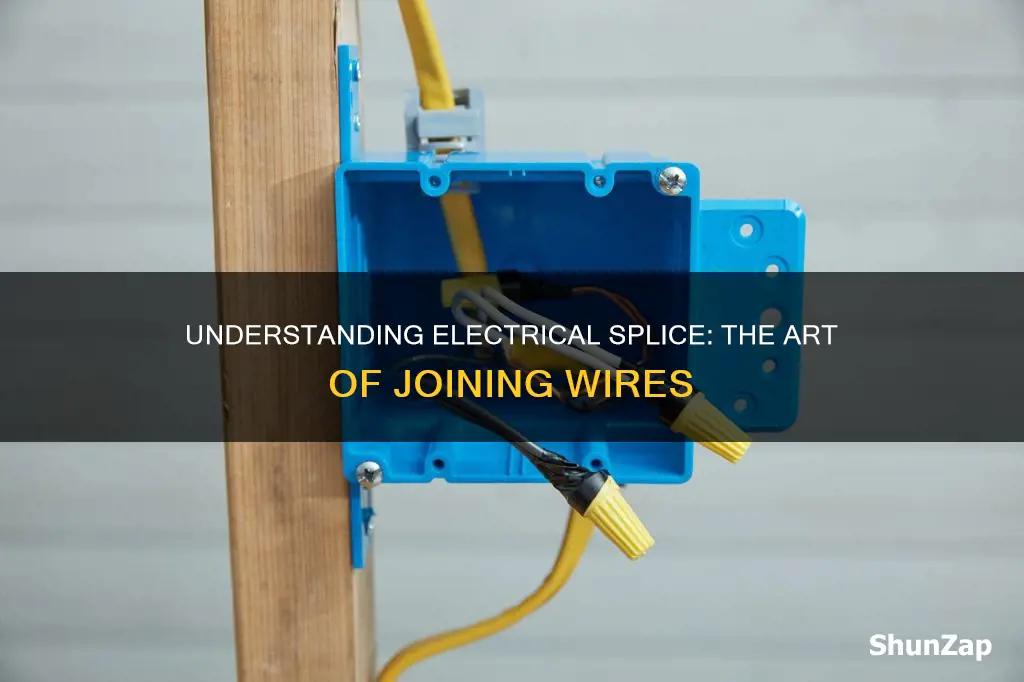

Electrical splices must be contained within an approved junction box or fixture electrical box
Electrical splicing is the process of joining or combining two wires of equal size so they can carry a current. It is a common practice in electrical projects to join circuit wires together. While the best method is to run a solid, uninterrupted cable from the service panel to the device, this is not always possible, and splicing is employed as an alternative.
There are many ways to splice wires, from using wire caps to soldering them together. The most common method is to use UL-approved wire connectors joined inside an approved electrical box. These connectors can be twist-on wire nuts or push-fit connectors. The old method of splicing wires with electrical tape is not recommended as it creates a weaker bond.
It is important to note that electrical splicing should only be performed by those with a good understanding of electrical systems and experience with basic electrical repairs. When in doubt, it is best to hire a professional electrician to ensure safety and compliance with electrical codes.
Understanding Current Electricity: Definition and Basics
You may want to see also
Explore related products
Splicing wires with electrical tape is not recommended
Electrical splicing is a technique used to join (or connect) two wires of equal size, such that one wire ends and the other begins at the connection point. This technique is often used in electrical projects to enhance living spaces.
While electrical tape was once used to splice wires in the past, it is no longer recommended. Electrical tape does not provide a secure connection and creates a bond that is less solid than other methods, such as wire nuts or push-fit connectors. The tape may start to unravel over time, and the connection will be held together by the minimal pressure of the electrical tape. This can lead to a safety hazard as the wires may become loose or exposed.
According to the National Electrical Code (NEC), electrical splices must be contained within an approved junction box or fixture electrical box. The box must be easily accessible and cannot be hidden behind walls or other building materials. The junction box provides a safe environment for the splices, protecting them against impact and containing sparks and fire in case of any issues.
Instead of using electrical tape, it is recommended to use approved splicing devices such as wire nuts or WAGO clamps. These devices provide a more secure and long-lasting connection. Tape may be used in conjunction with these devices to provide additional insulation, but it should not be the primary method of splicing.
It is important to prioritize safety when working with electrical wiring. If you are unsure or uncomfortable with splicing wires, it is best to hire a professional electrician to ensure the work is done correctly and safely.
Electric Shift Four-Wheelers: Revolutionizing the Riding Experience
You may want to see also
Explore related products
Splices are normal in a breaker box
An electrical splice is a connection of two wires of equal size, such that one wire ends and the other begins at the connection point. The wires can be of different sizes, but the smaller wire must be protected at its ampacity by the overcurrent device that is upstream of the first wire.
Splices are, in fact, normal in a breaker box. Breaker boxes are a type of junction box, and it is common to find wire splices inside them. While it is preferable to run a solid, uninterrupted cable from the service panel to the device, this is not always possible, and wire splicing is often necessary. For example, during box replacement, a few splices may be required to achieve a clean layout. Similarly, splices in the panel are common when installing transfer switches for generators.
That being said, it is important to note that splices should not be left on their own in a wall or ceiling cavity. Instead, all splices must be contained within an approved junction box or fixture electrical box. The box must remain accessible and cannot be hidden behind drywall or other building materials. The junction box provides a safe environment for splices, protecting them against impact and containing sparks and fire if anything goes wrong.
There is no standard answer to how many times you can splice electrical wire. It depends on the quality of the wire and your DIY skills. However, many suggest not splicing electrical wire more than three times. When in doubt, it is always best to hire a professional electrician.
Understanding S1 and S2 Electrical Terms: Basics Explained
You may want to see also
Explore related products
Splicing is the process of combining two lengths of wire so they can carry a current
There are several methods for splicing wires, each with its advantages and specific applications. One common method is the use of wire connectors, such as twist-on wire nuts or push-fit connectors, which are joined inside an approved electrical box or junction box. This provides a safe and secure connection, containing sparks and fire in case of any issues. The junction box must remain accessible and cannot be hidden behind building materials. Another method is soldering, which involves using a soldering iron or copper to heat and join the wires, creating a strong and permanent connection. To prevent corrosion, a rosin core solder or a non-acid flux can be used.
The pigtail splice is a popular technique, especially for household wiring, as it is quick and easy. It is often used inside electrical outlet boxes or junction boxes. Plastic solderless connectors, also known as wire nuts, are preferred by electricians for this type of splice. These connectors have a funnel-shaped spring insert that securely joins the wires, eliminating the need for additional taping. For thicker wires, a shrink tube can be used to create a butt splice, providing a secure connection.
It is important to note that splicing wires with electrical tape is not recommended as it creates a weaker bond compared to other methods. Tape can be used to bind wire nuts to the wires but should not be the primary means of splicing. Safety is a critical consideration when splicing wires. Before beginning any splicing work, it is essential to turn off the power to the circuit at the service panel to prevent the risk of electric shock. If you are unsure or lack confidence in your electrical skills, it is always best to hire a professional electrician.
Understanding Electrical Switches: What Does 'Common' Really Mean?
You may want to see also
Explore related products
To make a good electrical contact at the splice, wires must first be stripped of their insulant
An ordinary sharp knife can be used to strip the wires, but care must be taken to avoid nicking or cutting into the metal wire. Cutting the insulation at an angle with the knife, much like sharpening a pencil, is the best way to avoid this danger. Cutting into the insulation at right angles to the wire increases the risk of nicking and may eventually result in a break at this point. After the insulation has been stripped off, the bare metal should be scraped or sanded until it is bright and clean. Dirt or oxidation will interfere with a good electrical connection, and even a slight film will make it extremely difficult to solder the joint later on. Anywhere from one to three inches of wire will usually need to be exposed, depending on the splice.
Once the wires have been stripped, they can be joined using UL-approved wire connectors inside an approved electrical box. The old, informal method of splicing wires with electrical tape should be avoided, as it creates a weaker bond than modern methods. The National Electrical Code (NEC) approves of using either wire nuts or push-fit connectors, provided there is sufficient space in the box. Wire nuts are funnel-shaped plastic connectors with a spring insert, and they are tightened by twisting. As all exposed wires are enclosed inside the plastic shell, no additional taping or wrapping is required. Push-fit connectors are another option, but they require enough space in the box to accommodate them.
After the wires have been connected, the joint should be soldered for a permanent splice. This can be done with a small electric soldering iron or a soldering copper heated with a blowtorch. A rosin core solder or a solder combined with a non-acid flux should be used to prevent future corrosion. The joint must be heated directly so that it melts the solder; otherwise, a weak crystalline coating will form over the surface, and a permanent bond will not be achieved. Finally, the exposed wire ends must be covered with electrical tape or shrink tubes to prevent shorts.
Understanding Electrical Wiring: Decoding the BG Label
You may want to see also
Frequently asked questions
Electrical splicing is the process of combining two lengths of wire so they can carry a current.
The best way to splice wires is to run a solid, uninterrupted cable from the service panel to the device. However, this is not always possible, and wire splicing can be used as an alternative. The safest way to join electrical wires is by using approved electrical boxes and connectors.
There are many ways to splice wires, including using wire caps, soldering, and wrapping with electrical tape. The pigtail splice is most often used when wires are joined inside an electrical outlet box or junction box. The Western Union splice is used when there is likely to be strain or pull on the wires after the joint is made. The tap or branch splice is used when a second wire must be connected at a right angle or tapped into a continuous main wire.
The most critical step regarding safety when splicing wires is to turn off the power to the circuit at the service panel in the breaker box first. If you cannot disconnect the power, do not attempt to splice the wire, or you could get electrocuted. When in doubt, it is best to hire an electrician.
Before splicing wires, they must be prepared by stripping them of insulation to expose the bare metal inside. An ordinary sharp knife can be used for this, but care should be taken to avoid cutting into the metal wire. After the insulation has been stripped, the bare metal should be scraped or sanded until it is clean. Then, the wires can be connected using one of the methods described above. Finally, the exposed ends of the wires should be covered with electrical tape or shrink tubes.
