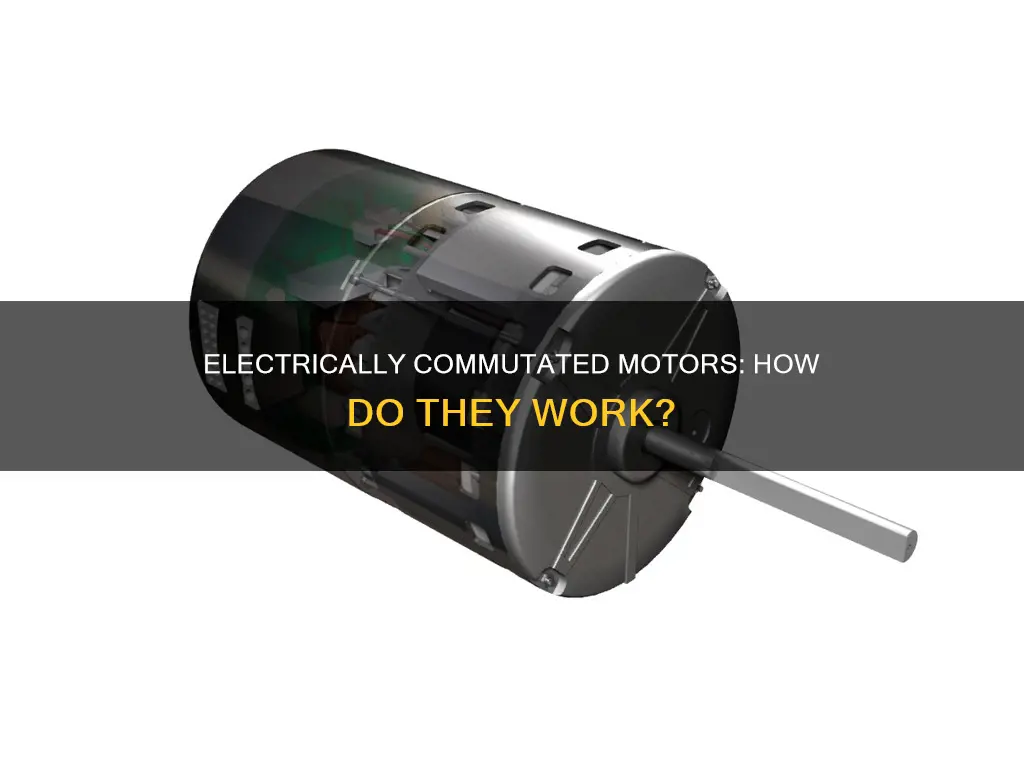

An electronically commutated motor (ECM) is a type of electric motor that is often specified in energy-efficient buildings. It is a three-phase, brushless DC motor that uses a microprocessor controller to sequentially energize and de-energize each winding of the stator with power to generate an electrical current. This is an improvement on the mechanical commutator (brushes) used in many conventional electric motors. The control module in an ECM converts 120 or 240-volt single-phase power to three-phase DC power to operate the motor.
| Characteristics | Values |
|---|---|
| Definition | A type of motor that uses a microprocessor controller to sequentially energize/de-energize each winding of the stator with power to generate an electrical current. |
| Types | Shaded pole (induction), permanent split capacitors (brushed DC), and electronically commutated motors. |
| Main components | A circuit board, an electronic control module, and a three-phase motor with a permanent magnet rotor. |
| Circuit board | Used to set up cooling and heating applications. |
| Control module | Controlled through the circuit board, which has other functions such as controlling the cooling and heating system. |
| Control module function | Converts 120-or 240-V single-phase power to three-phase DC power to operate the motor. |
| Control over frequency | An electronically commutated motor can control the frequency it delivers to the motor and is not limited by the power supplied by the utility company. |
| Advantages | More efficient than traditional motors, offering greater airflow and more efficient air filters. |
| Disadvantages | Frequent arcing across the door switch may lead to door switch failure. |
Explore related products
![Morrill 10036 Solid State Commutated Unit Bearing Fan Motor [Misc.]](https://m.media-amazon.com/images/I/415MB0fe0yL._AC_UL320_.jpg)
What You'll Learn
Electronically Commutated Motor (ECM)
An Electronically Commutated Motor (ECM) is a type of motor that is designed to run on an alternating current (AC) power supply. However, it resembles a direct current (DC) motor in that it is a permanent magnet, brushless DC motor that incorporates on-board electronics. The added electronics allow an ECM to combine the best features of both AC and DC motors and improve upon them. This technology makes EC fans highly efficient, and they pay for themselves through lower operating costs and extended service life.
ECMs have three main components: a circuit board, an electronic control module, and a three-phase motor. The circuit board is used to set up cooling and heating applications and is usually shared by other switches and controls in an HVAC system. The control module converts 120 or 240-volt single-phase power to three-phase DC power to operate the motor. It is a power inverter, which means it converts AC to DC. The control module and motor make up the actual ECM.
The ECM control converts AC single-phase power to DC power and then pulses that DC voltage to the three-phase motor windings. An ECM can control the frequency it delivers to the motor and is not limited by the power supplied by the utility company. This allows for greater control over the output and performance of the motor, resulting in greater energy and cost savings. ECMs are about 80% efficient when compared to the best PSC motor at 60%, and they run cooler, adding less heat to the circulating air.
ECMs also have the advantage of being able to change the frequency that controls the speed of the motor. They can start slowly and gradually ramp up to the desired speed, reducing locked rotor amps and placing less stress on the blower wheel, fan blade, and blower housing. This makes ECMs ideal for a range of air-moving and pump applications. Additionally, the on-board electronics in ECMs include a rectifier that converts the AC supply to DC, and an integrated controller that directs the right amount of current in the right direction at the right time through each of the windings. This allows for precise motor monitoring and control.
Electricity's Lifelong Fascination: A Meaningful Spark
You may want to see also
Explore related products
ECM components
An electronically commutated motor (ECM) is a three-phase, brushless DC motor. It is made up of three main components: a circuit board, an electronic control module, and a three-phase motor with a permanent magnet rotor. The module and motor together make up the actual ECM.
The circuit board is used to set up cooling and heating applications. It is usually shared by other switches and controls in an HVAC system. The HVAC system circuit board features dip switches and jumper pins that allow changes to airflow and comfort options related to ECM operation. The control module is controlled through the circuit board, which also controls the cooling and heating system.
The control module converts 120 or 240-volt single-phase power to three-phase DC power to operate the motor. It is a power inverter, which means it converts AC to DC. The ECM control converts AC single-phase power to DC power and then pulses that DC voltage to the three-phase motor windings. The ECM can change the 60-Hz frequency that controls the motor's speed, allowing it to control the frequency delivered to the motor.
The ECM motor is a three-phase motor with a permanent magnet rotor. It is brushless, and the direction of the current is switched electronically. The motor appears structurally similar to a regular motor, with the additional length being the electronic module that converts the single-phase alternating current to three-phase direct current power.
Understanding Electric Circuits: What Makes Them Complete?
You may want to see also
Explore related products
ECM vs. PSC motors
An electronically commutated motor (ECM) is a three-phase, brushless DC motor. It is composed of three main components: a circuit board, an electronic control module, and a three-phase motor with a permanent magnet rotor. The control module converts 120 or 240-volt single-phase power to three-phase DC power to operate the motor. It is a power inverter, which means it converts AC to DC. The circuit board is used to set up cooling and heating applications and is usually shared by other switches and controls in an HVAC system.
A permanent split capacitor (PSC) motor, on the other hand, is an older technology that has been largely replaced by ECMs in OEM parts due to the focus on the electrical efficiency of fossil fuel appliances. PSC motors are still the largest segment in the field, and technicians can expect to continue working with them for another 10-15 years. PSC motors are dependable and can be made to last twice as long by doubling the uFd rating of the existing capacitor, using two of them, and connecting them in parallel.
ECM blowers are known to be less durable, with higher failure rates than PSC motors. ECMs are also more complex, microprocessor-driven motors that require specialised parts, which can take a long time to source. However, they are more energy-efficient and offer greater control over the frequency delivered to the motor. ECMs can also overcome minor undersized duct designs with greater airflow and improve air filter efficiency at lower airspeeds.
In summary, PSC motors are more reliable and have more readily available parts, but ECMs are more energy-efficient and offer greater control over motor speed.
Electric Grass Pitch: Understanding the Electrifying Sports Field Concept
You may want to see also
Explore related products
ECM in HVAC systems
An electronically commutated motor (ECM) is a three-phase, brushless DC motor. It is made up of three main components: a circuit board, an electronic control module, and a three-phase motor with a permanent magnet rotor. The module and motor together make up the actual ECM.
ECM motors are commonly used in HVAC systems to increase energy efficiency. They achieve this by running longer cycles at lower outputs to maintain consistent temperatures, remove humidity, and prevent temperature stratification. This also results in better air quality.
In an HVAC system, the circuit board of an ECM is used to set up cooling and heating applications. It is usually shared by other switches and controls. The control module, on the other hand, converts AC to DC. It does this by converting 120 or 240-volt single-phase power to three-phase DC power to operate the motor. The control module is a power inverter.
The benefits of using an ECM in an HVAC system include lower energy consumption, improved dehumidification, reduced register noise, and better overall performance. ECMs are also quieter, have longer lifespans, and require less maintenance than basic motors.
However, there are also some drawbacks to using ECMs in HVAC systems. One of the main disadvantages is the cost, as they are more expensive than other types of motors. Additionally, if the ECM breaks down, the entire HVAC system will be down until the motor is repaired or replaced. This is because ECM motors are programmed at the factory and cannot be easily swapped out.
Understanding Service Electrical Systems: Meaning and Basics
You may want to see also
Explore related products
ECM efficiency
An electronically commutated motor (ECM) is a three-phase, brushless DC motor. It is composed of three main components: a circuit board, an electronic control module, and a three-phase motor with a permanent magnet rotor. The module and motor together make up the actual ECM. The circuit board is used to set up cooling and heating applications and is usually shared by other switches and controls in an HVAC system.
The control module, which is controlled through the circuit board, converts 120 or 240-volt single-phase power to three-phase DC power to operate the motor. As a power inverter, it converts AC to DC. The ECM control then pulses the DC voltage to the three-phase motor windings. This allows the ECM to control the frequency delivered to the motor, unlike permanent split capacitor (PSC) motors, which are slaves to the 60-Hz power supplied by utility companies.
The efficiency of an ECM is much higher than that of a PSC motor. An ECM is 80% efficient at all speeds, while a 6-pole PSC motor is 60% efficient at high speed, 50% at medium speed, and 40% at low speed. The higher efficiency of the ECM means that it can produce more work for an equivalent amount of power supplied when compared to a PSC. This is due to the ability of the ECM to operate at a much lower speed, which results in significantly less power consumption.
However, it is important to note that the efficiency of an ECM can be hampered by high static pressures. Additionally, the controls of an ECM are designed to increase fan speed and energy use to provide a specific programmed flow, which can reduce air handler efficiency in highly restrictive duct systems due to equipment strain at high speeds.
Electrical Gadgets: Understanding Their Purpose and Functionality
You may want to see also
Frequently asked questions
An electronically commutated motor (ECM) is a three-phase, brushless DC motor. It is made up of three main components: a circuit board, an electronic control module, and a three-phase motor with a permanent magnet rotor.
An electronically commutated motor uses a microprocessor controller to sequentially energize and de-energize each winding of the stator with power to generate an electrical current. This process builds a magnetic field that causes the rotor inside the ring of magnets to turn.
Electronically commutated motors are more energy-efficient than traditional shaded pole or permanent split capacitor type motors. They also offer greater control over the motor's speed and torque.
One disadvantage of electronically commutated motors is that they require more frequent air filter changes. Additionally, they are not suitable for low particulate or sealed applications, such as hard disk motors, as they can create a fire hazard in explosive atmospheres.
A brushed DC motor uses a commutator, which is a rotary switch on the motor's shaft, to reverse the current direction in the rotating windings each half turn. In contrast, an electronically commutated motor does not have a commutator and instead uses a sensor to track the rotor position and electronically switch the current direction.
