In electrical engineering, free air refers to an open or ventilated environment that allows for heat dissipation and airflow around an installed conductor. It is a term used to describe the space around conductors, which are cables that transmit electrical current, and is often mentioned in the context of cable trays and raceways. Free air is important because it enables the removal of heat generated by the conductor, preventing a rise in ambient temperature. While there is no universal definition of free air, it generally implies that the conductor is not enclosed or constrained, allowing air to circulate freely.
Explore related products
What You'll Learn
Free air is an open or ventilated environment
In electrical applications, "free air" is a term used to describe an environment where heat can be dissipated and air can flow freely around conductors. This is important for maintaining safe operating temperatures and preventing overheating. The concept of free air is particularly relevant for conductors, which generate heat during their operation. By ensuring that conductors are in a free air environment, this heat can be effectively managed.
One key characteristic of a free air environment is the absence of enclosures or raceways. Raceways are defined as channels or paths that hold electrical conductors, such as cables or wires. In a free air environment, conductors are typically installed in an open cable tray or busway, with spacing between the cables to facilitate air circulation. This spacing is usually at least one cable diameter, as recommended by some wire manufacturers, to promote effective heat dissipation.
Additionally, free air environments are often associated with ambient temperatures of around 30 degrees Celsius. Maintaining an appropriate ambient temperature is crucial to prevent the conductors from exceeding their temperature limits. If the ambient temperature rises too high, it can impact the ampacity, or current-carrying capacity, of the conductors. Therefore, temperature derating factors may need to be applied to compensate for elevated temperatures in enclosed spaces.
It is worth noting that the exact definition of "free air" can vary slightly depending on local regulations and authorities. While the concept generally revolves around heat dissipation and airflow, specific guidelines may differ across different electrical codes and standards. As such, it is important to refer to the relevant electrical codes and manufacturer guidelines when determining what constitutes free air in a specific context.
Understanding the Meaning of SR in Electrical Terms
You may want to see also
Explore related products
It allows for heat dissipation and airflow
The term "free air" in electrical engineering refers to an open or ventilated environment that allows for heat dissipation and airflow around an installed conductor. This is important for maintaining optimal temperatures and preventing overheating of electrical components.
Free air is typically associated with conductors, which are materials that can transmit energy or signals in the form of electrical current. Conductors are essential components in electrical circuits and come in various forms, such as wires, cables, or busbars. When these conductors are installed in an open or ventilated environment, they are said to be in "free air."
The concept of free air is particularly relevant when considering heat management in electrical systems. By allowing for heat dissipation and airflow, free air helps prevent the buildup of excessive temperatures around conductors. This is crucial because high temperatures can degrade the performance of conductors, leading to reduced efficiency or even failure of the electrical system.
To achieve effective heat dissipation in free air, certain conditions must be met. One important factor is the spacing between conductors. It is generally recommended that conductors be spaced at least one cable diameter apart to ensure adequate airflow and minimize heat retention. This spacing allows air to circulate freely and carry away the heat generated by the conductors.
Additionally, the presence of ventilation plays a vital role in achieving free air conditions. This can be achieved through natural convection, where hot air rises and creates airflow, or through forced ventilation using fans or vents. By actively moving air, ventilation enhances heat dissipation and ensures that the temperature around conductors remains within safe limits.
BMW Electrical System Malfunction: What Does it Mean?
You may want to see also
Explore related products

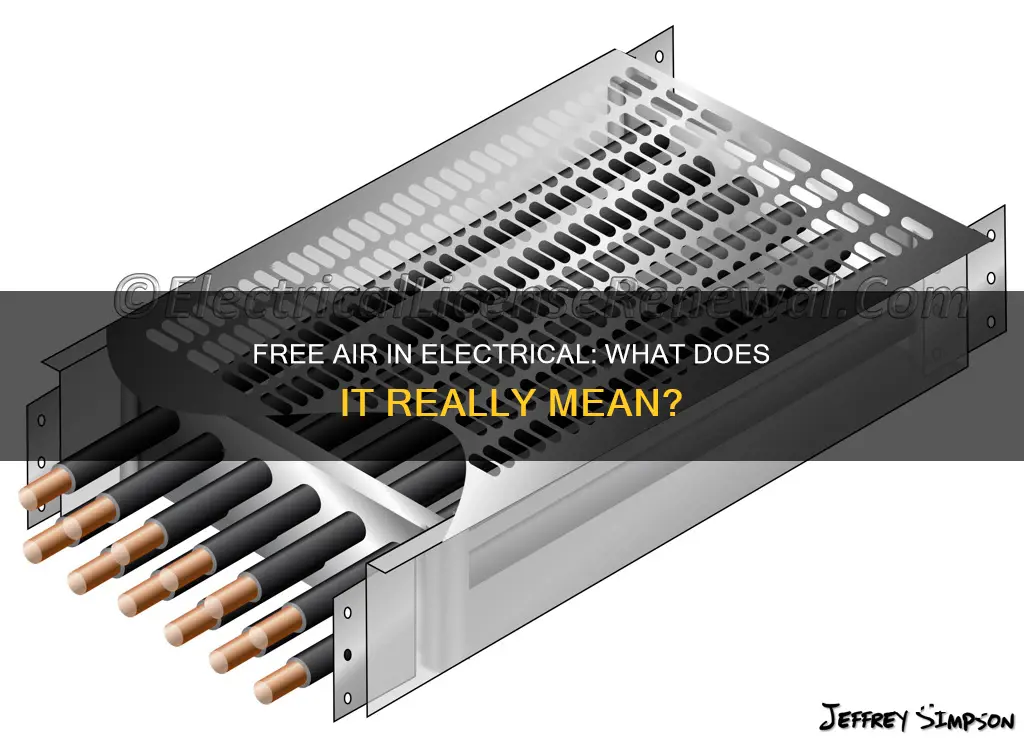

Conductors in cablebus are considered to be in free air
"Free air" is a term used to describe an open or ventilated environment that allows for heat dissipation and airflow around an installed conductor. This means that there are no other conductors closer than one cable diameter and no insulation or building materials in contact with the conductor insulation for more than 75 mm (3 in.) for every 3 m (10 ft) of the conductor.
Conductors in a cable bus are considered to be in free air. This is because they are not enclosed or zip-tied together, allowing for airflow and heat dissipation. However, it is important to note that the definition of "free air" specifically applies to "conductors" and does not apply to cable type wiring methods that contain individual conductors within the cable assembly.
To further clarify, conductors in an enclosure do not qualify for free air. This is because the heat cannot dissipate by air moving freely around the conductors. Additionally, multi-conductor cables do not qualify for free air, as they are typically enclosed and do not allow for the same airflow as single conductors.
In the case of a cable bus, the conductors are typically spaced at least one cable diameter apart, which allows for airflow and heat dissipation, thus meeting the requirements for "free air." Therefore, when determining the ampacity of a conductor in a cable bus, it is important to refer to the appropriate NEC® table for conductors in "free air."
Understanding the Basics of 110 and 220 Voltage Electricity
You may want to see also
Explore related products
Free air is the opposite of charged air
The National Electric Code (NEC) defines free air as an "open or ventilated environment that allows for heat dissipation and airflow around an installed conductor". This definition is important for determining the ampacity of a conductor, which is the maximum amount of current it can carry safely. Conductors in cable trays or busways are typically considered to be in free air, while those in enclosures or raceways are not.
The idea behind free air is that heat can dissipate through natural convection, with air moving freely around the conductors. This is in contrast to charged air, where the air is confined or forced through a conduit, duct, or enclosure. If the air is heated by the conductor, it should be the same air that people in the vicinity breathe. This distinction is important for safety, as it can prevent a hazardous build-up of heat.
While there is no universally agreed-upon definition of free air, it is generally understood to mean an environment where the cable is not enclosed and is allowed to dissipate heat through natural convection. This is particularly relevant for overhead conductors between buildings, where the cable is exposed to the elements and can dissipate heat effectively.
In summary, free air is a term used to describe an environment that allows for heat dissipation and airflow around conductors, particularly in the context of electrical installations. It is the opposite of charged air, where the air is confined or forced, and heat may build up. Understanding free air is important for ensuring the safe and effective operation of electrical systems.
Electric Panel Sparking: What Does It Mean?
You may want to see also
Explore related products
Free air rating is applicable when the cable is not in a raceway
In the context of electrical systems, "free air" refers to an open or ventilated environment that allows for heat dissipation and airflow around an installed conductor. Free air rating is relevant when a cable is not enclosed in a raceway, and the cable spacing is at least one cable diameter apart. This means that the cable is not bundled, strapped, or zip-tied together, and there are no obstructions to airflow that could impact the ampacity of the conductor.
The National Electrical Code (NEC) has provided requirements for conductors in "free air" but had not explicitly defined the term until recently. The code-making panel struggled with the final language for the 2020 NEC, but the current definition of "free air" as applied to conductors is clear: it refers to an open or ventilated environment that enables heat dissipation and airflow.
When a cable is not enclosed in a raceway, it is essential to ensure that the cable spacing meets the requirements for free air to avoid overheating. This means that the cables should be at least one cable diameter apart, and there should be no insulation or building materials in contact with the conductor insulation for more than 75 mm (3 inches) for every 3 m (10 feet) of the conductor.
It is worth noting that multi-conductor cables do not qualify for free air, and the code does not address MCCs (motor control centers) and control panels. However, the rules for auxiliary gutters, which are defined as raceways, can be applied in these cases.
In summary, free air rating is applicable when a cable is not in a raceway, and it refers to the ability of heat to dissipate and air to move freely around the conductors. This requires specific cable spacing and the absence of enclosures or obstructions that could hinder airflow and impact the ampacity of the conductor.
Understanding the ABCs of Electrical Safety: What's 'M' Mean?
You may want to see also
Frequently asked questions
"Free air" refers to an open or ventilated environment that allows for heat dissipation and airflow around an installed conductor.
Conductors in cable trays or cable buses are considered to be in "free air". Multi-conductor cables do not qualify for "free air".
The ambient temperature of "free air" is around 30 degrees Celsius.
A "raceway" is a defined term in electrical codes, so it can be determined by process of elimination whether the "free air" or "raceway" ampacity applies. "Free air" is the opposite of "charged air".
If the air that is heated by the I^2R losses in the conductor is not the same air in the surrounding environment, then the conductor is not in "free air".
