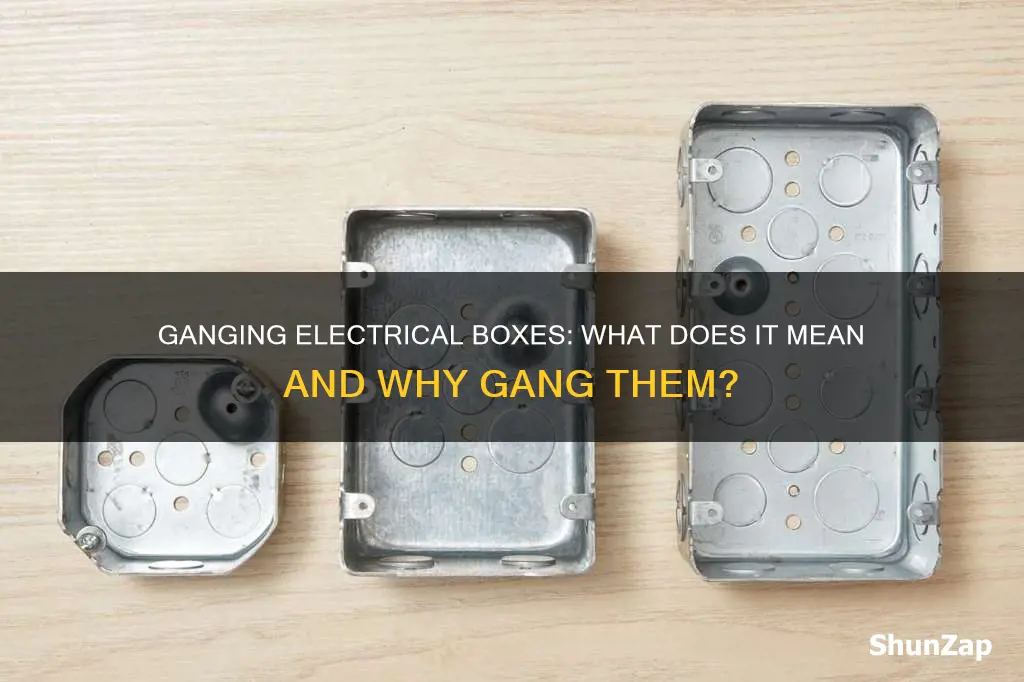

Electrical boxes are used to encase wire connections and protect them from short circuits, which can cause fires. They are usually made of metal or plastic and come in various shapes and sizes. Ganging refers to the process of joining two or more electrical boxes side by side to create a multi-gang box, such as a double-gang, triple-gang, or quad-gang box. This allows for the accommodation of multiple devices or switches and is often done through the use of gangable switch boxes with removable sides. Ganging provides flexibility in installing electrical devices and can be done with simple tools like a screwdriver. However, it is important to ensure that the number of wires in a gang does not exceed its safe fill capacity and that the installation complies with local codes and the National Electrical Code (NEC).
Characteristics and Values of Ganging Electrical Boxes
| Characteristics | Values |
|---|---|
| Definition | Ganging electrical boxes means connecting two or more single electrical boxes side-by-side to form a multi-gang box. |
| Types of Boxes | Standard rectangular boxes, round pan or pancake boxes, square boxes, junction boxes, and ceiling fan boxes. |
| Box Materials | Metal (aluminum, steel, cast iron), plastic, PVC, galvanized steel, and non-metallic materials. |
| Box Sizes | Single-gang, double-gang, triple-gang, or quad-gang boxes. |
| Box Functions | Encase wire connections, protect against short circuits, and ensure fire safety. |
| Junction Box Purpose | House and protect electrical connections, commonly using a 4-inch square box made of metal or strong plastic. |
| Safe Fill Capacity | The number of wires in the box should not exceed its safe fill capacity to avoid overfilling. |
| Installation | Requires a screwdriver for metal boxes and a professional electrician for complex installations. |
| Compliance | Must comply with the National Electrical Code (NEC) and local building codes for safe installation and use of matching covers. |
| Accessories | Brackets, cable clamps, and face plates. |
Explore related products
What You'll Learn
- Gangable electrical boxes can be made of durable galvanised steel or plastic
- Single electrical boxes can be ganged together to form a double, triple or quad-gang box
- Ganging electrical boxes together requires minimal tools, such as a screwdriver
- Electrical boxes are used for receptacles, ceiling fans, outside outlets and more
- Electrical boxes encase wire connections to protect them from short circuits
Gangable electrical boxes can be made of durable galvanised steel or plastic
Ganging electrical boxes mean that single electrical boxes can be connected side by side to form a double-gang, triple-gang, or even quad-gang box. Gangable electrical boxes are often made of durable galvanised steel. Steel is generally the metal of choice for metal electrical boxes, with aluminium being used for weatherproof outdoor boxes. Steel is also used in the construction of hollow walls, steel studs, and wall/ceiling straps.
However, some gangable electrical boxes are made of plastic. Plastic junction boxes are stamped with their approved volume, and they are relatively inexpensive. Plastic is also lighter and more flexible than steel, making plastic boxes easier to install. Plastic outdoor boxes are usually made from high-impact PVC, while plastic indoor boxes are PVC or fibreglass. Plastic electrical boxes are best for Romex or non-metallic cables.
Round pan or pancake boxes are shallow circular boxes used for ceiling- or wall-mounted light fixtures weighing no more than 50 pounds. These can be made of plastic or durable metal. Octagon and standard-size round boxes are deeper and can be used as junction boxes. Ceiling fan boxes are usually round but can be octagonal and are either made of metal or durable plastic.
Junction boxes are used to house and safely protect a structure's electrical connections. They are an essential part of the electrical wiring systems for homes and buildings.
Understanding Electric Flux: A Fundamental Concept in Electromagnetism
You may want to see also
Explore related products
Single electrical boxes can be ganged together to form a double, triple or quad-gang box
Electrical boxes are used to encase wire connections and protect them from short circuits, which can cause fires. They are vital for fire safety and are used for receptacles, ceiling fans, outside outlets, and more. Unless the device contains its own wires, it will likely need an electrical box.
Some electrical boxes are gangable, meaning that single electrical boxes can be connected (or "ganged") side-by-side to form a double-gang, triple-gang, or quad-gang box. Gangable electrical boxes are typically used to hold two, three, or four household switches and electrical outlets side by side. They are often made of durable galvanized steel, but some plastic snap-together options are also available at certain hardware stores. The only tool required for ganging together metal boxes is a screwdriver.
The "gang" terminology is used differently in the US and UK. In the US, "gang" generally refers to the physical size of the circuit box and the number of standard switches or receptacles the box can accommodate. For example, a double-gang box can hold two light switches or duplex receptacles. In the UK, "gang" refers to the number of switches on the plate of an electrical box, and the number of sockets. For instance, a 2-gang UK box has two sockets.
It is important to note that the number of wires in an electrical box should never exceed its safe fill capacity. Overfilling a junction box is dangerous and against the National Electrical Code (NEC). All electrical boxes must be installed with matching covers and should comply with local building codes and regulations.
Understanding Electric Panels: 2 50-Amp Breakers Explained
You may want to see also
Explore related products
![Flemoon [3 Pack] Outdoor Extension Cord Safety Cover with Waterproof Seal, Weatherproof Electrical Connection Box for Outdoor Outlet, Plug, Socket, Christmas Holiday Decoration Light, Yelllow](https://m.media-amazon.com/images/I/61plAvgWv8L._AC_UL320_.jpg)
Ganging electrical boxes together requires minimal tools, such as a screwdriver
Ganging electrical boxes together is a straightforward process that requires minimal tools, such as a screwdriver. The term "ganging" refers to the installation of two or more electrical outlets or switches in a single mount or box, allowing multiple devices to be powered from a confined area. This method simplifies wiring and saves space by eliminating the need for multiple individual boxes.
Gangable electrical boxes are available in various materials, including metal, plastic, fibreglass, and wood. Metal boxes, typically made of steel or aluminium, are durable and suitable for residential and commercial applications. Plastic boxes, on the other hand, are lighter, easier to work with, and ideal for indoor use, but they may not last as long as metal ones.
To gang electrical boxes together, you simply need to connect single boxes side by side to form a double-gang, triple-gang, or quad-gang box. This process is made easy by the design of gangable boxes, which have removable sides with a screw at one end and a tab that interlocks with the box body at the other. By removing the sides, you can expand a single box into a multi-gang box.
Ganging electrical boxes offer several advantages. They simplify wiring by centralizing connections from multiple devices, resulting in reduced clutter and a neater appearance. They also save time during installation by requiring fewer boxes and fewer holes drilled into walls. Additionally, ganging can maximize space utilization in confined areas and provide a more organized setup.
However, it is important to ensure that the total current capacity remains within safe limits when ganging electrical boxes. Overloading a single box can create fire hazards, so proper calculations and circuit breakers are necessary to manage the load effectively.
Electrical Wiring Abbreviation SW: What Does It Mean?
You may want to see also
Explore related products
Electrical boxes are used for receptacles, ceiling fans, outside outlets and more
Electrical boxes are essential for fire safety and are used to encase wire connections, protecting them from short circuits. They are used for receptacles, ceiling fans, outside outlets, and more. Unless a device contains its own wires, it will likely need an electrical box.
Electrical boxes come in various types, including gangable and non-gangable. Gangable electrical boxes have removable sides, allowing a single box to be expanded into a 2-gang, 3-gang, or 4-gang box, capable of holding multiple devices side-by-side. They are often made of durable galvanized steel, but plastic snap-together options are also available. Standard rectangular boxes, also known as "single-gang" or "one-gang" boxes, are typically used for single light fixture switches and outlet receptacles.
Round pan or pancake boxes are shallow circular boxes commonly used for ceiling- or wall-mounted light fixtures weighing up to 50 pounds. These boxes are typically only 1/2-inch or 3/4-inch deep and can be made of plastic or metal. Some specially rated metal pan boxes may be used for mounting ceiling fans, but not all are suitable for this purpose. Octagon and standard-size round boxes are deeper than round pan boxes and are the standard for ceiling- or wall-mounted light fixtures. They provide more room for wiring and can be used as junction boxes.
Square boxes, also known as "double-gang" boxes, can house two devices, such as a combination outlet/switch or a pair of outlets/switches. They are commonly used as junction boxes and can be installed in ceilings or walls to support lighting fixtures, light switches, or receptacles. Ceiling fan boxes require special fastening to withstand the dynamic loading of a rotating fan and should always be rated for the fixture's weight. They come in various sizes and materials to support different weights.
In addition to the above, there are also handy boxes, which mount on the surface of a wall and can contain light switches or receptacles. Junction boxes are another essential type of electrical box, used to house and protect a structure's electrical connections. They are typically made of metal or plastic and come in two sizes. New work boxes are installed as part of new construction, while old work boxes, or "remodeling boxes," are installed on existing drywall. Lastly, outdoor boxes are available in metal and non-metallic units for installation outside of walls.
Electrical Coupling Synapses: Understanding Their Unique Connection
You may want to see also
Explore related products
Electrical boxes encase wire connections to protect them from short circuits
Electrical boxes, also known as junction boxes, are essential for fire safety and are used to encase wire connections to protect them from short circuits. They are used for receptacles, ceiling fans, outside outlets, and more. Unless the device contains its own wires, it will likely need an electrical box.
Junction boxes are a standard type of electrical box that encloses wire splices and contains no device (like a receptacle). They are an essential part of the electrical wiring systems for homes and buildings. They are often made from metal or plastic and house and protect a structure's electrical connections. They come in two sizes and many shapes, including round, square, rectangular, shallow, weatherproof, and extension boxes.
The most commonly used box for junctions is a 4-inch square box, which offers ample space for making wire connections with multiple wires or cables. The number of wires in the electrical box should never exceed its safe fill capacity. Plastic junction boxes are stamped with their approved volume, whereas you may have to calculate the volume of a steel box yourself.
Standard rectangular boxes are the most common type of electrical box and can be metallic or non-metallic. They hold a single electrical switch or outlet. Single light fixture switches and outlet receptacles typically fit into these standard boxes, also known as "single-gang" or "one-gang" boxes. They are generally 2 x 3 inches in size, with depths ranging from 1 1/2 inches to 3 1/2 inches.
Round pan or pancake boxes are shallow circular boxes most commonly used for ceiling- or wall-mounted light fixtures that weigh no more than 50 pounds. These can be only 1/2-inch or 3/4-inch deep and made of plastic or durable metal. Octagon and standard-size round boxes are deeper than round pan boxes and are the standard box for ceiling- or wall-mounted light fixtures weighing up to 50 pounds.
Understanding Static Electricity's Biological Significance and Applications
You may want to see also
Frequently asked questions
Ganging electrical boxes means joining two or more boxes together to create a multi-gang box.
A gangable switch box is a modular box with removable sides, allowing a single box to be expanded into a multi-gang box.
A junction box is a standard electrical box used to enclose wire splices. It is an essential part of electrical wiring systems for homes and buildings, housing and protecting a structure's electrical connections.
A handy box mounts on the surface of a wall and can contain light switches or receptacles. A junction box, on the other hand, only connects wires to each other and not to switches, receptacles, or fixtures.
Electrical boxes encase wire connections to protect them from short circuits, which can cause fires. They are vital for fire safety and are used for various applications, including receptacles, ceiling fans, and outside outlets.
