GEC stands for Grounding Electrode Conductor. It is a wire that connects the system grounded conductor or equipment to a grounding electrode or a point on the grounding electrode system. In simpler terms, it is the wire that goes from the service point to the ground. All grounding electrodes present must be bonded together.
Explore related products
What You'll Learn
Grounding Electrode Conductor (GEC)
In simple terms, the GEC is the wire that connects electrical equipment to the ground, usually through a grounding electrode. This electrode can take various forms, such as a ground rod, a water pipe, or another object that is physically connected to the earth. The GEC is distinct from the Equipment Grounding Conductor (EGC), which is the wire that connects to the external metal parts of equipment and provides a path for fault currents to flow back to the source.
The GEC plays a critical role in ensuring the safety and stability of electrical systems. By providing a direct connection to the ground, it helps to prevent electrical shocks, reduce electrical noise, and protect equipment from power surges or lightning strikes. In the event of a fault or excess voltage, the GEC allows excess electrical charge to dissipate safely into the earth, minimising the risk of damage to equipment or harm to users.
In some cases, multiple grounding electrodes may be present in a system, such as when there are both ground rods and metal water pipes connected to the ground. In such scenarios, it is essential that all grounding electrodes are bonded together to ensure proper functionality. This means that a GEC would be run to each grounding electrode, creating a continuous and effective grounding path.
The specific requirements for GEC installation, including the termination points and bonding methods, may vary depending on local electrical codes and standards. However, the fundamental purpose of the GEC remains the same: to provide a reliable and safe connection between electrical systems or equipment and the grounding electrode system.
Troubleshoot Electrical Interference on Your TV
You may want to see also
Explore related products
GEC is a wire
GEC stands for Grounding Electrode Conductor. It is a wire that connects the system grounded conductor or equipment to a grounding electrode or a point on the grounding electrode system. All grounding electrodes present must be bonded together.

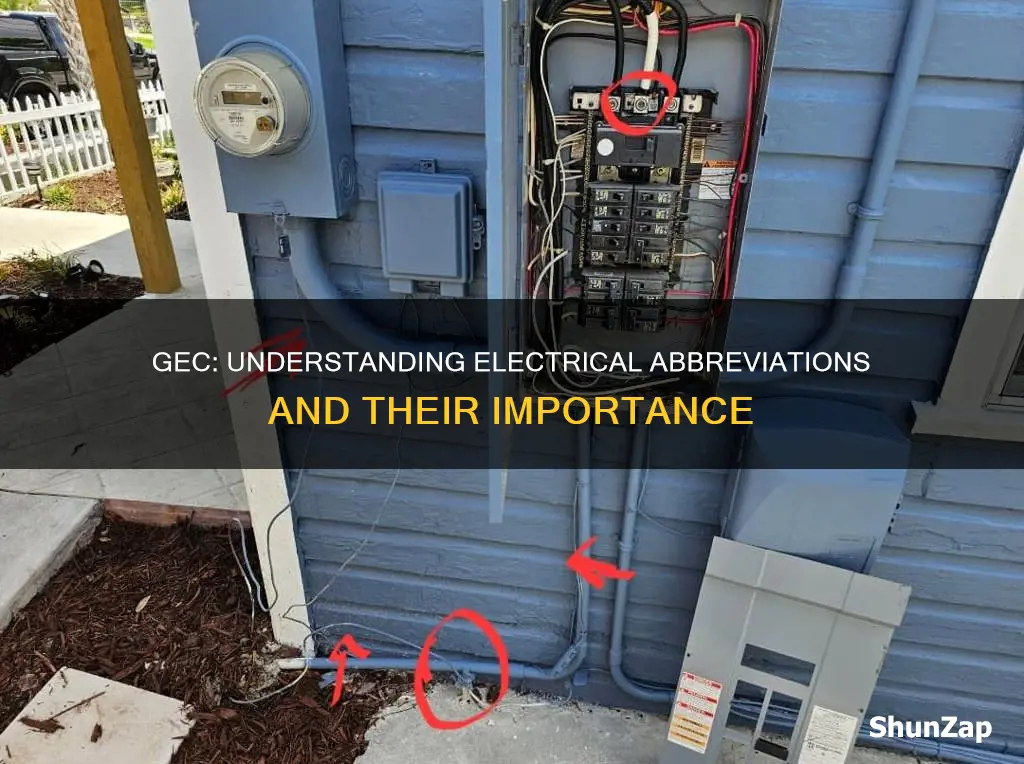

The GEC is a wire that runs from the service point to the ground. It is used to connect the grounded conductor of a wiring system or equipment to a grounding electrode, which is typically a metal rod that is driven into the earth. This connection helps to safely divert any electrical current that may be flowing due to a fault in the wiring system or equipment, providing a path for it to dissipate into the ground.
In electrical systems, it is crucial to ensure that any excess electrical current has a safe path to follow in the event of a fault. This is where the GEC comes into play. By connecting the grounded conductor or equipment to a grounding electrode, the GEC provides a low-resistance path for excess current to flow, helping to prevent electric shocks, fires, or damage to equipment.
The GEC is distinct from the EGC (Equipment Grounding Conductor), which is the green wire attached to the external metal parts of equipment. The EGC provides a path for fault currents to flow back to the source, often referred to as the "safety ground". While both the GEC and EGC are essential for the safe operation of electrical systems, they serve different purposes and are connected to different components.
In some cases, there may be multiple grounding electrodes present, such as a metal water pipe and ground rods. In these situations, it is important to bond all the electrodes together to create a unified grounding electrode system. The GEC would then be connected to one of these electrodes, typically the metal water pipe.
Garden Lighting: Running Electric Cable Safely and Efficiently
You may want to see also
Explore related products
GEC connects to a grounding electrode
GEC stands for Grounding Electrode Conductor. It is a conductor that connects the grounded conductor or equipment to a grounding electrode or a point on the grounding electrode system. The GEC is a wire that runs from the service point to the grounding electrode, which is typically a ground rod or another object that is inserted into the ground.
The purpose of the GEC is to provide a path for electrical current to flow safely into the ground, protecting the equipment and personnel in the event of a fault. All grounding electrodes present in a system must be bonded together, and a GEC should be run to each electrode. This ensures that if one electrode is disconnected or becomes non-functional, the others can still provide a path to ground.
The GEC is an essential component of electrical systems, especially in residential and commercial buildings, where it helps prevent electrical shocks and equipment damage. It is also used in solar photovoltaic (PV) systems to ensure safe grounding.
When installing a GEC, it is important to consider the size of the conductor, as specified in the National Electrical Code (NEC) Tables 250.102(C)(1), 250.122, and 250.66. The size of the GEC depends on factors such as the current-carrying capacity, the material of the conductor, and the connection to specific electrodes.
In summary, the GEC plays a crucial role in electrical systems by providing a safe path for electrical current to flow into the ground, protecting both equipment and people. Proper installation and sizing of the GEC are essential to ensure its effectiveness and compliance with electrical codes and standards.
Understanding SA and UL Electrical Safety Standards
You may want to see also
Explore related products
Grounding electrode system
Grounding Electrode Conductor (GEC) is a wire that connects the system-grounded conductor or equipment to a grounding electrode or point. The grounding electrode is a critical component of any electrical system, providing a safe path for fault currents to flow back to the source and protecting equipment and people from electrical hazards.
The National Electric Code specifies requirements for grounding electrodes to ensure safe and effective grounding. These electrodes must be tested to ensure they have a resistance-to-ground of less than 25 ohms. Aluminum electrodes are prohibited due to their inferior conductivity compared to other metals.
There are several types of grounding electrodes, each with unique advantages and considerations:
Driven Rods: Driven rods, typically made of steel with a copper coating, are the most common type of grounding electrode. They are relatively inexpensive and have a long history of use, dating back to the early days of electricity. The ease of installation depends on the soil type and terrain.
Ufer Grounds: This type of grounding electrode utilises the building's foundation, provided the concrete is in direct contact with the earth and meets specific requirements for concrete conductivity and rebar diameter. While Ufer grounds can handle high current loads due to their large surface area, fault currents can cause superheating and expansion, potentially damaging the building's foundation.
Water Pipes: City water pipes can serve as grounding electrodes if certain conditions are met, including direct contact with the earth and the use of bonding jumpers around insulating joints. However, water departments have started installing plastic insulators to prevent current flow and reduce corrosion, limiting their effectiveness as grounding electrodes.
Active Electrodes: Active electrodes use an electrolytic solution and backfill material to create a solid connection between the electrode and soil, free from environmental and corrosion effects. They are the only type of grounding electrode that improves with age, but they come with higher installation and material costs.
By understanding the purpose and characteristics of each type of grounding electrode, electrical systems can be safely grounded, ensuring the protection of equipment and individuals working with or around electrical equipment.
Electrically Rated Tools: What's in a Name?
You may want to see also
Explore related products
GEC and EGC differences
GEC stands for Grounding Electrode Conductor, while EGC stands for Equipment Grounding Conductor.
GECs are used to connect the system-grounded conductor or equipment to a grounding electrode, often a ground rod, or something stuck into the dirt. The wire goes from the service point to the grounding electrode.
EGCs, on the other hand, are used to ground the non-current-carrying metal parts of equipment and metal enclosures. They are connected to the grounded conductor at the service, which is connected to the earth. EGCs provide a low impedance path for fault currents to flow back to the source in the event of a fault. This ensures that the overcurrent device, such as a fuse or circuit breaker, is activated, providing safety and protecting equipment.
EGCs are vital to the overall electrical system and are often green in colour, or green with yellow stripes. They are sized based on the size of the overcurrent protection device and must conform to specific rules and guidelines.
To summarise, GECs are used to connect to a grounding electrode, while EGCs are used for equipment grounding and providing a safe path for fault currents.
Adjusting Electric Trailer Brakes: A Guide for Australians
You may want to see also
Frequently asked questions
GEC stands for Grounding Electrode Conductor.
A GEC is a conductor used to connect the system grounded conductor or equipment to a grounding electrode.
A grounding electrode is a metal water pipe or ground rod that is stuck into the dirt.
A GEC terminates at the grounding electrode. All grounding electrodes present must be bonded together.
An EGC is the wire from neutral to cabinet or enclosure, whereas a GEC is the wire from the panel to the ground rod or water pipe.
