Electrical grounding is a critical safety measure in electrical systems and installations. It involves connecting a conducting object, like a copper wire or metal rod, from the electrical panel to the earth's surface, which serves as a ground. This provides a low-resistance path for excess electrical current to flow to the earth instead of through the electrical device or equipment, protecting the system from electrical shock, fires, and other hazards. Grounding is particularly important when working with electrical equipment to prevent accidents or injuries.
| Characteristics | Values |
|---|---|
| Definition | A method of providing a low-resistance path for electrical current to flow to the earth. |
| Purpose | To ensure electricity is safely discharged, to prevent build-up and the risk of electrical shock, electrocution, and fires caused by voltage spikes or short circuits. |
| Use | Electrical grounding is an essential part of every electrical system. It is used in electrical supply systems, medical equipment, construction sites, audio/video production equipment, power transmission circuits, and residential dwellings. |
| Implementation | Connecting a conducting object, like a copper wire or metal rod, from the electrical panel to the earth's surface. |
| Safety | Grounding is a critical safety measure that protects individuals and equipment from harm. It helps to prevent electrical shock, fires, and other hazards such as electrostatic discharge (ESD). |
| Circuit Return Path | Grounding provides a circuit return path for excess electricity to safely exit using the neutral and copper wires in case of wiring issues. |
| GFCI | A GFCI (ground-fault circuit interrupter) can be installed to sense ground faults and shut off the power, making an ungrounded outlet safer. |
| Bonding | The practice of intentionally electrically connecting metallic items not designed to carry electricity, bringing them to the same electrical potential for protection from electrical shock. |
| Isolation | A mechanism that defeats grounding, used with low-power consumer devices or when working on circuits that would normally be operated using the power line voltage. |
Explore related products
What You'll Learn
Grounding provides a safe route for excess electricity to exit
In the world of electricity, safety is paramount. Grounding is an essential safety measure in any electrical system, providing a low-resistance path for excess electrical current to flow to the earth, which is a large conductor. This prevents the excess current from flowing through the electrical device or equipment, which could lead to electrical shock, fire, or other hazards.

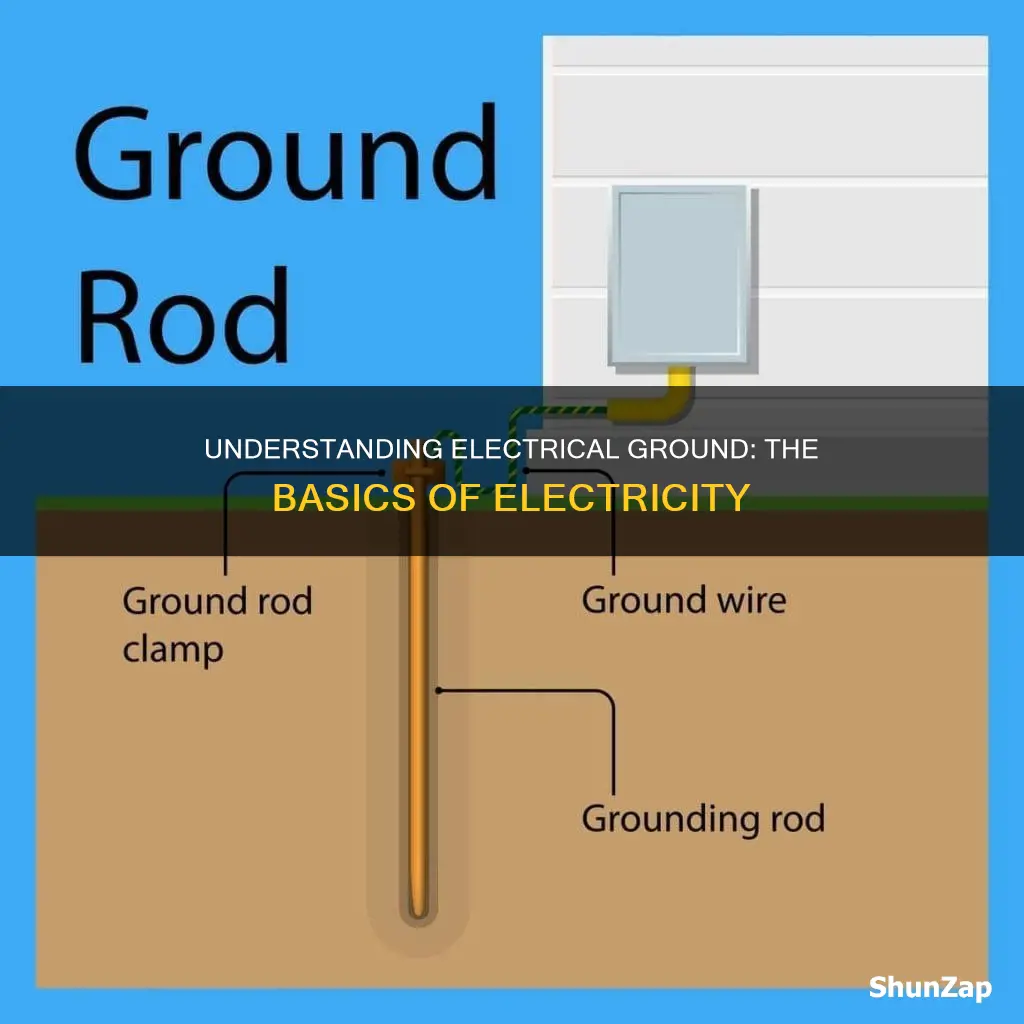

The Earth, with its large conductive surface, serves as a "ground" in electrical systems. Grounding involves connecting a conducting object, such as a copper wire or metal rod, from the electrical panel to the Earth's surface. This creates a safe and stable path for excess electricity to exit.
In a home electrical system, grounding wires run parallel to the hot and neutral wires, providing an alternate pathway for electrical current in case of a breakdown, loose wire connection, or damage. This grounding pathway is formed by a system of bare copper wires connected to every device and metal electrical box in the home. The grounding wires terminate in a grounding bar in the main service panel, which is then connected to a rod deep underground outside the home.
Grounding provides a backup path for excess electricity to safely exit the system. It is a crucial aspect of electrical safety, protecting people and equipment from electric shock, lightning strikes, and electrical noise. Proper electrical grounding ensures a safer and more reliable environment, reducing the risk of electrical fires and other hazards.
