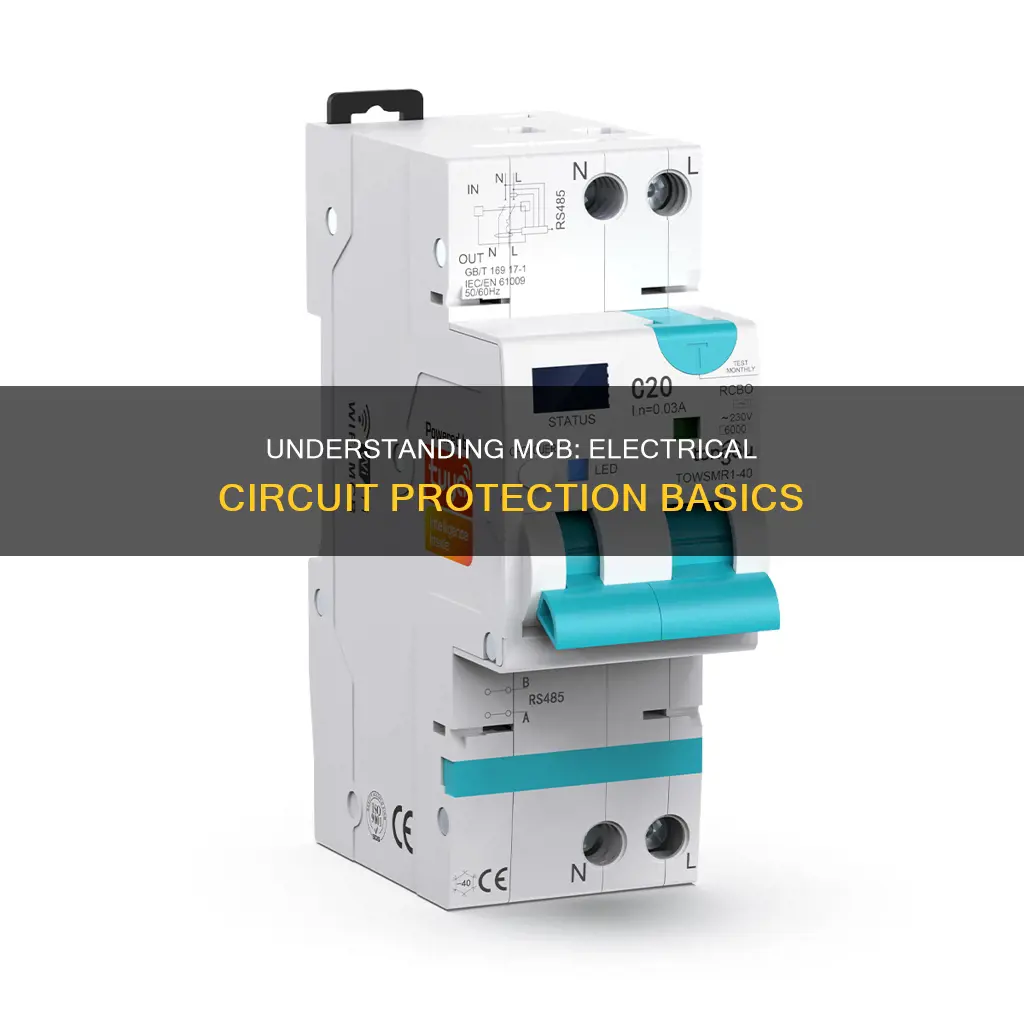

In electrical terms, MCB stands for Miniature Circuit Breaker, an electromechanical device that protects electrical circuits from overloading and short circuits. MCBs are an essential safety feature in both residential and industrial applications, preventing electrical faults and potential fires by acting as a safety switch that automatically shuts off the current when it exceeds a certain threshold. With the ability to be easily reset, unlike traditional fuses, MCBs have become indispensable in modern electrical systems, providing peace of mind and ensuring swift and effective responses to electrical issues.
| Characteristics | Values |
|---|---|
| Full Form | Miniature Circuit Breaker |
| Function | Monitors the flow of electrical current in a circuit and acts as a barrier when the current exceeds a certain threshold |
| Types | Thermal for overload and magnetic for short circuits |
| Usage | Used in both residential and industrial setups |
| Current Ratings | 1A to 63A |
| Protection | Protects electrical circuits from overloads and short circuits |
| Reset | Can be reset easily |
| Safety | Acts as a safety switch, ensuring the circuit doesn't overheat or cause a fire |
Explore related products
What You'll Learn
MCB stands for Miniature Circuit Breaker
In electrical terms, the primary function of an MCB is to monitor the flow of electrical current in a circuit and act as a barrier when the current exceeds a certain threshold. This threshold is preset according to the MCB's rating, and they are available in various current ratings, typically ranging from 1A to 63A, to accommodate different electrical applications. MCBs are designed to protect against two different types of over-current: overload and short circuit. When an overload occurs, a bi-metallic strip in the MCB rapidly heats and bends, releasing a mechanical latch that breaks the circuit. A short circuit, on the other hand, causes a sudden rise in electric current, triggering a plunger within the MCB to strike the trip lever and break the circuit.
MCBs have largely replaced traditional fuse wires as a safety measure in electrical circuits. Fuses were designed to melt and break the circuit during an over-current event, but they had to be completely replaced after each incident. MCBs, on the other hand, are reusable and much easier to use and maintain. They can be easily reset after tripping, reducing the need for frequent interventions by electricians. Additionally, MCBs offer the convenience of 'on/off' switching for circuit isolation, enhancing their usability and safety.
The use of MCBs is crucial in both residential and industrial applications. In homes, they protect against common issues like overloaded circuits, where multiple devices draw more current than the wiring can handle. They are especially important in modern households with numerous electronic appliances, as they prevent overheating and potential fires. In industrial settings, MCBs are essential for safeguarding larger electrical infrastructures, such as factories and commercial buildings, where the stakes are higher in terms of safety and continuity.
Overall, MCBs play a critical role in ensuring electrical safety and preventing electrical hazards. By automatically shutting off the circuit during abnormal conditions, they provide reliable protection for electrical systems and devices, contributing to the overall reliability and peace of mind for users.
Understanding LRA: Electrical Term for Inductance and Motor Starting
You may want to see also
Explore related products
MCBs protect electrical circuits from overloading and short circuits
MCB stands for Miniature Circuit Breaker, a device used to protect electrical circuits from overloading and short circuits. It acts as a safety switch, ensuring the circuit does not overheat or cause a fire.
In the event of an overload or short circuit, the MCB automatically shuts off the current, preventing damage to the system. This is achieved through two protective features: thermal for overload and magnetic for short circuits. When an overload occurs, a bi-metallic strip within the MCB rapidly heats and bends, releasing a mechanical latch that breaks the circuit. A short circuit, on the other hand, causes a sudden rise in electric current, activating a plunger that strikes the trip lever and releases the latch mechanism, breaking the circuit.
MCBs are available in various current ratings, typically ranging from 1A to 63A, to accommodate different electrical applications. They are commonly used in residential, commercial, and industrial settings to protect wiring and appliances from electrical faults. For example, Type B MCBs are suitable for general use with a mix of regular devices, while Type C MCBs are ideal for circuits with moderate inductive loads, and Type D MCBs are designed for circuits with high inrush currents.
The evolution of MCBs has significantly improved electrical safety standards, providing automatic protection against electrical faults. They offer consistent performance, ensuring the safety of electrical circuits over time. Additionally, MCBs contribute to system reliability by allowing individual circuits to be isolated during faults, minimizing downtime and enabling quicker repairs.
Electrical Acronyms: JW and Its Meaning in the Industry
You may want to see also
Explore related products
MCBs are safer and more cost-effective than fuse wires
MCB stands for Miniature Circuit Breaker, a device used to protect electrical circuits. They are widely used in both residential and industrial setups to ensure electrical safety.
MCBs are safer than fuse wires as they are covered in a plastic casing, so users are not exposed to electrical parts directly. In contrast, fuse wires need to be replaced when they melt during an overload, increasing the likelihood of direct contact with a live wire. MCBs are also more sensitive to current abnormalities, allowing them to detect issues faster and respond more quickly.
In addition to safety benefits, MCBs are more cost-effective than fuse wires. While fuse wires need to be replaced after each incident, MCBs can be easily reset, reducing maintenance costs and the need for frequent electrician interventions.
MCBs also contribute to overall system reliability. They can isolate individual circuits during a fault, minimising downtime and allowing for quicker repairs without affecting the entire electrical setup. This feature is particularly advantageous in industrial settings, where operational continuity is crucial.
In summary, MCBs offer superior safety, longevity, ease of use, and cost-effectiveness compared to fuse wires. Their ability to protect against electrical faults while minimising disruption makes them an indispensable part of modern electrical systems.
Electrical Plug Feels Hot: What Could Be the Cause?
You may want to see also
Explore related products
MCBs are available in various current ratings
MCB stands for Miniature Circuit Breaker. It is a device used to protect electrical circuits from damage caused by excess electrical current. MCBs are available in various current ratings, typically ranging from 1 Amp to 63 Amps, to accommodate different electrical applications, from lighting circuits to larger appliances.
The different types of MCBs include Type B, Type C, Type D, and Type K, each with varying levels of sensitivity and surge capacity. Type B MCBs are commonly used in residential properties or industrial units with small-scale operations. They are considered the most sensitive type due to their lower tolerance for voltage shifts, making them ideal for residential spaces where current surges and fluctuations are typically less intense.
Type C MCBs are often used in devices with high power consumption requirements, such as electrical motors and fluorescent lighting. They offer higher protection and have a greater capacity to handle surges compared to Type B. Type D MCBs are the least sensitive type and are designed for heavy-duty commercial and industrial devices that experience occasional strong current surges, such as welding equipment, X-ray machines, and large motors. Type K MCBs are suitable for large load devices as they can hold up to 8-12 times the initial charge.
The choice of MCB type and current rating depends on the specific application and the expected current load. For example, a 6 Amp MCB is typically used for standard lighting systems, while a 16 Amp MCB is common for boilers and other high-energy heating systems. MCBs are an essential safety feature in modern electrical systems, providing automatic protection against electrical faults and ensuring peace of mind for homeowners and businesses alike.
Understanding Electrical Device Burning and Its Implications
You may want to see also
Explore related products
MCBs are integral to modern electrical systems
MCB stands for Miniature Circuit Breaker, a device used to protect electrical circuits. In electrical terms, MCBs are integral to modern electrical systems for several reasons.
Firstly, they act as a safety mechanism to prevent electrical faults and potential fires. When there is an overload or short circuit, the MCB automatically shuts off the current, protecting the electrical circuit and preventing damage to the system. This is especially important in modern households and industrial settings with multiple electronic appliances, as an overload can lead to overheating and potential fires.
Secondly, MCBs provide selective protection, allowing individual circuits to be isolated during a fault. This minimizes downtime and disruption, as only the affected circuit is tripped, and repairs can be made quickly without affecting the entire electrical setup. This feature is advantageous in both residential and commercial environments, where continuity of operations is crucial.
Thirdly, MCBs are easy to reset and reuse after they trip, reducing the need for frequent interventions by electricians. This reusability sets them apart from traditional fuses, which needed to be completely replaced when blown. The convenience of an 'on/off' switch in MCBs also makes them safer and easier to use and isolate circuits.
Finally, MCBs are widely available in various current ratings, typically ranging from 1A to 63A, making them suitable for different electrical applications. They can be used in most domestic wiring installations, such as lighting circuits, boilers, and high-energy heating systems, as well as larger industrial applications.
In summary, MCBs are integral to modern electrical systems due to their reliability, ease of use, and ability to provide automatic protection against electrical faults, ensuring the safety and efficiency of electrical systems in both residential and industrial contexts.
Electric Shock in Beer Pong Explained
You may want to see also
Frequently asked questions
MCB stands for Miniature Circuit Breaker.
The primary function of an MCB is to monitor the flow of electrical current in a circuit and act as a safety switch when the current exceeds a certain threshold.
When an overload occurs, the MCB is fitted with a bi-metallic strip that rapidly heats and bends, releasing a mechanical latch that breaks the circuit. In the case of a short circuit, there is a sudden rise in electric current, causing a plunger within the MCB to strike the trip lever, which breaks the circuit.
MCBs have largely replaced traditional fuses as they are reusable, safer, and easier to use and replace. Fuses need to be completely replaced after an overload, whereas MCBs can be reset.
MCBs are of three types: thermal for overload protection and magnetic for short-circuit protection. The third type is a combination of thermal and magnetic protection.
