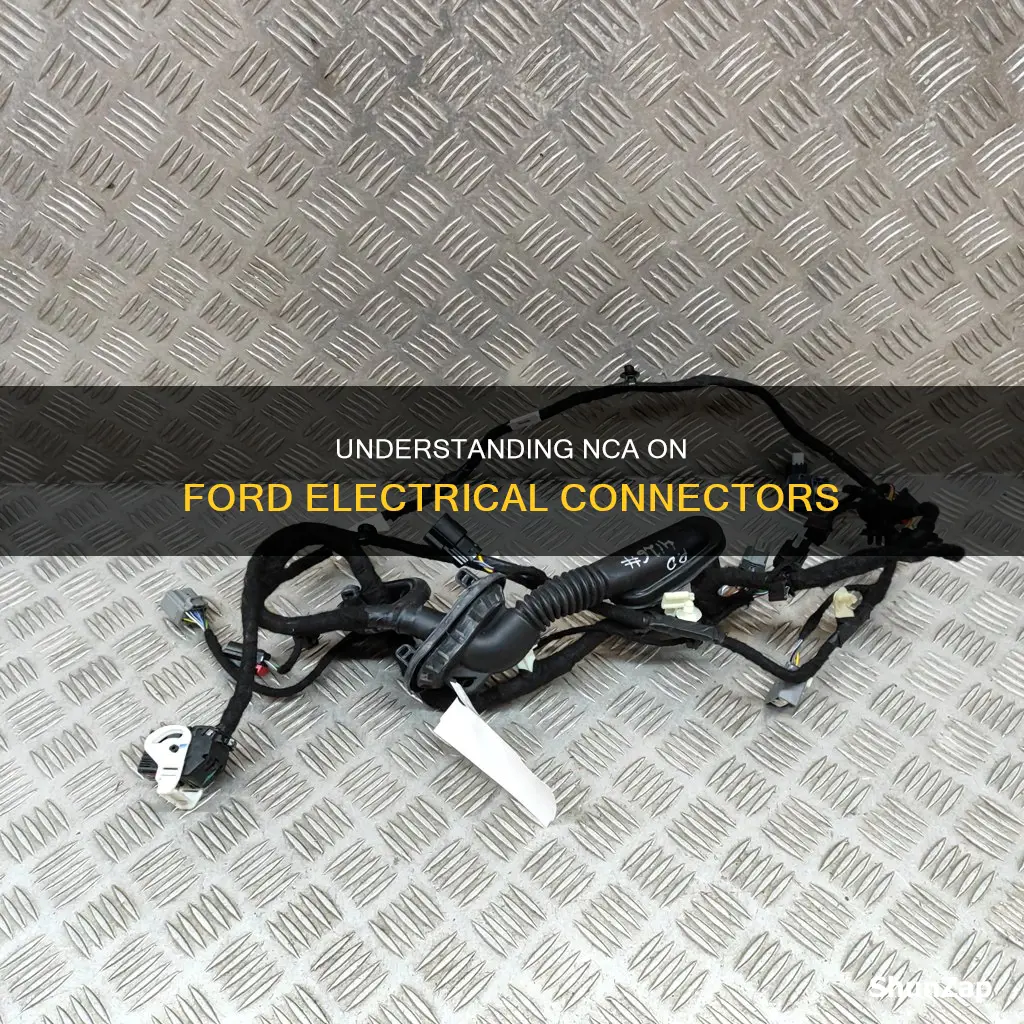

NCA is a denotation that can be found on wiring diagrams for automobiles, including Ford trucks and Honda motorcycles. It stands for No Color Assigned, No Color Available, or No Colour Attributed, indicating that the wires with this label can be various colours, depending on the make and model of the vehicle. This label is used for wires that are not visible within shielded cables, and it is important to understand its meaning when working on automotive electrical systems or creating wiring harnesses from scratch.
Explore related products
What You'll Learn
NCA means 'No Colour Assigned'
In the context of Ford electrical connectors, NCA most commonly stands for "No Colour Assigned" or "No Colour Available". This terminology is used in wiring diagrams, where it refers to uninsulated wires that are wrapped with a twisted, insulated pair. These wires are often shielded to protect against electrical interference and are typically not visible inside the shielded cable.
The use of "No Colour Assigned" or "No Colour Available" in wiring diagrams indicates that the wires with this denotation can have various colours, and it is not specific to one particular colour. This notation is important for electricians and mechanics to understand when working with electrical connectors, as it provides information about the wire's function and properties, rather than its colour, which may vary.
In some cases, NCA wires may be assumed to be black, as black is a common colour for heavily insulated wires, such as battery/starter cables. However, this assumption may lead to confusion, as black wires are also used for other purposes, and the NCA designation does not specify a particular colour.
It is worth noting that the symbol used in the wiring diagram to represent NCA may not always be accurate or standardised. For example, in the case mentioned, the symbol should illustrate that the wire is twisted, but it does not. This can make it challenging to interpret wiring diagrams accurately, and it is important to refer to other sources of information, such as manuals or expert advice, to ensure correct identification and handling of NCA wires.
Understanding the meaning of NCA in Ford electrical connectors is crucial for anyone working on wiring projects involving these vehicles. By recognising that NCA stands for "No Colour Assigned" or "No Colour Available", individuals can make informed decisions about wire selection, installation, and maintenance, ensuring the proper functioning and safety of the electrical systems in Ford vehicles.
Legs Down: Electrical Safety and You
You may want to see also
Explore related products
NCA wires are shielded to protect against electrical interference
NCA, which stands for "No Colour Assigned", refers to uninsulated wires in Ford electrical connectors. These wires are wrapped with a twisted, insulated pair for the PIP module. To protect against electrical interference, NCA wires are shielded.
The shield on NCA wires is designed to prevent electrical interferences that can be caused by outside sources. This type of shield is typically used for wires that carry very low currents or voltages, which are more susceptible to disruption by external influences. It is important that this shield is grounded at only one point. If it is grounded at multiple points, it could complete an electrical path, induce current flow, and interfere with the signal transmitted on the conducting wires.
A break in the insulation of the wire could also cause issues if the shield comes into contact with a potential grounding point. As a result, it is crucial that the shield is only grounded once to ensure the proper functioning of the electrical system.
In addition to the shielding, NCA wires are also twisted, with approximately 60 twists per foot. This twisting further helps to protect against electrical interference by creating a physical barrier that blocks outside interference. Overall, the shielding and twisting of NCA wires work together to ensure the reliable and safe operation of the electrical systems in Ford vehicles.
Understanding LP in Electrical: What Does It Mean?
You may want to see also
Explore related products
$9.39 $12.99
NCA wires can be various colours, but are often black
NCA wires are typically uninsulated and are wrapped with a twisted, insulated pair for the PIP module. They are often shielded to protect against electrical interferences, particularly for wires that carry very low current or voltage.
In wiring diagrams, NCA is used to indicate that the wire does not have a specific colour assigned to it. This is common for wires that are not visible inside shielded cables, as is the case for some Mercedes models.
In some cases, NCA may refer to battery/starter cables that are heavily insulated with generic black. This could be to avoid confusion with other colour-coded wires, as black is already a commonly used colour for these types of wires.
It is important to note that the specific meaning of NCA may vary depending on the vehicle make and model, as well as the context in which it is used in the wiring diagram or manual.
Grounding Objects: Electrical Safety and Functionality
You may want to see also
Explore related products
NCA wires carry a low current/voltage
NCA, or No Colour Assigned/Available, refers to uninsulated wires that are wrapped with a twisted, insulated pair. These wires are typically shielded to protect against electrical interference. This type of shielding is used for wires that carry a low current/voltage and can be easily disrupted by outside interference.
The NCA wires are often grounded, but it is important to only ground them at one point. If the shield is grounded at multiple points, it could complete an electrical path and induce current flow, which would interfere with the signal being transmitted on the conducting wires. This issue could be caused by a break in the insulation if the shield comes into contact with a potential grounding point.
In a wiring diagram, NCA is marked on both ends of a line that does not connect to the others and only has a dotted circle. This line is typically shielded, with the circle and dot representing the shielding, and the lines within the circle representing the wires being shielded.
NCA wires are not limited to a specific colour and can be found in various colours, including black. However, using black for NCA wires can be confusing as it is already commonly used for battery/starter cables.
Electrical Acronyms: JW and Its Meaning in the Industry
You may want to see also
Explore related products
NCA wires should only be grounded at one point
NCA, which stands for "No Color Assigned" or "No Color Available", is a denotation used for wires in electrical connectors. These wires are uninsulated and are wrapped with a twisted, insulated pair. A foil shield surrounds all three wires (the two twisted insulated wires and the bare wire), making physical contact with the bare wire at various points along the length of the assembly.
The NCA wires should only be grounded at one point. Grounding at multiple points can complete an electrical path, induce current flow, and interfere with the signal transmitted on the conducting wires. This issue can arise if there is a break in the insulation and the shield comes into contact with a potential grounding point.
It is important to understand the difference between bonding and grounding. Bonding refers to connecting pieces of equipment to establish electrical continuity and conductivity, while grounding involves connecting to a grounding electrode or a point on the grounding electrode system.
In the context of NCA wires, ensuring that they are only grounded at one point helps to maintain the integrity of the electrical signal being transmitted and prevents unwanted interference or current flow.
Additionally, it is worth noting that the shield surrounding NCA wires is typically used for wires carrying very low current or voltage. This shield protects against electrical interferences, ensuring the reliable transmission of signals.
Understanding 'LS' in Electrical Wiring: A Comprehensive Guide
You may want to see also
Frequently asked questions
NCA stands for "No Color Assigned", "No Color Available" or "No Colour Attributed". This means that wires with the NCA denotation can be many different colours, and are usually black.
The symbol for NCA is 3 parallel lines, with one of the lines having a dot in it, and a dotted circle around all 3 lines.
NCA wires are uninsulated (bare) wires that are wrapped with a twisted, insulated pair. They are shielded to protect against electrical interferences and carry low current/voltage.
NCA wires are typically used for the PIP module in Ford vehicles. They are also found in the EZL module of Mercedes-Benz vehicles.
