An open ground is an electrical fault that occurs when a three-prong receptacle is not connected to an equipment grounding conductor. This can be due to a missing grounding conductor or a disconnected ground wire. It is commonly found in older homes that have replaced two-prong outlets with three-prong receptacles without adding a grounding conductor. Open grounds can also be found in newer homes due to mistakes during construction or a disabled grounding conductor. While an open ground may not always cause harm, it increases the risk of electrocution and can lead to dangerous situations, such as equipment becoming energised. To identify an open ground, a tester or outlet voltmeter can be used, which will indicate a lack of voltage between the hot and ground wires. Once identified, it is important to repair an open ground to ensure safety and comply with electrical codes.
Characteristics and Values Table for Open Ground
| Characteristics | Values |
|---|---|
| Definition | A three-prong receptacle that is not connected to an equipment grounding conductor. |
| Identification | An outlet tester will show a light-up code to indicate an open ground. |
| Safety | Open grounds are unsafe and can cause electrical shock, electrocution, or house fires. |
| Causes | Old two-prong receptacles replaced with modern three-prong receptacles without adding a grounding conductor. |
| Common in | Houses built before the 1962 electrical code. |
| Repair Options | Install a ground fault circuit interrupter (GFCI) for shock protection or run a new ground wire to the main panel for comprehensive protection. |
| National Electrical Code | Equipment grounds are code-enforced, and non-compliance may affect home insurance and saleability. |
Explore related products
$21.98 $24.97
What You'll Learn
- Open ground means there is no grounding conductor at the receptacle
- This can cause a dangerous situation, as equipment could become energised
- Open grounds are common in houses built before 1962
- You can identify an open ground using an outlet tester
- GFCI outlets can be used to protect against shock, but they won't protect equipment
Open ground means there is no grounding conductor at the receptacle
An open ground means there is no grounding conductor at the receptacle. This is unsafe because appliances designed to discharge unsafe electrical faults onto a grounding conductor will not have a conductor to discharge the fault. This could lead to equipment damage, or shock or electrocution of anyone in contact with the equipment.
Open grounds are common in houses built before the adoption of the 1962 electrical code, which required grounding conductors. In these older houses, two-prong receptacles were often replaced with modern three-prong receptacles without adding a grounding conductor, creating an open ground. Open grounds can also be found in newer houses where the equipment grounding conductor has been disabled or was mistakenly not connected.
To identify an open ground, you can use an outlet tester or physically check that the ground wire is connected to the outlet. If you identify an open ground, you can repair it by running an equipment ground to the receptacle and connecting it to the grounding electrode system. Alternatively, you can protect the circuit with GFCI protection, either by installing GFCI receptacles or GFCI-protected circuit breakers at the electric panel. GFCI protection will not replace grounding and will not protect your equipment in the case of a surge, but it is a relatively inexpensive and effective repair.
Understanding Electrical Wiring: What Does 'L' Mean?
You may want to see also
Explore related products
This can cause a dangerous situation, as equipment could become energised
An open ground is when you have a three-prong receptacle that is not connected to an equipment grounding conductor. This is unsafe because an appliance that is designed to use an equipment ground to discharge an unsafe fault condition will not have a conductor to discharge that fault. The third prong provides a path to the ground through which the electric current travels. Most major appliances, such as stoves, refrigerators, and computers, have three-prong plugs, meaning they must be grounded through the receptacle. If there is no grounding conductor at the receptacle, there is a danger of possible shock or electrocution and damage to the equipment.
To protect against shock and damage to equipment, you can install a ground fault circuit interrupter (GFCI) receptacle. This will protect people from possible shock, but the equipment can still be damaged. If you want to protect the equipment as well, you must run a new ground wire from the receptacle back to the main panel. Alternatively, you can protect the circuit with GFCI protection by installing GFCI receptacles or GFCI-protected circuit breakers at the electric panel. GFCI protection is designed to trip a circuit when it detects fault conditions, and it will function properly on a two-wire system. However, it is important to note that GFCIs do not replace grounding and are simply a way to make an ungrounded outlet safer. All outlets must be marked with "No Equipment Ground".
To identify an open ground, you can use an outlet tester, which will show a light-up code to indicate if there is an open ground. Once an open ground is identified, you can begin to repair it. It is important to turn off the power to the room or outlet before attempting any repairs. If you are not comfortable or confident in performing the repairs yourself, you should contact a licensed electrician for help.
Electrical Neutrality: What Does It Mean?
You may want to see also
Explore related products
Open grounds are common in houses built before 1962
An open ground means that there is no grounding conductor at the receptacle, which is dangerous because it could lead to possible shock or electrocution and damage to equipment. This often occurs in older homes that previously had ungrounded 2-prong outlets that were replaced with 3-prong receptacles without grounding conductors.
If you have a three-prong outlet, you can install a ground fault circuit interrupter (GFCI) receptacle to protect people from possible shock. However, this will not protect equipment from damage. To do this, you must run a new ground wire from the receptacle back to the main panel. Alternatively, you can run grounds to all outlets, or run a new wire.
Kickstart Electric Scooters: Understanding the Basics
You may want to see also
Explore related products
You can identify an open ground using an outlet tester

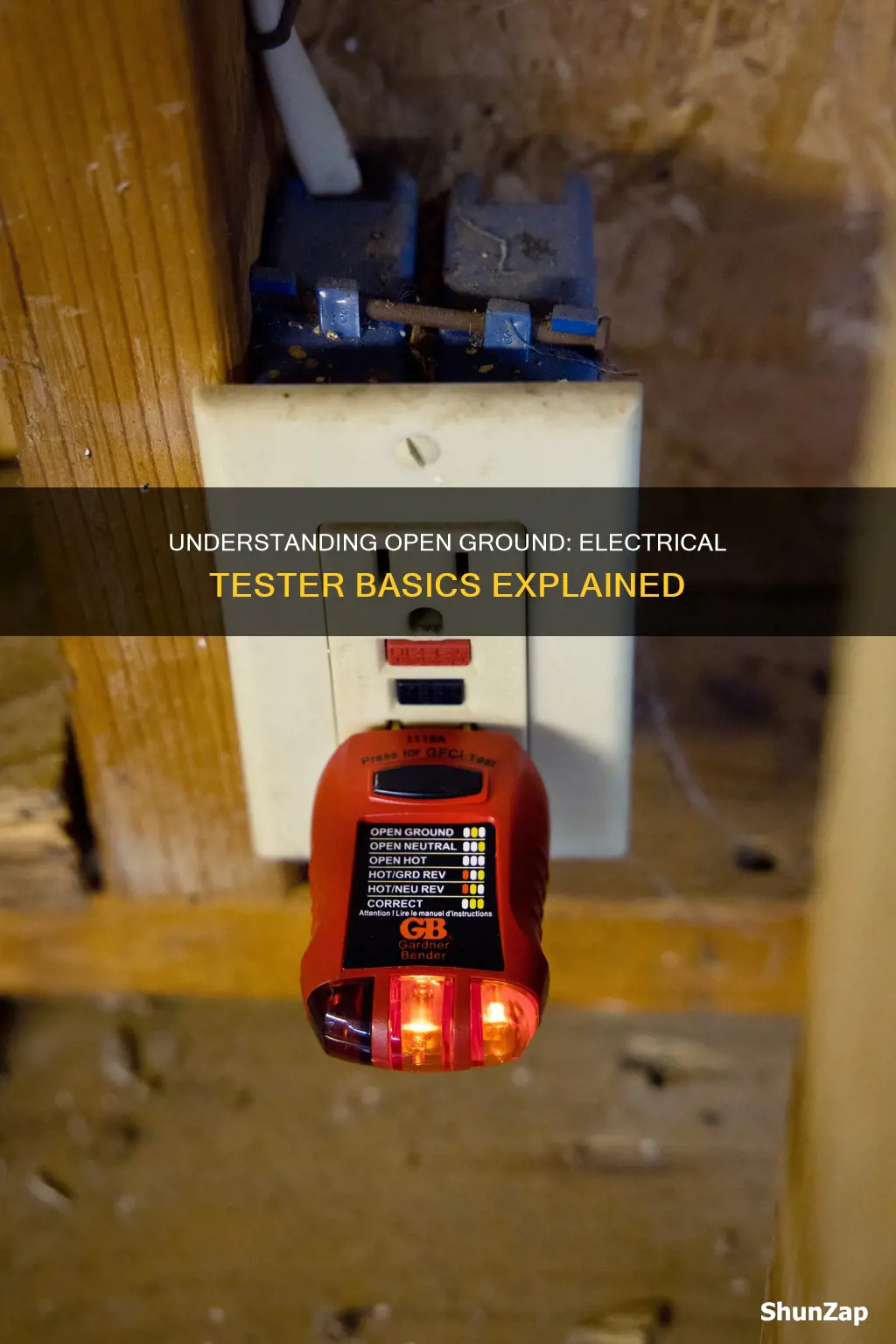

An open ground is when a three-pronged outlet is not connected to the home's grounding system. This is unsafe because if there is a fault, the surge could damage equipment or people, instead of being routed to the ground. Open grounds are usually found during home inspections. You can identify an open ground using an outlet tester. The tester will show a light-up code to indicate an open ground. For example, two right lights may indicate that the outlet is correctly grounded, while one middle light means there is an open ground.
