A parallel circuit is an electrical circuit with multiple pathways through which the current can flow. In other words, the electric current passes through two or more branches or connected parts at the same time before merging again. This is in contrast to a series circuit, where the current flows through each component in a single continuous loop. In a parallel circuit, each component has its own distinct path, and if one component fails, it does not affect the functioning of the others. This makes parallel circuits more reliable for consumer electronics.
| Characteristics | Values |
|---|---|
| Definition | A circuit in which the electric current passes through two or more branches or connected parts at the same time before combining again |
| Components | Connected across the same two points, creating multiple paths for current to flow |
| Voltage | The voltage across each component is the same |
| Current | The total current is the sum of the currents flowing through each component |
| Resistance | The total resistance in a parallel circuit decreases as more pathways are added |
| Safety and reliability | More reliable for consumer electronics because a single component failure does not compromise the entire circuit |
| Applications | Home lighting systems, powering advanced electronics, lithium-ion rechargeable batteries, solar electric systems |
Explore related products
What You'll Learn
- Parallel circuits have multiple paths for electric current to flow
- Each component in a parallel circuit has its own distinct path
- The voltage across each component in a parallel circuit is the same
- The total current in a parallel circuit is the sum of the currents through each component
- Parallel circuits are more reliable for consumer electronics
Parallel circuits have multiple paths for electric current to flow
A parallel circuit is a type of electrical circuit with multiple pathways for electric current to flow. It is defined by its unique characteristic of having components connected across the same two points, creating multiple paths for current to flow. This is in contrast to a series circuit, where components are connected end-to-end to form a single path for electric current to flow.
In a parallel circuit, the electric current divides and flows through multiple pathways before merging back together. This can be imagined as a river branching into several smaller streams. Each component in a parallel circuit has its own distinct path, and if one component fails, it does not affect the functioning of the others. This is why, in a home lighting system, if one light bulb goes out, the others continue to work because each bulb is independently connected to the power source.
The voltage across each component in a parallel circuit is the same, but the currents may vary. This is known as voltage uniformity. For example, in a home electrical circuit, the same voltage is applied across each light or appliance, but each of these draws a different amount of current, according to its power requirements.
The total resistance in a parallel circuit decreases as more pathways are added. This is because there are more routes for the current to take, making it easier for the flow to occur. This is an important principle to understand when designing and fixing circuits, particularly when precise control over voltage and current is required.
Understanding Low Impedance in Electrical Circuits: Basics Explained
You may want to see also
Explore related products
Each component in a parallel circuit has its own distinct path
A parallel circuit is a type of electrical circuit where multiple paths exist for the electric current to flow. In other words, the electric current passes through two or more branches or connected parts at the same time before combining again. This is in contrast to a series circuit, where the components are connected end-to-end to form a single path for the electric current to flow.
In a parallel circuit, each component has its own distinct path. This means that each component is independently connected to the power source. For example, in a home lighting system, each light bulb is wired to the battery in a separate loop, forming its own circuit. This independent operation ensures that the failure of one component does not affect the functionality of the others. For instance, if one light bulb goes out, the others will continue to work because each bulb has its own path for the electric current to flow through.
The concept of distinct paths in a parallel circuit is also evident in the behaviour of the electric current. In a parallel circuit, the current divides and only a part of it flows through any branch. This means that the total current in the circuit is the sum of the currents flowing through each component. This is in contrast to a series circuit, where the current that flows through each component is the same.
The presence of multiple paths in a parallel circuit has important implications for voltage and resistance. Firstly, it ensures voltage uniformity across the components. Each component in a parallel circuit experiences the same voltage, which is equal to the voltage across the entire circuit. This is because the voltage drop across each component is the same, and they all share identical polarities. Secondly, the total resistance in a parallel circuit decreases as more pathways are added. This is because there are more routes for the current to take, making it easier for the flow to occur.
Understanding Negative Electricity: Exploring the Minus Sign's Significance
You may want to see also
Explore related products
The voltage across each component in a parallel circuit is the same
A parallel circuit is an electrical path that branches so that the current divides and only a portion of it flows through any branch. In a parallel circuit, the voltage across each component is the same. This means that the voltage drop across each component is equal to the supply voltage of the circuit. For example, if you have four light bulbs connected in parallel to a 12-volt battery, the voltage drop across each bulb will be 12 volts, and they will all glow.
The same voltage is applied to all circuit components connected in parallel. This is because there are only two sets of electrically common points in a parallel circuit, and the voltage measured between sets of common points must always be the same at any given time. For instance, in a home electrical circuit, the same voltage is applied across each light or appliance, but each of these draws a different amount of current according to its power requirements.
The voltage across the components of a parallel circuit is always the same in magnitude, and they also have identical polarities. This is in contrast to a series circuit, where the voltage across the circuit is equal to the sum of the voltages across each component. In a series circuit, if the same four light bulbs were connected in series to a 12-volt battery, the voltage drop would be 3 volts across each bulb, which may not be sufficient to make them glow.
The concept of equal voltage across components in a parallel circuit is related to Kirchhoff's current law, which states that the total current in a parallel circuit is equal to the sum of the currents through each component. This is because, in a parallel circuit, the current supplied by each component will be a fraction of the total current. For example, if a battery is made up of four identical cells connected in parallel and delivers a current of 1 ampere, the current supplied by each cell will be 0.25 amperes.
Understanding Line and Load: Electrical Safety Basics
You may want to see also
Explore related products
The total current in a parallel circuit is the sum of the currents through each component
A parallel circuit is a type of electrical circuit where the components are connected along multiple paths, creating alternate routes for the electric charge to flow. This is in contrast to a series circuit, where components are connected along a single path, and the current flows through each component in sequence.
In a parallel circuit, the voltage across each component remains the same, and this voltage is equal to the voltage across the entire network. This is because the components in a parallel circuit have the same difference in potential across their ends, and the potential differences are identical in magnitude and polarity.
Now, focusing on the statement, "The total current in a parallel circuit is the sum of the currents through each component." This statement is indeed true and is in accordance with Kirchhoff's current law. To understand this, let's consider a simple example.

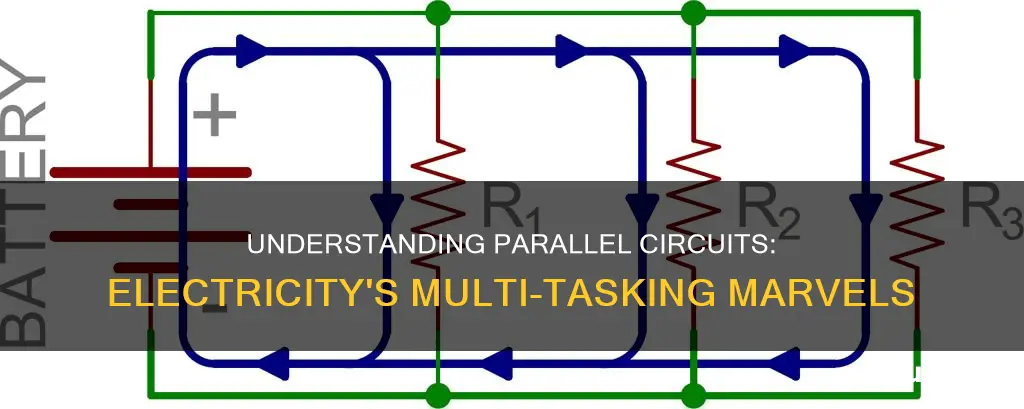

Imagine a parallel circuit with three resistors, R1, R2, and R3, connected to a battery. As the current exits the positive terminal of the battery, it encounters different paths it can take through the resistors. Some of the current may flow through R1, some through R2, and the rest through R3. When the currents from the individual resistors rejoin at the negative terminal of the battery, the total current returning to the battery is the sum of the currents that split off to flow through each resistor. This total current is the same as the current supplied by the battery.
The concept can be visualized by thinking of a river that branches into several smaller streams. The combined flow rates of all the streams must equal the flow rate of the main river. Similarly, in a parallel circuit, the total current exiting the battery is distributed across the various branches, and when they recombine, the total current returning to the battery is the sum of the individual branch currents.
This principle holds true regardless of whether the components in the parallel circuit are identical or not. For example, if you have four identical cells in a battery connected in parallel, the current supplied by each cell will be a fraction of the total current. On the other hand, if the cells have different voltages, the higher-voltage cells will attempt to charge the lower-voltage ones, but the total current will still be the sum of the individual currents.
Electrical Lighting Equipment: Understanding Safety and Performance Standards
You may want to see also
Explore related products
Parallel circuits are more reliable for consumer electronics
A parallel circuit is an electrical path that branches, allowing the current to divide so that only a portion of it passes through any branch. In a parallel circuit, all components are connected across each other, with each component having the same voltage across it, equal to the voltage across the network.
Another advantage of parallel circuits is that they allow for components in a circuit to have the same, consistent voltage. This is particularly important in applications such as automobile manufacturing, where one damaged tail light will not impact the efficacy of the other lights, maintaining safety.
Additionally, parallel circuits are commonly used in the wiring structure of homes and buildings due to their ability to handle multiple appliances. Each appliance draws a different amount of current according to its power requirements, and a parallel circuit can accommodate these varying needs.
While parallel circuits offer greater reliability for consumer electronics, it is important to consider their design complexity and cost implications. They require longer cables and wires, which can be expensive and take up more space. Additionally, the voltage of a parallel circuit cannot increase without the resistance in the circuit decreasing, and the battery tends to die quicker in DC applications.
Understanding the Meaning of 'P' in Electric Current
You may want to see also
Frequently asked questions
A parallel circuit is an electrical path that branches so that the current divides and only a part of it flows through any branch.
The voltage or potential difference across each branch of a parallel circuit is the same, but the currents may vary.
In a parallel circuit, the electric current passes through two or more branches or connected parts at the same time before combining again.
Parallel circuits are generally more reliable for consumer electronics because a single component failure does not compromise the entire circuit. They are also advantageous in applications requiring lower overall resistance.
A common example of a parallel circuit is a home lighting system. If one light bulb goes out, the others continue to work because each bulb is independently connected to the power source.
