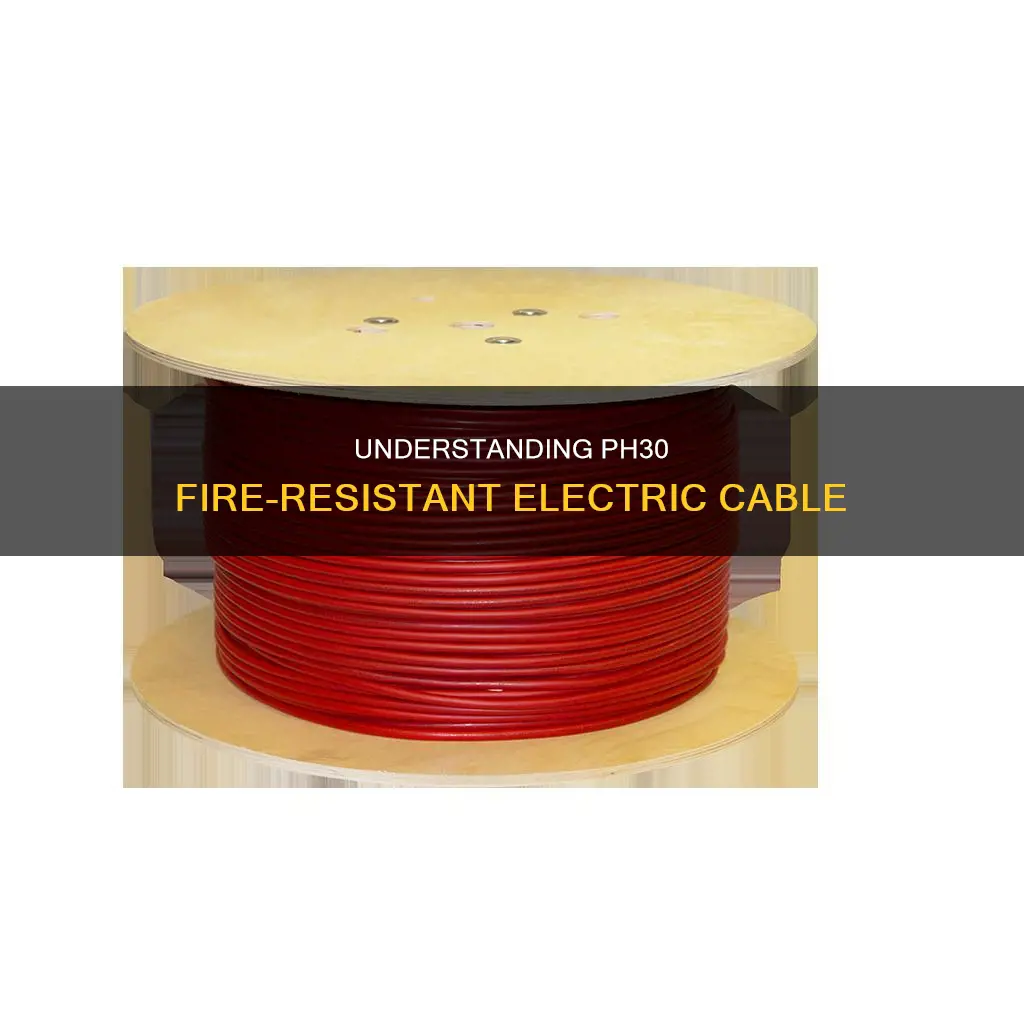

Fire-resistant cables are used to install fire alarm and emergency evacuation systems, where electrical circuits are required to function under fire conditions. PH30 cables are made with high-performance silicone rubber and superior low-smoke zero-halogen materials. They are suitable for indoor fire alarm installations where the circuit must be maintained for up to 30 minutes. PH30 cables are also versatile, offering RS485 communication for both addressable and conventional systems. They are compliant with IEC 60332-1, Cat CWZ to BS 6387, and BS EN 50200 standards and can resist short circuits under direct flames of up to 850°C.
PH30 Fire-Resistant Cable Characteristics and Values
| Characteristics | Values |
|---|---|
| Description | PH30 is a fire-resistant cable suitable for indoor fire alarm installations. |
| Circuit Maintenance | Up to 30 minutes |
| Composition | High-performance silicone rubber and low-smoke zero-halogen materials |
| Resistance | Resists short circuits under direct flames up to 830°C-850°C |
| Compliance | IEC 60332-1, Cat CWZ to BS 6387, BS EN 50200, BS7629-1, BS7846, BS8434-2, BS8491, BS6387 CWZ, BS8591 |
| Applications | Fire alarm and emergency evacuation systems, industrial complexes, power stations, communal establishments, hotels, airports, underground railway networks, hospitals, department stores, data processing centres, theatres, cinemas, multi-storey buildings, public gatherings, schools, mining works, offshore plants, leading centres, traffic communication, emergency power supplies, alarm systems |
Explore related products
What You'll Learn
PH30 and PH120 are enhanced fire-resistant cables
Fire-resistant cables are essential in fire alarm installations to ensure the system remains operational for as long as possible in the event of a fire. The British Standards recommend specific cabling based on fire resistance testing. PH30 and PH120 are enhanced fire-resistant cables, designed for indoor fire alarm installations.
PH30 cables are made with high-performance silicone rubber and superior low-smoke zero-halogen materials. They are suitable for indoor fire alarm installations where the circuit must be maintained for up to 30 minutes.
PH120 cables are also made with high-performance silicone rubber and superior low-smoke zero-halogen materials. They are designed for indoor fire alarm installations where the circuit must be maintained for up to 120 minutes.
These enhanced fire-resistant cables are ideal for buildings that require a longer fire alarm system activation time. For example, larger buildings may involve a multi-phase evacuation process, so the fire alarm needs to operate for a much longer duration. The cables are tested by being placed directly in a flame and timed until the circuit breaks. This test determines how long the cable can survive in direct heat situations, typically around 830°C.
The performance requirements of these cables meet British Standards and are tested according to various protocols, including EN 50200, BS8434-2, BS8491, BS6387 CWZ, and Annex B of BS8591.
Understanding OCPD: Electrical Safety and Circuit Protection
You may want to see also
Explore related products
PH30 cable maintains the emergency system for 30 minutes
PH30 cables are fire-resistant cables with halogen-free compounds that are used to install fire alarm and emergency evacuation systems. These cables are essential for maintaining emergency systems for 30 minutes during fire conditions, preventing loss of life and property.
The British Standards recommend the type of cabling to be used based on fire resistance testing. PH30 cables are enhanced fire-resistant cables, specifically designed for scenarios where a longer fire alarm system activation is required. This makes them ideal for larger buildings with multi-phase evacuation processes, ensuring the fire alarm operates for a longer duration.
PH30 cables are made with high-performance silicone rubber and superior low-smoke zero-halogen materials. They are suitable for indoor fire alarm installations and can maintain the circuit for up to 30 minutes. The cables undergo rigorous testing, where they are placed in a direct flame and timed until the circuit breaks. This testing process determines the cable's resilience, with PH30 cables typically able to withstand direct heat situations at temperatures around 830°C to 850°C.
These fire-resistant cables are versatile and compliant with international standards such as IEC 60332-1, Cat CWZ to BS 6387, and BS EN 50200. They find applications in a wide range of settings, including industrial complexes, power stations, communal establishments, hotels, airports, underground railway networks, hospitals, data processing centres, theatres, schools, mining works, and more.
Hidden Costs: Electric Exclusions in Rental Apartments
You may want to see also
Explore related products
PH30 resists short circuits under direct flames up to 850°C
Fire-resistant PH30 cables are designed to resist short circuits under direct flames and high temperatures of up to 850°C. These cables are essential for fire alarm and emergency evacuation systems, ensuring the continuity of electrical circuits even in fire conditions, which is critical for preventing loss of life and property.
PH30 cables are made with high-performance silicone rubber and superior low-smoke zero-halogen materials. This composition enables the cables to withstand intense heat and maintain circuit integrity for up to 30 minutes during a fire. The zero-halogen property is crucial in fire safety, as it minimises the release of toxic gases and smoke, reducing harm to individuals and improving overall safety.
The ability of PH30 cables to resist short circuits under direct flames is a critical feature, especially in large and complex buildings. These structures often require a prolonged fire alarm system activation period, and PH30 cables are specifically designed for such scenarios. They are commonly used in industrial complexes, power stations, hospitals, transportation hubs, and multi-storey buildings, providing essential protection for people and assets.
The fire resistance of PH30 cables is rigorously tested to ensure their reliability in emergency situations. The cables are subjected to direct flames, and the time until the circuit breaks is measured. These tests demonstrate the cable's ability to maintain functionality even when exposed to extreme temperatures of up to 850°C. This fire performance exceeds the typical testing temperatures, which are around 830°C, providing a margin of safety.
The versatility of PH30 cables makes them suitable for a wide range of applications. They can be installed outdoors, underground, in dry and damp rooms, in walls, and in various types of buildings. This adaptability ensures that PH30 cables can provide fire safety and protection in a variety of environments, contributing to the overall resilience of structures and infrastructure.
Understanding the Electrical Term P3 and Its Significance
You may want to see also
Explore related products
PH30 cables are used in fire alarm and emergency evacuation systems
Fire alarm and emergency evacuation systems are designed to prevent loss of life and property in the event of a fire. PH30 cables are a type of fire-resistant cable used in these systems to maintain electrical circuits for up to 30 minutes under fire conditions. They are made with high-performance silicone rubber and superior low-smoke zero-halogen materials, which means they produce less smoke and no acidic gases when exposed to fire. This makes them suitable for indoor installations in buildings such as hospitals, schools, and multi-storey buildings.
The British Standards recommend the type of cabling to be used in fire alarm and emergency evacuation systems based on fire resistance testing. PH30 cables are one of the most popular choices for these systems, as they have been specifically developed for scenarios where a longer fire alarm system activation is required. For example, larger buildings may involve a multi-phase evacuation process, so the fire alarm system needs to operate for a longer period.
The fire resistance of PH30 cables is tested by placing them in a direct flame and timing how long it takes for the circuit to break. These tests have shown that PH30 cables can typically withstand direct heat of around 830°C-850°C for 30 minutes. This makes them suitable for a range of applications, including industrial complexes, power stations, communal establishments, airports, and underground railway networks.
PH30 cables are available in shielded and unshielded versions, with variations such as PVC and Plenum, making them suitable for different types of installations. They comply with international standards for fire performance cables and are designed to resist short circuits when exposed to direct flames. Overall, PH30 cables play a crucial role in ensuring the reliability and longevity of fire alarm and emergency evacuation systems, helping to protect people and property in the event of a fire.
Understanding Impedance: Electrical Resistance and Reactance Explained
You may want to see also
Explore related products
PH30 cables are suitable for outdoor and underground applications
PH30 cables are versatile and suitable for both outdoor and underground applications. They are commonly used for fire alarm installations and emergency evacuation systems, where maintaining long-term electrical circuits is crucial during fire emergencies to prevent loss of life and property.
These cables are designed to resist short circuits when exposed to direct flames, withstanding temperatures up to 830°C to 850°C. The British Standards recommend the use of PH30 cables based on rigorous fire resistance testing. The cables are tested by placing them directly in a flame and timing until the circuit breaks, ensuring they can maintain functionality in intense heat situations.
PH30 cables are ideal for a range of indoor and outdoor installations. They can be installed in conduits or tubes for outdoor and underground applications, with proper precautions taken to prevent water accumulation. Additionally, they are suitable for fixed installations in various environments, including dry and damp rooms, in, above, or beneath plaster, and in masonry walls and concrete.
The versatility of PH30 cables makes them suitable for a wide range of applications, including industrial complexes, power stations, communal establishments, hotels, airports, underground railway networks, hospitals, outpatient clinics, department stores, data processing centres, theatres, cinemas, multi-storey buildings, public gatherings, schools, mining works, offshore plants, leading centres, traffic communication, emergency power supplies, and alarm systems.
PH30 cables are an essential component of fire safety systems, providing reliable performance and maintaining emergency systems for up to 30 minutes during fire events.
Understanding Electrical Lockout: Definition and Importance
You may want to see also
Frequently asked questions
PH30 is a type of fire-resistant cable that can maintain an emergency system for 30 minutes.
PH30 cables are made with high-performance silicone rubber and superior low-smoke zero-halogen materials.
PH30 cables are used for fire alarm and emergency evacuation systems, fire monitoring, fire detection, power-limited fire alarm systems, smoke detectors, signalling, audio circuits, control circuits, fire protective circuits, and security systems.
PH30 cables can be installed outdoors and underground when placed in conduits or tubes. They are also suitable for fixed installations in dry and damp rooms, in, above, on, and beneath plaster, in masonry walls, and concrete.
