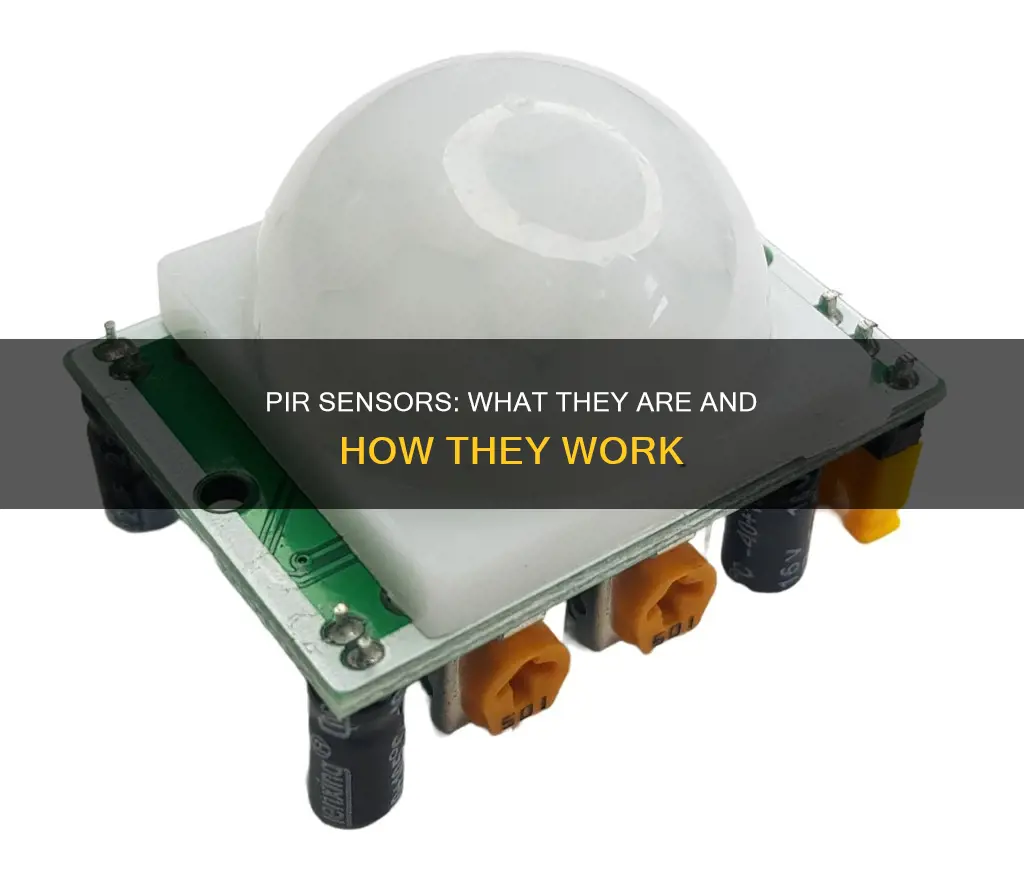

PIR stands for Passive Infrared Sensor, a type of sensor that functions by detecting infrared radiation. PIR sensors are passive in nature, meaning they do not emit any form of energy themselves. Instead, they detect infrared radiation emitted by moving objects, animals, and humans within their field of view. PIR sensors are widely used in smart lighting systems, security systems, and motion detection, offering convenience, energy savings, and enhanced security. They are also known as pyroelectric infrared sensors, referring to the pyroelectric effect where crystals undergo temperature fluctuations and produce electrical charges.
| Characteristics | Values |
|---|---|
| Full Form | Passive Infrared Sensor |
| Other Names | Pyroelectric Infrared Sensor, PID (Passive Infrared Detector) |
| Function | Detects infrared radiation emitted by moving objects, animals, and humans |
| Use Cases | Motion detection, security alarms, automatic lighting, door openings, vending machines, automatic lighting switches, lift lobbies, etc. |
| Advantages | Low cost, ease of use, energy savings, low false alarm rates, convenience, no interference |
| Disadvantages | May not detect objects with fixed wavelengths or objects moving too quickly |
| Components | Pyroelectric sensor, Fresnel lens, Relay coil |
| Detection Range | 5-14 micrometres |
| Detection Angle | 90-140 degrees |
Explore related products
What You'll Learn
PIR stands for Passive Infrared Sensor
Passive Infrared Sensors are electronic sensors that measure infrared (IR) light radiating from objects in their field of view. They are most commonly used in PIR-based motion detectors, security alarms, and automatic lighting applications. PIR sensors detect general movement but do not provide information on who or what moved.
The term "passive" refers to the fact that PIR devices do not radiate energy for detection purposes. Instead, they work by detecting infrared radiation (radiant heat) emitted by or reflected from objects. All objects with a temperature above absolute zero emit heat energy in the form of electromagnetic radiation. This radiation is usually invisible to the human eye because it radiates at infrared wavelengths, but it can be detected by electronic devices designed for such a purpose.
PIR sensors are composed of two main parts: a pyroelectric sensor and a Fresnel lens. The Fresnel lens is a special type of lens that focuses the IR signals on the pyroelectric sensor, which is capable of detecting different infrared radiation levels. When used as part of a lighting system, the electronics in the PIR typically control an integral relay capable of switching mains voltage. This means that the PIR can be set up to turn on lights connected to it when movement is detected.
Electric Oil Radiators: Are They Worth the Hype?
You may want to see also
Explore related products
PIR sensors detect motion
PIR stands for Passive Infrared Sensor. These sensors are electronic devices that measure infrared (IR) light radiating from objects in their field of view. They are commonly used in PIR-based motion detectors, security alarms, and automatic lighting applications.
PIR sensors detect general movement but do not identify the specific object in motion. They work by detecting infrared radiation (radiant heat) emitted or reflected by objects. All objects with a temperature above absolute zero emit heat energy in the form of electromagnetic radiation, typically at infrared wavelengths. This emitted radiation is invisible to the human eye but can be detected by PIR sensors.
The PIR sensor typically consists of a pyroelectric sensor and a Fresnel lens. The pyroelectric sensor detects different levels of infrared radiation, while the Fresnel lens focuses the IR signals onto the pyroelectric sensor. The lens design determines the breadth, range, and sensing pattern of the PIR sensor. Lenses with more facets have a denser coverage area, increasing the probability of detecting an object in motion.
PIR sensors are designed to detect changes in the amount of infrared radiation reaching the sensor. When an object, such as a human or animal, moves in front of a background, the temperature at that point in the sensor's field of view changes. This change in temperature results in a variation in the incoming infrared radiation, which the sensor converts into a change in output voltage, triggering the detection.
PIR sensors are widely used in smart lighting systems, security alarms, and motion-activated lighting. They are small, inexpensive, low-power, and easy to use, making them suitable for various applications, including lighting control, security systems, and automatic doors.
Grounding Electricity: Safety and Functionality Explained
You may want to see also
Explore related products
They are used in security systems
PIR stands for "Passive Infrared Sensor". It is a type of motion sensor that detects infrared radiation emitted by moving objects, animals, and humans within its field of view. The term "passive" indicates that PIR devices do not emit energy for detection, but instead, they detect infrared radiation (radiant heat) emitted or reflected by objects.
PIR sensors are widely used in security systems, such as intrusion alarms in houses, villas, and commercial properties. They are also used in automatic lighting systems, which can act as a deterrent to trespassers and thieves. When motion is detected, the lights turn on for a set amount of time, making it easier to identify and deter intruders.
PIR sensors are typically mounted on a printed circuit board, contained within a housing in the location they are intended to monitor. The housing usually has a plastic "window" that allows infrared energy to enter while blocking out visible light. This plastic window also helps to prevent foreign objects, such as dust, insects, or rain, from obscuring the sensor's field of view or causing false alarms.
The PIR sensor has two main parts: a pyroelectric sensor and a Fresnel lens. The Fresnel lens is a specialized type of lens that focuses the IR signals onto the pyroelectric sensor. This sensor can detect different levels of infrared radiation and generate positive and negative outputs accordingly. When there is no movement, the sensor detects similar amounts of IR radiation from both slots, resulting in a zero output signal.
PIR sensors are cost-effective, simple to use, and consistent in performance. They can be adjusted to modify the detection range and sensitivity to prevent unnecessary activation. PIR sensors are also useful for workplace safety, turning off hazardous equipment when someone enters a specified range.
Electrical Circuit Symbols: A Comprehensive Guide
You may want to see also
Explore related products
PIR sensors are used in lighting systems
PIR stands for "Passive Infrared Sensor". PIR sensors are electronic sensors that measure infrared (IR) light radiating from objects in their field of view. They are commonly used in security alarms and automatic lighting applications.
PIR sensors are widely used in smart lighting systems and save money by reducing lighting usage and energy consumption. They are employed in offices, classrooms, corridors, stairwells, storage areas, and parking garages. Lights can be programmed to either "dim" or "switch" in response to an occupancy status signal from a sensor. This improves comfort for occupants as they never have to enter a dark area or manually turn lights on or off.
PIR sensors are also used in automatic lighting systems to detect human presence and regulate the lights accordingly. They are suitable for both internal and external use and for all types of residential, commercial, and industrial properties. The PIR sensor range for lights is typically around 6-12 meters. Some models allow you to adjust the range or detection sensitivity.
PIR sensors are also an essential component of security alarm systems. They can be used to detect human intrusions and trigger alarms or activate surveillance cameras. They can also be used to turn off potentially hazardous equipment when someone gets too close.
PIR sensors are small, inexpensive, and easy to install. They are typically mounted on a printed circuit board containing the necessary electronics to interpret the signals from the sensor. The complete assembly is usually contained within a housing, mounted in a location where the sensor can cover the area to be monitored.
Building Permits: Electrical and Plumbing Included?
You may want to see also
Explore related products
They are also known as pyroelectric infrared sensors
Passive infrared (PIR) sensors are electronic sensors that measure infrared (IR) light radiating from objects in their field of view. They are also known as pyroelectric infrared sensors because they detect infrared radiation through the use of a pyroelectric crystal.
Pyroelectric sensors are made of a material that is highly sensitive to thermal changes and will also pick up mechanical and electromagnetic distortions. They are composed of a thin pyroelectric crystal coated perpendicular to the polar axis with electrodes. When the upper electrode of the crystal, which has an absorbing layer (black layer), interacts with infrared radiation, the pyroelectric layer heats up and a surface charge arises. If the radiation is switched off, a charge of the opposite polarity originates. This change in charge is then converted into a signal voltage.
PIR sensors are most often used in motion detectors, such as in security alarms and automatic lighting applications. They are widely used in smart lighting systems and save money by reducing lighting usage and energy consumption. They can be used in offices, classrooms, corridors, stairwells, storage areas, and parking garages.
PIR sensors can detect the movement of an animal or human within a fixed range. The lens can have multiple facets that each look for a heat signature, so the more facets a lens has, the denser the sensor's coverage area. With an extended range, the facets' view angle is wider (approximately 120-140 degrees), while with a short or standard range, the angle is narrower (approximately 90-110 degrees).
RV Electrical Setup: A Guide to Power at Camp
You may want to see also
Frequently asked questions
PIR stands for Passive Infrared Sensor. It is a type of sensor that functions by detecting infrared radiation.
PIR sensors are commonly used in security systems, lighting control systems, and other applications where motion detection is required. They are also used in smart lighting systems to save energy by reducing lighting usage.
PIR sensors detect changes in infrared radiation within their field of view when an object moves through their detection area. This change in infrared energy triggers an output signal, which can be used to activate an alarm or turn on a light.
